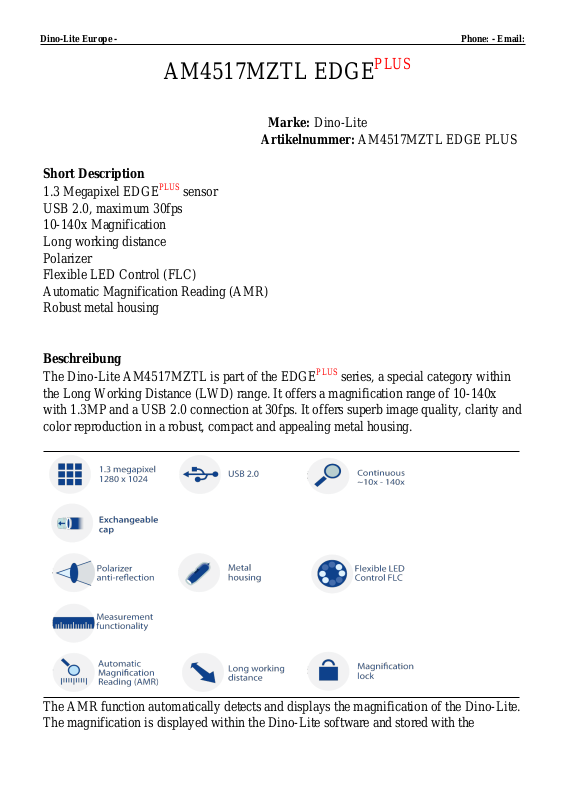

Dino-Lite Europe - Phone: - Email:
PLUS
AM4517MZTL EDGE
Marke: Dino-Lite
Artikelnummer: AM4517MZTL EDGE PLUS
Short Description
1.3 Megapixel EDGE
USB 2.0, maximum 30fps
10-140x Magnification
Long working distance
Polarizer
Flexible LED Control (FLC)
Automatic Magnification Reading (AMR)
Robust metal housing
PLUS
sensor
Beschreibung
The Dino-Lite AM4517MZTL is part of the EDGE
PLUS
series, a special category within
the Long Working Distance (LWD) range. It offers a magnification range of 10-140x
with 1.3MP and a USB 2.0 connection at 30fps. It offers superb image quality, clarity and
color reproduction in a robust, compact and appealing metal housing.
The AMR function automatically detects and displays the magnification of the Dino-Lite.
The magnification is displayed within the Dino-Lite software and stored with the
captured picture and simplifies the measuring process. Because of the built-in
polarization filter this model is ideal when working with shiny or reflective objects such
as metal, plastic, glass, jewelry, electronics, etc.
The main features of the AM4517MZTL are:
• 1.3 Megapixel EDGE
PLUS
sensor
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• 10-140x magnification
• Long working distance
• Adjustable polarizer
• 30fps
• Metal housing
• And more...
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
10
20
WORKING
DISTANCE*
FIELD OF
VIEW(X)
237.6 39.1 29 24.61
115.0 19.5 14.7 6.68
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
30
40
50
60
70
80
90
100
110
120
130
140
Listed values
may differ
slightly
Spezifikation
75.4 13.0 9.8 3.21
56.7 9.8 7.3 1.94
46.4 7.8 5.9 1.33
40.1 6.5 4.9 0.98
36.3 5.6 4.2 0.76
34.0 4.9 3.7 0.62
32.6 4.3 3.3 0.51
31.9 3.9 2.9 0.44
31.7 3.6 2.7 0.38
31.9 3.3 2.4 0.33
32.4 3.0 2.3 0.3
33.2 2.8 2.1 0.27
*Without front
Unit = mm
cap
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 11.1 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer
Housing
Housing material Metal housing
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF (max 1.3MP)
JPEG, PNG
MOV
(optional)
Magnification lock Yes
Dimensions 10.5cm (L) x 3.3cm (D)
Weight 130g
Cable length 1.5m
Features
Special feature Flexible LED Control (FLC) & Automatic
Magnification Reading (AMR)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, user
manual, quick guide, calibration target, front cover
box with N3C-O- Open cap, N3C-C- Closed cap,
N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-
L- Long cap, N3C-S- Side light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1100,00
