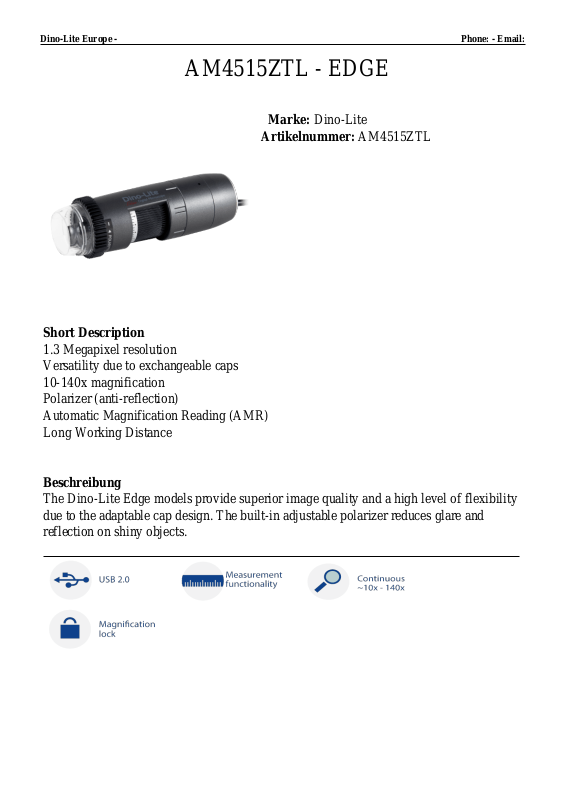

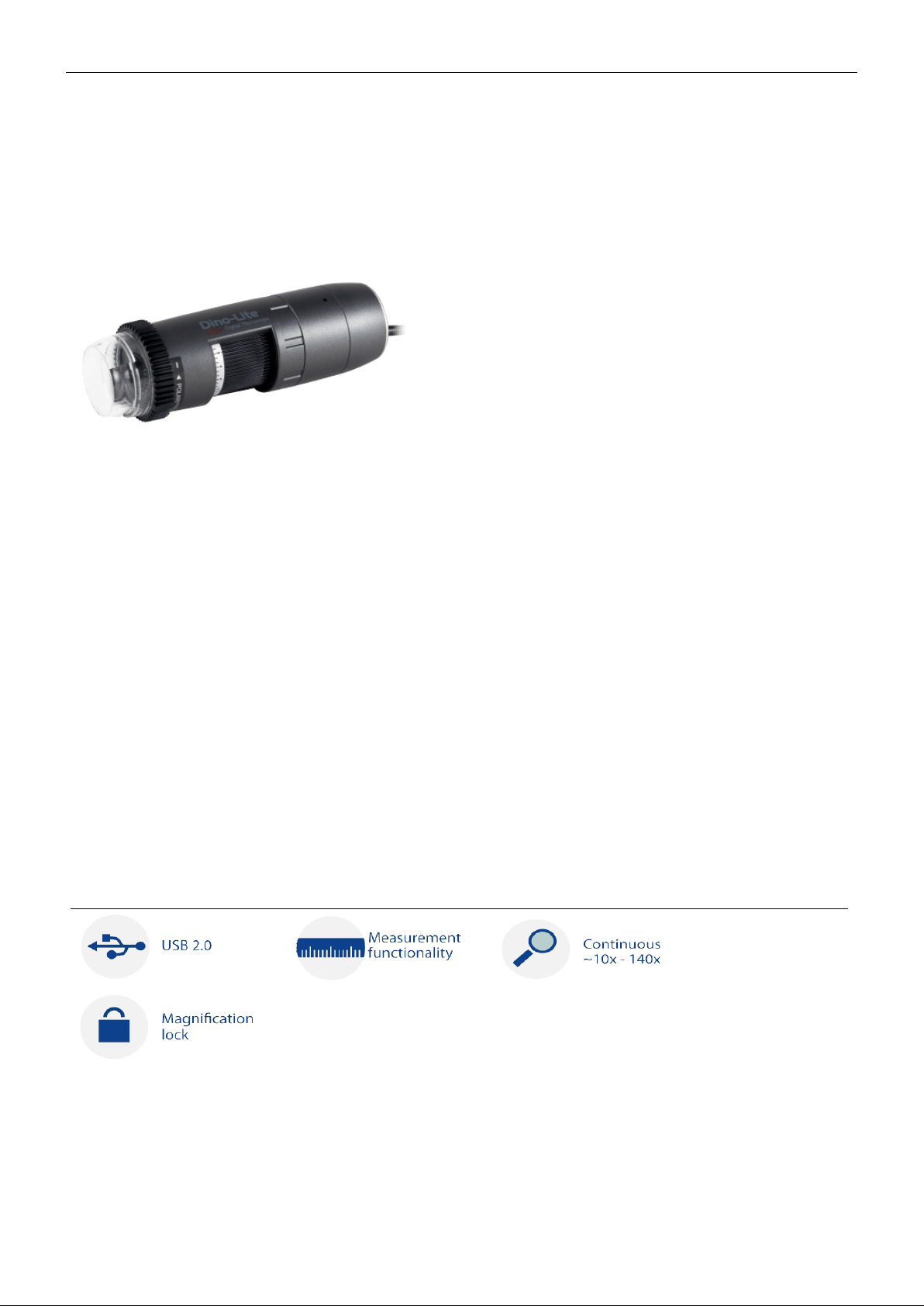

AM4515ZTL - EDGE
Short Description
1.3 Megapixel resolution
Versatility due to exchangeable caps
10-140x magnification
Marke: Dino-Lite
Artikelnummer: AM4515ZTL

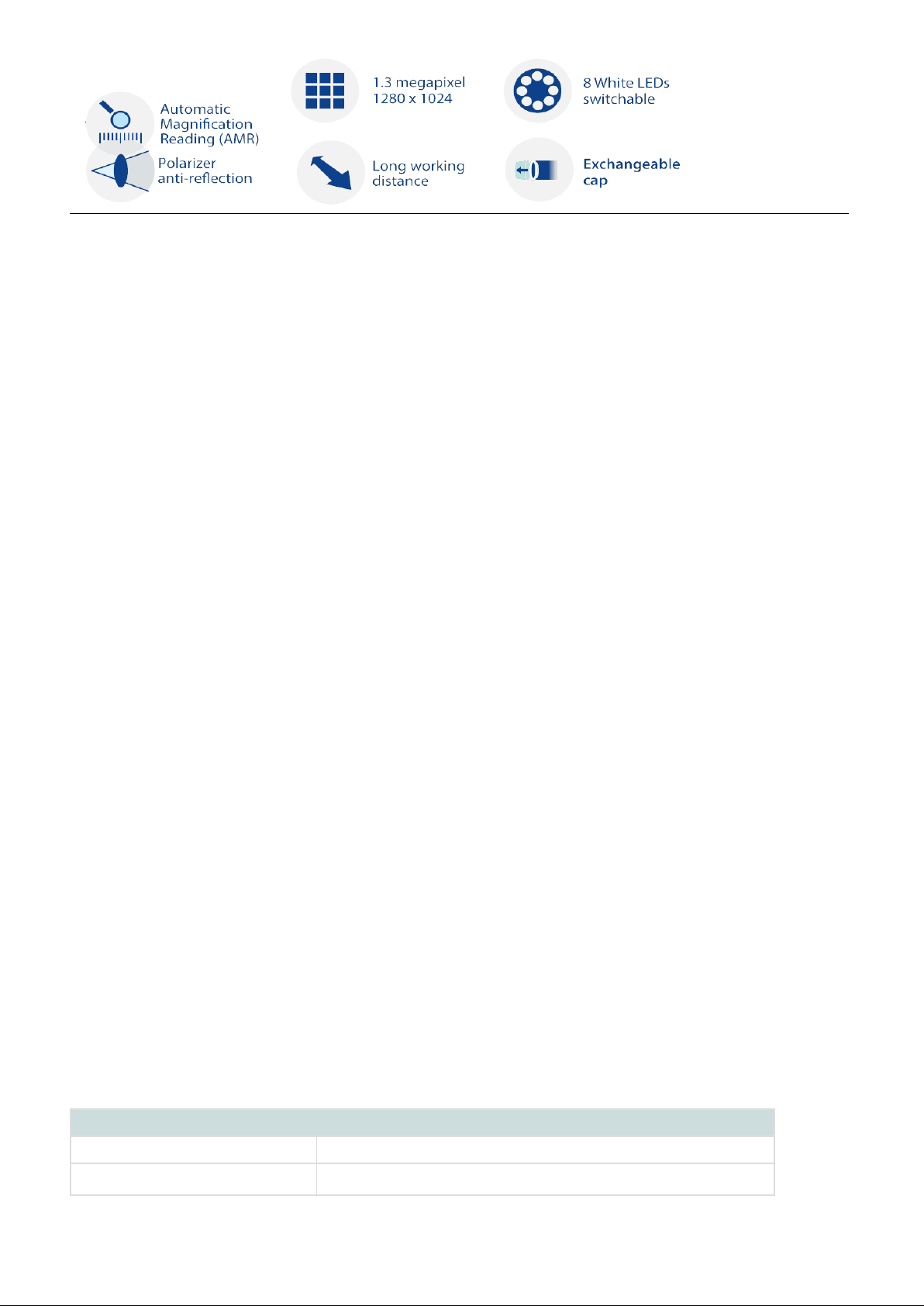

Polarizer (anti-reflection)
Automatic Magnification Reading (AMR)
Long Working Distance
Beschreibung
The Dino-Lite Edge models provide superior image quality and a high level of flexibility
due to the adaptable cap design. The built-in adjustable polarizer reduces glare and
reflection on shiny objects.
Page 2
With the built-in Automatic Magnification Reading (AMR), measurements can be
performed easily and quickly. Different caps are supplied with the microscope making
the Dino-Lite Edge the perfect choice for any professional application. Together with the
long working distance of up to 23 centimetres the AM4515ZTL is the ideal choice in
situations, where real time images are vital, such as working on PCB's or other miniature
objects.
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
Listed values
may differ
slightly
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
WORKING
DISTANCE*
* Without front
cap
FIELD OF
VIEW(X)
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
Unit = mm
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
Page 3
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV
(optional)
Weight 105g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Page 4
Information
Package contents Microscope, carry pouch, software CD, calibration
target, user manual, N3C-O- Open cap, N3C-C-
Closed cap, N3C-D- diffuser cap, N3C-E-
Extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €600,00 - €800,00
