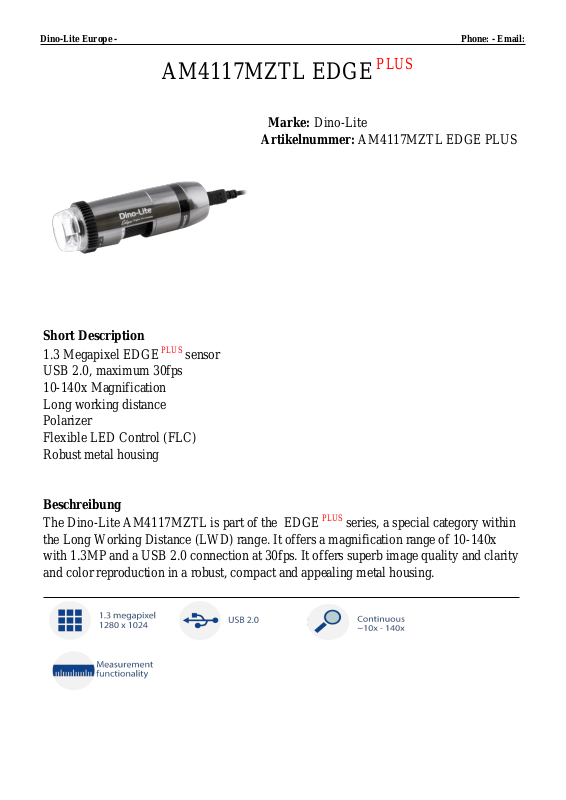

AM4117MZTL EDGE
Short Description
1.3 Megapixel EDGE
PLUS
USB 2.0, maximum 30fps
10-140x Magnification
Marke: Dino-Lite
Artikelnummer: AM4117MZTL EDGE PLUS
sensor
Long working distance
Polarizer
Flexible LED Control (FLC)
Robust metal housing
Beschreibung
The Dino-Lite AM4117MZTL is part of the EDGE
PLUS
series, a special category within
the Long Working Distance (LWD) range. It offers a magnification range of 10-140x
with 1.3MP and a USB 2.0 connection at 30fps. It offers superb image quality and clarity
and color reproduction in a robust, compact and appealing metal housing.
The main features of the AM4117MZTL are:
• 1.3 Megapixel EDGE
PLUS
sensor
• Flexible LED Control (FLC)
• 10-140x magnification
• Long working distance
• Adjustable polarizer
• 30fps
• Metal housing
• And more...
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
10
WORKING
DISTANCE*
FIELD OF
VIEW(X)
237.6 39.1 29 24.61
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
20
30
40
50
60
70
80
90
100
110
120
130
140
Listed values
may differ
115.0 19.5 14.7 6.68
75.4 13.0 9.8 3.21
56.7 9.8 7.3 1.94
46.4 7.8 5.9 1.33
40.1 6.5 4.9 0.98
36.3 5.6 4.2 0.76
34.0 4.9 3.7 0.62
32.6 4.3 3.3 0.51
31.9 3.9 2.9 0.44
31.7 3.6 2.7 0.38
31.9 3.3 2.4 0.33
32.4 3.0 2.3 0.3
33.2 2.8 2.1 0.27
*Without front
Unit = mm
cap
slightly
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 11.1 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF (max 1.3MP)
JPEG, PNG
MOV
Wifi Wireless-ready, requires the WF-10 WiFi streamer
(optional)
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 130g
Cable length 1.5m
Features
Special feature Flexible LED Control (FLC)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, calibration
target, user manual, N3C-O- Open cap, N3C-C-
Closed cap, N3C-D- diffuser cap, N3C-E-
Extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1100,00
