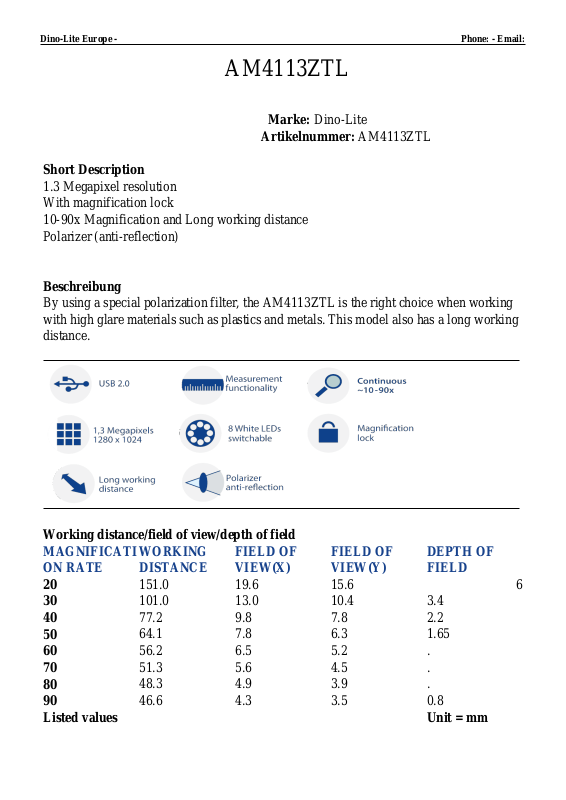

AM4113ZTL
Marke: Dino-Lite
Artikelnummer: AM4113ZTL
Short Description
1.3 Megapixel resolution
With magnification lock
10-90x Magnification and Long working distance
Polarizer (anti-reflection)
Beschreibung
By using a special polarization filter, the AM4113ZTL is the right choice when working
with high glare materials such as plastics and metals. This model also has a long working
distance.
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
20
WORKING
DISTANCE
151.0 19.6 15.6 6
FIELD OF
VIEW(X)
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
30
40
50
60
70
80
90
Listed values Unit = mm
101.0 13.0 10.4 3.4
77.2 9.8 7.8 2.2
64.1 7.8 6.3 1.65
56.2 6.5 5.2 .
51.3 5.6 4.5 .
48.3 4.9 3.9 .
46.6 4.3 3.5 0.8
may differ
slightly
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-90x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer
(optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration
target, ZT-Z-CC1 cap closure, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €400,00 - €600,00
