Dino-Lite Europe - Phone: - Email:

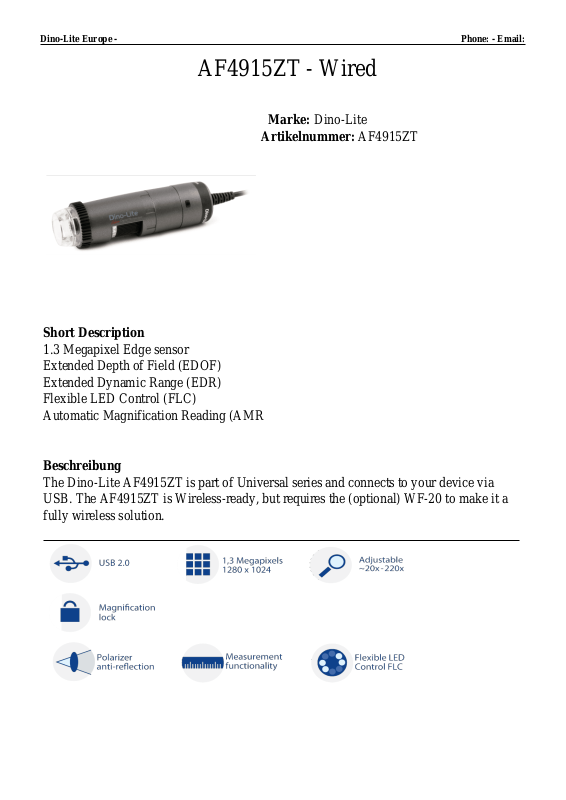

AF4915ZT - Wired
Short Description
1.3 Megapixel Edge sensor
Extended Depth of Field (EDOF)
Extended Dynamic Range (EDR)
Marke: Dino-Lite
Artikelnummer: AF4915ZT
Flexible LED Control (FLC)
Automatic Magnification Reading (AMR
Beschreibung
The Dino-Lite AF4915ZT is part of Universal series and connects to your device via
USB. The AF4915ZT is Wireless-ready, but requires the (optional) WF-20 to make it a
fully wireless solution.
The AF4915ZT is equipped with premium features such as Extended Depth of Field
(EDOF), Extended Dynamic Range (EDR), Flexible LED control (FLC), integrated
polarizer, extensive measurement functionality and Automatic Magnification Reading
(AMR) for measurement-intensive applications.
The main features of the AF4915ZT are:
• Wireless-ready, requires the WF-20 adapter (optional)
• 20-220x magnification
• 1.3 Megapixel Edge sensor
• Adjustable polarizer
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• And more...
(*EDOF/EDR only functions under Windows OS)
Working distance/ field of view/ depth of field:
MAGNIFICATI
ON RATE
20
30
40
50
60
70
80
90
100
110
120
WORKING
DISTANCE *
60.2 19.5 15.6 2.5
33.5 13 10.4 1.8
20.9 9.8 7.8 1.5
13.9 7.8 6.3
9.7 6.5 5.2
7.1 5.6 4.5 1.0
5.5 4.9 3.9
4.5 4.3 3.5
4.1 3.9 3.1
4 3.6 2.8
4.1 3.3 2.6
FIELD OF
VIEW(X)
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
130
4.5 3 2.4
140
150
160
170
180
190
200
210
220
Listed values
may differ
slightly
Spezifikation
5 2.8 2.2
5.6 2.6 2.1
6.3 2.4 2
7.1 2.3 1.8
8 2.2 1.7
8.9 2.1 1.6
9.9 2 1.6
10.9 1.9 1.5
11.9 1.8 1.4 0.1
* Without front
cap
Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 20-220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats
(Windows)
WMV, FLV, SWF
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-20 adapter
Housing
Housing material Composite/ plastic housing
Dimensions 11.4cm (L) x 3.3cm (D)
Weight 111g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading(AMR), Ext.
Measurement Yes
JPEG, PNG
MOV
(optional)
Dynamic Range (EDR), Extended Depth of Field
(EDOF), Flexible LED Control (FLC)
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, Carry pouch, software CD, calibration
target, user manual, N3C-O- Open cap, N3C-C-
Closed cap, N3C-D- diffuser cap, N3C-E-
extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €700,00 - €800,00
Product Gallery
