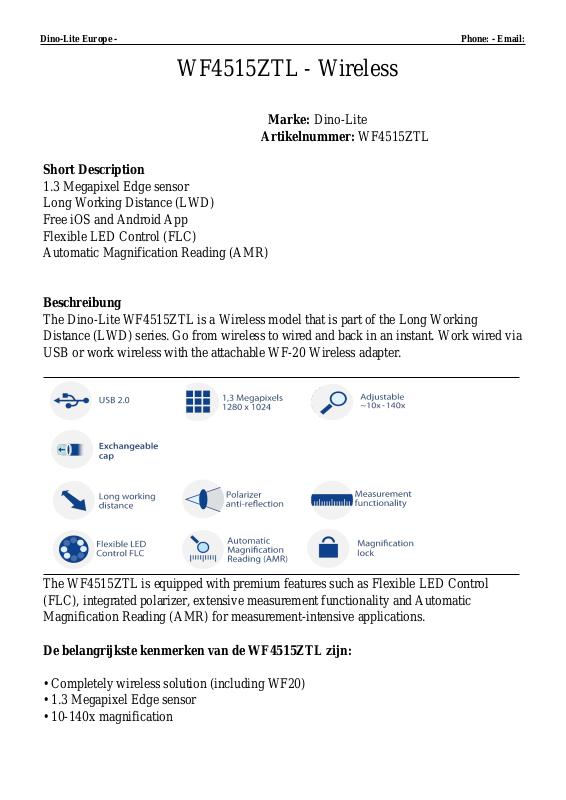

WF4515ZTL - Wireless
Marke: Dino-Lite
Artikelnummer: WF4515ZTL
Short Description
1.3 Megapixel Edge sensor
Long Working Distance (LWD)
Free iOS and Android App
Flexible LED Control (FLC)
Automatic Magnification Reading (AMR)
Beschreibung
The Dino-Lite WF4515ZTL is a Wireless model that is part of the Long Working
Distance (LWD) series. Go from wireless to wired and back in an instant. Work wired via
USB or work wireless with the attachable WF-20 Wireless adapter.
The WF4515ZTL is equipped with premium features such as Flexible LED Control
(FLC), integrated polarizer, extensive measurement functionality and Automatic
Magnification Reading (AMR) for measurement-intensive applications.
De belangrijkste kenmerken van de WF4515ZTL zijn:
• Completely wireless solution (including WF20)
• 1.3 Megapixel Edge sensor
• 10-140x magnification
Page 2
• Long Working Distance (LWD)
• Automatic Magnification Reading (AMR)
• Adjustable polarizer
• Flexible LED Control (FLC)
• And more ...
Working distance/field of view/depth of field
Magnification
Rate
Listed values
may differ
slightly
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
Working
Distance *
* Without front
cap
Field of View(x) Field of
View(y)
Depth of Field
Unit = mm
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Page 3
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi Yes
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 11.4cm (L) x 3.3cm (D)
Weight 111g
Cable length 1.8m
Features
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV
Special feature Automatic Magnification Reading (AMR),
Flexible LED Control (FLC)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, WF-20, carry pouch, software CD,
calibration target, user manual, N3C-O- Open cap,
N3C-C- Closed cap, N3C-D- diffuser cap, n3c-E-
extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Page 4
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1100,00
