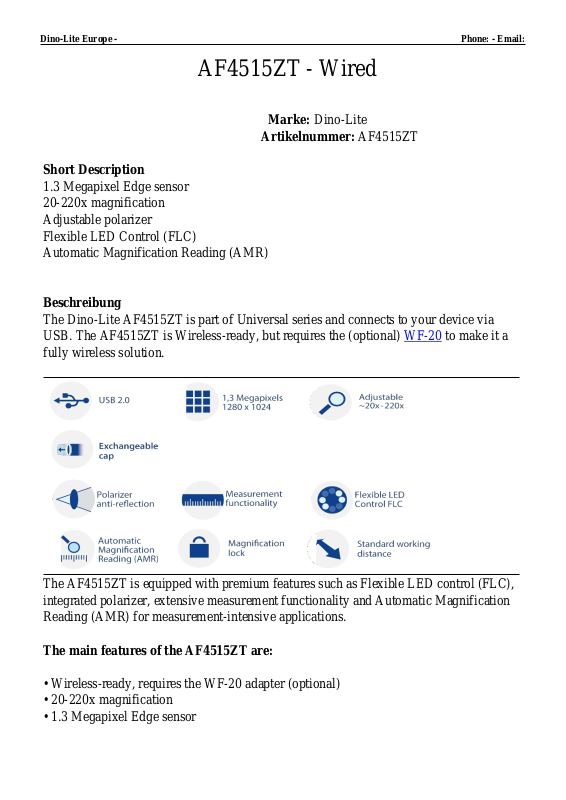

AF4515ZT - Wired
Marke: Dino-Lite
Artikelnummer: AF4515ZT
Short Description
1.3 Megapixel Edge sensor
20-220x magnification
Adjustable polarizer
Flexible LED Control (FLC)
Automatic Magnification Reading (AMR)
Beschreibung
The Dino-Lite AF4515ZT is part of Universal series and connects to your device via
USB. The AF4515ZT is Wireless-ready, but requires the (optional) WF-20 to make it a
fully wireless solution.
The AF4515ZT is equipped with premium features such as Flexible LED control (FLC),
integrated polarizer, extensive measurement functionality and Automatic Magnification
Reading (AMR) for measurement-intensive applications.
The main features of the AF4515ZT are:
• Wireless-ready, requires the WF-20 adapter (optional)
• 20-220x magnification
• 1.3 Megapixel Edge sensor
• Adjustable polarizer
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• And more...
Working distance/field of view/depth of field
MAGNIFICATI
ON RATE
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
WORKING
DISTANCE *
60.2 19.5 15.6 2.5
33.5 13 10.4 1.8
20.9 9.8 7.8 1.5
13.9 7.8 6.3
9.7 6.5 5.2
7.1 5.6 4.5 1.0
5.5 4.9 3.9
4.5 4.3 3.5
4.1 3.9 3.1
4 3.6 2.8
4.1 3.3 2.6
4.5 3 2.4
5 2.8 2.2
5.6 2.6 2.1
6.3 2.4 2
FIELD OF
VIEW(X)
FIELD OF
VIEW(Y)
DEPTH OF
FIELD
170
180
190
200
210
220
Listed values
may differ
slightly
Spezifikation
Lighting
Light/ LED type White
Number of LEDs 8
7.1 2.3 1.8
8 2.2 1.7
8.9 2.1 1.6
9.9 2 1.6
10.9 1.9 1.5
11.9 1.8 1.4 0.1
* Without front
cap
Unit = mm
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 20-220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.12 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac
OS)
Supported image formats
(Windows)
Supported video formats
(Windows)
Supported image formats
(MacOS)
Supported video formats
(MacOS)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-20 adapter
Housing
Housing material Composite/ plastic housing
Dimensions 11.4cm (L) x 3.3cm (D)
Weight 111g
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,
PCX, MNG, WBMP, JP2, JPC, PGX
WMV, FLV, SWF
JPEG, PNG
MOV
(optional)
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR),
Flexible LED Control (FLC)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, Carry pouch, software CD, calibration
target, user manual, N3C-O- Open cap, N3C-C-
Closed cap, N3C-D- diffuser cap, N3C-E-
extension cap, N3C-L- Long cap, N3C-S- Side
light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €500,00 - €600,00
