TSUX9 V5.1 Specification
1. GENERAL DESCRIPTION
TSUX9 V5.1 is a multi-purpose LCD controller, it is suitable Asia market. It is designed to
support FULL HD LCD panel.
TSUX9 V5.1 can support PC-RGB, HDMI/S-Video (Option), AV/YPBPR (Option), USB,
VGA, TV signal input. It can also support Earphone output.
Note: The specification of the board includes the description of all functions. Therefore, our
clients can select the functions which they require to produce the board. But the specification can
be introduced universally.

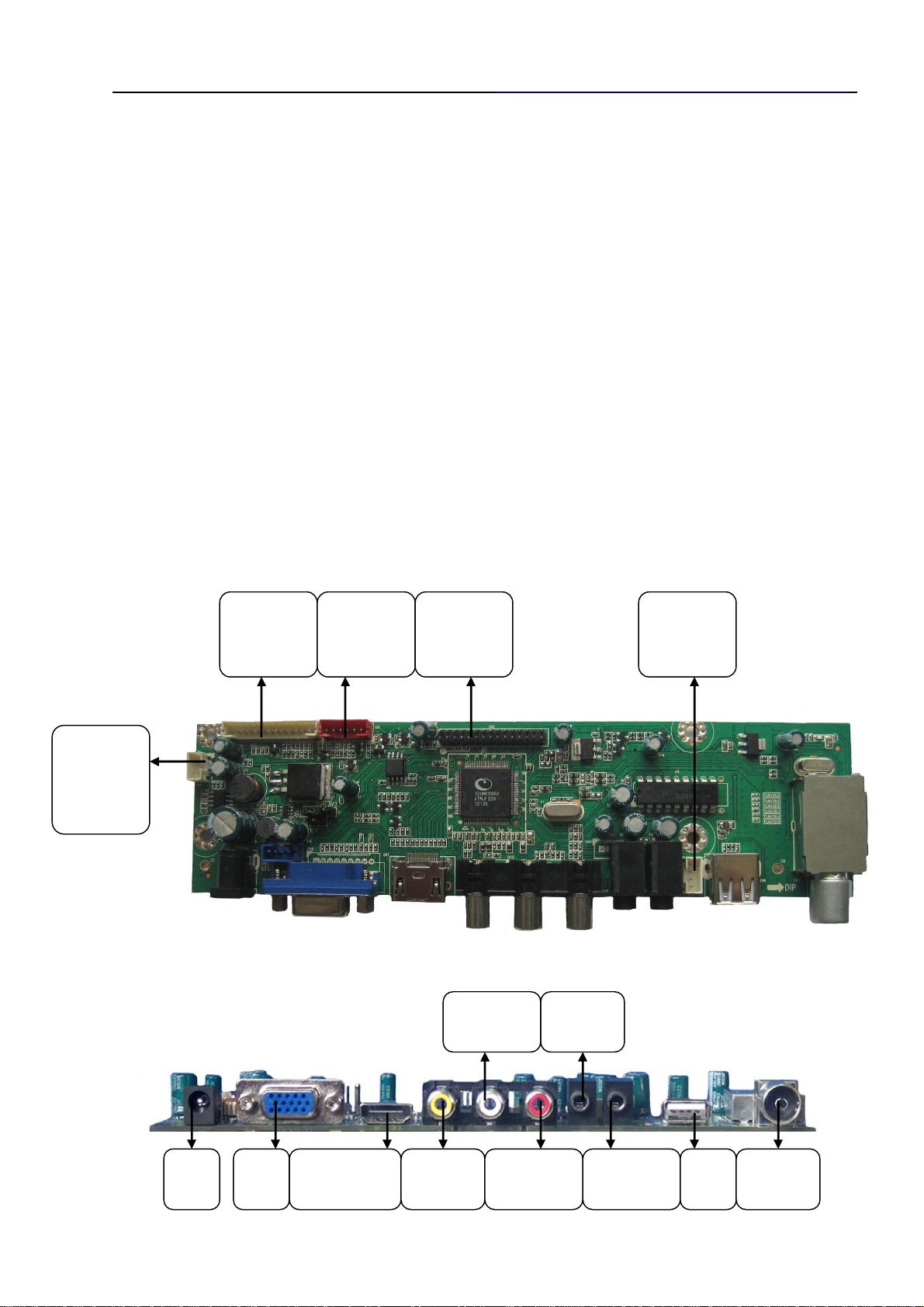

2. FUNCTION LAYOUT
The following all pictures are a reference only. Please take the actual objects as a standard.
Elevation of TSUX9 V5.1
CN20: KEY&IR
BOARD
INTERFACE
CN2:
INVERTER
INTERFACE
CN19:
REMOTE
RECEIVER
INTERFACE
Side Elevation of TSUX9 V5.1
CN3: LVDS
PANEL
INTERFACE
AUDIO(L) IN
AV
CN16:
SPEAKER
INTERFACE
Finder
PC
AUDIO IN
DC
IN
VGA
IN
HDMI/S-VIDEO
(OPTION) IN
AV CVBS
IN
- 1 -
AV
AUDIO(R) IN
EARPHONE
OUT
USB
IN
TV
SIGNAL IN
3. FEATURES
Below you will find the detailed feature.
MARKET AREA ASIA
TSUX9 V5.1 Specification
OSD LANGUAGE
CHIP SET
VIDEO INPUT
POWER
AUDIO INPUT
EXPANSION
FUNCTION
PANEL
RESOLUTIONS
KEY FUNCTIONS CH-,CH+,MENU,VOL-,VOL+,AV/SEL,ON/OFF
AUDIO OUTPUT 2*2 W @ 8Ω
COMB FILTER 3D,2D (V29)
DE-INTERLACE 3D,2D (V29)
WEAK SIGNAL ENHANCEMENT YES
NOISE REDUCTION 3D,2D (V29)
A2, BTSC YES
English,Chinese,(French,Spanish,Polish,Portuguese,Italian,German,Dutc
h,Russian)(Option )
TSUMV29LU Without TELETEXT/NICAM
TSUMV29LE With TELETEXT/NICAM
TSUMV39LU Without TELETEXT/NICAM
TSUMV39LE With TELETEXT/NICAM
TSUMV59XE-Z1
TSUMV59XE
TSUMV59XUS-Z1
TSUMV59XUS
TV
CVBS 1.0Vp-p +/-5%
YPbPr / YCbCr
PC-RGB
HDMI
Build-in power
supply
To panel 3.3V,5V,12V
DC Adapter 12V Input
Manage
AV Audio Input Left and right audio input
PC-RGB YES
USB YES
Support up to 8-bit dual LVDS
FULL HD panel interface
With TELETEXT/NICAM; Without Dolby（100pin）
With Dolby & TELETEXT/NICAM（100pin）
Without Dolby（128pin）
With Dolby（128pin）
VIDEO SYSTEM PAL/SECAM,NTSC(Option)
SOUND SYSTEM BG ,DK ,I, M, L, L’
RECEIVE CHANNEL ATV:127
480i、480p、576i、576p、720p、1080i、1080p
Format Up to 1920*1080@60HZ
Color 16bit, 24bit, 32bit
480i、480p、576i、576p、720p、1080i、1080p
12V (Option)
Low power consumable mode: standby≤1W
- 2 -
TSUX9 V5.1 Specification
TV Input 1 IEC 75 Ω
PC-RGB Input 1 D-SUB 15PIN terminal blue color
HDMI Input 1 HDMI terminal
Input
CVBS Input 1 RCA terminal yellow color
TERMINALS
AV Audio Input 2 RCA terminal white color, red color
USB 1 USB terminal
Output
To Panel Double LVDS 30PIN/2.0 jack
Earphone Output 1 earphone terminal black color
USB MULTIMEDIA PLAYBACK FORMAT
Note: TSUV29 only support USB upgrade. Below USB functions are applied to TSUV39.
MEDIA FILE EXTENSION
JPEG、BMP、PNG .jpg、.bmp、.png
Music MP3 .mp3
FILE TYPE\THE
RELEVANT PARAMETERS
COMPRESSION
OPTION
Progressive JPEG Max Resolution: 640*480
JPEG
Baseline JPEG Max Resolution: 8192*8192
BMP ----
No interlacing Max Resolution: 8192*6400
PNG
Interlaced Max Resolution: 800*600
SUPPORT BOUNDARIES
Max Resolution:8192*8192
Pixel Depth:1/4/8/16/24/32 bpp
Below USB functions are only applied to TSUV59.
MEDIA FILE EXTENSION
Picture JPEG、BMP、PNG .jpg、 .bmp、 .png
Movie MPEG1、MPEG2、 MPEG4、
H264、 RM、 RMVB、 MOV、
.avi、 .mpg、 .dat、 .vob、 .mov、 .mkv
.rm、 .rmvb、 .mp4、 .mjpeg、 .ts、 .trp、
- 3 -
MJPEG、FLV .wmv、 .asf、.flv
Music MP3、 M4A 、AAC .mp3、.m4a
TSUX9 V5.1 Specification
FILE TYPE\THE
RELEVANT
PARAMETERS
JPEG
BMP
RESOLUTION
15360*8640
9600*6400
COMPRESSION
OPTION
Progressive JPEG Resolution Only
Baseline(“standard”) Support
Baseline Optimized Support
homochromatism Support
16color Support
256color Support
16bit Support
24bit Support
32bit Support
BOUNDARIES
Support 1024*768
SUPPORT
PNG 9600*6400 No interlacing Support
*Realize that only when you gain the copyright of the corresponding USB
functions，can the above-mentioned USB functions be used.
4. INTERFACE DEFINITION
CN2 (6PIN/2.0) INVERTER INTERFACE
NO. SYMBOL DESCRIPTION ELECTRIC CHARACTER
1 GND
2 GND
3 PB-ADJUST Brightness adjustment 0-5V adjustable
4 PB-ON/OFF Back-light ON/OFF control
5 12V +12V DC Power supply INVERTER Power Supply
6 12V +12V DC Power supply INVERTER Power Supply
Ground ---
5V ，1K ohm output impedance
- 4 -
TSUX9 V5.1 Specification
CN3 (2*15PIN/2.0) LVDS PANEL INTERFACE
NO. SYMBOL DESCRIPTION
1 LCDPWR Power for panel
2 CT mode pin for panel
3 LCDPWR Power for panel
4 GND
5 GND
6 GND
7 RXO0- LVDS ODD 0- Signal
8 RXO0+ LVDS ODD 0+ Signal
9 RXO1- LVDS ODD 1- Signal
10 RXO1+ LVDS ODD 1+ Signal
11 RXO2- LVDS ODD 2- Signal
12 RXO2+ LVDS ODD 2+ Signal
13 GND
14 GND
15 RXOC- LVDS ODD Clock- Signal
16 RXOC+ LVDS ODD Clock+ Signal
17 RXO3- LVDS ODD 3- Signal
18 RXO3+ LVDS ODD 3+ Signal
19 RXE0- LVDS EVEN 0- Signal
20 RXE0+ LVDS EVEN 0+ Signal
21 RXE1- LVDS EVEN 1- Signal
22 RXE1+ LVDS EVEN 1+ Signal
23 RXE2- LVDS EVEN 2- Signal
24 RXE2+ LVDS EVEN 2+ Signal
25 GND
26 GND
27 RXEC- LVDS EVEN Clock- Signal
28 RXEC+ LVDS EVEN Clock+ Signal
29 RXE3- LVDS EVEN 3- Signal
30 RXE3+ LVDS EVEN 3+ Signal
Ground
Ground
Ground
CN16 (4PIN/2.54) SPEAKER INTERFACE
NO. SYMBOL DESCRIPTION
1 AMP_R Right audio channel out
2 GND Ground
3 GND Ground
4 AMP_L Left audio channel out
- 5 -
TSUX9 V5.1 Specification

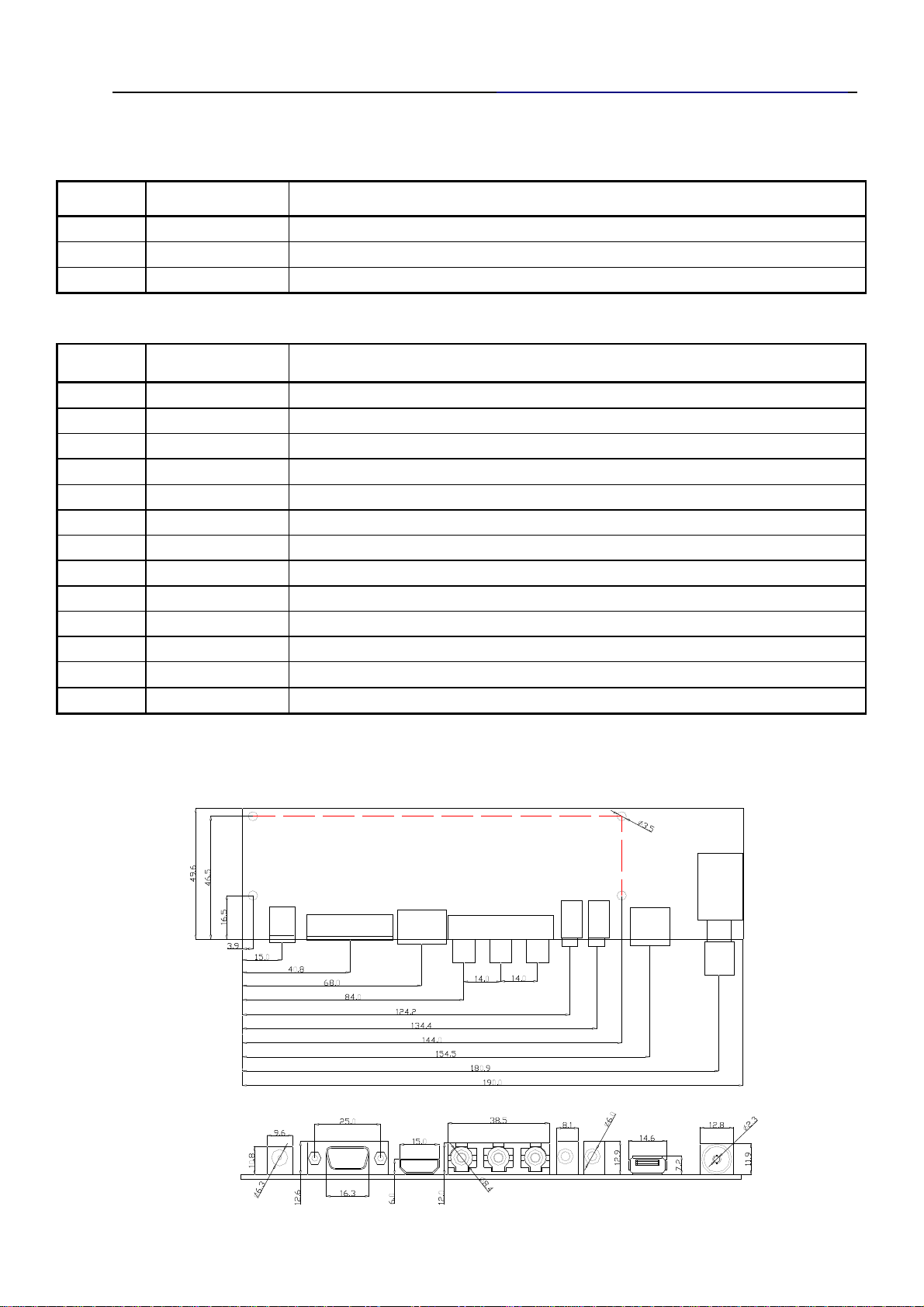

CN19 (3PIN/2.0) REMOTE RECEIVER INTERFACE
NO. SYMBOL DESCRIPTION
1 IR_IN Remote receiver
2 GND Ground
3 VCC_IR +5V DC power supply
CN20 (13PIN/2.0) KEY & IR BOARD INTERFACE
NO. SYMBOL DESCRIPTION
1 CH- CH- key
2 CH+ CH+ Key
3 MENU MENU Key
4 AV/SEL AV/SEL Key
5 VOL- VOL- Key
6 VOL+ VOL+ Key
7 GND Ground
8 LED_G Green indicator
9 LED_R Red indicator
10 ON/OFF ON/OFF key
11 GND Ground
12 IR_IN Remote receiver
13 VCC_IR +5V DC power supply
5. CONTROLLER DIMENSIONS
- 6 -
6. KEY & IR BOARD SYSTEM SCHEMATIC
TSUX9 V5.1 Specification
7. OPERATION REQUIREMENT
·
Do not pressed and distorted.
Keep away from static and water.
·
Relative humidity : ≤ 80%
·
Storage temperature:-10~ +60℃
·
·
Operation temperature:0~ +40℃
