Dimplex XLE050, XLE070, XLE125, XLE150, XLE100 Customer Manual

XLE•Series•Heater

XLE•Storage•Heater•Reporting•Screen•Guide

08/82056/0-1 ISSUE: 1

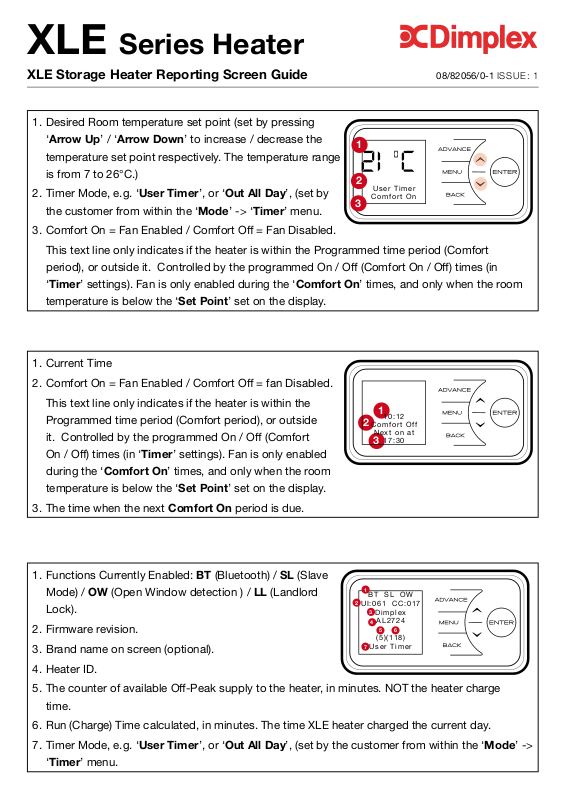

1. Desired Room temperature set point (set by pressing

‘Arrow•Up’ / ‘Arrow•Down’ to increase / decrease the

1

temperature set point respectively. The temperature range

is from 7 to 26°C.)

2. Timer Mode, e.g. ‘User•Timer’, or ‘Out•All•Day’, (set by

2

User T i m e r

Comfor t O n

3

the customer from within the ‘Mode’ -> ‘Timer’ menu.

3. Comfort On = Fan Enabled / Comfort Off = Fan Disabled.

This text line only indicates if the heater is within the Programmed time period (Comfort

period), or outside it. Controlled by the programmed On / Off (Comfort On / Off ) times (in

‘Timer’ settings). Fan is only enabled during the ‘Comfort•On’ times, and only when the room

temperature is below the ‘Set•Point’ set on the display.

1. Current Time

2. Comfort On = Fan Enabled / Comfort Off = fan Disabled.

This text line only indicates if the heater is within the

Programmed time period (Comfort period), or outside

it. Controlled by the programmed On / Off (Comfort

2

Comfor t O f f

Next o n a t

3

On / Off ) times (in ‘Timer’ settings). Fan is only enabled

during the ‘Comfort•On’ times, and only when the room

temperature is below the ‘Set•Point’ set on the display.

3. The time when the next Comfort•On period is due.

1. Functions Currently Enabled: BT (Bluetooth) / SL (Slave

Mode) / OW (Open Window detection ) / LL (Landlord

Lock).

2. Firmware revision.

3. Brand name on screen (optional).

1

BT SL O W

2

UI:061 C C : 0 1 7

3

Dimple x

AL2724

4

(5)(11 8 )

7

User T i m e r

1

10:12

17:30

65

4. Heater ID.

5. The counter of available Off -Peak supply to the heater, in minutes. NOT the heater charge

time.

6. Run (Charge) Time calculated, in minutes. The time XLE heater charged the current day.

7. Timer Mode, e.g. ‘User•Timer’, or ‘Out•All•Day’, (set by the customer from within the ‘Mode’ ->

‘Timer’ menu.

1. Functions Currently Enabled: BT (Bluetooth) / SL (Slave

Mode) / OW (Open Window detection ) / LL (Landlord

Lock).

2. Firmware revision.

3. Brand name on screen (optional).

1

BT SL O W

2

UI:061 C C : 0 1 7

3

Dimple x

AL2724

4

65

(5)(11 8 )

7

User T i m e r

4. Heater ID.

5. The counter of available Off -Peak supply to the heater, in minutes. NOT the heater charge

time.

6. Run (Charge) Time calculated, in minutes. The time XLE heater charged the current day.

7. Timer Mode, e.g. ‘User Timer’, or ‘Out All Day’, (set by the customer from within the ‘Mode’ ->

‘Timer’ menu.

A 1 2 76 0 0
B 4 4 8 1 7 40 9 7
C 17. 7 1 7. 5 0
D 12 . 0 12 7 4 1 5. 9
E 2 1 2 1 1 7. 5
F 54 . 8 49 . 8 0 .0
G 7 8 0 0
H 503 5 3 1

seasonal band heater size extra charge hours

A

daily run time

B

current room temp room temp at midnight room temp. off set

C

programmed heating hours

D

current setpoint setpoint at mid night

E

current core temperature core temperature at midnight

F

not used not used

not used not used

not used

not used

adaptive run time fan duty run time residual energy run time

G

runtime history yesterday runtime history day before yesterday

H
