Owner’s Manual

Model WRCPF-KIT

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this device. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit www.dimplex.com

7209110100R03

2 www.dimplex.com

Table of Contents

Welcome & Congratulations . . . . . . . . . . . . 3

Product Overview .....................4

Receiver Installation (BF units only) ......5

Wall Control Installation ...............7

Initialization ........................14

Operation ..........................15

Warranty ..........................20

NOTE: Procedures and techniques that are considered important enough to emphasize.

CAUTION: Procedures

and techniques which, if not carefully followed, will result in damage to the equipment.

WARNING: Procedures

and techniques which, if not carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations

Thank you and congratulations for choosing to purchase a Wall Switch Remote Control Kit from Dimplex, the world leader in electric

replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR  Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial number ready. (See above)

4 www.dimplex.com

Product Overview

The Wall Switch Remote Control Kit is designed to work with the following Dimplex electric

replaces:

BF33STP •

BF33DXP •

BF39STP •

BF39DXP •

BF45DXP •

BFSL33•

BLF50 •

DF3033ST •

DFG3033BLK•

For the BF units, mentioned above, follow the Remote Receiver control installation instructions starting on page 5.

For replace models BFSL33,

BLF50, DF3033ST and DFG3033, the pre-installed remote receiver in these models is compatible with the Wall

Switch Remote Control. The

Remote Receiver and bracket contained in this kit will not be required, proceed directly to the

Wall Control Installation on page

NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and the receiver.

· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

· Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions: (1) this device may not cause interference and; (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Receiver Installation (BF units only)

Open steel curtain (remove 1.

glass doors if applicable).

Remove two (2) screws on log 2.

grate and remove log grate (Figure 1).

Figure 1

Screws

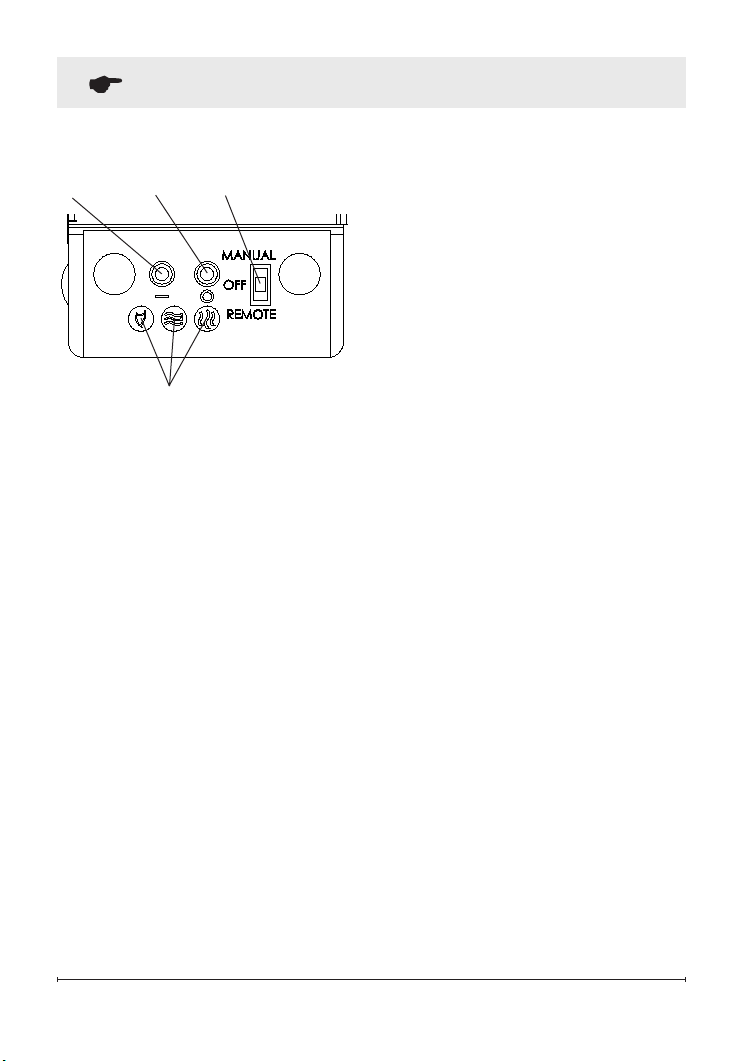

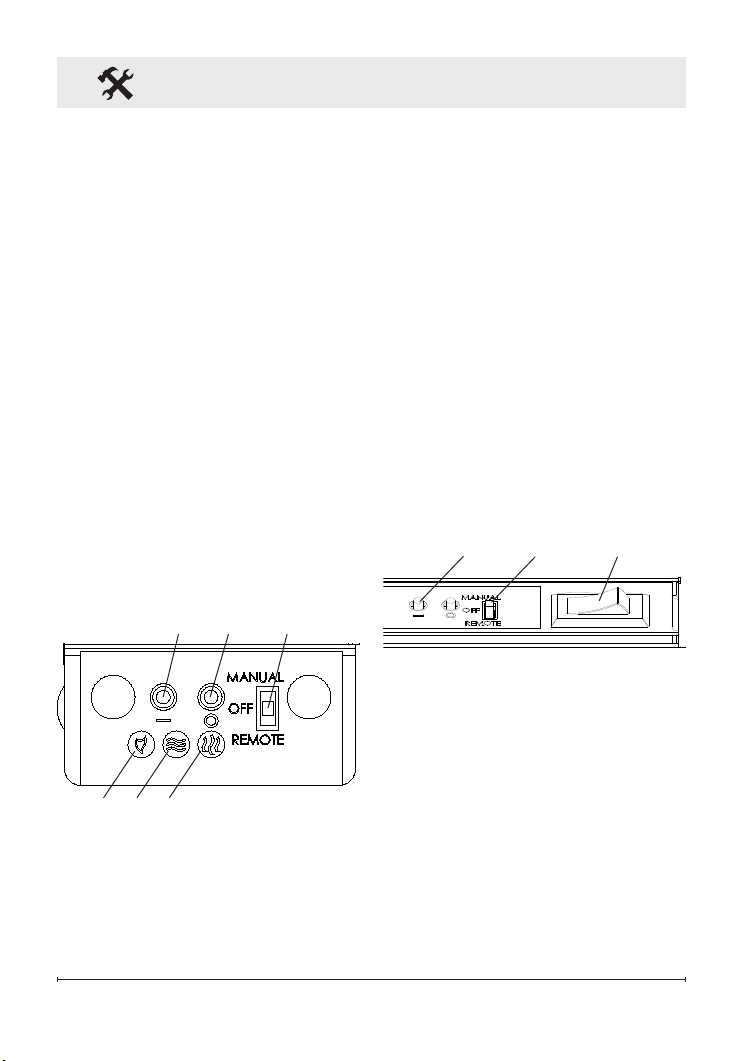

Manual Controls

Pull front edge of plastic 3.

ember bed grate up and forward until rear tab releases from the ledge located at the bottom of the partially

reective glass (Figure 2).

Figure 2

Back ledge

Rear tab

Side section

Locate and remove the two (2) 4.

screws on the manual control bracket (Figure 3). Remove the bracket.

Locate and depress the 5.

mounting tabs on the plug connector and remove the manual control bracket from

replace (Figure 3).

Figure 3

Screw locations

Log ember bed

Front edge

Mounting

tabs

NOTE: Log set ts tightly into

rebox, some force may be

Manual controls

necessary to remove.

Plug connector

6 www.dimplex.com

Receiver Installation (BF units only)

Locate the plastic 9-pin plug 6.

in the bottom corner of the

replace where the manual

controls were plugged in to.

Insert the plug connector from 7.

the remote control bracket (Figure 4) into plastic plug

inside the replace.

Figure 4

Remote Control

Run black antenna wire under 8.

remote bracket and ensure all wiring is placed such that it does not interfere with reassembly.

ledge (Figure 2) and the logs are resting against the partially

reective glass.

Replace log grate using two 11. (2) screws previously removed in step 2.

Antenna

Plug

Connector

Install the two (2) screws 9.

removed in step 4 into the remote control bracket and

attach it to the replace.

Replace the log set by 10. inserting front edge and pushing the back down until rear tab snaps under back

+ 14 hidden pages
