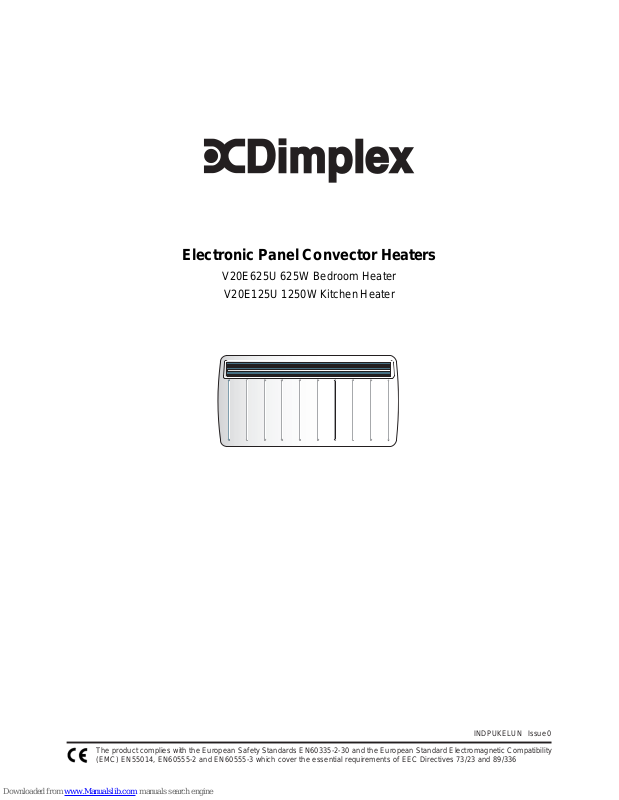

Dimplex V20E625U, V20E125U Instructions Manual

The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336

INDPUKELUN Issue 0

Electronic Panel Convector Heaters

V20E625U 625W Bedroom Heater

V20E125U 1250W Kitchen Heater

1

A

150
MIN

150
MIN

150
MIN

B

430

Model(s) Watt A B

V20E625U 0.625kW 688 108
V20E125U 1.25kW 688 108

Dimensions

(millimetres)

2

3

MAX

*

PRESS FOR
HEAT

255

MIN

357

184

Important Safety Advice

When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the
following:

IIMPORTANT – The wall brackets supplied with the
appliance must be used.

IMPORTANT – If the heater is installed in a room containing
a bath or shower, it must be so installed that switches
and other controls cannot be touched by a person using
a bath or shower.

Do not use outdoors.
Do not locate the heater immediately below a fixed socket

outlet or connection box.
Do not cover the heater. Do not place material or garments

on the heater, or obstruct the air circulation around the
heater, for instance by curtains or furniture, as this could
cause overheating and a fire risk.

NEVER cover or obstruct in any way the heat outlet slots
at the top of the heater or the air inlet slots in the base of
the heater.

The heater carries the Warning symbol indicating
that it must not be covered.

WARNING – THE SURFACES OF THIS HEATER CAN BE HOT.
Momentary contact with any part of the heater should not
cause injury. However, aged or infirm persons or young
children should not be left unsupervised in the vicinity of
the heater unless a suitable guard is fitted.

This appliance is not intended for use by children or other
persons without assistance or supervision if their
physical, sensory or mental capabilities prevent them
from using it safely. Children should be supervised to
ensure that they do not play with the appliance.

Note that due care and consideration must be taken when
using this heater in series with a thermal control, a
program controller, a timer or any other device that
switches on the heat automatically, since a fire risk exists
when the heater is accidentally covered or displaced.

If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.

Electrical

WARNING – THIS APPLIANCE MUST BE EARTHED

The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.

The wires in this mains lead are coloured in accordance with the
following code :

GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE

Supplementary Earth Bonding

Should Equipotential Earth Bonding be required the earthing conductor
in the supply cord is deemed to provide the supplementary bonding
connection (see Regulation 547-03-05, 16th Edition I.E.E. Wiring
Regulations).

General

This appliance is designed for wall mounting on the wall brackets
supplied. It should only be operated when in the upright position as
shown.
All models are splashproof to IP24 standard.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULL Y AND RET AINED FOR FUTURE REFERENCE

Wall Mounting

IMPORTANT – The wall brackets supplied with the appliance must

be used. The heater should be positioned observing the minimum
clearances stated around the heater - see Fig. 1.

DO NOT locate the heater immediately below a fixed socket outlet or
connection box.

1. Remove wall mounting bracket from the back of the heater by
depressing the spring latch at the top of each bracket - see Fig. 2.

2. Fix the wall bracket securely to the wall through the four screw
holes provided.

3. Present the heater to the wall bracket, and engage lower slots
in the back with bracket.

4. Raise the heater to upright position and push the heater onto
brackets to engage top latch.

Operation

Switching On the Heater (see Fig. 3)

The button marked ‘ ’ controls the electricity supply to the electronic
thermostat. An indicator beside the ‘ ’ button shows when the unit

is powered ‘ON’.

Setting Desired Temperature (see Fig. 3)

The heater is fitted with an adjustable thermostat enabling the room
temperature to be controlled by adjusting the slider accordingly. The

min setting ‘ ’ represents a room temperature of approximately 50C
and may be used for protection against frost. The ‘MAX’ setting
represents a room temperature of approximately 230C. The ‘ ’ symbol

glows when the elements are actually heating.
Turn on the heater using the ‘ ’ button and move the thermostat

slider to the desired position. When the room temperature has reached
the desired level, the power to the elements will be reduced, the
heater will then maintain the room temperature at the chosen level.

NOTE - Should your heater fail to come on when the thermostat
slider is at a low setting, this may be due to the room temperature
being higher than the thermostat setting.

Runback timer and operating the unit

The runback time can be cancelled by pressing the button on the
timer again. The neon indicator will go out and the heater remains in
set back.

The heater will operate at a maximum thermostat setting of 23°C for
the preset runback time of 2 hours. After this time has expired, the
heater will revert back to operating at the setback temperature (preset
at 16-18°C) until the button is pressed again, thus always maintaining
a base level of temperature in the room.

If the heater remains uninterrupted at the setback temperature for 48
hours, the timer automatically assumes the room is unoccupied and
reverts to its Frost Protection setting (5°C) until such time that the
runback timer is activated again by pressing the button.

Safety - Overheat protection

For your safety this appliance is fitted with a thermal cut-out. In the
event that the product overheats for some reason, the cut-out
prevents excessive temperatures on the product by cutting the power
to the heater. Once the heater has cooled down, it will reset
automatically, it will continue to cycle on and off automatically until
the reason for overheating is removed.

Cleaning

WARNING – ALW A YS DISCONNECT FROM THE POWER SUPPLY
BEFORE CLEANING THE HEATER.

Before commencing cleaning, unplug the heater and allow it to cool.
Disconnect the electricity supply to the appliance.

The outside can be cleaned by wiping it over with a soft damp cloth
and then dried. Do not use abrasive cleaning powders or furniture
polish, as this can damage the surface finish.

To release heater from the wall bracket for cleaning or redecoration,
depress latch on both brackets (see Fig. 2) and hinge forward.

Recycling

For electrical products sold within the European Community.

At the end of the electrical products useful life it should not
be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or
retailer for recycling advice in your country.

After Sales Service

Your product is guaranteed for two years from the date of purchase.
Within this period, we undertake to repair or exchange this product

free of charge provided it has been installed and operated in
accordance with these instructions.

Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.

Should you require after sales service you should contact our
customer services help desk on 0845 600 5111. It would assist us if
you can quote the model number, series, date of purchase, and
nature of the fault at the time of your call. The customer services
help desk will also be able to advise you should you need to purchase
any spares.

Please do not return a faulty product to us in the first instance as this
may result in loss or damage and delay in providing you with a
satisfactory service.

Please retain your receipt as proof of purchase.

Glen Dimplex UK Limited
Millbrook House
Grange Drive
Hedge End
Southampton
Hampshire. SO30 2DF

The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336

[c] Glen Dimplex UK Limited
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex UK Limited.

Energy Saving Tips

The energy we use to heat, light and power our homes contributes
over a quarter of the UK’s carbon emissions, the principle contributor
to climate change.

Around half the energy used in the home is for heating and hot
water, so using your heating system efficiently will not only help the
environment, but also save you money!

Energy efficiency tips for heating and hot water

1. Don’t set the temperature too high…

By reducing the thermostat setting by just 1ºC can reduce your
energy use by as much as 10%. And if you’re going away for the
winter, leave the thermostat on the frost protection setting to provide
protection from freezing at a minimum cost.

2. Use it where you need it…

Set the appropriate temperature on your heaters for the room they
are in; for example, leave the thermostat on a heater in a spare
bedroom on a lower setting.

3. Use it when you need it…

Use heaters fitted with timers or linked to central controllers to turn
the heating on only when you need it and automatically switch it off
when you don’t.

4. Curtains…

Close your curtains at dusk to stop heat escaping through the
windows.

5. Windows…

Nearly 25% of heat loss can occur through poorly insulated frames
and single glazing. If you can’t afford to double glaze all your
windows, go for the rooms you heat most.

6. Treat your hot water tank...give it a jacket

An insulating jacket for hot water tanks only costs a few pounds
and pays for itself within months. Fit one that’s at least 75mm (3")
thick and you could save £10-£15 a year.

7. Water …

Use a shower if you have one to save time, money and water.
Don’t set the thermostat too high on your water heater - 60oC/140oF

is usually adequate for bathing and washing.
Put the plug in when running hot water in your sink - leaving hot taps

running is both wasteful and expensive.
Ensure dripping taps are repaired quickly. In just one day, you could

waste enough water to fill a bath.

Other Energy Saving Tips for Around the Home

1. Lights

Turn off lights whenever you leave a room for more than ten minutes.
Use low-energy bulbs wherever you can as they use less than a

quarter of the electricity used by ordinary light bulbs and last ten
times longer!

2. Cooking

Use the right size pan for the food and cooker hob.
Keep saucepan lids on - this enables you to turn down the heat.
Boil water for cooking in a kettle.
