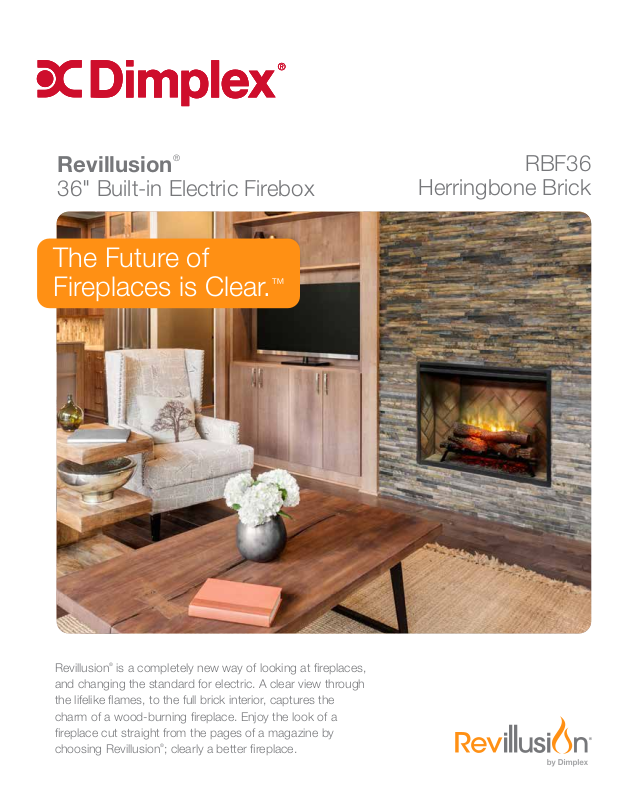

Dimplex RBFDOOR36 Specifications
Revillusion®
RBF36
36" Built-in Electric Firebox
The Future of
Fireplaces is Clear.
™
Herringbone Brick
Revillusion® is a completely new way of looking at fireplaces,
and changing the standard for electric. A clear view through
the lifelike flames, to the full brick interior, captures the
charm of a wood-burning fireplace. Enjoy the look of a
fireplace cut straight from the pages of a magazine by
choosing Revillusion
®
; clearly a better fireplace.
Revillusion®
RBF36
36" Built-in Electric Firebox
Capacitive touch built-in controls.
Herringbone Brick
Features
Revillusion® Flame Technology
Flames are larger, brighter and more
random, appearing from within the logs.
™
Mirage
Flame Panel
Partially frosted acrylic panel is clearly
better than a mirror, showing only
dazzling flames and no reflections.
™
ThruView
See clear through the flames to
Full-depth Design
the back of the firebox for a more
26-5/8"
67.6 cm
RBF36
Herringbone brick
firebox interior
authentic experience.
Mood Lighting
Customize the firebox glow with a choice
of warm hues, plus midnight mode.
Color Enhancement
Adjust the flame base color to
red or blue.
Realogs
®
Plus
A full grate of life-size hardwood-cast
logs, tiered for greater depth.
37-1/4"
94.4 cm
12-1/8"
30.7 cm
Full Surround Firebox
More authentic day or night;
270-degree surround with natural
soot markings.
Brightness and Flicker
Also available in Weathered Concrete - RBF36WC
Mood-maker
Remote
Customize the light
color and intensity for
a fireplace that reflects
your personality.
Adjust light level to suit the room
and choose flicker effect for
enhanced firelight.
Ambient Light Sensor
Automatically adjusts firebox light to suit
the room day to night.
Quick and Easy Installation
Simply frame, wire and finish – no
venting, gas lines or safety screens.
Primary Heat
Option to use 240 volt supply for up
to 8,800 BTU - use as part of primary
heating plan; heater also operates
120 V | 1,500 W | 5,000 BTU
208 V | 1,975 W | 6,745 BTU
240 V | 2,575 W | 8,794 BTU
Model # Description Lbs / Kg UPC Wty†Carton Dimensions (WxHxD) Cube
RBF36
RBF36WC
RBFL42BR Birch Log Set
RBFL42FC Fresh Cut Log Set
RBFPLUG Plug Kit 0.6 / 0.3 781052 107656 1 yr. 7 x 3 x 4 17.8 x 7.6 x 10.2 0.05 0.00
RBFGLASS36 Single Glass Pane 25.1 / 11.4 781052 108011 1 yr. 42-1/8 x 29-1/4 x 4-1/4 106.8 x 74.2 x 10.6 3.0 0.08
RBFDOOR36 36" Glass Door 32.7 / 14.7 781052 108059 1 yr. 41-7/8 x 30-1/8 x 4-5/8 106.3 x 76.4 x 11.6 3.3 0.09
Specifications, finishes and dimensions are subject to change. †Limited warranty. ©2019 Glen Dimplex Americas. SE-329-R11-022420
36" Built-in Electric Firebox
- Herringbone brick interior
36" Built-in Electric Firebox
- Weathered concrete interior
74.9 / 34.0 781052 104723 2 yrs. 41-1/4 x 15-1/4 x 31-7/8 104.6 x 38.7 x 81.0 11.6 0.3
74.7 / 34.0 781052 129856 2 yrs. 41-1/4 x 15-1/4 x 31-7/8 104.6 x 38.7 x 81.0 11.6 0.3
15 / 6.8
15 / 6.8
781052 129993 2 yr. 29-7/8 x 17-1/2 x 15 75.9 x 44.1 x 38.1 4.52 0.13
781052 129986 2 yr. 29-7/8 x 17-1/2 x 15 75.9 x 44.1 x 38.1 4.52 0.13
Inches cm ft3m
3
without flame and can be deactivated.
All-season Flames
Enjoy the unique charm of a fireplace
365 days a year using the flames
without the heat.
Direct-wire
Designed to be direct-wired to a 120,
208 or 240 volt circuit for a seamless
look (optional plug kit available).
Low Carbon Footprint
The most sustainable fireplace option;
no emissions and 100% efficient.
Glen Dimplex Americas | 1-800-668-6663 | www.dimplex.com
