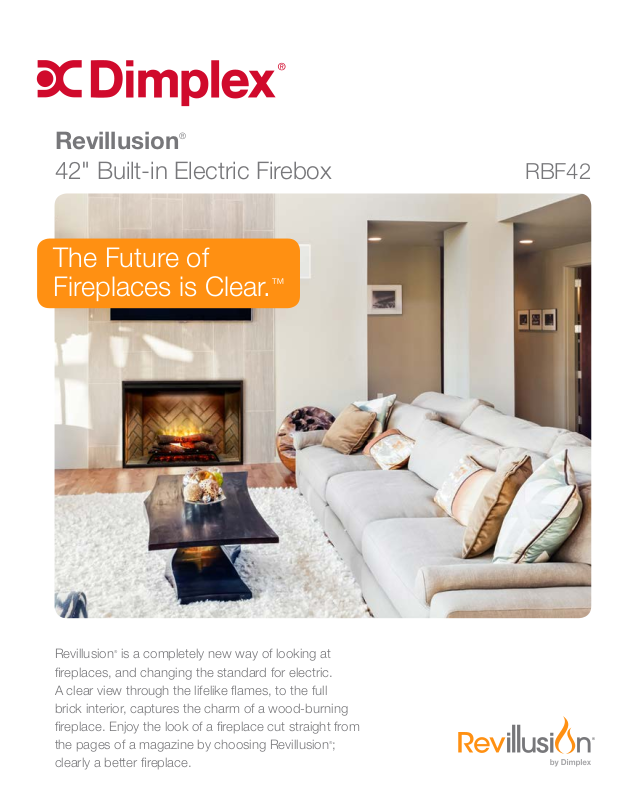

Dimplex RBF42 Specifications
Revillusion®
42" Built-in Electric Firebox
The Future of
Fireplaces is Clear.
™
RBF42
Revillusion® is a completely new way of looking at
fireplaces, and changing the standard for electric.
A clear view through the lifelike flames, to the full
brick interior, captures the charm of a wood-burning
fireplace. Enjoy the look of a fireplace cut straight from
®
the pages of a magazine by choosing Revillusion
clearly a better fireplace.
;
Revillusion®
42" Built-in Electric Firebox
Capacitive touch built-in controls.
Features
RBF42
Revillusion® Flame Technology
Flames are larger, brighter and more
random, appearing from within the logs.
™
Mirage
Flame Panel
Partially frosted acrylic panel is clearly
better than a mirror, showing only
dazzling flames and no reflections.
™
ThruView
See clear through the flames to
Full-depth Design
the back of the firebox for a more
31"
78.8 cm
authentic experience.
Mood Lighting
Customize the firebox glow with a choice
of warm hues, plus midnight mode.
Color Enhancement
Adjust the flame base color to
red or blue.
Realogs
™
Plus
A full grate of life-size hardwood-cast
logs, tiered for greater depth.
Full Brick-surround Firebox
Accessories
43-1/4"
109.8 cm
12-1/8"
30.7 cm
More authentic day or night;
270-degree herringbone brick
with natural soot markings.
Brightness and Flicker
Adjust light level to suit the room
and choose flicker effect for
enhanced firelight.
Ambient Light Sensor
Automatically adjusts firebox light to suit
the room day to night.
Quick and Easy Installation
Simply frame, wire and finish – no
venting, gas lines or safety screens.
Primary Heat
42" Tempered Front Glass
Dimensions:
41-1/8" W x 26-5/8" H x 3/8" D
(104.5 cm x 67.5 cm x 1.1 cm)
120 V | 1,375 W | 4,400 BTU
208 V | 1,975 W | 6,745 BTU
240 V | 2,575 W | 8,794 BTU
42" Functional Doors with Tempered Glass
Dimensions:
45-7/8" W x 31-3/4" H x 1-1/4" D
(116.5cm x 80.8cm x 3.7cm)
Mood-maker Remote
Customize the light color and
intensity for a fireplace that
reflects your personality.
Option to use 240 volt supply for up
to 8,800 BTU - use as part of primary
heating plan; heater also operates
without flame and can be deactivated.
All-season Flames
Enjoy the unique charm of a fireplace
365 days a year using the flames
without the heat.
Direct-wire
Model # Description Lbs / Kg UPC Wty* Carton Dimensions (WxHxD) Cube
RBF42
RBFPLUG Plug Kit 0.6 / 0.3 781052 107656 1 yr. 7 x 3 x 4 17.8 x 7.6 x 10.2 0.05 0.0
RBFGLASS42 Single Glass Pane 33.7 / 15.3 781052 108035 1 yr. 47-3/4 x 33-3/4 x 4-1/4 121.2 x 85.6 x 10.6 4.0 0.1
RBFDOOR42 42" Glass Door 41.7 / 18.8 781052 108073 1 yr. 47-7/8 x 34-1/2 x 4-5/8 121.7 x 87.7 x 11.6 4.4 0.12
Specifications, finishes and dimensions are subject to change. †Limited warranty. ©2017 Dimplex North America Limited. SE-332-R07-083017
42" Built-in
Electric Firebox
88.6 / 40.2 781052 104716 2 yrs. 47-1/2 x 15 x 35-7/8 120.6 x 38.2 x 91.2 14.8 0.4
Inches cm ft3m
3
Designed to be direct-wired to a 120,
208 or 240 volt circuit for a seamless
look (optional plug kit available).
Low Carbon Footprint
The most sustainable fireplace option;
no emissions and 100% efficient.
Dimplex North America Limited | 1367 Industrial Rd., Cambridge ON, Canada N3H 4W3 | 1-800-668-6663 | www.dimplex.com
