Dimplex Purifire BF series User Manual

PRACTICAL USER’S GUIDE

FOR THE

ELECTRIC FIREPLACE

BF series with filter and LED logset

Quality checked by:

Valued Customer,

We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Ltd.

Over the years, valuable memories will occur around the warmth and
comfort of your hearth. Thank you for allowing our product to be the backdrop
for those special moments.

7207920100rev00

QUICK REFERENCE GUIDE FOR THE ELECTRIC
FIREPLACE

1. Prior to the first use of the fireplace verify the following:

• Are the circuit breakers for the fireplace on?

• Are the light bulbs in your fireplace loose? (to check, follow the

instructions for replacing the light bulbs under the maintenance
section of this manual)

2. The heater on your fireplace may emit a slight, harmless odor when
first used. This odor is a normal condition caused by the initial
heating of internal heater parts and will not occur again.

3. If your heater does not emit heat, ensure the main switch is on, the
built-in thermostat is set above the current room temperature and any
wall switches for the unit are on. If this does not work, switch the unit
off for 5 minutes and try again. Consult operation section of your
practical users guide for further information.

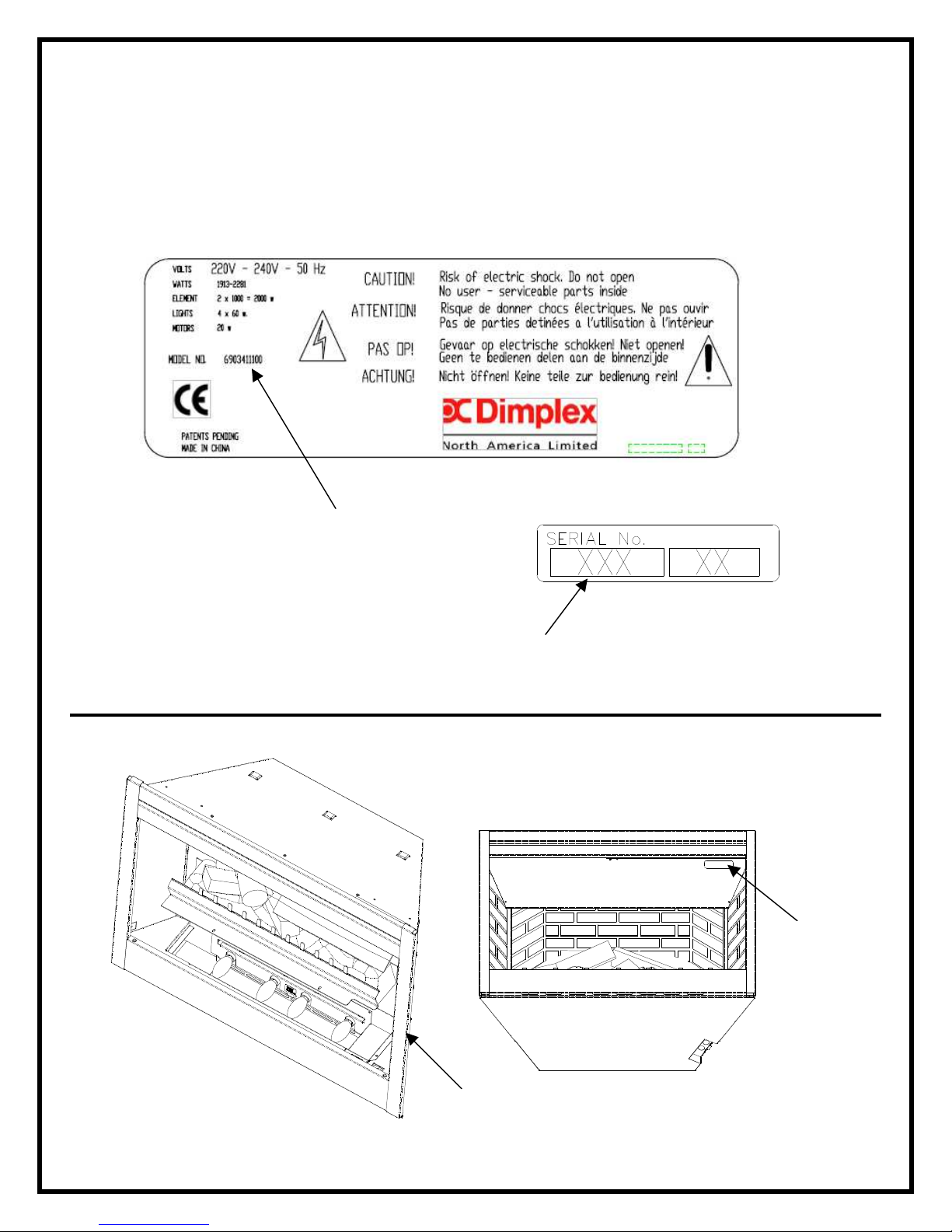

4. The information regarding the model of your fireplace can be found
on the rating plate located on the side adjacent to the supply cord.

5. If you have any technical questions regarding the operation of your
fireplace, or require service for your fireplace contact Dimplex
customer service

Model and Serial Number

CONTENTS

PAGE 1 Important Instructions
PAGE 2

Information

PAGE 4 Operation
PAGE 6 Maintenance
PAGE 9 Accessories
PAGE 10 Warranty

IMPORTANT INSTRUCTIONS

PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:

1. Read all instructions before using the electric fireplace.

2. This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from
the front of the unit.

3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the
unit is left operating and unattended.

4. Young children should be supervised to ensure that they do not play with the appliance.

5. The appliance is not intended for use by young children or infirmed persons unless they have been
adequately supervised by a responsible person to ensure they can use the appliance safely.

6. The appliance must be positioned so that the plug is accessible.

7. Always unplug the electric fireplace when not in use.

8. If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a
qualified person in order to avoid a hazard.

9. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the electric
fireplace has been dropped or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.

10. Do not use outdoors.

11. Do not use this fireplace in the immediate surroundings of a bath, a shower or a swimming pool.

12. Do not install the fireplace directly on carpet or a similar surface which may restrict air circulation
beneath the unit.

13. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange
cord away from traffic area and where it will not be tripped over.

14. Do not locate the heater immediately below a fixed socket-outlet.

15. Do not locate the appliance in front of a fixed socket-outlet

16. To disconnect the fireplace, turn the controls off, then remove the plug from the outlet.

17. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage to the heater.

18. To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.

19. All electrical heaters have hot and arching or sparking parts inside. Do not use in areas where gasoline,
paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors.

20. Do not modify the electric fireplace. Use it only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock or injury to persons.

21. Avoid the use of an extension cord. Extension cords may overheat and cause a risk of fire. If you must
use an extension cord, the cord must be 3-core type and have a rating no less than 13 amps.

22. Do not burn wood or other materials in the electric fireplace.

23. Do not strike the fireplace glass.

24. Always use a certified electrician should new circuits or outlets be required.

25. Always use properly grounded, fused and polarized outlets.

26. Disconnect all power supply before performing any cleaning, maintenance or relocation of the unit.

27. When transporting or storing the unit and cord, keep in a dry place, free from excessive vibration and
store so as to avoid damage.

28. WARNING: In order to avoid overheating, do not cover the heater

29. CAUTION

:

In order to avoid a hazard due to the inadvertent resetting of the thermal cutout, this

SAVE THESE INSTRUCTIONS

appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility

_____________________________________________________________________________________________________________________________________________________________________________________

NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the

equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of
fire, serious injury, illness or death.

1
