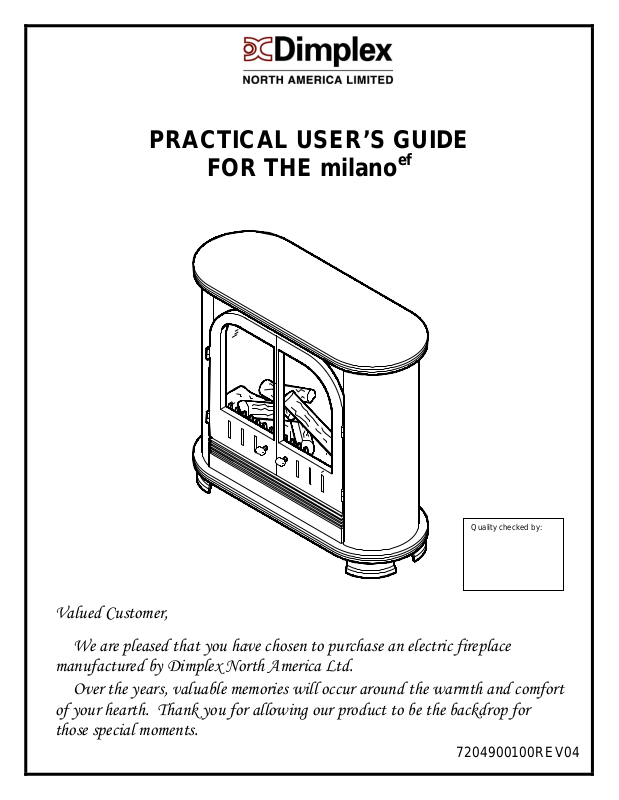

Dimplex milano-ef User Manual

PRACTICAL USER’S GUIDE

FOR THE milanoef

Quality checked by:

Valued Customer,

We are pleased that you have chosen to purchase an electric fireplace manufactured by Dimplex North America Ltd.

Over the years, valuable memories will occur around the warmth and comfort of your hearth. Thank you for allowing our product to be the backdrop for those special moments.

7204900100REV04

CONTENTS

PAGE 1 Important Instructions

PAGE 2 milano PAGE 2 Operation PAGE 3 Maintenance PAGE 6 Warranty

Installation

QUICK REFERENCE GUIDE FOR milanoef

1. Prior to the first use of the milanoef verify the following:

• Are the circuit breakers for the unit on?

• Are the light bulbs in your milano instructions for replacing the light bulbs under the maintenance section of this manual)

2. The heater on your milano

may emit a slight, harmless odor when first used. This odor is a normal condition caused by the initial heating of internal heater parts and will not occur again.

3. The information regarding the model of your milano the rating plate located on the back of the unit.

4. If you have any technical questions, questions regarding the operation of your milano

, or require service contact Dimplex North America customer service at 1-888-DIMPLEX (1-888-346-7539). Do not return this unit to the store where purchased.

loose? (to check, follow the

can be found on

IMPORTANT INSTRUCTIONS

PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the milanoef.

2. The unit is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim around the heater outlet becomes hot during heater operation. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the unit.

3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the unit is left operating and unattended.

4. Always unplug the milanoef when not in use.

5. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the milanoef has been dropped or damaged in any manner.

6. Do not use outdoors.

7. The milanoef is not intended for use in bathrooms, laundry areas and similar indoor locations.

8. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over.

9. To disconnect the unit, turn the controls off, then remove the plug from the outlet.

10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater.

11. To prevent a possible fire, do not block air intake or exhaust in any manner.

12. All electrical heaters have hot and arching or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors.

13. Do not modify the milanoef. Use it only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

14. Avoid the use of an extension cord. Extension cords may overheat and cause a risk of fire. If you must use an extension cord, the cord must be No. 16 AWG minimum size and rated no less than 1875 watts.

15. Do not burn wood or other materials in the milano

16. Do not strike glass door.

17. Always use a certified electrician should new circuits or outlets be required.

18. Always use properly grounded, fused and polarized outlets.

19. Disconnect all power supply before performing any cleaning, maintenance or relocation of the unit.

20. When transporting or storing the unit and cord, keep in a dry place, free from excessive vibration and store so as to avoid damage.

NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to

the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, illness or death.
