08/51947/0 (UK) Issue 0
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2
and EN60555-3. These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC

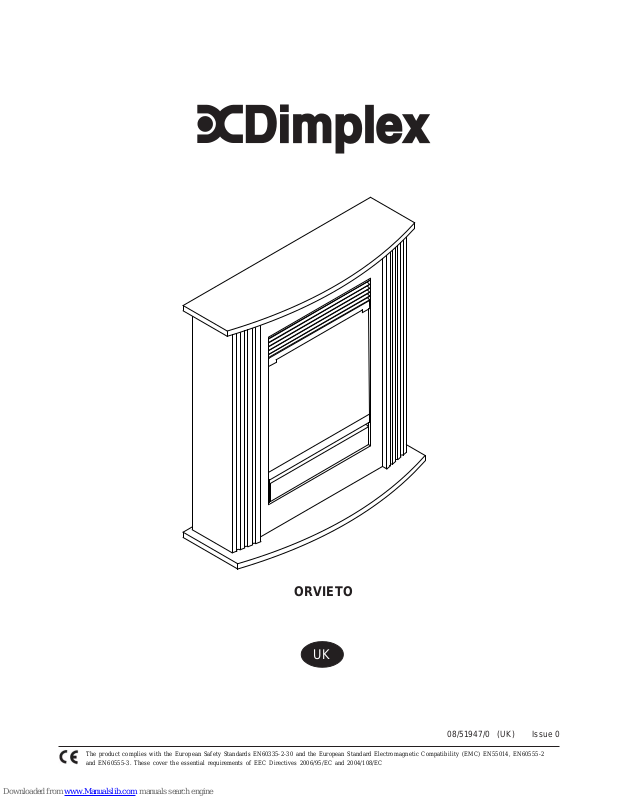

ORVIETO
UK
1
2
4
3
5
I
6
7
12
3
I
II
II
Important Safety Advice:
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electrical shock
and injury to persons, including the following:
If the appliance is damaged, check with the supplier before
installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or
swimming pool.
Do not locate the heater immediately below a fixed socket outlet
or connection box.
This appliance is not intended for use by children or other
persons without assistance or supervision if their physical,
sensory or mental capabilities prevent them from using it safely .
Children should be supervised to ensure that they do not play
with the appliance.
Do not use this heater in series with a thermal control, a
program controller, a timer or any other device that switches on
the heat automatically, since a fire risk exists when the heater
is accidentally covered or displaced.
This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they
are occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided
Ensure that furniture, curtains or other combustible material
are positioned no closer than 1 metre from the heater.
In the event of a fault unplug the heater.
Unplug the heater when not required for long periods.
Although this heater complies with safety standards, we do not
recommend its use on deep pile carpets or on long hair type of
rugs.
The appliance must be positioned so that the plug is
accessible.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified person in
order to avoid a hazard.
Keep the supply cord away from the front of the heater.
WARNING: In order to avoid overheating, do not
cover the heater. Do not place material or
garments on the heater, or obstruct the air
circulation around the heater. The heater carries
the Warning symbol indicating that it must not be
covered.
General
Unpack the heater carefully and retain the packaging for
possible future use, in the event of moving or returning the fire
to your supplier.
The fire incorporates a flame effect, which can be used with or
without heating, so that the comforting effect may be enjoyed at
any time of the year. Using the flame effect on its own only
requires little electricity.
Before connecting the heater check that the supply voltage is
the same as that stated on the heater.
Please note: Used in an environment where background
noise is very low, it may be possible to hear a sound which is
related to the operation of the flame effect. This is normal
and should not be a cause for concern.
ORVIETO- Micro Fireplace
IMPORT ANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RET AINED FOR FUTURE REFERENCE
Electrical Connection
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety warnings and
operating instructions.
Controls - see Fig. 2
Three switches provide a choice of heat settings. The appliance
is in standby mode when the mains lead is plugged in. This is
indicated by the red neon behind the flame effect screen. The
two selector switches are in the ON position when the side
with the markings on (i.e. I, or II) are pushed in.
Push button switch 1 Controls the electricity supply to
the heater and flame effect.
If both selector switches 2 and 3 are in the OFF position, the
product works on flame effect only.
Selector switch 2 (I) Provides 750W heat output
Selector switch 3 (II) Provides 1500W output with switch
2 also pressed.
Remote control - see Fig. 6
The maximum range of use is ~ 10metres/32.8 ft.
The remote will turn the fire on and off only.
Warning: It takes time for the receiver to respond to the
transmitter.
Do not press the buttons more than once within two seconds
for correct operation.
Recycling
For electrical products sold within the European
Community.
At the end of the electrical products useful life it
should not be disposed of with household waste.
Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice in your country .
Battery Information - see Fig. 6
1. Slide open the battery cover on the back of the remote control.
2. Install two AAA batteries into the remote control, being careful
to insert the battery as indicated in the battery compartment of
the handset.
3. Replace the battery cover.
Discard Leaky Batteries
Dispose of batteries in the proper manner according to
provincial and local regulations.
Any battery may leak electrolyte
- if mixed with a different battery type,
- if inserted incorrectly,
- if all the batteries are not replaced at the same time,
- if disposed of in a fire,
- if an attempt is made to charge a battery not intended to be
recharged.
Model: MCFP15O
Dimplex
A Division of GDC Group Ltd
Millbrook House
GrangeDrive
HedgeEnd
Southampton
Hampshire.SO30 2DF
c] GDC Group Ltd,
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex.
A division of GDC Group Ltd,
Disposal of Used Batteries.
Batteries may contain hazardous substances which could be
endangering to the environment and human health.
The symbol marked on the battery and /or packaging indicates
that used batteries should not be treated as municipal waste.
Instead they should be left at the appropriate collection point
for recycling.
By ensuring used batteries are disposed of correctly, you will
help to prevent potential negative consequences on the
environment and human health. The recycling of materials will
help to conserve natural resources.
For more information please contact your local authority.
Thermal Safety Cut-out
The built-in overheat cut-out switches off the appliance
automatically in the event of a fault! Switch off the
appliance or disconnect the mains plug from the socket.
Remove any obstructions which may have caused the
overheating. After a short cooling down phase, the appliance is
ready for use again! If the fault should occur again, see your
local dealer!
WARNING: In order to avoid a hazard due to inadvertent resetting
of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by
the utility.
Maintenance
WARNING: ALW AYS DISCONNECT FROM THE POWER SUPPL Y
BEFORE ATTEMPTING ANY MAINTENANCE.
Lamp Replacement - see Fig.3, Fig.4 and Fig.5
The lamps are located behind the back panel. To gain access
to the lamp, the screws indicated in Fig. 3 which secure the
back panel, must be removed.
Remove and slide out panel as indicated on Fig. 4.
Replace with a 60W E14 SES Clear candle lamp. Take care
not to over-tighten the lamp.
Refit the back panel and secure with the screws.
Wall fixing - see Fig. 1
The appliance should be securely fixed to the wall using the
wall plugs and screws supplied for block walls.
Note – for studded walls special fasteners are required, see
diagram for recommended position of fixing screws.
Remove wall fixing before attempting any maintenance.
Cleaning
WARNING – ALWAYS DISCONNECT FROM THE POWER
SUPPL Y BEFORE CLEANING THE HEATER.
For general cleaning use a soft clean duster – never use
abrasive cleaners. The glass viewing screen should be
cleaned carefully with a soft cloth.
DO NOT use proprietary glass cleaners.
To remove any accumulation of dust or fluff the soft brush
attachment of a vacuum cleaner should occasionally be used
to clean the outlet grille of the fan heater.
It is possible to clean the inner glass and logset by removing
the outer glass panel. To remove the outer glass, remove the 4
screws holding the grille in position, (see Fig.7), remove the
grille and lift clear the outer glass.
Refit the outer glass in reverse of above.
WARNING: do not operate the product without the grille and
outer glass in position as this may effect the operation of the
heater.
After Sales Service
Your product is guaranteed for one year from the date of
purchase.
Within this period, we undertake to repair or exchange this
product free of charge (excluding lamps & subject to availability)
provided it has been installed and operated in accordance
with these instructions.
Y our right s under this guarantee are additional to your st atutory
rights, which in turn are not affected by this guarantee.
Should you require after sales service you should contact our
customer services help desk on 0845 600 5111. It would assist
us if you can quote the model number, series, date of purchase,
and nature of the fault at the time of your call. The customer
services help desk will also be able to advise you should you
need to purchase any spares.
Please do not return a faulty product to us in the first instance
as this may result in loss or damage and delay in providing you
with a satisfactory service.
Please retain your receipt as proof of purchase.
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2
and EN60555-3. These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
TEL: 0845 600 5111
FAX: 01489 773050
WEBSITE:
www.dimplex.co.uk
Republic of Ireland Tel. 01 8424833
