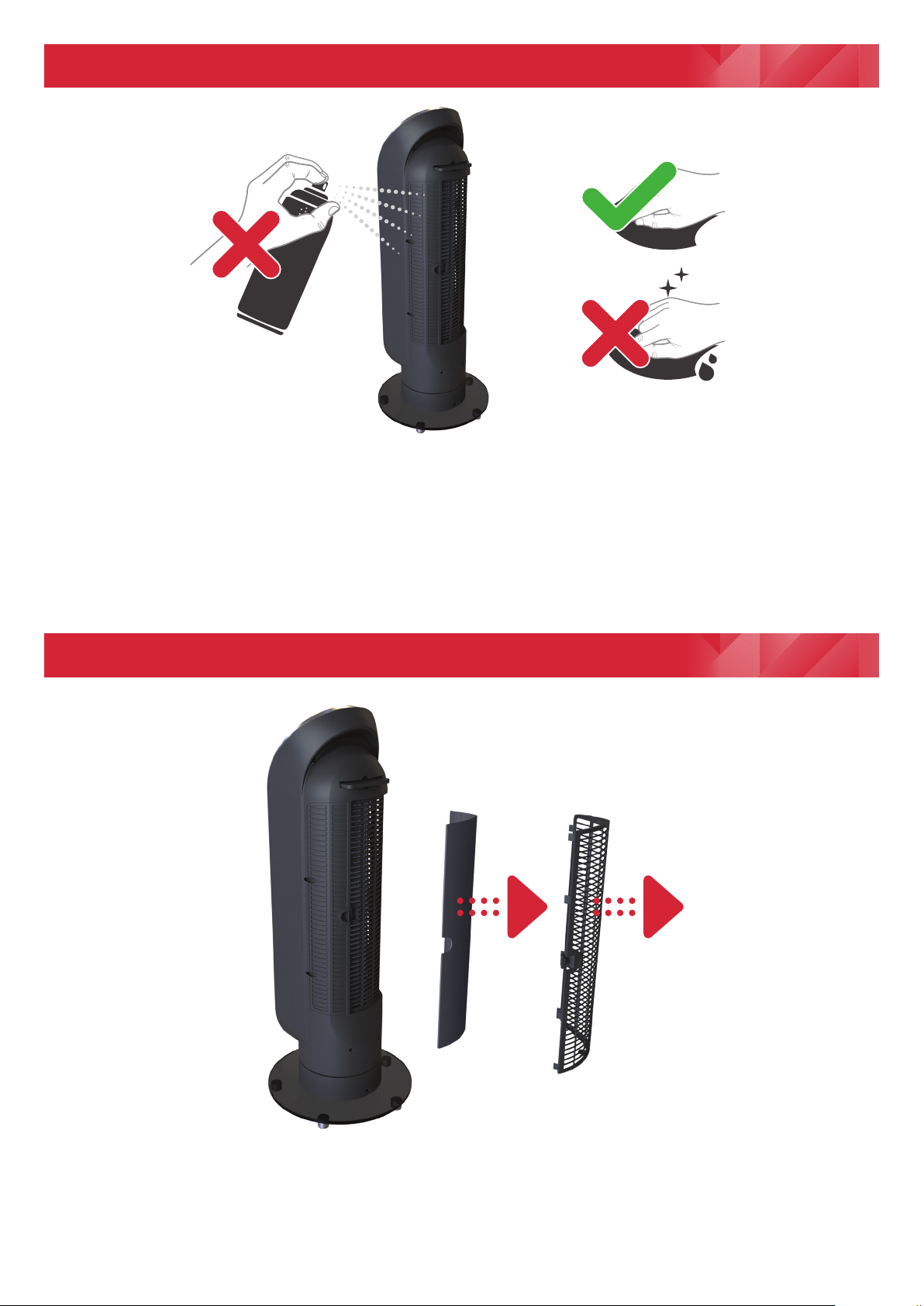

Dimplex MAXAIR25 B-W User Manual
MaxAir25 B/W
08/54154/0 Issue 3
As with all portable heating appliances: This product is suitable only for well insulated spaces or occasional use.
The product complies with the European Safety Standards EN60335:2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014:1,
EN55014:2, EN61000:3-2 and EN61000:3-3 which cover the essential requirements of EMC Directive 2014/30/EU and the LVD Directive 2014/35/EU.
Installation and Operating Instructions
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY BEFORE USE AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
DO NOT use the heater in the immediate surroundings
of a bath, a shower or a swimming pool.
DO NOT place the heater directly below a xed
socket outlet.
The socket-outlet must be accessible at all times
to enable the mains plug to be disconnected as
quickly as possible.
DO NOT COVER or obstruct the air inlet and
outlet openings in any way.
DO NOT operate the heater with the mains lead
overhanging the front outlet grille.
WARNING: In order to avoid overheating do not
cover the heater.
IMPORTANT: If the mains lead of this appliance
is damaged, it must be replaced by the
manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
WARNING: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through
an external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and o by the utility.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given
supervision or instruction concerning the use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years
shall only switch on/o the appliance provided
that it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children aged
from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform
user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
IMPORTANT: Avoid use of an extension cord
because the extension cord may overheat and
cause risk of re.
CHOKING HAZARD: The remote control for this
unit contains a small battery. Keep the remote
away from children and do not swallow the
battery. If the battery is swallowed seek medical
advice at once.
IMPORTANT: Use this heater on a horizontal and
stable surface.
WARNING: To avoid danger of suocation
please remove all packaging materials
particularly plastic and EPS and keep these away
from vulnerable people, children and babies.
WARNING: To avoid the risk of accidental
strangulation from the supply cord all children and
vulnerable people must be supervised when in the
vicinity of the product whether it is working or not.
WARNING: To reduce the risk of re, keep textiles,
curtains or any other ammable material a minimum
distance of 1m from the air outlet.
Keep combustible materials such as drapes and
other furnishings clear from the front, sides and rear
of the heater. Do not use heater to dry your laundry.
DO NOT use this heater if it has been dropped.
DO NOT use if there are visible signs of damage to
the heater.
WARNING: Do not use this heater in small rooms
when they are occupied by persons not capable
of leaving the room on their own, unless constant
supervision is provided.
This instruction leaet belongs to the appliance and
must be kept in a safe place. If changing owners,
the leaet must be surrendered to the new owner.
ELECTRICAL CONNECTION
This heater must be used on an A.C. ~ supply only and the voltage
marked on the heater must correspond to the supply voltage.
This heater is tted with a plug incorporating a 13 amp fuse. When
replacing the fuse, a 13 amp fuse approved by ASTA to BS 1362
must be used.
If the plug is not suitable for the socket outlets in your home, the
plug must be cut o and an appropriate one tted. A plug cut o
from a mains lead will give a shock hazard if inserted into a 13 amp
socket elsewhere in the house. To avoid this, it should be disposed
of immediately.
NOTE: The fuse cover of a non-rewirable plug must be retted when
changing the fuse. Should the cover become lost, the plug must not
be used until the correct replacement fuse cover is obtained from
your supplier or by contacting our customer helpline.
IMPORTANT: The wires in this mains lead are coloured in accordance
with the following code:
BLUE: NEUTRAL
BROWN: LIVE
GREEN & YELLOW: EARTH
As the colours of the wires in the mains lead may not correspond
with the coloured markings in your plug, proceed as follows:
Connect the BROWN wire to the terminal marked ‘L’ or coloured
RED. Connect the BLUE wire to the terminal marked ‘N’ or coloured
BLACK. Note: ‘L’ or ‘N’ must not be connected to the EARTH
terminal marked ‘E’ or ‘ ’ or coloured GREEN or GREEN AND
YELLOW. If in doubt, consult your electrician.
Dimensions
694mm
270mm 270mm
Assembly
• Open the packaging and remove the product.
• The glass base is packaged unassembled from the product.
• Remove the xing nut from the bottom of the product.
• Slide the glass base into place.
• Screw the xing nut on to x the glass base into position.
• The product is now assembled and should be placed in an upright position.
• Always ensure the product is on a at stable surface when in use.

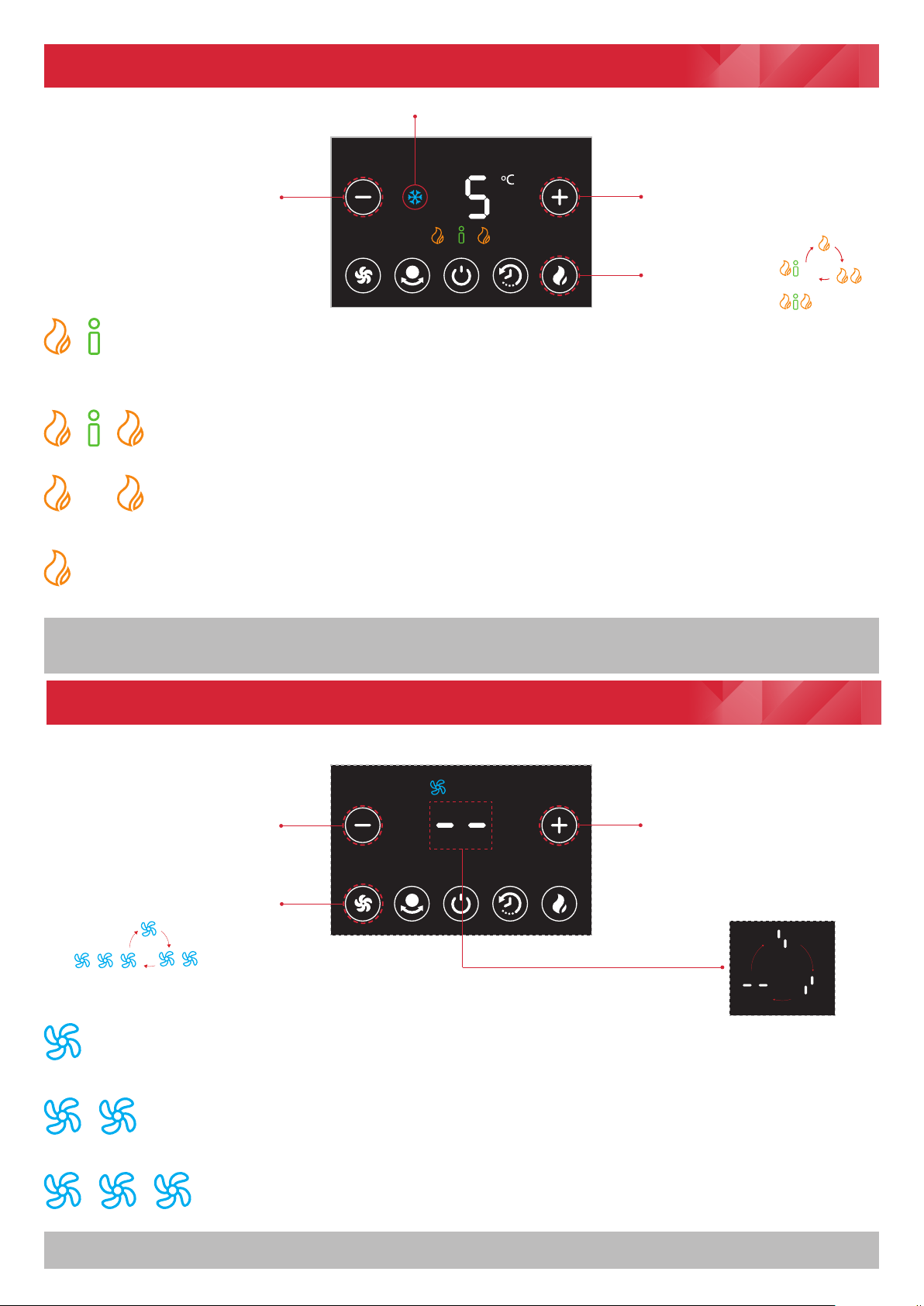

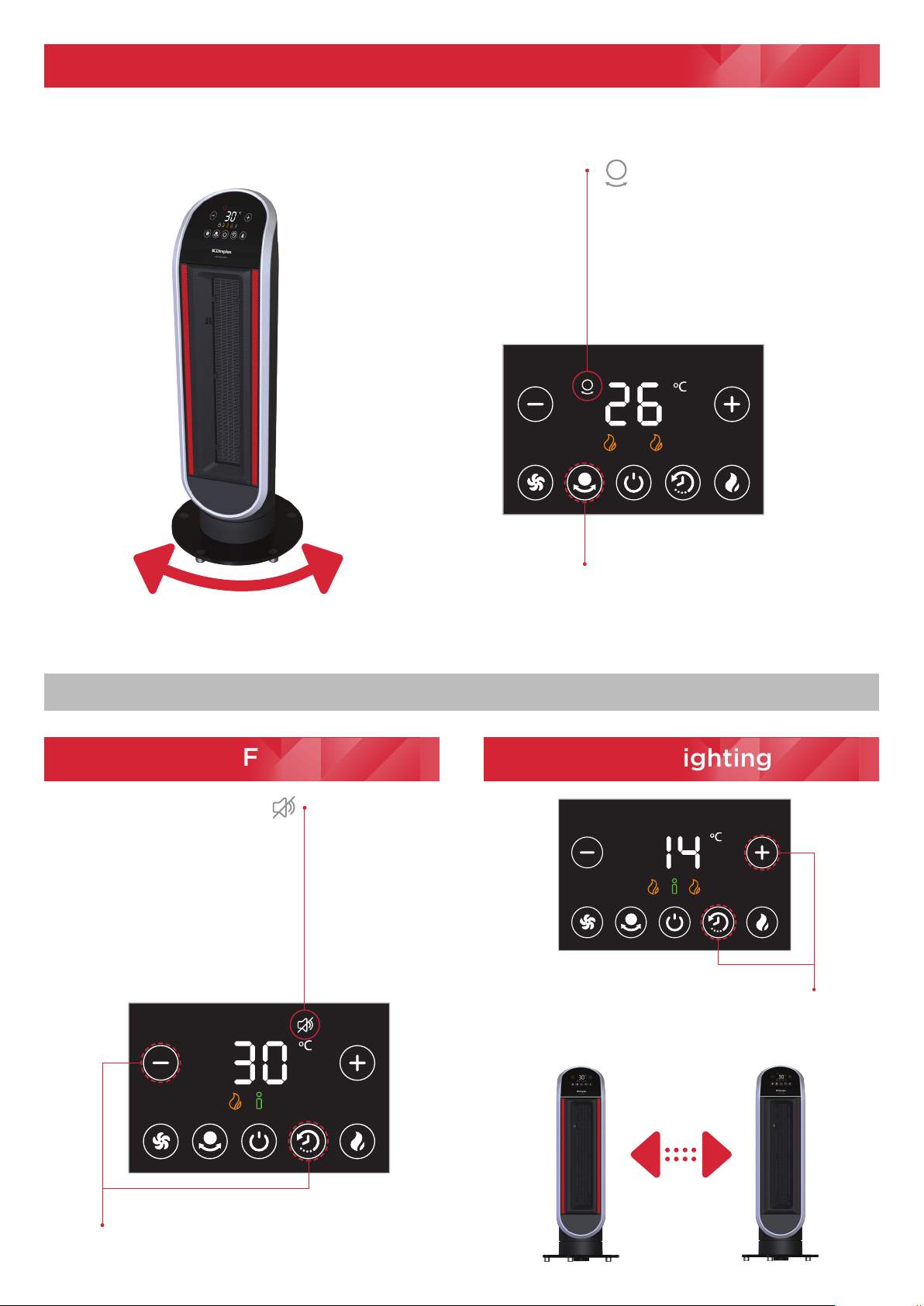

Controls
Decrease
Fan Speed
(Cooling Only)
Oscillation Runback Timer
Increase
Heating Mode
Standby
Standby
• When the appliance is plugged in there will be an audible beep.
Standby mode
Power going to the product but the product
is not turned ON. Once the standby button
has been pressed the product will turn ON
and STANDBY icon will turn OFF.
Note:
Inactive buttons
will not beep when pressed.
Press the Standby button to turn the product On.
First time setup?
YES
On rst time start-up the product will start
with the default settings. The temperature will
be set to 22ºC and the heat setting will be set
to intelligent heat mode, see Heat Selection
on the screen below
NO
When subsequently turned on the product
will return to the last used settings for Heat
Selection, Fan Selection, Temperature Setting,
Sound and Audio. Bluetooth will attempt to
re-pair, see Bluetooth. Runback Timer and
Oscillation will return to OFF. The screen below
shows an example where the user previously
set temperature to 25ºC and Heat Selection
to LOW.
Press the Standby button to put the product into Standby.
• When put into standby mode there is a countdown from 10 to 1 before shutting down.
• When disconnected from the power supply (plugged out/power cut/tilt switch) then
reconnected and turned back on product will return to last used settings for Heat Selection, Fan
Selection, Temperature Setting, Sound and Audio. Bluetooth will attempt to re-pair. Runback
Timer and Oscillation will return to OFF.
.
