Dimplex GDDEU10C Instruction Manual

GDDEU10C

10L COLLAPSIBLE DEHUMIDIFIER
INSTRUCTION MANUAL

1

SAFETY INFORMATION

 Please read the manual carefully before using this product for the first

time. Store the unit in a safe place to avoid electrical leakage, flaming
or personal injury.

 Do not immerse this product in water or any other liquids.
 To avoid unit damage, do not operate the unit if the power cord is

broken, the unit is dropped or the unit is broken.

 Use only qualified personnel to repair the unit. Improper repair can lead

to considerable danger to users.

 Disconnect the unit from power supply before moving or cleaning the

product, as well as when the unit is not in use.

 Operate the unit with specified electrical voltage.
 Use this product for domestic use only and for the designed purpose.
 Do not place objects on the product.
 In order to avoid water leakage, please clean the water tank before

moving the product.

 Do not tilt the unit, or leaking water may cause damage.
 This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been supervised or given
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.

 Please keep the unit at least 50cm from the wall or other barriers whilst

operating.

 Please install the unit following New Zealand wiring laws.

2

PARTS DIAGRAM

1. Air outlet

2. Front housing

3. Power switch and indicator light

4. Water tank handle

5. Unit handle

6. Air Inlet

7. Water tank

8. Water tank stabilising feet

9. Float switch

10. Water tank cover

3

OPERATING INSTRUCTIONS

ASSEMBLY

1. Install the two water tank
stabilising feet into the grooves
under the water tank (into the front
and back).

2. Place the cover into the water tank.
Making sure the “FRONT” side is
facing up and forwards.

3. Place the body of the unit on to the
water tank.

4

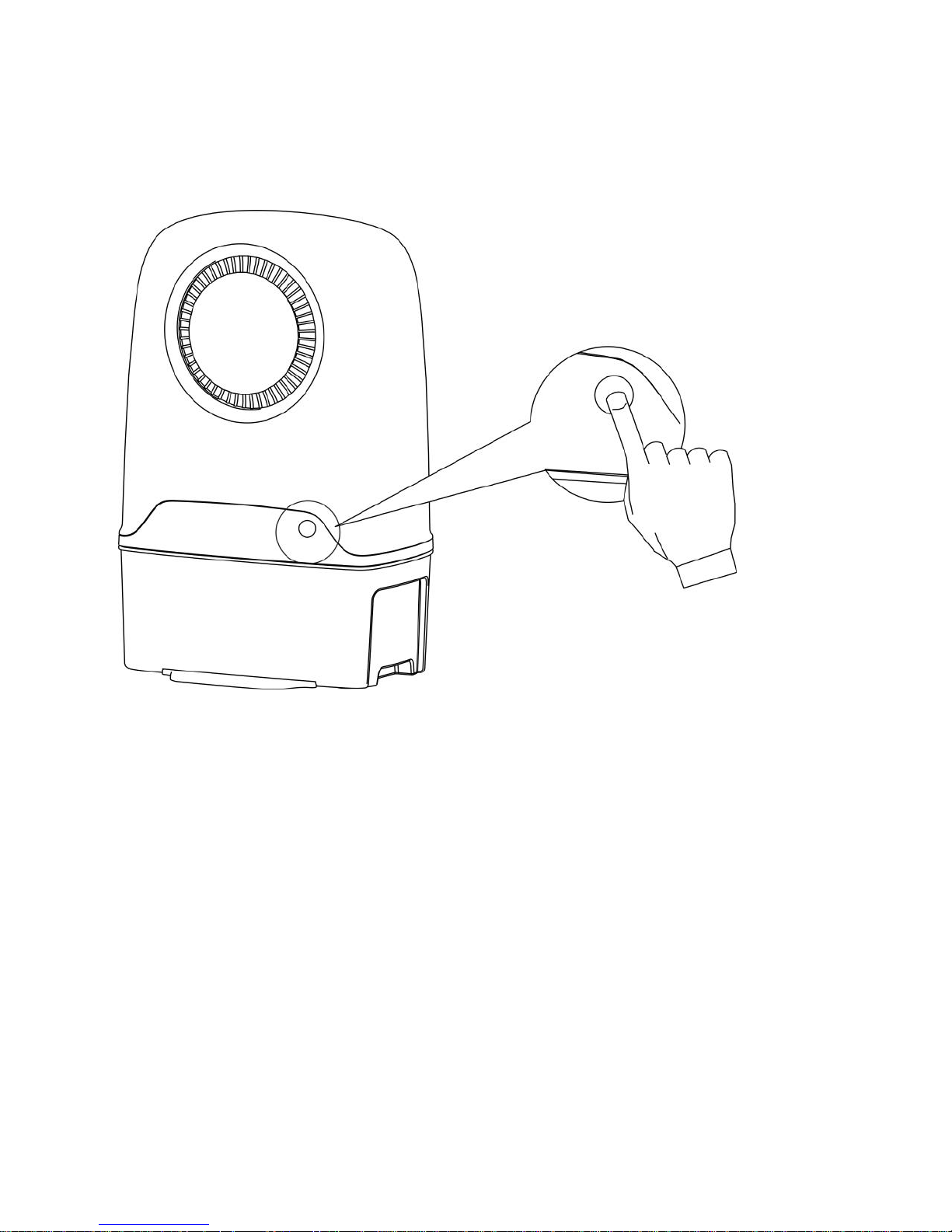

TURNING THE DEHUMIDIFIER ON AND OFF

Turning on the unit

1. Plug the unit into a power source.

2. Press the power switch, the dehumidifier will start to work (the indicator
light will turn green).

Turning off the unit

1. Press the power switch, the unit will stop working and the light will turn
off.

2. Disconnect the unit from the power supply when the product is not going
to be used for a extended periods.

5

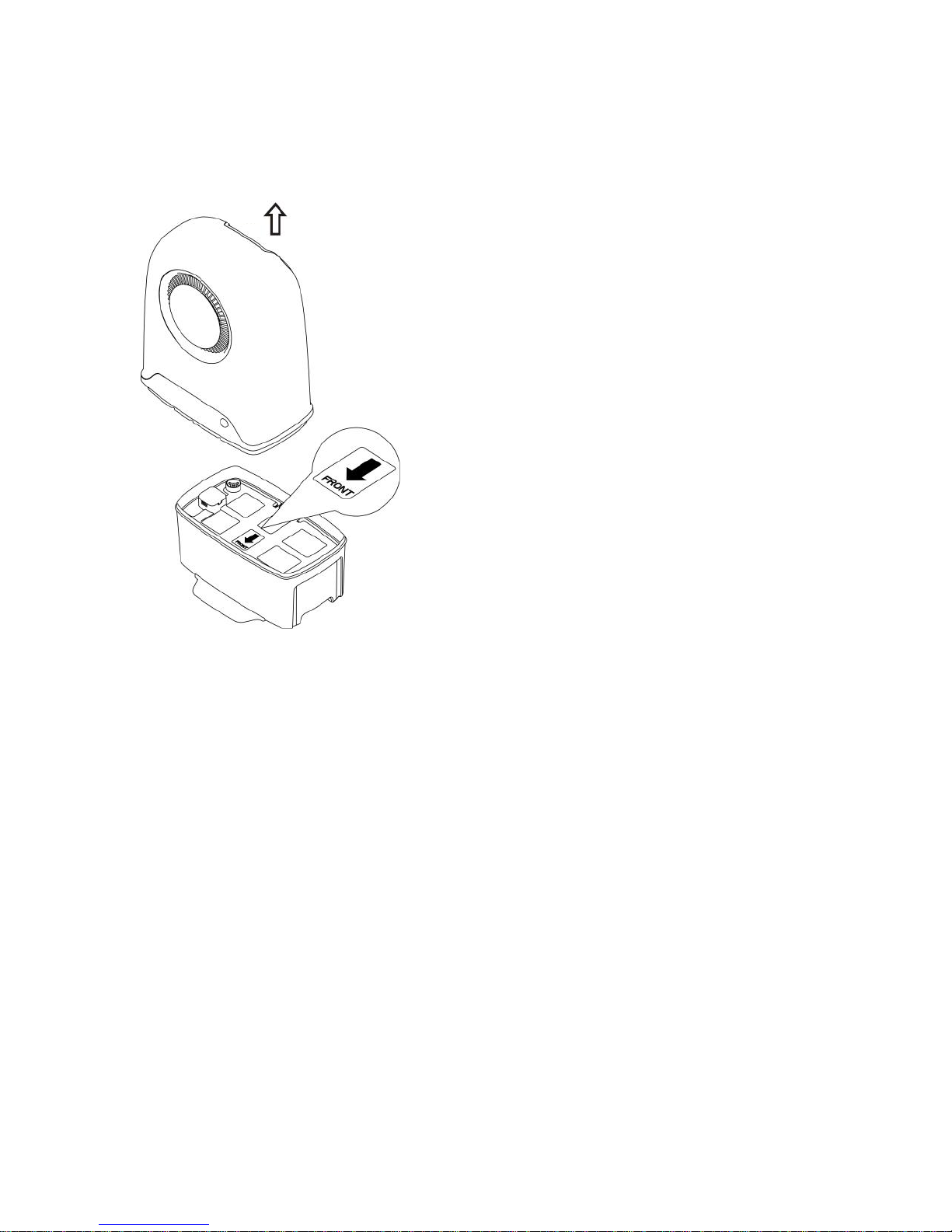

EMPTYING WATER TANK

When dehumidifying, the water will drain into the water tank. The unit will
stop working when the water tank is full and the indicating light will illuminate
red. Follow the directions below to empty the tank.

1. Disconnect the unit from the power supply.

2. Lift off the body from the water tank.

3. Lift the water tank by the handles at the base of the tank, and pour out
the water.

4. Put the water tank back. Then place the body on the water tank.

5. Connect the power source and press the power switch to turn on the
unit.

6

USAGE INFORMATION

 When the indicator light illuminates red, the tank is full. Empty the

tank and turn on the unit to resume operation.

 When the unit turns off, please wait at least 3 minutes before

restarting the unit to prevent damaging the compressor.

 The applicable operating temperature range for this unit is 5-32℃
 If the dehumidifier cannot turn on, the indicating light does not

illuminate or the dehumidifier shuts down unexpectedly, please
check that the plug is connected firmly to power supply. If the plug
and power supply are in normal condition, please wait 10 minutes
before restarting the unit. If the unit still does not start after 10
minutes, please contact the retailer where you purchased the
product.

 While the dehumidifier is operating, the compressor will help to

heat the room up slightly.

 When turning on the unit the indicator light will flash green until the

compressor starts up. After this, the indicator light will change to a
solid green light.

 Whilst in defrost mode, the indicator light will flash green.
 The unit is not to be placed on a surface which is soft or uneven to

avoid the unit causing noise, vibration, water or electrical leakage
when operating.

 In order to improve the performance of the dehumidifier, place the

unit in an open space away from barriers which may block airflow.

 Never insert any objects into the unit or you may risk damaging the

unit.

7

COLLAPSIBLE STORAGE

The GDDEU10C is designed to save space when stored away. The water
tank lid sits underneath the body with the water tank sitting on top to allow it
to fit into small storage spaces.

1. Lift the body from the water tank and the water tank lid.

2. Empty water tank if necessary

3. Remove water tank lid from the water tank and place the water tank lid
on the floor with the front side facing towards you. The white float switch
should now be standing up.

4. Face the body towards you and place on top of the water tank lid so that
the white float switch fits neatly into the allocated hole on the underside
of the body. The dehumidifier should be sitting flat now.

Water tank lid

Body of dehumidifier

8

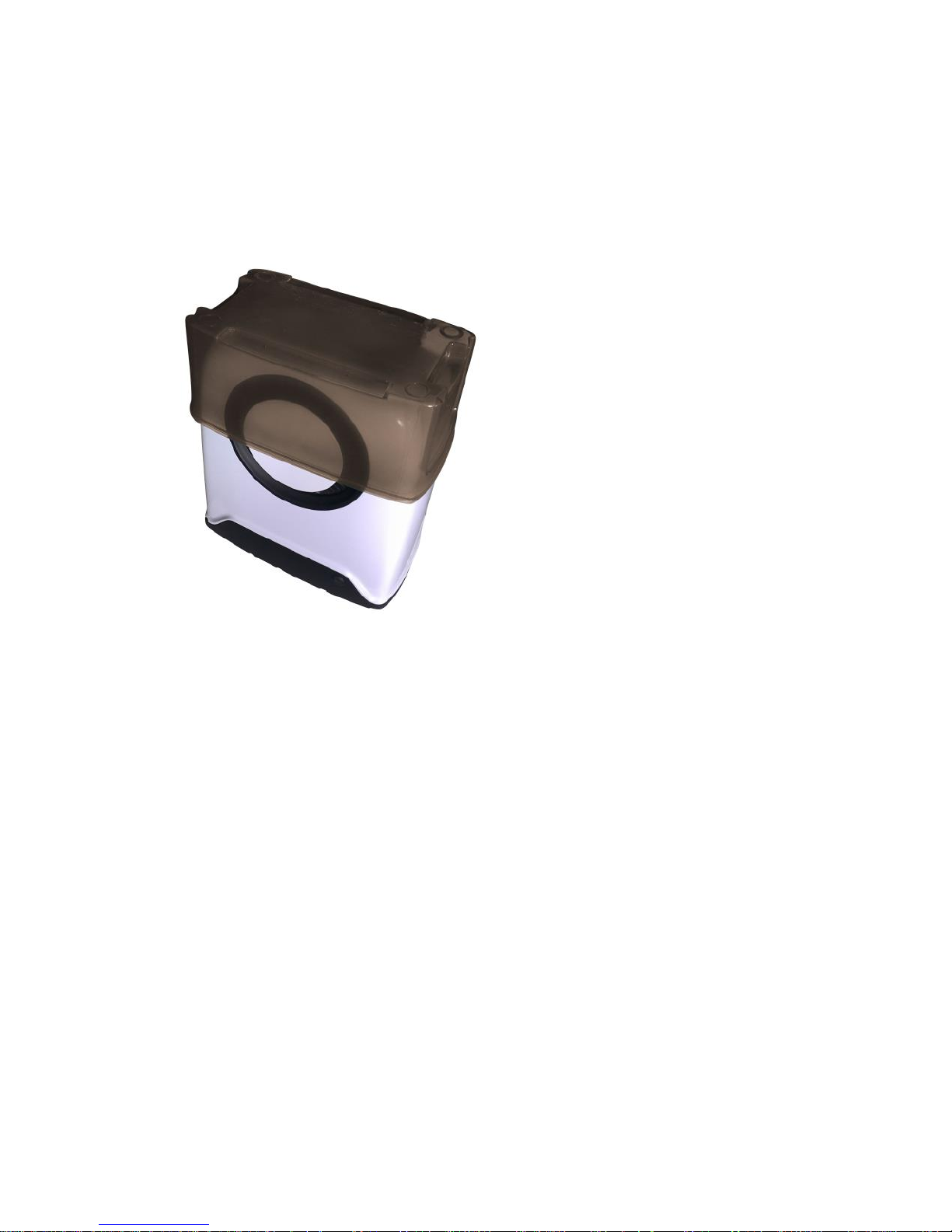

5. Turn the water tank upside down and place it on top of the body. You
may need to push in the vent disc to do so.

6. Pick up the water tank lid, body and bucket altogether and store away.

9

FILTER REMOVAL & CLEANING

1. Before removing the filter, unplug the unit.

2. Pull up the filter handle.

3. Wash the filter with cool water (cooler than 40℃) every two weeks, and

put filter back after it has air-dried naturally.

Disconnect the power cord from the power supply when turning off the unit
for extended periods.

Wash the filter with cool water (cooler than 40℃) but not gasoline or alcohol
every two weeks, and put filter back after it has air-dried naturally.

Filter Handle

Filter

10

SPECIFICATIONS

Model
Specification

GDDEU10C

Power Supply

220-240V~ 50Hz

Power Input (EN60335)

210W

Rated Current

1.2A

Net Weight

9.5 Kg

Moisture removal (30℃ RH80%)

10 liters/day

Dimension(mm)

314Wx 242D x 482H

Working temperature

5℃-32℃

Water Tank Capacity

4L

(CE) N842/2006:
R134a is a kind of fluorinated greenhouse gases covered by
the Kyoto Protocol.
Its total global warming potential (GWP) is 1430.

This marking indicates that this product should not be
disposed with other household wastes throughout NZ/AUS.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please recycle it
responsibly to promote the sustainable reuse of material
resources. Please ask return and collection systems or
contact the retailer where the product was purchased on
how to dispose it in an environmentally friendly manner.

11

Glen Dimplex New Zealand Ltd

38 Harris Road, East Tamaki
Auckland, New Zealand
P.O. Box 58473, Botany
Manukau 2163, New Zealand

Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.dimplex.co.nz
