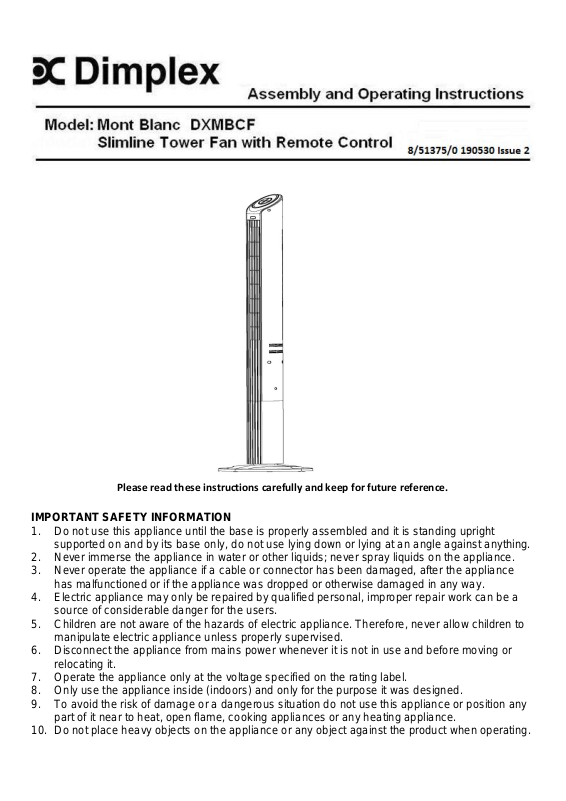

Dimplex Dxmbcf User Manual

Please read these instructions carefully and keep for future reference.

IMPORTANT SAFETY INFORMATION

1. Do not use this appliance until the base is properly assembled and it is standing upright
supported on and by its base only, do not use lying down or lying at an angle against anything.

2. Never immerse the appliance in water or other liquids; never spray liquids on the appliance.

3. Never operate the appliance if a cable or connector has been damaged, after the appliance
has malfunctioned or if the appliance was dropped or otherwise damaged in any way.

4. Electric appliance may only be repaired by qualified personal, improper repair work can be a
source of considerable danger for the users.

5. Children are not aware of the hazards of electric appliance. Therefore, never allow children to
manipulate electric appliance unless properly supervised.

6. Disconnect the appliance from mains power whenever it is not in use and before moving or
relocating it.

7. Operate the appliance only at the voltage specified on the rating label.

8. Only use the appliance inside (indoors) and only for the purpose it was designed.

9. To avoid the risk of damage or a dangerous situation do not use this appliance or position any
part of it near to heat, open flame, cooking appliances or any heating appliance.

10. Do not place heavy objects on the appliance or any object against the product when operating.

11. Do not use the appliance in an area where there are likely to be flammable or explosive fumes
or liquids.

12. Only use the appliance on a stable and level surface.

13. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.

14. When the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.

15. Unplug the appliance before cleaning.

16. To unplug the appliance do not pull on the mains cable, grip the plug at the wall outlet and pull
carefully.

17. Should the appliance fail to operate please check the fuse in the plug is intact and confirm that
the circuit breaker / fuse at your distribution board is operating before contacting the
manufacturer or service agent.

☆ HOW TO ASSEMBLE THE BASE

Carefully remove the split base and the tower fan from its packaging.

Pass the power cord between the two halves of the split base at the
centre and fit the two halves’ together by lining up the overlap bosses
on the back half (with the cable exit) with their sockets on the other
half and dropping into place and pressing together.

Bring the assembled base up to the bottom of the tower and line up
the small pillar on the top of the raised centre of the base with the
matching hole in the base socket location of the tower fan, pull the
cable through fully so it doesn’t interfere with them fitting together.

Take the 4 large screws provided and pass them through the holes
in the circular bosses (located around the central hub on the underside
of the base) into the bottom of the tower, screw fix them firmly in place.

Carefully fit the cable through the slot to the back side of the hub and
then through the guide location channel at the outside of the circular
base to exit level with the base through the channel at the back.
Your Mont Blanc Cooling Fan is now ready to stand and operate.

☆ OPERATING INSTRUCTIONS

All of the functions of this fan can be controlled from the “soft-touch buttons on the unit’s control
panel” or by use of “the wireless remote control”

The LED display screen on the control panel of the product illuminates to display what function you
have selected when the fan is operating.

a. Turning on/off the fan

Gently press “Standby” button on the “soft-touch button control panel” or the “wireless remote
control”.

b. Adjusting and Selecting Speed

3 constant speeds can be selected by pressing the button with the symbol Each time you press
this button the speed will cycle from I to II to III and either back to Off again if using the product
control or back to ‘I’ if using the remote (which has a separate power button,

where “I” = Low speed , “II” = Medium speed, and, “III” = High speed.

c. Variable Blower Function Selection
If you prefer a variable speed output there are two options available by pressing the button

- Press once and will light up on the control panel to indicate natural breeze selection, this
continuously and randomly cycles the air speed between levels to simulate variable wind
conditions.

- Press again and will light up on the control panel to indicate night time operation selection,
this initially varies the speed automatically but at a less noticeable rate than above.

d. Oscillating function.
Your product can oscillate in an arc from left to right and back again continuously thus circulating
the air flow over a wider area. To start the tower fan oscillating simply press the oscillation button

Press this button a second time to stop the oscillation.

e. Runback Timer function
The product can be set to switch off automatically after running for one of four user selectable
runback periods i.e. 1 hr, 2 hr, 4 hr or 8 hr.
To activate the runback function just simply press the timer button

- Press once and the timer is set to 1hr runback

- Press twice and the timer is set to 2hrs runback

- Press 3 times and the timer is set to 4hrs runback

- Press 4 times and the timer is set to 8 hrs runback

- Press a 5th time and the timer function is switched off.

REMOTE CONTROL
Your remote control comes complete with a CR2025 3V battery fitted.
To replace the battery simply remove the securing screw, unclip and
remove the battery cover on the back and replace the battery, then
carefully refit the cover, snap into place and refit the securing screw.

Specification Details - DXMBCF

Symbol

Value

Unit

Maximum Fan Flow Rate

F

9.2

m³/min

Fan Power Input

P

32.3

W

Service Value

SV

0.3

(m³/min)/W

Standby Power Consumption

PSB

0.64

W

Fan Sound Power Level

LWA

64

dB(A)

Maximum Air Velocity

c

4.1

meters/sec

Rated Voltage

V

220-240

V

Rated Frequency

Hz

50

Hz

Measurement Standard for Service Value

IEC 60879:1986

☆ CLEANING：

Disconnect from the mains before attempting to clean the appliance.
Clean the air inlet and outlet regularly with a soft damp (not wet) cloth as these areas accumulate
dust normally during use.
Do not use petrol or solvents or caustic or abrasive cleaning agents as these will destroy the
surfaces of the heater.

☆ RECYCLING - Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please recycle this product responsibly to promote the sustainable

re-use of material resources. To recycle your used product contact the retailer where the

product was purchased or use your local authority recycling facilities where these exist.

After Sales Service:

Your product is guaranteed for one year from the date of purchase. Within this period, we undertake to
repair or exchange this product free of charge provided it has been installed and operated in accordance
with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by
this guarantee. Should you require after sales information or assistance with this product please go to
www.gdcgroup.co.uk or ring our helpdesk on 0845 604 2330 (UK) or 01 842 4833 (R.O.I.).

Please retain your receipt as proof of purchase.
