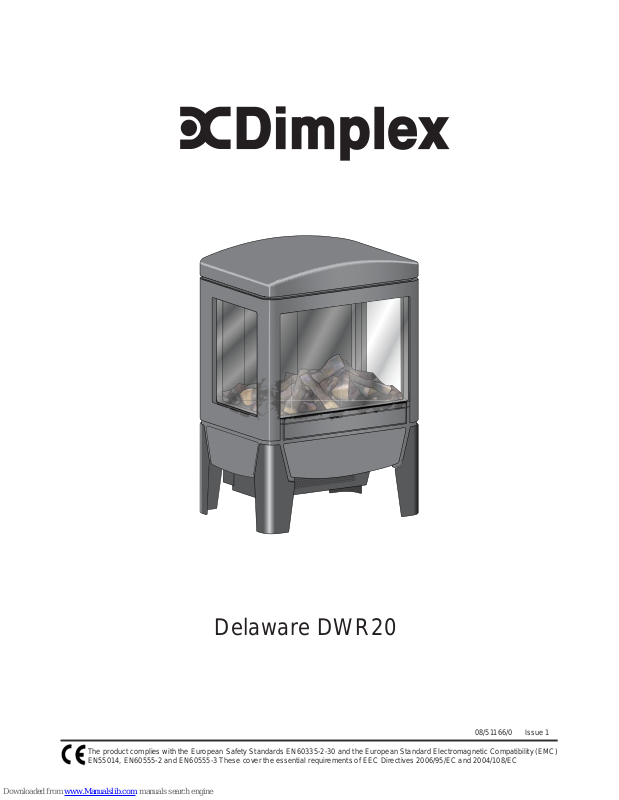

Delaware DWR20
08/51166/0 Issue 1
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig. 6
Fig. 7
Fig. 4
D
C
B
300 300
400
50
550
800
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 14
Fig. 15
Fig. 16
Fig. 17
Fig. 18
Fig. 13
- 1 -
Manual Controls
.
The Opti-myst Manual controls are located in the drawer.
The main switch is located at the rear of the stove
(See Fig. 2 for Manual Control lay out)
Switch ‘A’:- Controls the electricity supply to the stove located at rear.
Note: This switch must be in the ‘ON’ ( I ) position for the stove to operate with or without heat.
Switch ‘B’:- Controls the function of the re.
Press
once to turn on ame e ect. This will be indicated by one beep.
Although the main lights operate immediately it will take a further 30 seconds before the ame
e ect starts.
Press
again to give ame e ec t and half heat. This will be indicated by two beeps.
Press
again to give ame e ec t and full heat. This will be indicated by three beeps.
Press
again to return to ame e ect only.
This will b e indicated by one b eep.
Press
to put stove in to standby mode.
This will b e indicated by one b eep.
Control Knob ‘C’:- Controls the intensity of the ame e ect.
Turning the control knob to the right increases the ame e ect, turning the control knob to the left
will decrease the ame e ect.
Control Knob ‘D’:- Controls the Electronic Thermostat setting.
Turning the control knob to the left will decrease the temperature setting, turning the control knob to
the right will increase the temperature setting.
When the water is empty the main lamps go out. See instructions under ‘Maintenance’, ‘Filling the
water tank’. When this procedure is complete, the main lamps will illuminate but it will take 30 seconds
before the ames return.
Depending on room temperature and humidity there may be some condensation on the inside of
the stove. This can be overcome by turning the ame control knob down and leaving the doors of the
stove slightly ajar, until the glass warms up.
Electronic Thermostat
The thermostat controls the heat output according to the room temperature. This ensures that
the stove will not produce heat unnecessarily when the room is warm.
To set the temperature you require, turn the thermostat control knob ‘D’ (See Fig. 2) to the right until
the desired temperature is reached. Alternatively to heat a cold room quickly, turn the thermostat
control knob ‘D’ (See Fig. 2) up fully. When the room has reached the desired temperature, turn the
thermostat control knob ‘D’ (See Fig. 2) to the left until the desired heat setting is achieved.
The stove will now automatically operate at this temperature.
Remote Control Operation
On the control panel, Switch A (see Fig. 2) must be in the ‘ON’ ( I ) position in order for the remote
control to operate. There are 3 buttons on the remote control. (See Fig. 7)
To operate correctly the remote must be pointed towards the front fuel e ect.
The remote control functions are as follows:
Press once to turn on Flame e ect only.
This will be indicated by one beep.
Press once to turn on Half heat and Flame e ect.
This will be indicated by two beeps.
Press again to turn on Full heat and Flame e ect.
This will be indicated by three beeps.
Standby
This will be indicated by one beep.
Battery Information.
1. Unclip the battery cover on the back of the remote control. (See Fig. 7)
2. Install AAA batteries into the remote control.
3. Replace the battery cover.
Discard leaky batteries.
Dispose of batteries in the proper manner according to provincial and local regulations.
Any battery may leak electrolyte if mixed with a di erent batter y type, if inserted incorrectly, if all the
batteries are not replaced at the same time, if disposed of in a re, or if an attempt is made to charge a
battery not intended to be recharged.
Thermal safety cut-out
A thermal safety cut-out is incorporated in the fan stove to prevent damage due to overheating. This
can happen if the heat outlet was restricted in any way or if the chimney ue has not been blocked o
e ectively. If the cut-out operates, unplug the stove from the socket outlet and allow approximately 10
minutes before reconnecting. Before switching the stove back on remove any obstruction that may be
restricting the heat outlet, then continue normal operation.
Tips for using your appliance.
1. Only pull out the drawer when its time to re ll the water tank or change a lamp, otherwise it may
lead to excess water in the sump and reduced ame e ect. If this happens empty the water from
the sump as instructed under ‘Maintenance’.
2. With the ame setting on minimum the unit will use approximately 40ml of water per hour and
will last 3 times as long than when it is at maximum ame setting.
3. Do not tilt or move the stove while there is water in the tank or sump.
4. Make sure that the stove is on a level oor.
5. The ame control knob ‘C’ Fig. 2 may be turned up or down to give a more realistic e ect.
6. Sometimes the ames appear more real when the ame control knob is turned down.
7. Give the ame generator some time to react to changes you may make on the ame control
knob.
Maintenance
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY
MAINTENANCE
Model: Delaware DWR20 (Contemporary Stove)
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Important Safety Advice:
When using electrical appliances, basic precautions should always be followed to reduce the
risk of re, electrical shock and injury to persons, including the following:
If the appliance is damaged, check with the supplier before installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the stove immediately below a xed socket outlet or connection box.
This appliance is not intended for use by children or other persons without assistance or
supervision if their physical, sensory or mental capabilities prevent them from using it
safely. Children should be supervised to ensure that they do not play with the appliance.
In order to avoid a hazard due to inadvertent resetting of the the thermal cutout, this
appliance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and o by the utility.
Do not use this stove in series with a thermal control, a program controller, a timer or any
other device that switches on the heat automatically, since a re risk exists when the stove is
accidentally covered or displaced.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1
metre from the stove.
In the event of a fault unplug the stove.
Unplug the stove when not required for long periods.
Although this stove complies with safety standards, we do not recommend its use on deep
pile carpets or on long hair type of rugs.
The appliance must be positioned so that the plug is accessible.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a
similarly quali ed person in order to avoid a hazard.
Keep the supply cord away from the front of the stove.
WARNING: In order to avoid overheating, do not cover the stove. Do not place material or
garments on the stove, or obstruct the air circulation around the stove.
The stove carries the Warning symbol indicating that it must not be covered
.
Dimplex Opti-myst Stove
General.
Unpack the stove carefully and retain the packaging for possible future use, in the event of moving or
returning the stove to your supplier. The Remote Control and batteries are packed separately in the
carton.
The stove incorporates a ame e ect, which can be used with or without heating, so that the
comforting e ect may be enjoyed at any time of the year. Using the ame e ect on its own only
requires little electricity.
These models are designed to be free standing and are normal positioned near a wall.
Before connecting the stove check that the supply voltage is the same as that stated on the stove.
Please note: Used in an environment where background noise is very low, it may be possible to hear
a sound which is related to the operation of the ame e ect. This is normal and should not be a cause
for concern.
Electrical connection.
WARNING – THIS APPLIANCE MUST BE EARTHED.
This stove must be used on an AC ~ supply only and the voltage marked on the stove must correspond
to the supply voltage.
Before switching on, please read the safety warnings and operating instructions.
PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
Do not put Opti-myst plastic components into a dishwasher.
Only slide out the drawer when the water tank needs to be lled or a lamp needs to be changed
otherwise you will inadvertently alter the water level and the ame e ect operation.
Only use ltered tap water in this appliance.
Always ensure that the stove is sitting on a level oor.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and
water tank and dry the sump.
Once installed, never move this stove or lay on its back, without draining the water from sump
and water tank.
The water tank, sump, sump lid, tank cap and air lters must be cleaned once every two weeks,
particularly in hard water areas.
The stove appliance should never be operated if the lamps are not working.
The lamps should be regularly inspected as described under ‘Maintenance’ and ‘Changing
lamps’.
Installation Instructions
Ensure that all packing items are removed (read any warning labels carefully).
Retain all packing for possible future use, in the event of moving or returning the appliance to
your supplier.
To reduce heat losses and to prevent any chimney updraught a ecting the operation of your
re we recommend that the chimney ue is blocked o , ensure that there is a slight gap for
ventilation.
To install the appliance;
Place the stove against the wall and connect the stove to your electricity supply.
Plug the stove into a 13amp/240volt outlet.
Before switching on the appliance, please read the following instructions.
Before using the manual controls rstly ll the water tank (See ‘Maintenance’, ‘Filling the water
tank’).
- 2 -
Fitment and replacment lamps.
If a large amount of the smoke appears grey or colourless it may be that one or more lamps have
failed.
You can check for lamp failure as follows.
1. Leaving the ame e ect on and gently pull the drawer fully out. (See Fig. 3)
2. View the lamps from a distance in front of the stove and observe which lamp needs to be
changed.
3. Put Switch ‘A’ in the ‘OFF’ position, and unplug the stove from the mains.
4. Leave the appliance for 20 minutes to allow the lamps to cool down before removing them.
5. Remove the water tank by lifting upwards and place in a sink.
6. Remove the sump as described in the Cleaning Section.
7. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp
holder, (See Fig. 4 and 5). Replace with a Dimplex Opti-myst, 12V, 50W, Gu5.3 base, 8° beam
angle, coloured lamp. (Purchased from www.dimplex.co.uk under the section ‘After Sales Service’,
details of how to purchase the lamps are contained therein.)
8. Carefully insert the two pins of the new lamp into the two holes in the lamp holder. Push rmly in
place. (See Fig. 4 and 5).
9. Replace the Sump and water tank and carefully close the drawer and doors.
10. Switch on.
Filling the water tank.
When the water tank is empty, ame and smoke e ect shuts o , and you will hear 2 audible ‘beeps’.
Follow these steps to re ll:
1. Press Switch ‘A’ to (0).
2. Gently pull out the drawer as far as possible. (See Fig. 3)
3. Remove the water tank by lifting upwards and outwards.
4. Place the water tank in sink and remove cap, Anti-clockwise to open. (See Fig. 6)
5. Fill tank with ltered tap water only. This is necessary to prolong the life of the ame and smoke
producing unit.
The water should be ltered through a conventional domestic water lter unit and the lter should be
replaced regularly.
6. Screw the cap back on, do not overtighten.
7. Return the tank to the sump, with the tank cap facing down and the at side of the tank facing
outward.
8. Gently push the drawer back in as far as it will go.
9. Press Switch ‘A’ to ‘ON’ ( I ) position (See Fig. 2)
10. Press Switch ‘B’ once to turn on ame e ect. (See manual control section and Fig. 2)
Cleaning.
WARNING – ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE STOVE.
We Recommend cleaning the following components once every 2 weeks, particularly in hard water
areas:Water Tank, Sump and Seal, Sump lid, Tank cap and seal, Air lter.
For general cleaning use a soft clean duster – never use abrasive cleaners. To remove any accumulation
of dust or u the soft brush attachment of a vacuum cleaner should occasionally be used to clean the
outlet grille of the fan stove.
Water tank
1. Remove water tank, as described earlier, put into sink and empty water.
2. Using the supplied brush gently rub the inside surfaces of the cap paying particular attention to
the rubber ring in the outer groove and the centre rubber seal.
3. Put a small quantity of washing up liquid into the tank, re t the cap and shake well, rinse out
until all traces of washing up liquid are gone.
4. Re ll with ltered tap water only, replace the cap, do not overtighten.
Sump
1. Press Switch ‘A’ to the ‘OFF’ (0) position
2. Gently pull the drawer out as far as possible. (See Fig. 3)
3. Remove the water tank by lifting upwards.
4. Disconnect the electrical connector, located on the left side of the sump, by rst loosening the
two retaining screws and gently withdrawing the connector. (See Fig. 8)
5. Release the lower sump locking tabs by turning 90°, this allows the sump to be lifted completely
from its location. (See Fig. 9)
6. Gently lift up the sump assembly, taking care to keep level so as not to spill any water. Sit the
assembly in the sink. (See Fig. 10)
7. Release the two upper sump locking tabs by turning 90°, then lift o the sump lid. (See Fig. 11)
8. Carefully tilt, as shown, so that the liquid drains out of the sump. (See Fig. 12)
9. Put a small amount of washing up liquid into the sump, and using the supplied brush, gently
clean all surfaces including the metal discs and the rubber seal located in the top grooved
surface. Do not remove the rubber seals. (See Fig. 13 and 14)
10. When cleaned, thoroughly rinse the sump with clean water.
11. Clean the outlet surface of the sump lid with the brush and ush out thoroughly with water. (See
Fig. 15 & 16)
12. Reverse the above steps to reassemble.
Air lter.
1. Press Switch ‘A’ to the ‘OFF’ (0) position.
2. Gently pull the drawer out as far as possible. (See Fig. 3)
3. Remove the tank and place in a sink with the cap facing upwards.
4. Gently slide upwards the air lter plastic holder. (See Fig. 17)
5. Remove the lter combination from the plastic holder.
6. Gently rinse with water in the sink and dry with fabric towel before returning.
7. Replace the lter combination making sure that the course black lter is in contact with the
plastic holder. (See Fig. 18)
8. Replace the tank.
9. Close the drawer fully.
10. Press Switch ‘A’ to the ‘ON’ ( I ) position (See Fig. 2)
Recycling.
For electrical products sold within the European Community. At the end of the electrical
products useful life it should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice in your country.
After Sales Service.
Your product is guaranteed for one year from the date of purchase. Within this period, we undertake
to repair or exchange this product free of charge (excluding lamps & subject to availability) provided
it has been installed and operated in accordance with these instructions. Should you require after
sales service or should you need to purchase any spares, please contact the retailer from whom the
appliance was purchased or contact the service number relevant to your country on the warranty card.
Please do not return a faulty product to us in the rst instance as this may result in the loss or damage
and delay in providing you with a satisfactory service.
Please retain your receipt as proof of purchase.
Symptom Cause Corrective Action
The ame e ect will not start. Mains plug is not plugged in.
Switch A is in the ‘ON’ ( I ) position, but mode Switch B has not been pressed.
(See Fig. 2)
Low water level.
Low voltage connector not connected properly. (See Fig. 8)
Check plug is connected to wall socket correctly.
Press Switch B once for ame e ect. (See Fig. 2)
Check the water tank is full and there is water in the sump.
Check that the connector is inserted correctly. (See Fig. 8)
The ame e ect is too low. Flame e ec t control knob is set too low.(See Fig. 2)
The water in the sump may be too high due to the drawer being opened and
closed a number of times, water tank removed a number of times, or the stove
has been moved.
Metal Disc at the base of Sump might be dirty (See Fig. 13)
Increase level of ame by turning Control knob C to the left slowly. (See Fig. 2)
If water level in the sump is more than 40mm, the sump should be removed and
emptied in the sink.
Clean Metal Discs with soft brush supplied. (See Fig. 13) See ‘Maintenance.’ for a
step by step procedure.
Unpleasant smell when unit is used. Dirty or stale water.
Using un ltered tap water.
Clean the unit as described under maintenance.
Use only ltered tap water.
The ame e ect has too much smoke. Flame e ec t setting is too high. Turn the ame e ect Control knob C to the right until it is at minimum and slowly
turn to the left, about ¼ a turn, at a time. Give the ame generator some time to
adjust before increasing. (See Fig. 2)
Main lamps are not working and there
are no ames or smoke.
There is no water in the tank. Follow instructions under Maintenance, ‘Filling the water tank’.
Check the plug is connected to wall socket correctly.
Switch ‘A’ Fig. 2 is in the ‘ON’ ( I ) position.
Press switch ‘B’ Fig. 2 until you can hear one beep only, for ame e ect.
Condensation on inner glass surfaces Glass surfaces may be cold Turn down ame e ect until glass warms up.
Troubleshooting
Opti-myst is a trade mark of GDC Group Ltd.
This product is protected by one or more of the following patents: PCT/ EP2005/009774, PCT/ EP2007/002207, GB0717773.6, GB0717772.8,
GB0717770.2, GB0809322.1. The design of this product is protected by EU Design Rights
[c] GDC Group Ltd,
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of GDC.
A division of GDC Group Ltd,
Loading...
