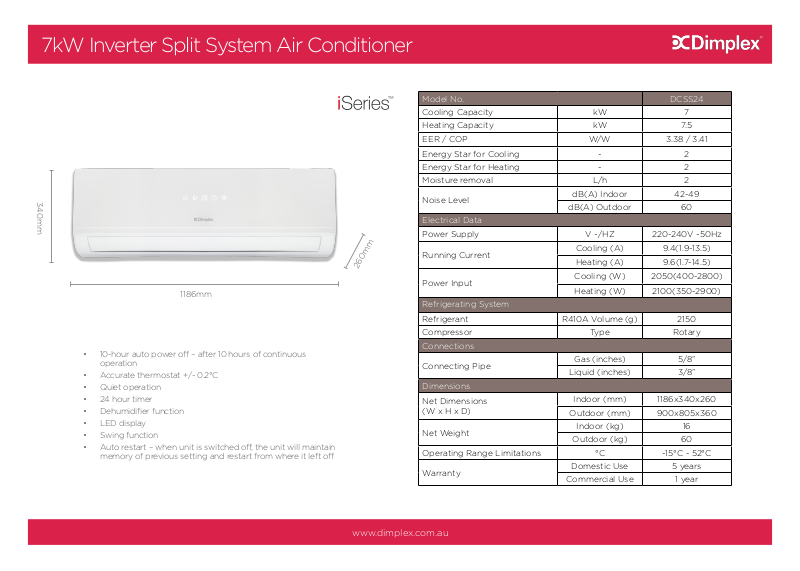

Dimplex DCSS24 Specifications Sheet

7kW Inverter Split System Air Conditioner

340mm

260mm

1186mm

• 10-hour auto power off – after 10 hours of continuous
operation

• Accurate thermostat +/- 0.2°C

• Quiet operation

• 24 hour timer

• Dehumidifier function

• LED display

• Swing function

• Auto restart – when unit is switched off, the unit will maintain
memory of previous setting and restart from where it left off

Model No. DCSS24

Cooling Capacity kW 7
Heating Capacity kW 7.5
EER / COP W/W 3.38 / 3.41

Energy Star for Cooling - 2
Energy Star for Heating
Moisture removal L/h 2

Noise Level

Electrical Data

Power Supply V ~/HZ 220-240V ~50Hz

Running Current

Power Input

Refrigerating System

Refrigerant R410A Volume (g) 2150
Compressor Type Rotary

Connections

Connecting Pipe

Dimensions

Net Dimensions
(W x H x D)

Net Weight

Operating Range Limitations °C -15°C - 52°C

Warranty

dB(A) Outdoor 60

Liquid (inches) 3/8”

Outdoor (mm) 900x805x360

Commercial Use 1 year

-

dB(A) Indoor 42-49

Cooling (A) 9.4(1.9-13.5)
Heating (A) 9.6(1.7-14.5)

Cooling (W) 2050(400-2800)

Heating (W) 2100(350-2900)

Gas (inches) 5/8”

Indoor (mm) 1186x340x260

Indoor (kg) 16

Outdoor (kg) 60

Domestic Use 5 years

2
