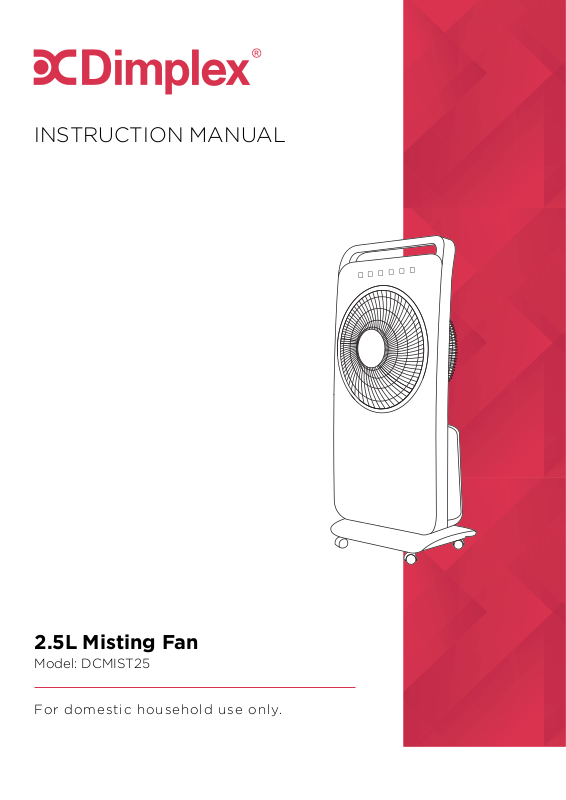

INSTRUCTION MANUAL
2.5L Misting Fan
Model: DCMIST25
For domestic household use only.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your Misting Fan for the
rst time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a
shower or a swimming pool.
• If the mains lead is damaged it must only be replaced by the manufacturers service
agent or a similarly qualied person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Prior to cleaning or other maintenance, the appliance must be disconnected from
the supply mains.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a rm, at surface to avoid the risk of water leakage.
Ensure that the unit is kept upright at all times.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after
appliance malfunction or if the appliance was dropped or is otherwise damaged.
• Please ask a professional service agent to repair the product. Improper repair may
cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, and before cleaning or lling.
• Operate the appliance only at the voltage specied on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that
you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This evaporative cooler is only intended for INDOOR RESIDENTIAL applications.
This evaporative cooler should not be used for commercial or industrial or leisure
applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a re or electrocution hazard, NEVER put the cord near heat registers,
radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord
away from trac areas and where it will not be a tripping hazard.
2
• DO NOT use the unit near windows or where water collects. Rain and water collection
may lead to a risk of re or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away
from walls, furniture and overhanging objects such as curtains or a shelf.
• To prevent spillage, empty the water tank before lifting or relocating the appliance.
• WARNING: To avoid danger of suocation please remove all packaging materials
particularly plastic and EPS and keep these away from vulnerable people, children
and babies.
• NEVER drop or insert any object or ngers into any openings.
• Do not use the appliance in locations where paint, petrol or other ammable liquids
are used or stored.
• Do not use bug sprays or other ammable cleansers/vapour sprays on or around
the unit.
• Always switch o the unit and take the plug out of the socket:
•
•
•
•
If you are not using the unit
Before you clean or carry out maintenance on the unit
If a fault occurs
In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
3
Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
On a slope or
uneven surface
If an extension
lead may become
overloaded
Where there is risk
of re or close to
a naked ame
Where the power
cable may be
damaged
Where it may be
damaged by
chemicals
Where there is a risk
of interference by
This product is not
made for DIY repair
foreign objects
4
If there is a risk
of water falling on
the unit
Specication
Model no. DCMIST25
Colour
Power supply
Rated power
Speed settings
Modes 3 (natural, normal & sleep)
Blade diameter 300mm
Water tank capacity 2.5L
Remote control Y
Timer 0-8 hours
Swing function 360° rotating grill
Controls
Max. room size
Water consumption
Button with LED display
Grey/White
220-240V~ 50Hz
80W
4
20m²
160ml/h (high speed)
Weight (net) 6.4kg
Dimensions (w x d x h) 382 x 228 x 836mm
• For greater precision, please always refer to the rating label placed on the product.
5
Parts
Remote
Grille
Blade
Water tank
Air Guide
Louvre
Mist disk
Front case
Rear case
Base
Castor
6
Display & Control Panel
Remote Control
Timer
Oscillation
Fan Speed
Preset
Mode
Fan On/O
Mist On/O
7
Functions
Before rst use, remove any packaging and tape
stuck on the unit.
Paper
ON/OFF
After connecting the cord to a power outlet press the
ON/OFF button to turn the unit ON. To turn the unit
OFF press this button again.
FAN SPEED
The unit has 4 FAN SPEEDS and is adjusted from the lowest speed to the highest
speed. The selected fan speed LED indicator light will illuminate according to the
FAN SPEED selected.
ROTATION
Press the ROTATION button to activate 360 degree rotation. The ROTATION LED
indicator light will illuminate. Press the button again to turn o the function.
tube
MODE
The unit has 3 dierent modes, as described below, and the default mode after
turning ON is normal. Press the MODE button to select modes in this sequence:
normal > natural > sleep. The MODE indicator light will illuminate accordingly.
Normal: Constant wind speed.
Natural: Changing wind speeds to simulate natural wind.
Sleep: Changing wind speeds to simulate natural wind, however the unit will
automatically turn o after 8 hours.
TIMER / PRESET
The auto-o TIMER can be set in 1 hour increments up to a maximum of 8 hours.
Press the TIMER button while the unit is ON until the desired time is shown on the
LED indicators on the display panel. The unit will automatically turn OFF.
To activate the PRESET mode, press the button while the unit is in Standby mode,
and the unit will be set to turn ON after the PRESET time is complete. The PRESET
time will show on the indicator lights.
8
Functions
MIST
To activate the MIST function, press the MIST button once to turn on. Ensure there
is enough water in the water tank. The LED indicator light will illuminate once
activated. Press this button again to turn o the MIST function, and to use as a fan
only. The unit is also equipped with the below functions.
DISPLAY OFF
When the unit is working, after 40 seconds of any buttons being pressed, the
indicator lights will turn OFF. Press any button (except for the ON/OFF button) and
the indicator lights will reactivate.
MEMORY FUNCTION
This unit has a memory function. When the fan is turned OFF, it memorises the
settings previously used. When the unit is turned ON again, it will start in the same
settings as previously used (unless the power supply was fully disconnected). If the
unit was in SLEEP mode previously, it will start in natural wind mode.
AUTO OFF
If there isn't any change in settings after 15 hours of constant use, the unit will turn
OFF automatically. This is an additional safety feature in case the unit is left ON
accidentally.
REMOTE CONTROL
This unit comes with a remote control, and all settings can be controlled via the
remote.
9
Filling the water tank
Filling the water tank:
Place the unit on a at surface and ll the water tank according to the following 3
steps.
Press water tank button and remove the tank.
Turn the water tank upside down and unscrew the cap. Fill the tank with clean cold
ltered water.
Cap of water tank
Replace the cap, ensure it is secured tightly, and replace the tank back into the unit.
10
Operation & Set Up
1. Remove the unit from its packaging & place on a rm stable surface.
2. To use the MIST function, ll the water tank as instructed on the previous page.
3. Plug into a power outlet and press the ON/OFF button to turn ON the unit.
4. The unit will operate initially on a continual basis. If a set period of operation is
required, please follow the TIMER/PRESET instructions on page 8.
5. Select the desired fan FAN SPEED by pressing the FAN SPEED button. Refer to
page 8 for dierent settings.
6. Select the operation MODE as required, by pressing the MODE button. Refer to
page 8 for dierent settings.
7. Press the ROTATION button if 360 degree rotation is required.
8. To switch the unit o at any time, press the OFF button.
Precautions
• Do not overll the water tank (check the MAX ll line).
• Use only cold, clean ltered water.
• The unit is equipped with a number of safety devices, including water shortage
protection & tank removal protection.
• Do not allow the same water to sit in the machine for a prolonged period.
• It is recommended that any water left in the machine for 3 days or more be removed and replaced with clean water.
• The control panel must not come in contact with water or any other liquids.
Using the Remote Control
1. Open the battery cover of the remote control, and insert 2 x AA batteries.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover as per the diagram
and replace with a new battery (2 x AA). Then replace the battery cover.
11
Cleaning
Due to the nature of the product, the unit should be cleaned regularly. Always
turn the unit OFF and disconnect from the power supply before commencing any
cleaning.
De-calcifying the water tank
In areas with hard water, deposits will build up, so it is recommended to de-calcify
the unit every six months. The cartridge retains calcium and mineral particles, thus
preventing such substances from being emitted with the vapor and causing white
deposits on furniture etc.
Caution: When cleaning the appliance, never use window cleaner, furniture polish,
thinner, hot water over 50 degrees Celsius.
Water Tank
The water tank should be cleaned regularly. If not cleaned, deposits may build up
aecting the eciency of the unit. Cleaning the tank with mild soapy water once
every month is recommended. To do this, following the steps below:
1. Disconnect the appliance from the main supply.
2. Completely remove the water tank from the unit.
3. Remove any deposits or dirt from the tank with a mild soapy detergent and cloth.
4. Flush the tank with clean water.
5. Reverse the procedure and make sure the tank is in place before use.
Outside Cabinet
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a sti brush to clean the
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Storage
If not using the unit for an extended period of time. After cleaning please:
• Turn the unit o, unplug and take care of the mains lead & plug.
•
Cover the unit and store it upright in a location where it will not receive direct sunlight.
NB- Prolonged exposure to direct sunlight will discolour the enclosure.
12
Maintenance
If you have lost your user manual of the unit fails to operate eciently, is broken or
other problems arise, unplug and do not operate. Ask for advice by calling your local
after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800
666 2824 (NZ).
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landlls or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
13
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
1340 Ferntree Gully Road, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
14
Loading...
