Dimplex EMC4240, DCH4831 Installation Instructions Manual
Construction Heaters
DCH4831 & EMC4240

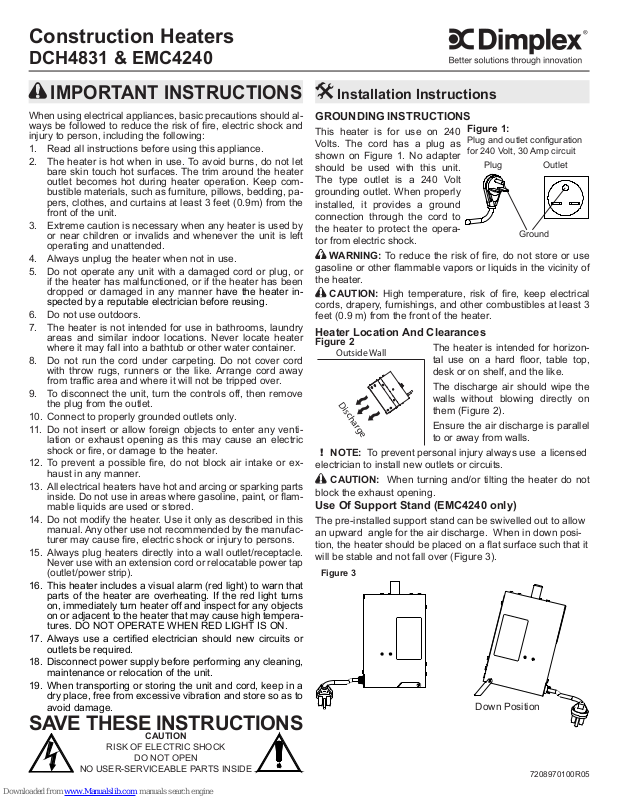

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should al-
ways be followed to reduce the risk of re, electric shock and
injury to person, including the following:
1. Read all instructions before using this appliance.
2. The heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. The trim around the heater
outlet becomes hot during heater operation. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the
front of the unit.
3. Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the unit is left
operating and unattended.
4. Always unplug the heater when not in use.
5. Do not operate any unit with a damaged cord or plug, or
if the heater has malfunctioned, or if the heater has been
dropped or damaged in any manner have the heater in-
spected by a reputable electrician before reusing.
6. Do not use outdoors.
7. The heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater
where it may fall into a bathtub or other water container.
8. Do not run the cord under carpeting. Do not cover cord
with throw rugs, runners or the like. Arrange cord away
from trafc area and where it will not be tripped over.
9. To disconnect the unit, turn the controls off, then remove
the plug from the outlet.
10. Connect to properly grounded outlets only.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
shock or re, or damage to the heater.
12. To prevent a possible re, do not block air intake or ex-
haust in any manner.
13. All electrical heaters have hot and arcing or sparking parts
inside. Do not use in areas where gasoline, paint, or ammable liquids are used or stored.
14. Do not modify the heater. Use it only as described in this
manual. Any other use not recommended by the manufac-
turer may cause re, electric shock or injury to persons.
15. Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap
(outlet/power strip).
16. This heater includes a visual alarm (red light) to warn that
parts of the heater are overheating. If the red light turns
on, immediately turn heater off and inspect for any objects
on or adjacent to the heater that may cause high temperatures. DO NOT OPERATE WHEN RED LIGHT IS ON.
17. Always use a certied electrician should new circuits or
outlets be required.
18. Disconnect power supply before performing any cleaning,
maintenance or relocation of the unit.
19. When transporting or storing the unit and cord, keep in a
dry place, free from excessive vibration and store so as to
avoid damage.
Installation Instructions
GROUNDING INSTRUCTIONS
This heater is for use on 240
Volts. The cord has a plug as
shown on Figure 1. No adapter
should be used with this unit.
The type outlet is a 240 Volt
grounding outlet. When properly
installed, it provides a ground
connection through the cord to
the heater to protect the operator from electric shock.
WARNING: To reduce the risk of re, do not store or use
gasoline or other ammable vapors or liquids in the vicinity of
the heater.
CAUTION: High temperature, risk of re, keep electrical
cords, drapery, furnishings, and other combustibles at least 3
feet (0.9 m) from the front of the heater.
Heater Location And Clearances
Figure 2
Outside Wall
Discharge
!
NOTE: To prevent personal injury always use a licensed
electrician to install new outlets or circuits.
CAUTION: When turning and/or tilting the heater do not
block the exhaust opening.
The heater is intended for horizon-
tal use on a hard oor, table top,
desk or on shelf, and the like.
The discharge air should wipe the
walls without blowing directly on
them (Figure 2).
Ensure the air discharge is parallel
to or away from walls.
Use Of Support Stand (EMC4240 only)
The pre-installed support stand can be swivelled out to allow
an upward angle for the air discharge. When in down posi-
tion, the heater should be placed on a at surface such that it
will be stable and not fall over (Figure 3).
Figure 3
Figure 1:
Plug and outlet conguration
for 240 Volt, 30 Amp circuit
Plug Outlet
Ground
Down Position
SAVE THESE INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
7208970100R05
Operation
WARNING: This heater must be properly installed before it
is used.
SETTING THE THERMOSTAT
1. Before connecting or disconnecting plug, turn knob fully
counterclockwise.
2. Heater is equipped with a thermostat. To adjust tem-
perature to your individual requirements, turn thermostat
control knob clockwise all the way to turn heater on. The
yellow power light will illuminate (Figure 4). When room
reaches desired temperature, turn thermostat knob counterclockwise until you hear a click. Leave in this position to
maintain room temperature at this setting. For additional
heat, turn clockwise until you hear a click again and heater
will turn on. To shut heater off turn thermostat knob counterclockwise all the way. The yellow power indicator light
will turn off.
WARNING: Should the heater overheat, an automatic cut
out will turn the heater off and it will not come back on without being reset. It can be reset by unplugging the unit and
waiting 5 minutes before plugging the unit back in.
If you need to continuously reset the heater, unplug the
unit and contact a licenced electrician. DO NOT USE THE
HEATER UNTIL THE CAUSE OF THE BROBLEM IS DETERMINED AND FIXED.
Figure 4
O
Red light
Over Temp
Surchauffe
Temperatura
Excesiva
Power On
En marche
Encedido
Low
High
Maintenance
WARNING: Disconnect power before attempting any main-
tenance or cleaning to reduce the risk of re, electric shock or
damage to persons.
CAUTION: Allow at least 30 minutes for the heater to cool
before attempting any maintenance or cleaning.
!
NOTE: This heater should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause
a build up of heat and eventual damage. For this reason the
heater must be inspected regularly, depending upon conditions and at least at yearly intervals.
To clean the exterior surface, use a solution of water and mild
detergent, apply with damp sponge. Wipe dry with a dry cloth.
DO NOT plug heater into outlet until it has dried thoroughly.
Warranty
Dimplex Electric Heaters are tested and inspected prior to shipment and are
guaranteed free from defect to the purchaser of each new product. Any part
which proves to be defective in material or workmanship under normal use
within one year will be repaired or replaced without charge. The Company
will not be responsible for any expense incurred for installation, removal from
service, or transportation costs. Any such defect should be brought to the
attention of the Dealer where the product was purchased and is authorized to
repair or replace within the terms of this warranty.
The Company’s only obligation under this warranty will be at its sole option
to repair or replace any part proving defective or to refund the purchase price
thereof.
The owner/user assumes all other risks, if any, including the risk of any direct,
indirect or consequential loss or damage arising out of the use of or inability
to use the product.
The warranty will not apply if, in the sole judgment of the Company, damage
or failure has resulted from accident, alteration, misuse, abuse, incorrect
installation, or operation on an incorrect power source.
The foregoing is in lieu of all other warranties expressed, implied, or statutory,
and the Company neither assumes, nor authorizes any person to assume for
it any other obligation, or liability in connection with said product.
Yellow light
1367 Industrial Road Cambridge ON Canada N3H 4W3
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
© 2016 Dimplex North America Limited
