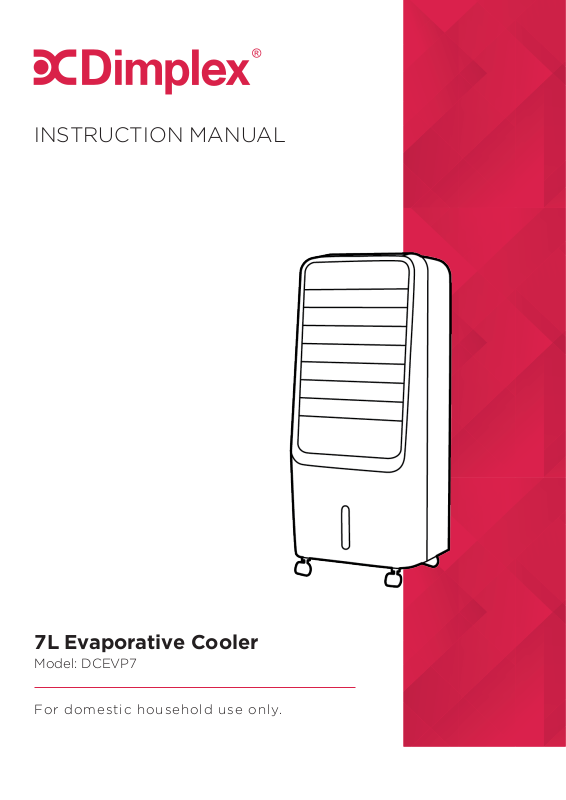

INSTRUCTION MANUAL
7L Evaporative Cooler
Model: DCEVP7
For domestic household use only.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your evaporative cooler
for the rst time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a
shower or a swimming pool.
• Never immerse the appliance in water or other liquids.
Operate this unit only on a rm, at surface to avoid the risk of water leakage.
Ensure that the unit is kept upright at all times.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or is otherwise damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers service
agent or a similarly qualied person in order to avoid a hazard.
Please ask a professional service agent to repair the product. Improper repair may cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning.
Operate the appliance only at the voltage specied on the rating label.
Only connect the unit to a properly installed and easily accessible socket so that
you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This evaporative cooler is only intended for INDOOR RESIDENTIAL applications. This evaporative cooler should not be used for commercial or industrial or leisure applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
To avoid a re or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters.
DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
DO NOT route cord under furniture or appliances. Take care to position the cord
away from trac areas and where it will not be a tripping hazard.
DO NOT use the unit near windows or where water collects. Rain and water collection
may lead to a risk of re or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf.
2
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
To prevent spillage, empty the water tank before lifting or relocating the appliance.
WARNING: To avoid danger of suocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children
and babies.
NEVER drop or insert any object or ngers into any openings.
Do not use the appliance in locations where paint, petrol or other ammable liquids are used or stored.
Do not use bug sprays or other ammable cleansers/vapour sprays on or around the unit.
Always switch o the unit and take the plug out of the socket:
If you are not using the unit Before you clean or carry out maintenance on the unit If a fault occurs In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from electrical appliances such as televisions & radios.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if the compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
3
Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
On a slope or
uneven surface
If an extension
lead may become
overloaded
Where there is risk
of re or close to
a naked ame
Where the power
cable may be
damaged
Where it may be
damaged by
chemicals
Where there is a risk
of interference by
This product is not
made for DIY repair
foreign objects
4
If there is a risk
of water falling on
the unit
Specication
Model no. DCEVP7
Colour
Power supply
Rated power
Speed settings
Modes
Turbo air speed 10m/s
Water tank capacity 7L
Remote control Y
Timer 0-8 hours
Swing function Y
Controls
Max. room size
Water consumption
4 (natural, normal, sleep &
White/Black
220-240V~, 50Hz
110W
4
smart)
Button with LED display
30m²
1.2L/h (high speed)
Weight (net) 8kg
Dimensions (w x d x h) 346 x 314 x 824mm
• For greater precision, please always refer to the rating label placed on the product.
5
Parts
Display panel
Control panel
Horizontal louvres
Remote
Water level window
Castors
Remote control storage
Rear lter
Water tank
Ice pack
6
Display & Control Panels
Control Panel
Display Panel
Remote Control
On/O
Left/right swing
Speed
Mode
Timer
Cool/Humidfy
7
Functions
Note: The buzzer beeps twice when the power supply is rst turned on. The unit is in ‘standby’ until the On/O button is pressed.
The horizontal louvres need to be opend manually by hand.
ON/OFF
Press the ON/OFF button to turn the unit ON. The default settings when rst turned on are; medium fan speed, normal mode, and no timer. To turn the unit OFF press this button again. It may take a few seconds to power o completely.
FAN SPEED
The FAN SPEED can be selected in the following sequence: quiet > low > medium > high. The selected fan speed LED indicator light will illuminate accordingly.
COOL / HUMIDIFY
Press this button once to turn on the COOL / HUMIDIFY function, the pump will start and the COOL / HUMIDIFY LED will illuminate. Press this button again to turn
o the cooling function, and to use as a fan only.
LEFT / RIGHT SWING
Press this button to turn on the SWING function, the louvres will move left to right and the SWING LED indicator light will illuminate. Press the button again to turn o the swing function.
TIMER The TIMER can be set in 1 hour increments up to the maximum timer of 8 hours. The
set time will be indicated on the display panel before switching back to the ambient
room temperature.
MODE
The default mode after turning “On” is normal. Press this button to select modes in this sequence: normal > smart > natural > sleep. The MODE indicator light will illuminate accordingly.
NOTE: Natural and sleep modes are unavailable if quiet fan speed is selected.
Normal: Constant wind speed.
8
Functions
Smart: During smart mode the fan speed can’t adjusted. Instead the fan speed is automatically chosen & adjusted based on temperature changes in the room.
When the smart mode is selected the LED indicator will start to ash and begin
operation acording to the conditions below:
• When the ambient room temperature is below 25 degress, the unit will operate at low fan speed.
• If the ambient room temperature is above 25-29 degrees, the unit will operate at medium fan speed
• When the ambient room temperature is above 29 degrees, the unit will operate at high fan speed.
Note: The fan speed indicator won't appear on the display during smart mode.
Natural: Changing wind speeds (the indicator lights only show the initial wind speed
when the speed changes, and other changes are not indicated).
Sleep: In natural sleep mode, the wind speed LED changes with the 30-minute cycle change, but does not indicate with the change of natural wind. High: 30 minutes high speed natural wind > 30 minutes medium level natural
wind > low level natural wind (until turned o).
Medium: 30 minutes medium level natural wind > low level natural wind (until
turned o).
Low: Low level natural wind (until turned o).
9
Other Functions
Environmental protection function:
If no operation is detected within 60 seconds, all LED’s dim to a semi-bright light. When operation is detected, the LED’s enter full brightness immediately.
Water level protection function:
When the cooling function is rst turned on, the water pump works for 50 seconds. If the low water is detected, then the pump will stop working and a buzzer alarm
sounds for 10 seconds.
Air dry function
If the honeycomb lter needs to be dried after using the cooler/humidier function (e.g. before packing the unit away), press and hold the “fan speed” button on the
panel for 3 seconds to activate the air dry function.
When the air dry function is activated, the fan speed turns to high speed automatically and runs for 20 minutes. During ‘Air dry’, other functions are turned
o and can not be used. The high fan speed indicator will illuminate and ash for the
20 minute duration.
If the “On/O” button is pressed before the 20 minutes are complete, the remaining
‘Air dry’ time won’t be saved, and you’ll need to start again.
Power failure memory function:
• If there is a power failure during operation, when power resumes, the unit will
automatically turn back on and beep ten times. After 30 seconds the unit will
resume the last settings it was operating in. Note: the previous function will be restored (except if in sleep mode).
• To speed up the process, press the “On” button within 30 seconds of the power being restored, and it will operate immediately.
Prevent long time use
The unit turns o automatically after continuously working for 15 hours. This function
can prevent the unit from running for long periods, especially if the user forgets to
turn the unit “O”.
Uninterrupted memory function:
When hen the power is restored after a power outage, a beep will sound 10 times (1 time per second) without display and action. After 30 seconds, the unit will restore to the previous settings. Note: the previous function will be restored (except if in sleep mode). If the power button is pressed during the 30 second waiting time, the previous state will be restored immediately. The timer countdown should also be memorised and an error of no more than 5 min
is permitted for each power outage (o time duration is neglected).
10
Operation & Set Up
1. Remove the unit from its packaging
2. To begin using the COOL/HUMIDFY function, open and remove the water tank
located at the back of the unit and ll to the MAX ll line.
3. For extra cooling power, place an ice pack (supplied) into the water tank.
4. Open the hoizontal louvres.
5. Plug into a power supply and press the ON/OFF button to start the appliance.
6. The unit will operate initially on a continual basis. If a set period of operation is required, please follow the TIMER instructions on page 8.
7. Select the desired fan FAN SPEED by pressing the FAN SPEED button. Refer to
page 8 for dierent settings.
8. Select the operation MODE as required, by pressing the MODE button. Refer to
page 8 & 9 for dierent settings.
9. Press the LEFT / RIGHT swing function as required.
10. To switch the unit o at any time, press the OFF button.
Precautions
Do not overll the water tank (check the MAX ll line).
Only ll the water tank half full, when using the ice packs.
Use only cold, clean ltered water.
• The unit is equipped with a number of safety devices, including a water shortage
protection, tank removal protection & power failure protection.
• Do not allow the same water to sit in the machine for a prolonged period.
• It is recommended that any water left in the machine for 3 days or more be re­moved and replaced with clean water.
• The control panel must not come in contact with water or any other liquids.
Using the Remote Control
1. Open the battery cover of the remote control, and insert a 3V CR2032 battery.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover as per the diagram and replace with a new battery (CR2032). Then replace the battery cover.
11
Cleaning
Your unit is designed to remove dirt and other atmospheric impurities by drawing air
through the air lter. DO NOT block the air lter, as this will impair the eciency of
the unit. Pushing the unit up against a wall or operating it in close proximity to long
window drapes will also impair the unit’s air ow and eciency.
Rear Air Filter
This is easily accessible by removing the rear screen and lter.
In a smoky or dusty environment, this lter will become grey in colour after one to two months.
Disconnect the unit from the main supply. Gently wash the lter in mild, soapy
water, dry and replace. Be sure to re-t the rear screen securely. No special tools
are required for this.
Water Tank
The water tank should be cleaned regularly. If not cleaned, deposits may build up aecting the eciency of the unit. Cleaning the tank with mild soapy water once
every 6 months is recommended. To do this, following the steps below:
1. Disconnect the appliance from the main supply.
2. Completely remove the water tank from the unit.
3. Remove any deposits or dirt from the tank with a mild, soapy detergent and cloth.
4. Flush the tank with clean water.
5. Reverse the procedure and make sure the tank lock is in place.
Outside Cabinet
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a sti brush to clean the
IMPORTANT
The control panel and other parts must not come into contact with water or any other liquids.
Storage
If not using the unit for an extended period of time. After cleaning please:
Turn the unit o, unplug and take care of the mains lead & plug.
Cover the unit and store it upright in a location where it will not receive direct sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.
12
Maintenance
If the unit fails to operate eciently, is broken or other problems arise, unplug and do not operate. Ask for advice by calling your local after sales service agent or the
Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Warranty
Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki, Scoresby 3179, Victoria Auckland 2013
Australia New Zealand Ph: 1300 556 816 Ph: 0800 666 2824
Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landlls or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
131415
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
1340 Ferntree Gully Road, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
16
Loading...
