INSTRUCTION MANUAL
0
1
2
3
0
20
40
60
80
30cm Box Fan
Model: DCBOX30W
For domestic household use only.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE. Note also the information
presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY
AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your fan for the
rst time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath,
a shower or a swimming pool.
• If the mains lead is damaged it must only be replaced by the manufacturers
service agent or a similarly qualied person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a rm, at surface.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged,
after appliance malfunction or if the appliance was dropped or is otherwise
damaged.
• Please ask a professional service agent to repair the product. Improper repair
may cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, and before cleaning.
• Operate the appliance only at the voltage specied on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so
that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This fan is only intended for INDOOR RESIDENTIAL applications. This fan
should not be used for commercial or industrial or leisure applications or in
small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a re or electrocution hazard, NEVER put the cord near heat registers,
radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
2
cord away from trac areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water
collection may lead to a risk of re or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around
i.e. away from walls, furniture and overhanging objects such as curtains or a
shelf.
• WARNING: To avoid danger of suocation please remove all packaging
materials particularly plastic and EPS and keep these away from vulnerable
people, children and babies.
• NEVER drop or insert any object or ngers into any openings.
• Do not use the appliance in locations where paint, petrol or other ammable
liquids are used or stored.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
• Do not use bug sprays or other ammable cleansers/vapour sprays on or
around the unit.
• Always switch o the unit and take the plug out of the socket:
•
•
•
•
If you are not using the unit
Before you clean or carry out maintenance on the unit
If a fault occurs
In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
3
Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
On a slope or
uneven surface
If an extension
lead may become
overloaded
Where there is risk
of re or close to
a naked ame
Where the power
cable may be
damaged
Where it may be
damaged by
chemicals
Where there is a risk
of interference by
This product is not
made for DIY repair
foreign objects
4
If there is a risk
of water falling on
the unit
Specication
Model no. DCBOX30W
Colour
Power supply
Rated power
Speed settings
Modes -
Timer 2 hours
Air volume 34m³/min
Carry handle Y
Tilt adjustable head N/A
Oscillation Rotating grille
Noise level (MAX)
Weight (net) 2.5kg
Dimensions (w x d x h) 363 x 131 x 386mm
Matte White
220-240V~, 50Hz
46W
3
63dB(A)
• For greater precision, please always refer to the rating label placed on the product.
5
20
40
60
80
0
0
1
2
3

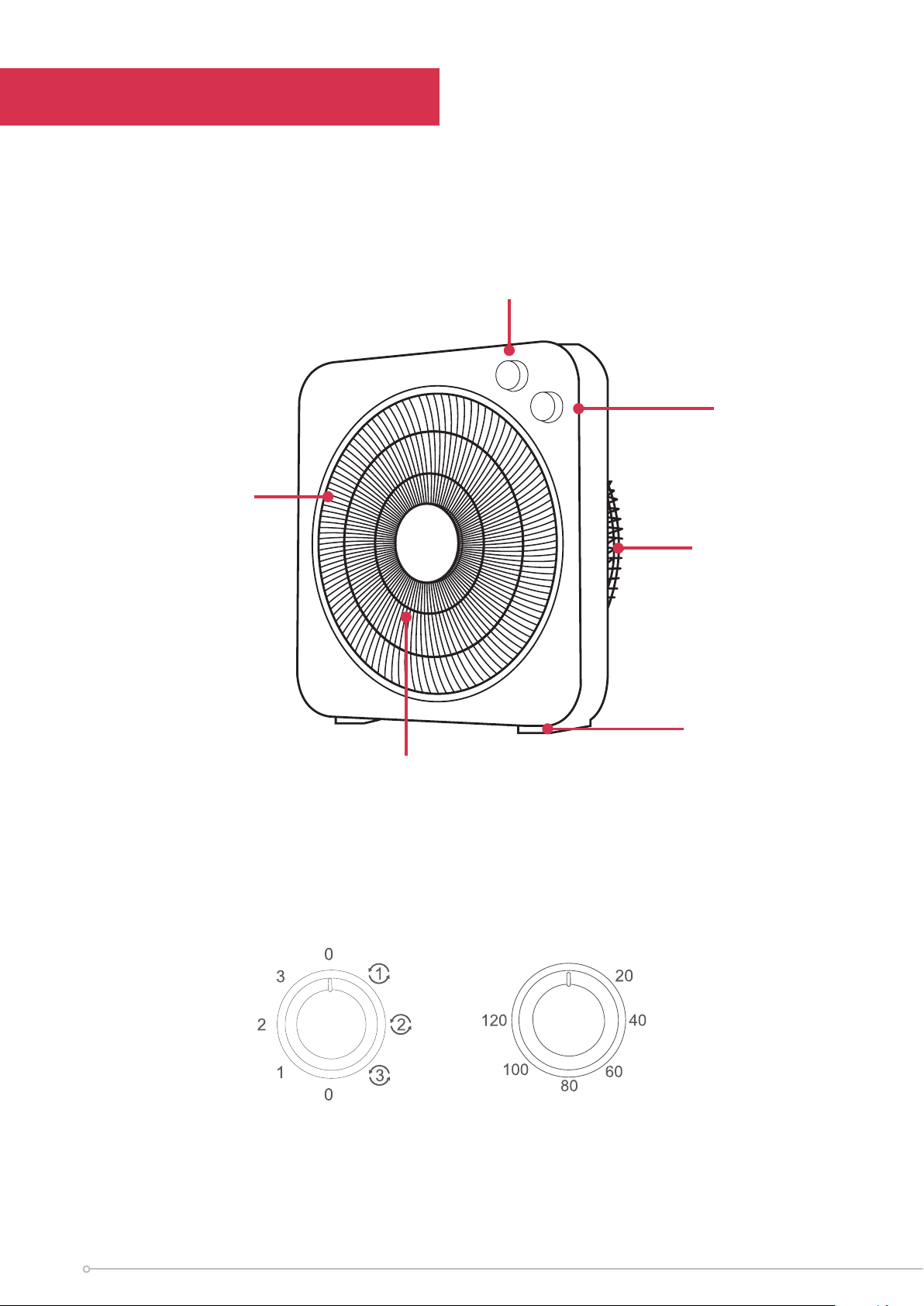

Parts
ON
OFF
ON
OFF
Front guard
Speed Controls
0
1
2
3
0
20
40
60
80
Timer Controls
Rear guard
Speed Controls
Feet
Fan blade
Timer Controls
OFF
ON
6
Operation
NOTE: The unit is already assembled. Please remove any packaging materials and
place upright on a rm stable surface.
1. Connect the plug to a power outlet and switch on.
2. To turn the fan ON, rotate the TIMER control to either activate the auto-o timer
setting (in 20 minute increments up to a MAX. of 2 hours) or simply turn to the
"ON" position in order to operate continuously.
Note: The TIMER setting must be turned to "OFF" in order to turn the unit OFF
completely.
3. To adjust the FAN SPEED turn the speed control to the desired setting. There are
3 fan speeds to choose from, "1" = low speed, "2" = medium speed & "3" = high
speed. This control also activates the rotating grille.
Note: When turning the unit OFF the speed control should be returned to the "0"
position, along with the timer control in the "OFF" position.
7
Cleaning
Over time, dust can accumulate on the rear grille cover and fan blades, which can
aect the fans performance. It is recommended to clean the fan at least once a
month.
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Note: The fan grill cannot be removed, and doing so may void your warranty. It is
recommended to regularly clean the appliance to avoid hard to remove dust build
up.
Do not use abrasive sponges, scouring pads, or a sti brush to clean the appliance.
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Storage
If not using the unit for an extended period of time, after cleaning please:
• Turn the unit o, unplug and take care of the mains lead & plug.
•
Cover the unit and store it upright in a location where it will not receive direct
sunlight. NB- Prolonged exposure to direct sunlight will discolour the outer casing.
8
Maintenance
If you have lost your user manual of the unit fails to operate eciently, is broken or
other problems arise, unplug and do not operate. Ask for advice by calling your local
after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800
666 2824 (NZ).
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landlls or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
9
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
1340 Ferntree Gully Road, Scoresby, Victoria, 3179
