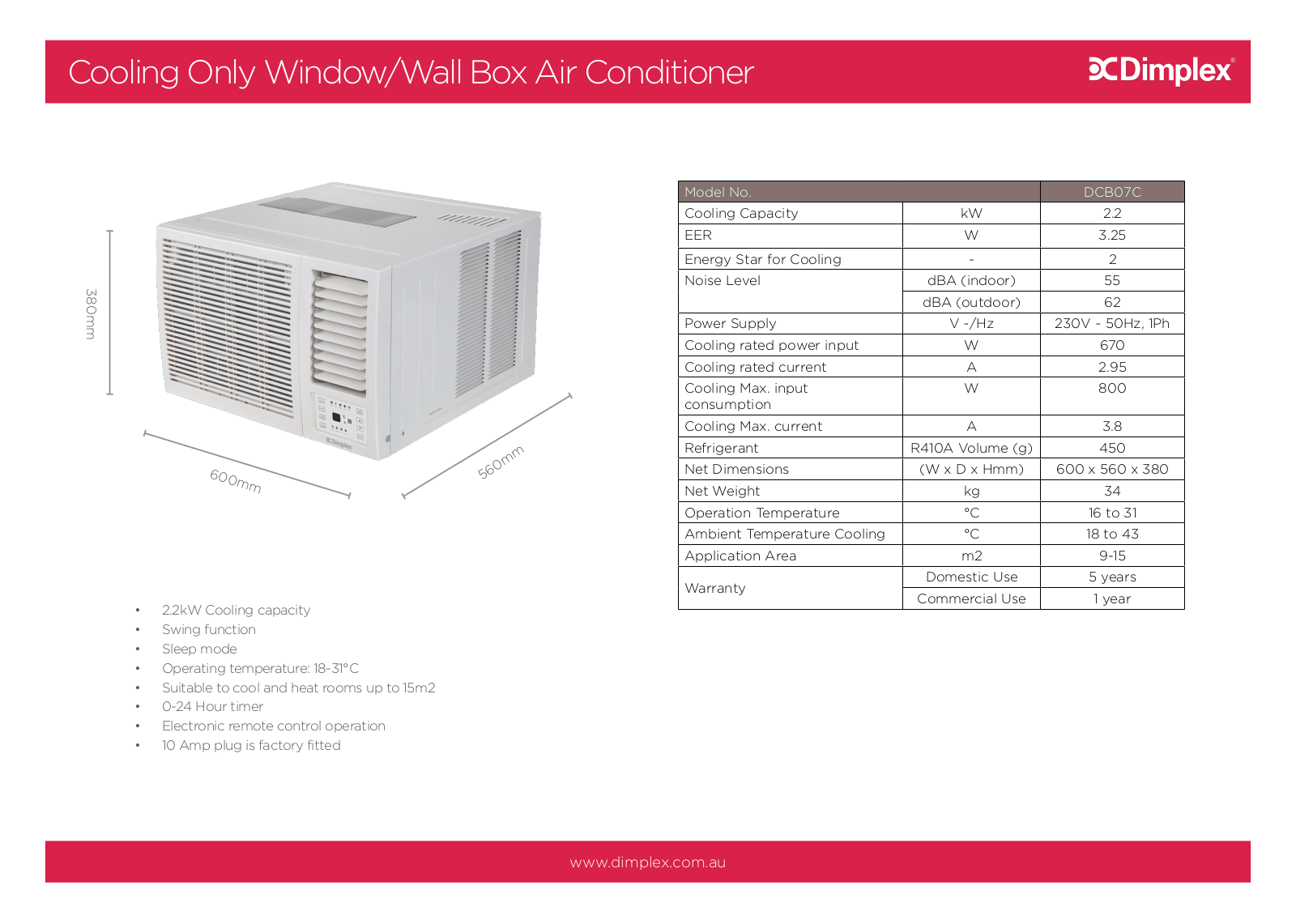

Dimplex DCB07C Specifications Sheet

Cooling Only Window/Wall Box Air Conditioner

Model No. DCB07C

Cooling Capacity kW 2.2
EER W 3.25

Energy Star for Cooling - 2

380mm

600mm

• 2.2kW Cooling capacity

• Swing function

• Sleep mode

• Operating temperature: 18-31°C

• Suitable to cool and heat rooms up to 15m2

• 0-24 Hour timer

• Electronic remote control operation

• 10 Amp plug is factory fitted

560mm

Noise Level dBA (indoor) 55

Power Supply V ~/Hz 230V ~ 50Hz, 1Ph
Cooling rated power input W 670
Cooling rated current A 2.95
Cooling Max. input

consumption
Cooling Max. current A 3.8
Refrigerant R410A Volume (g) 450
Net Dimensions (W x D x Hmm) 600 x 560 x 380
Net Weight kg 34
Operation Temperature °C 16 to 31
Ambient Temperature Cooling °C 18 to 43
Application Area m2 9-15

Warranty

dBA (outdoor) 62

W 800

Domestic Use 5 years

Commercial Use 1 year
