IMPORTANT INFORMATION

MODEL: DC17

INSTRUCTION MANUAL

PORTABLE AIR CONDITIONER

Carefully read this instruction manual before you install or use

your portable air conditioner. Please retain this manual for

product warranty details and for future reference.

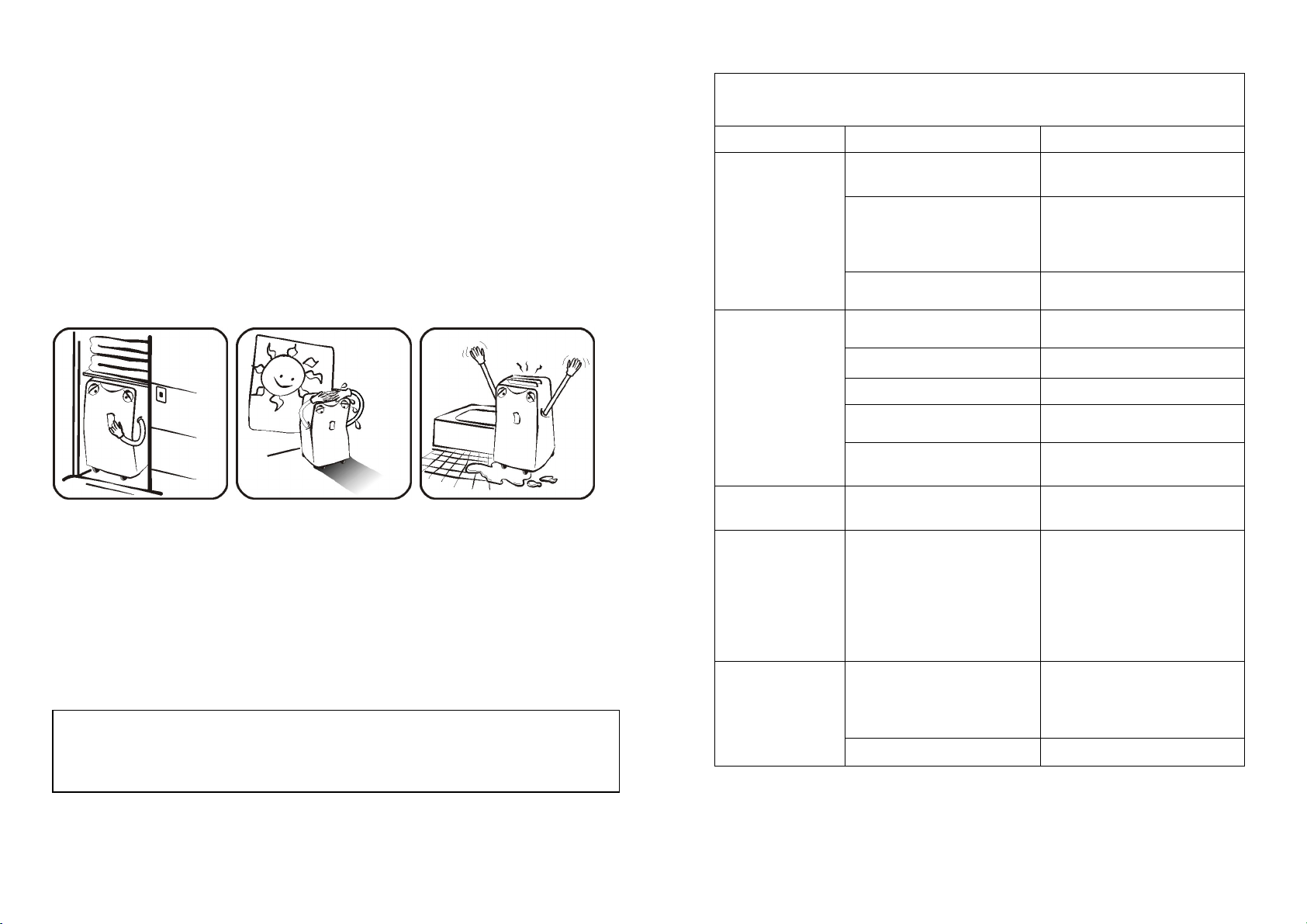

CAUTION

1. Make sure the inlet and outlet vents are never blocked.

2. Ensure the appliance is on a stable, even surface when operating to avoid

water leakage.

3. Do not operate this unit in an explosive or corrosive atmosphere.

4. When switched to cooling, only operate this unit in set temperatures between

17°C and 35°C. For heating, only operate this unit in ambient temperatures

between 5°C and 23°C.

5. Clean the air filter frequently to ensure efficient operation.

6. To prevent compressor damage when the unit has been operating and is

turned off, please wait at least 3 minutes before restarting.

7. This unit needs to be plugged into a 220-240V ~ 50Hz AC, 10 Amp power

outlet.

8. Do not use any extension cords with this unit.

9. This unit is for indoor use only.

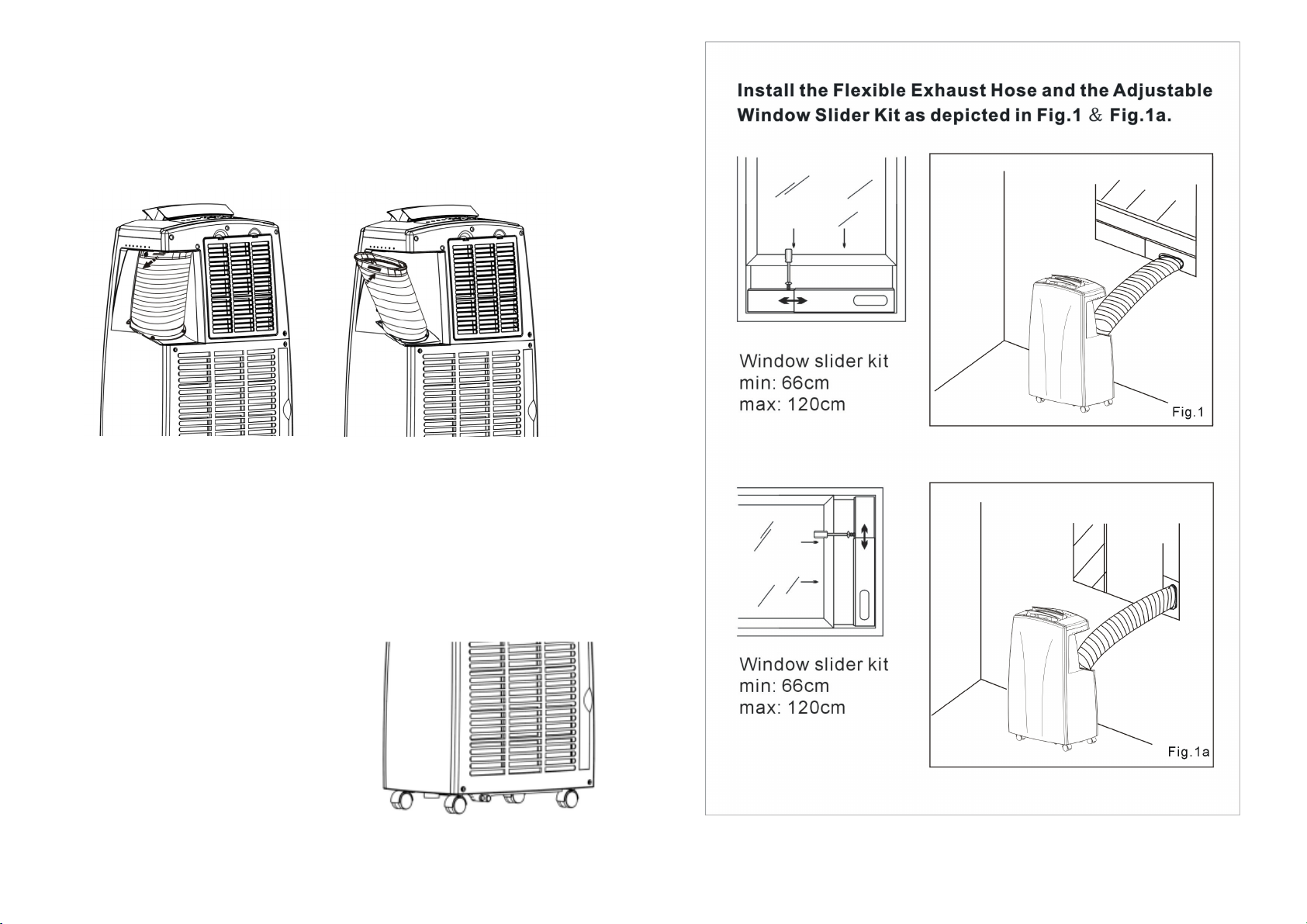

10. Open the adjustable air vent and extend the exhaust pipe (and drain pipe, if fitted) to

the closest window before using.

11. Only ever have a professional technician, manufacturer or service agent

replace a damaged power cord.

12. The batteries from the remote control must be removed and disposed of

safely, before the appliance is scrapped.

13. This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

14. Children should be supervised to ensure that they do not play with the appliance.

1

IMPORTANT

The air conditioner must always be stored and transported upright.
In case of doubt we suggest you wait for at least 24 hours before
operation. (Please keep unit upright at all times)

PACKAGE CONTENTS

Portable air conditioner

Remote control

Extendable window kit

CONTROLS AND DISPLAY

Controls for all models

PARTS

1. Control panel

2. Display screen

3. Adjustable air vent

4. Window kit adaptor

5. Exhaust tube

6. Drain hose

7. Cool air inlet

8. Cool air filter

9. Hot air inlet

10. Hot air filter

11. Drain plug

Note: Make sure drain plug (11) is fitted before use.

1. POWER

Press the POWER button to turn the unit "ON" or "OFF".

※ The portable air conditioner is fitted with a compressor delay protection circuit. This

protects the unit from possible damage due to rapid starting and stopping of its

compressor. Compressor operation begins 3 minutes after the unit is switched on or the

mode is switched from dehumidify to air conditioning.

2. FUNCTION

3. TEMP+ This button raises the set temperature by 1°C each time it is

4. TEMP- This button lowers the set temperature by 1°C each time it is

Press this button to select cooling or dehumidification.

pressed, to a maximum of 30°C.

pressed, to a minimum of 17°C.

The time taken to reach the desired set temperature will depend on the

environment and the size of the space in which the unit is operating in.

For example, if the ambient temperature is too hot or the room is too

large, the rate at which the temperature descends will be slow as the

cooling may be less effective.

2

3

5. DISPLAY The display indicates the current set temperature or the time setting.

When the set temperature or the timer is adjusted, the new setting is

shown then the display returns to the current set temperature.

※ The display is also used to show error codes should a fault occur, see ERROR CODES.

6. FAN SPEED Press FAN SPEED to select LOW, MEDIUM, HIGH or AUTO fan speed.

If AUTO fan speed is selected, the unit operates at maximum capacity

and high fan speed while the room temperature is more than 2°C from

the set temperature. When the room temperature is within 2°C of the set

temperature, the unit operates at medium capacity and fan speed. Once

the room temperature equals the set temperature, the unit will operate

at minimum capacity and low fan speed to efficiently maintain the

desired temperature.

When HIGH, MEDIUM or LOW speed is selected, the unit operates at

maximum capacity until the set temperature is reached. The fan

operates at the selected speed

TURBO If the TURBO button is selected, the unit will operate at the highest

speed for 30 minutes before changing to AUTO mode. Press TURBO

or FAN SPEED button to cancel this function. If the unit is in TURBO

mode, the "AUTO" icon will be flashing.

7. TIMER ON/OFF button for the programmable timer.

The timer can be used to turn the unit on automatically after a set

time delay is complete.

1. With the unit OFF, press the "TIMER" button to set the desired time

delay before the unit is to start.

2. Choose the function desired (cooling, heating or dehumidification.)

3. Once the set time delay is complete, the unit will turn on

automatically.

4. If you press the “POWER” button before the time delay is complete,

the delay will be cancelled and the unit will turn on immediately.

The timer can be used to turn the unit off automatically after a set

time period is complete.

4

1. With the unit ON, press the "TIMER" button to set the desired time

for the unit to remain on.

2. Once the set time period is completed, the unit will turn off

automatically.

3. If you press the “POWER” button before the time delay is complete,

the delay will be cancelled and the unit will turn off immediately.

8. SLEEP Press the SLEEP button to select the sleep comfort mode.

When the unit is in cooling mode and sleep mode is selected, the unit

will raise the set temperature 1°C each hour to a maximum of 2°C over

two hours. These temperatures will be maintained for the balance of the

time set and help maximize sleep comfort.

When the unit is in heating mode and sleep mode is selected, the unit

will lower the set temperature 1°C each hour to a maximum of 2°C over

two hours. These temperatures will be maintained for the balance of the

time set and help maximize sleep comfort.

When setting the "sleep comfort" mode please ensure you set the

number of hours required by pressing the TIMER button. The hours set

will be shown on the display by pressing either the TEMP+ or TEMP-

buttons. Please note: This function cannot be used in

dehumidifying mode.

The screen will be blank after 15 minutes of operation, but can be

re-activated when any key is pressed.

WATER DRAIN For cooling only models, the water drain warning indicator is displayed

when the internal condensation container requires emptying. For

reverse cycle models, an E4 error code will be displayed.

For more information, refer to WATER DRAIN

5
