Dimplex DAC 9005, DAC 12005 Instruction Manual

Portable Air Conditioner – DAC 9005

– DAC 12005

Please read this manual carefully before use and keep it for future reference.

1

CONTENTS

Page

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

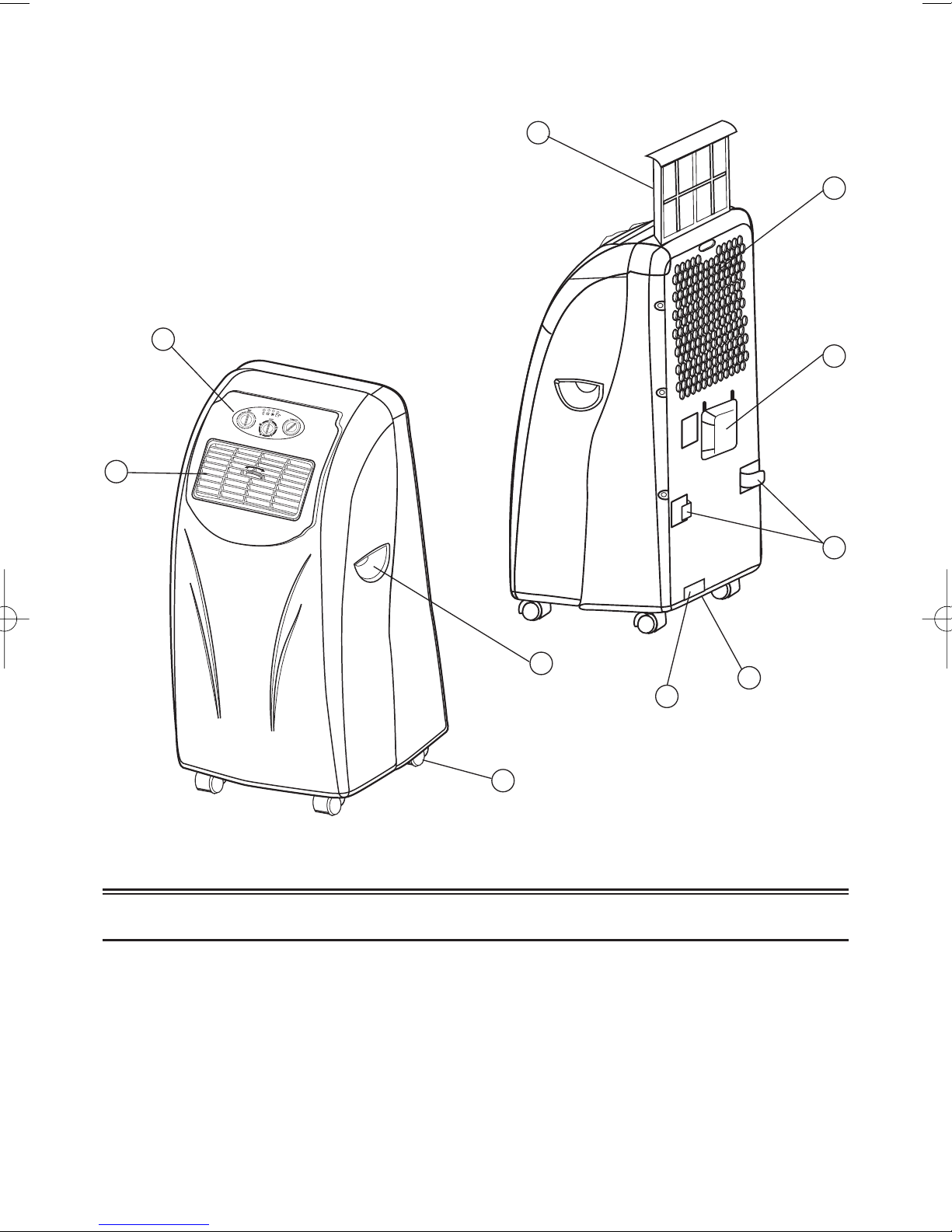

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

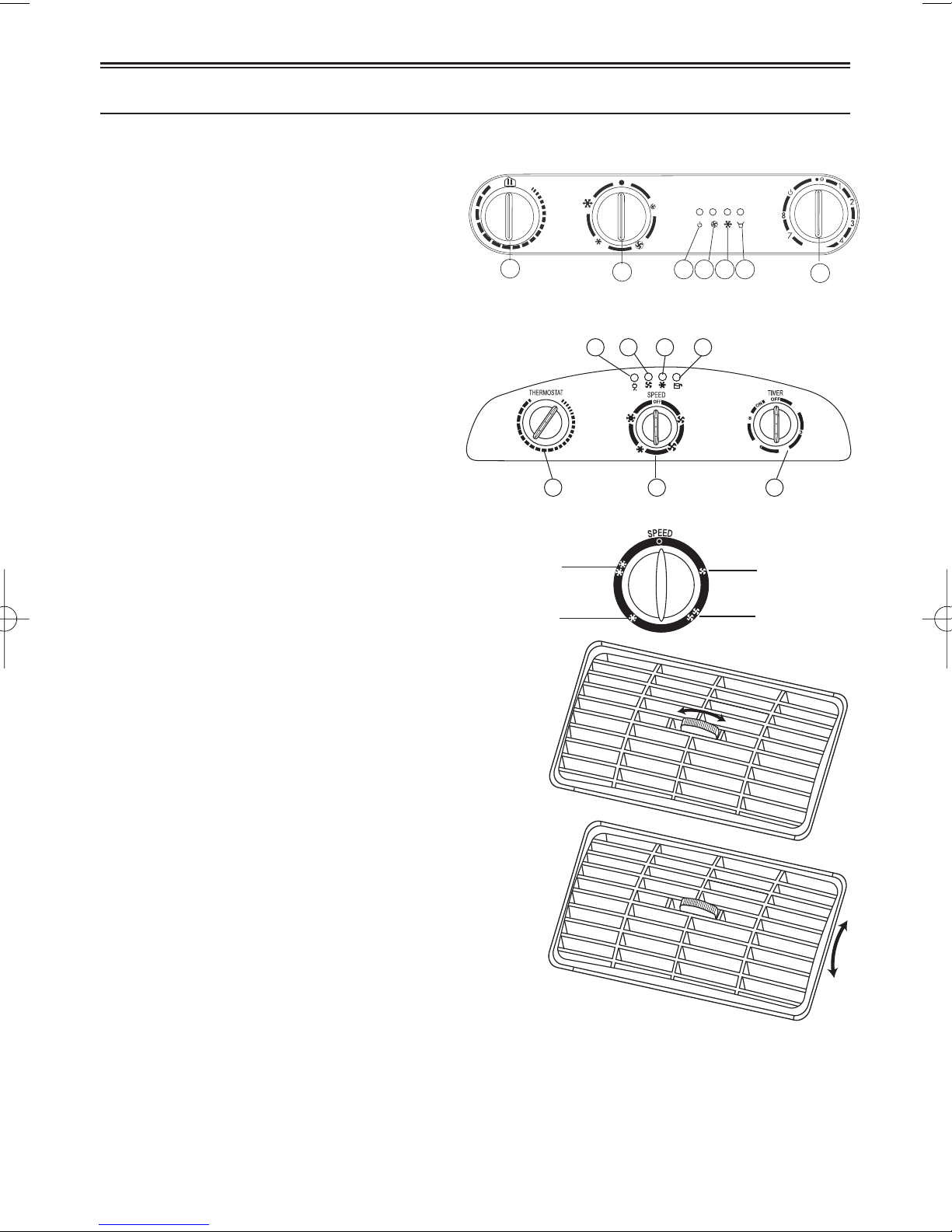

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INTRODUCTION

Thank you for choosing a Dimplex portable air conditioner.This manual contains
information, regulations and warnings which are of fundamental importance if the
appliance is to be installed correctly and the highest performance, in the safest possible
conditions is to be obtained.We suggest that you read the manual carefully before
installing or starting up the appliance.

These new Dimplex appliances represent the most highly developed air conditioning
units available today.

2

FEATURES

The air-conditioning unit is of the mono tube type, transportable (on wheels) with air/air
operating system for domestic use and has 3 settings.

•Ventilate/Fan.

• Cool.

• Dehumidify.

The ventilation mode "moves" the air allowing for its recycling much like a fan.

The cooling mode, a refrigerating circuit (compressor), cools the room by transferring
the heat from inside to outside though the air exhaust hose.While cooling, the air­conditioning unit also dehumidifies the room air.

Dehumidification, in the cooling mode your air-conditioner does remove moisture from
the air however another feature of this machine it can be set up to operate as a
dehumidifier with greater moisture removal performance.

SPECIFICATIONS DAC9005 DAC12005

Cooling Capacity 9000BTU/hr 12000BTU/hr

2270Kcal/hp 3024Kcal/hp
2638 watts 3529 watts

Power consumption 830 Watts 850 Watts

Air Volume (max setting) 470m3/h 520m3/h

Humidity removal capacity 26L/day 31L/day

Net weight 29kg 31kg

Power supply 230-240V/50Hz 230-240V/50Hz

Compressor Rotary Rotary

Refrigerant R407C R407C

Fan Speed 2 2

Timer 1-8 hours 1-8 hours

Thermostat 18-32°C 18-32°C

Dimension(WxDxH) 377x400x750 mm 430x403x753 mm

Test Conditions Temperature 27°C Temperature 27°C

Humidity 60% Humidity 60%

3

IMPORTANT SAFEGUARDS

• The air conditioning unit must always be stored and transported upright, otherwise
you may cause irreparable damage to the compressor; in case of doubt we suggest
you wait for at least 24 hours before you start the air-conditioning unit.

•Avoid restarting the air conditioning unit unless 4 minutes have passed since its turned
off or the compressor may get damaged.

•Never use the mains plug as a switch to start and turn off the air conditioning unit.
Use the provided ON/OFF switch located on the control panel.

•Always place the portable air conditioner on a stable surface.

• Connect the portable air conditioner to a correct wall socket.

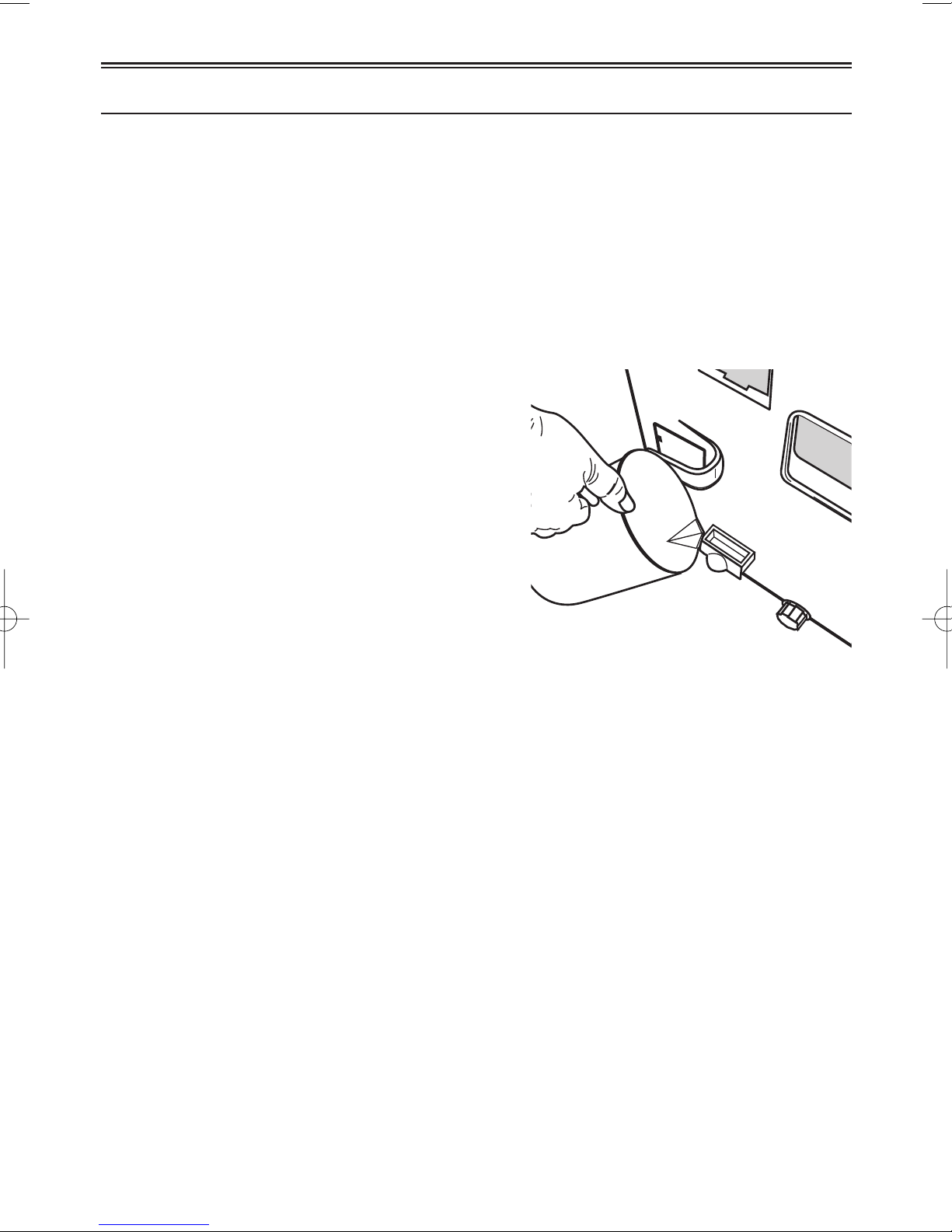

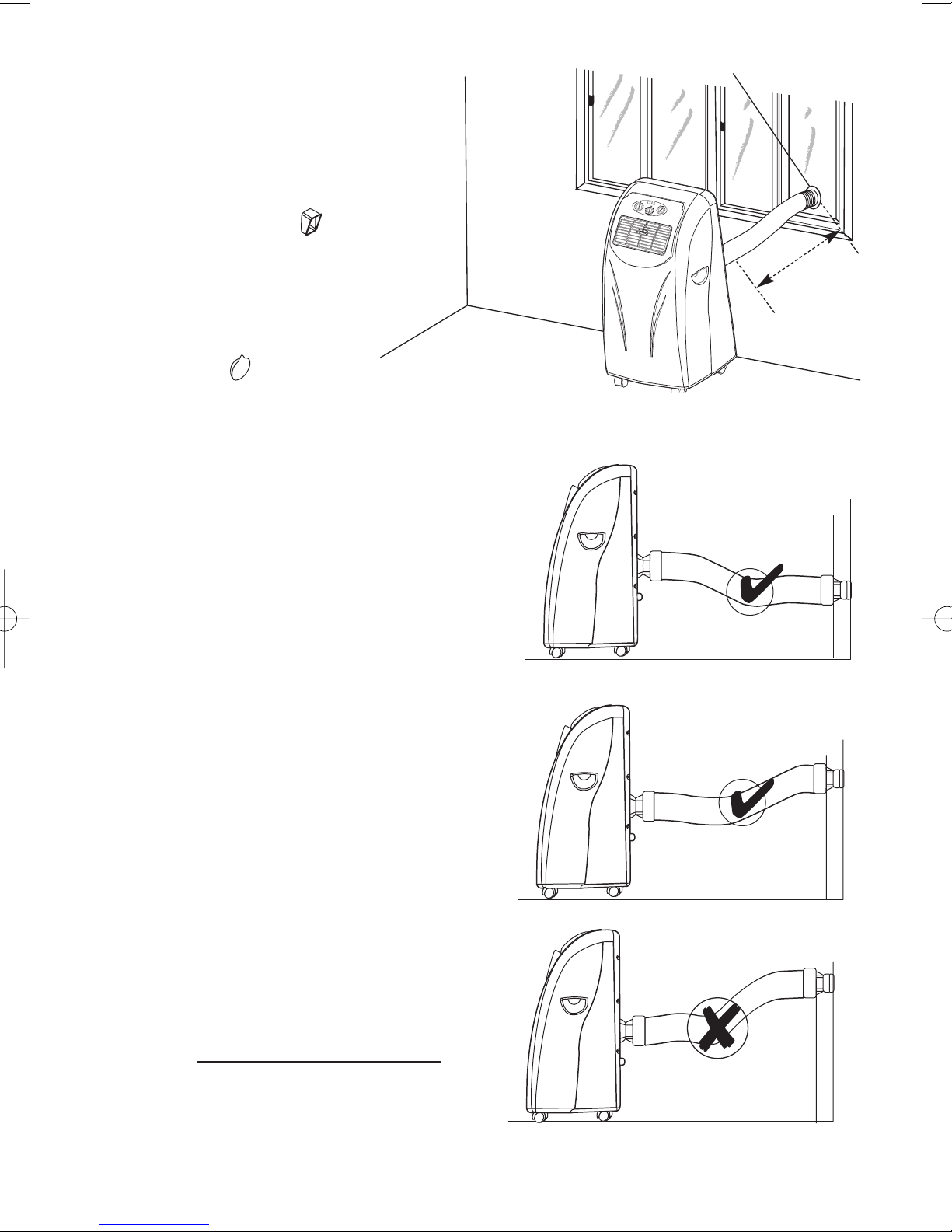

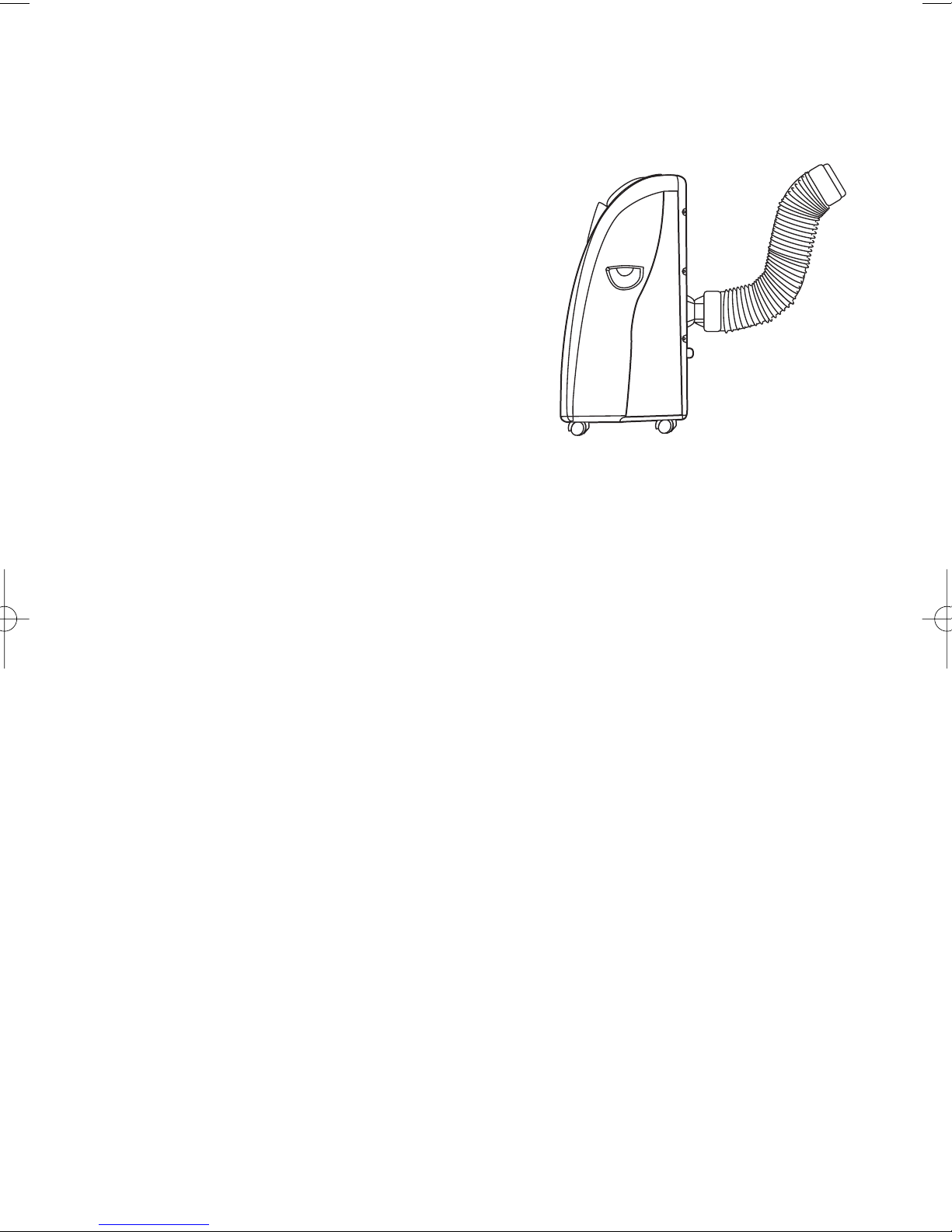

• Mount the exhaust hose on the portable air conditioner.

• The air conditioning unit should only be used by adults: do not allow children to play
with it.

ENERGY SAVING TIPS

• Do not cover or restrict the airflow from the Outlet or Inlet grills.
The minimum distance from furniture and walls should be 50cm.

•Keep blinds and/or draperies on any windows, closed during the sunniest part of the
day.

•Keep the filter and side vent clean. Under normal conditions, the filters should be
cleaned approximately every 30 days. Since the filters remove airborne particles, more
frequent cleaning maybe necessary, depending on the indoor air quality.

• Set the fan speed switch to high cool and the thermostat to the coolest position for
the initial start-up, then set the Fan switch to low cool and lower the thermostat to a
comfortable setting.
