Operating Instructions
IMPORTANT
These instructions should be read carefully and retained for future
reference. Note also the information given on the appliance.
Ultra-Slim Automatic Storage and Convector Heaters
IMPORTANT SAFETY INFORMATION
(85318 Iss. 8)
CXLSN
• The Installation must be carried out by trained personnel.
• A means for disconnection must be incorporated in the ! xed wiring by a double pole switch
with a contact separation of a minimum of 3mm and in accordance with the current IEE Wiring
Regulations.
• The heater must not be installed immediately below a ! xed socket outlet.
• The heater is not suitable for connection to a 30A ring circuit.
• Do not position the heater under windows where curtains can contact the heater casing.
• To maintain stability, it is essential that the heater is placed on a level surface and care should
be taken to avoid irregular surfaces, such as may result from carpets or tiled surrounds partially
protruding under the heater.
• Only heat resisting cable (minimum rating T85) should be used.
• If used in a bathroom the heater must be installed such that switches and other controls
cannot be touched by a person in the bath or shower.
• During any reassembly of the heater if a part of the thermal insulation shows damage or
deterioration which may impair safety, it should be replaced with an identical part.
• WARNING - In order to avoid overheating, do not cover the surfaces of the heater.
• Do not put clothes, fabrics or any other materials on the heaters.
• Do not place objects in contact with the heater.
• Do not position the heater where objects can come within 250mm (10”) of the top and 75mm
(3”) of the sides of the heater.
• CAUTION – Some parts of this product can become very hot and cause burns.
• Particular attention has to be given where children and vulnerable people are present.
• This appliance can be used by children from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, if they have
been given supervision or instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance.
• Children less than 8 years of age should be kept away unless continuously supervised.
• IMPORTANT - Due to the newness of materials the heater will produce a smell for the ! rst
few days of operation. Rooms must be well ventilated and young children, caged birds or
people with respiratory complaints must not remain in proximity to the heater for the ! rst 48
hours of the commissioning period.
CXLSN Storage heater section - Principle of operation
The storage heater section of the CXLSN heater consists of a core of high
density heat storage bricks surrounded by a carefully designed insulating case.
During the night time off-peak period elements within the brick core heat up
the bricks to a temperature level determined by the setting you select using
the input control knob.
In the morning, when the core is at its hottest, the amount of heat being transmitted through
the insulation and emitted as radiant heat is at its greatest and the heater feels hot over most
of its upper outer surfaces. Diagram 2.
As the day progresses, heat is transmitted from the heater to the room and the outer
surface of the heater becomes less hot and the amount of heat released in this way becomes
less.
If the amount of emitted heat becomes insuf! cient the output of the heater and thus the
room temperature may be increased by means of the Output Control. This control operates
a damper " ap within the heater which, when the output control knob is at minimum, covers
vertical airways which pass directly through the centre of the core of the heater. Even when
the outer surfaces of the heater are noticeably less hot, the core of bricks can still be at a
relatively high temperature. Opening the damper " ap by moving the output control away
from minimum allows the room air to circulate through this hot core and release more heat
to the room by convection. Diagram 3.
Setting the Controls
The control knobs have been positioned so that they are clearly visible
to an adult, but out of sight of young children. In this way it is hoped that
they will not provide temptation to a child to alter the settings.
Domestic Use
The right hand (INPUT) knob should be set at the midway position. If
after the ! rst charge period the room temperature is too high or too
low, the position of this knob should be moved to a lower or higher
position as appropriate. The most suitable position should be found by
experience, and the control may be left at this position without further
alteration.
Normally the left hand (OUTPUT) knob may be left on minimum (fully
anticlockwise). This control may be moved to maximum in the evening
if additional heat is required at that time. Return to minimum before
retiring.
Commercial Use
For normal commercial applications a setting of maximum on the
output control will ensure maximum output during working hours. The
input control should be set as described above for Domestic Use.
Should these settings not provide the comfort levels
required, the more detailed instructions overleaf should
be consulted.
STORAGE HEATER OPERATION
Models CXLS12N, CXLS18N and CXLS24N
Your Dimplex CXLSN combined storage and convector heater enables you to take advantage of cheap off peak electricity to provide the
bulk of your heating requirements, with the added " exibility of a built-in, thermostatically controlled convector heater. This allows you to
provide top-up heat, for example, in very cold weather when the storage heater may not have suf! cient stored heat in reserve later in the
day for providing full comfort conditions. These operating instructions assume that the correct size of storage heaters have been selected
to cater for the heating requirements of the room.
Input Control
The setting of this control determines the temperature of the room at the end of the charge period, as measured by the heater’s built-in
room temperature sensor.
With the Output Control Knob set to minimum (fully anticlockwise) for domestic use, or maximum (fully clockwise) for commercial
applications, the Input Control Knob should initially be set at the mid point position. During the day following the • rst charge period the
comfort level provided by the heater should be noted. If it is felt that the level of heating is either too high or too low, then the input control
knob should be adjusted up or down as appropriate before the next charge period. This process should be repeated each day until the
most acceptable conditions are attained. The Input Control knob should then be left at this setting, and the heater will automatically vary
the charge taken in during subsequent charge periods to make the most effective use of off-peak electricity to provide the selected level
of comfort at the end of each charge period.
In the Autumn and Spring a lower setting of the input control knob should be suf• cient, the actual setting required being in• uenced by
the prevailing weather conditions, the room size and insulation levels. The most suitable settings will be found by experience.
NOTE - The input charge may be affected by other sources of heat, such as the convector. Please refer to the section ‘24 Hour
Convector Operation’ overleaf.
Output Control
Depending upon the amount of charge accepted by the heater, the OUTPUT control allows the release of additional heat by means of a
damper which can be opened to allow a greater air • ow through the heater core, and therefore additional circulation of heat. By altering
the setting of the Output control knob the damper may be opened and closed manually, or it may be made to open automatically.
Automatic Operation
The damper may be pre-set to open automatically each day if required. Setting the OUTPUT control at settings other than minimum
results in an automatic boost of heat. A high setting on the output control knob causes the damper to open early afternoon/evening,
conversely a lower setting causes it to open later.
Because the automatic opening of the damper is primarily dependent on core temperature then the amount of charge the heater has
taken has a bearing on the time at which the damper opens. For a given setting of the OUTPUT control, the colder the weather (and
consequentially, the greater the charge taken automatically by the heater) the later the damper will open.
Conversely, for a lower charge input (in milder weather) the earlier the damper will open for a given room temperature boost setting.
The most suitable settings of the Output control for different conditions will be found by experience.
Remember - a high setting of the OUTPUT control early in the day may leave too little heat stored in the heater for the evening, especially
during the less cold weather conditions.
In addition to the storage heater section the CXLSN incorporates a convector
heater element in the front of the heater which may be used independently
of the storage heater, for example to “top up” on very cold days, or for use
in late spring and early autumn when only infrequent cold spells do not
justify continuous use of storage heater. Cool air is drawn in at the base
of the heater, heated by the convector element, and subsequently emitted
from the grille at the top front of the heater.
The convector heater section is intended for use when the output of the
storage heater is not suf• cient to maintain the desired comfort level. For
the most economical operation of the CXLSN, the heating system should
normally be designed so that the storage heater section provides the bulk
of the heating requirements, and the convector heater section provides only
top up heat, for example, later in the day in cold weather.
Manual Operation
With the OUTPUT control on minimum the damper remains closed, and heat is released from the heater only by normal radiation and
convection around the outer surfaces of the heater. This alone may provide suf• cient heat on many occasions and therefore no alteration
of the OUTPUT control is necessary. However, if a boost of heat is required in the evening period, then moving the OUTPUT control
to maximum in the evening will immediately open the damper to allow more rapid release of any available stored heat. When the next
charging period commences the damper will automatically close to prevent this release of extra heat during the charge period, but the
OUTPUT control must be returned to minimum manually to obtain a similar operation the following day.
CONVECTOR HEATER OPERATION
Convector Heater - Principle of operation
IMPORTANT - Due to the newness of the materials the heater will produce a slight smell for the • rst few days of operation. ROOMS
MUST BE WELL VENTILATED AND YOUNG CHILDREN, CAGED BIRDS, OR PERSONS WITH RESPIRATORY COMPLAINTS MUST
NOT REMAIN IN CLOSE PROXIMITY TO THE HEATER DURING THE FIRST 48 HOURS OF THE COMMISSIONING PERIOD.
Cleaning
To maintain the external appearance of the radiator it need only be wiped over occasionally with a dry duster. During the summer
months, or at other times when the appliance is not in use and is completely cold, the opportunity should be taken to wipe over with a
damp cloth. Do not use abrasive cleaning powders or furniture polish.
Discoloration of wall • nishes can sometimes occur immediately above a storage heater due to the properties of some paints and
decorating materials or the presence of environmental impurities in the air (such as soot or incense generated from the burning of
candles, etc.) A suitable shelf (available from Dimplex) may be • tted to limit the extent of any wall discoloration.
After Sales Service
Your product is guaranteed for two years from the date of purchase. Within this period, we undertake to repair or exchange this
product free of charge (subject to availability) provided it has been installed and operated in accordance with these instructions.
Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.
Should you require after sales information or assistance with this product please go to www.dimplex.co.uk where you will • nd our self
help guide by clicking on ‘After Sales’ or ring our help desk on 0844 879 3588 (UK) or 01 842 4833 (ROI). It would assist us if you can
quote the model number, series, date of purchase, and nature of the fault at the time of your call. Spare parts are also available on the
website www.dimplex.co.uk.
Please do not return a faulty product to us in the • rst instance as this may result in loss or damage and delay in providing you with a
satisfactory service. Please retain your receipt as proof of purchase.
To commission the heater set both the input and output controls to maximum and leave for 48 hours, after this period the
controls should be adjusted for everyday use - see ‘SETTING THE CONTROLS’ on the front cover of these instructions.
24-hour Convector Operation
In certain circumstances it may be desirable for the convector to be available during the off-peak period. If this is so the installer can
select this option during installation. However, the user should be aware of the following:
1. If the convector heater is not required during the off-peak period the user must remember to switch it off.
2. If the convector heater is used at a high level for a signi• cant period during the off-peak period it will have the effect of
reducing the level of charge taken by the storage heater for a given input setting. A higher setting of the input control may be required
to compensate for this.
Recycling
For electrical products sold within the European Community. At the end of the electrical products useful life it should not be
disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice in your country.
© GDC Group Ltd. All rights reserved.
Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing.
A division of the GDC Group Ltd, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF
Dimplex,
Millbrook House,
Grange Drive,
Hedge End,
Southampton, SO30 2DF.
Tel: 0844 879 3588
Fax: 0844 879 3583
Web-site www.dimplex.co.uk
This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3.
These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
Switching on
To put the convector switch F in the ON position, depress the right-hand side of the switch. The switch neon will glow when the switch is
in the ON position. If the room temperature is below the thermostat setting neon C will glow, showing the convector is providing heat.
Setting the Thermostat
The thermostat knob A should be set to the comfort level required. Turning the knob clockwise will increase the room temperature
selected, but the actual setting to provide the required conditions will be found by experience. If, when the convector heater is switched
ON and available for use, the room temperature is below that set on the control knob, neon C will be illuminated, showing the heater
elements are energised.

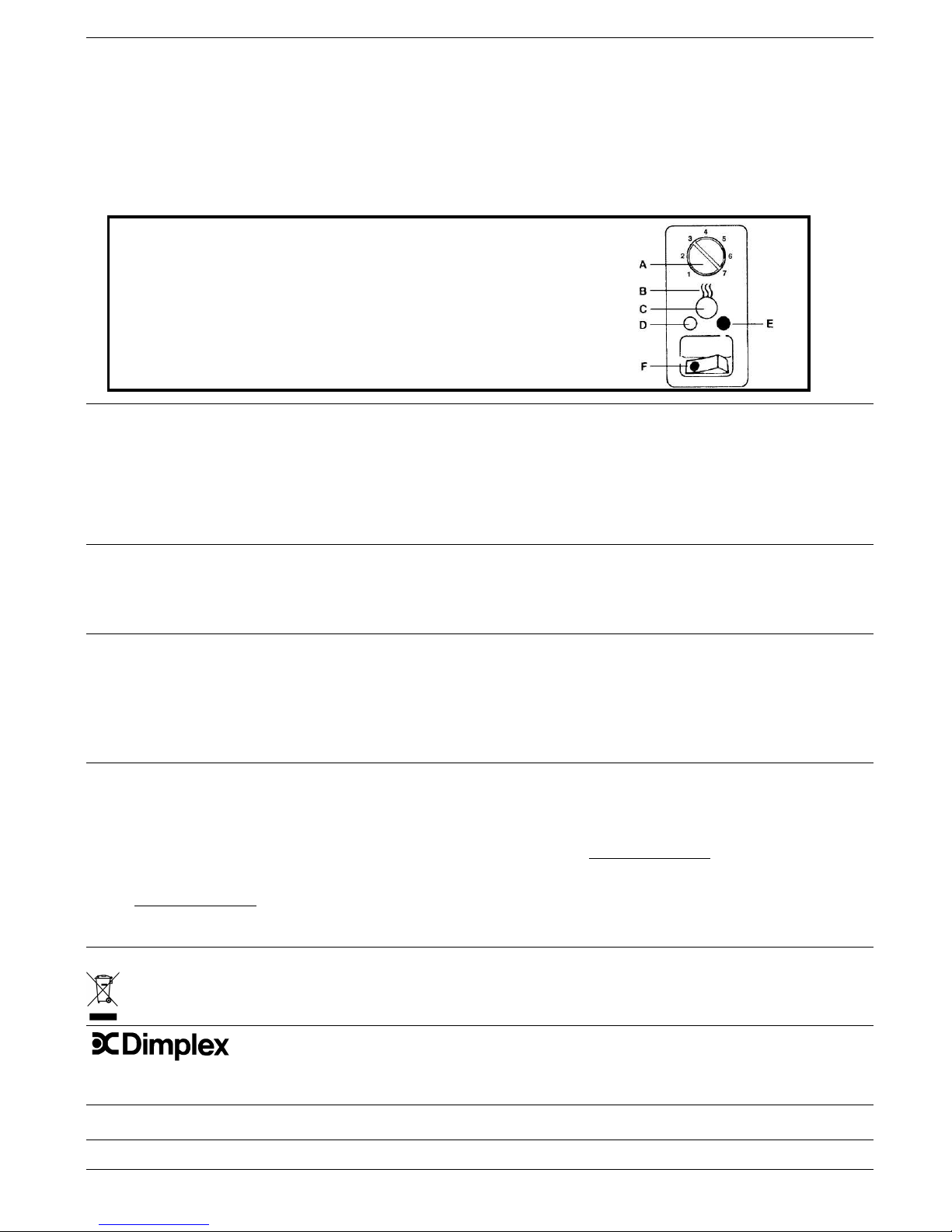

Convector Control Panel
A Thermostat Scale representing an approximate range of temperatures from
5°C to 35°C.
B Symbol representing heat convection.
C Neon lit when convector using current.
D Symbol representing OFF position of convector switch.
E Symbol representing ON position of convector switch.
F Convector ON/OFF switch with neon to show when switch is in ON position.
Loading...
