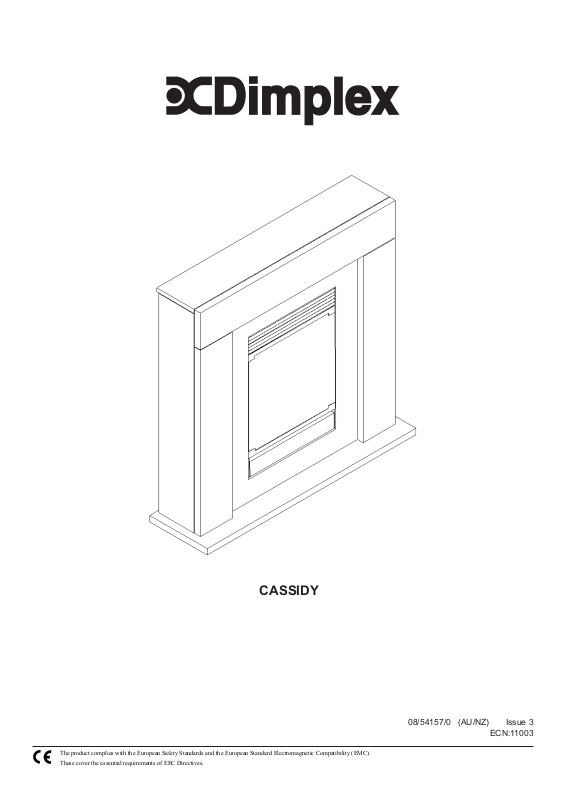

CASSIDY
The product complies with the European Safety Standards and the European Standard Electromagnetic Compatibility (EMC).
These cover the essential requirements of EEC Directives.
08/54157/0 (AU/NZ) Issue 3
ECN:11003
1
1
3
min max
OFF
ON
econ
2
3
2
II
4
I
5
CASSIDY
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Important Safety Advice
When using electrical appliances, basic
precautions should be followed to reduce
the risk of re, electric shock, and injury to
persons, including the following:
If the appliance is damaged, check immediately
with the supplier before installation and
operation.
Do not use this appliance in the immediate
surroundings of a bath, shower or swimming
pool.
Do not use outdoors.
This appliance must not be located immediately
above or below a fixed socket outlet or
connection box.
WARNING : The appliance carries
the Warning Symbol indicating that it
must not be covered or has a Do not
over label. Do not cover or obstruct
c
in any way the heat outlet grille located
underneath the appliance Overheating
will result if the appliance is accidentally
covered. Do not place material or garments
on the appliance, or obs
truct the air circulation
around the appliance, for instance by curtains
or furniture, as this could cause overheating
and a fire risk.
In the event of a fault unplug the heater.
Unplug the appliance when not required for
long periods. The supply cord must be placed
on the right hand side of the heater away from
the heat outlet underneath the appliance.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety. Children
shall not play with the appliance. Cleaning
and user maintenance shall not
be made by Children.
Children should be kept away unless
continuously supervised. Children shall not
turn on/off the appliance. Children shall not
plug in, regulate and clean the appliance or
perform user maintenance.
The appliance must be positioned so that the
plug is accessible.
Although this appliance complies with safety
standards, we do not recommend its use on
deep pile carpets or on long hair type of rugs.
If the supply cord is damaged it must be
replaced by the manufacturer or service agent
or similarly qualied person in order to avoid
a hazard.
CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
CAUTION - Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
General
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the re to your
supplier.
The re incorporates a ame effect, which can be used with or
without heating, so that the comforting effect may be enjoyed
at any time of the year. Using the ame effect on its own only
requires little electricity.
Before connecting the heater check that the supply voltage is
the same as that stated on the heater.
Please note: Used in an environment where background
noise is very low, it may be possible to hear a sound which
is related to the operation of the ame effect. This is normal
and should not be a cause for concern.
Electrical Connection
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the voltage
marked on the heater must correspond to the supply voltage.
Before switching on, please read the safety warnings and
operating instructions.
Controls - see Fig. 2
Three switches provide a choice of heat settings. The appliance
is in standby mode when the mains lead is plugged in. This is
indicated by the red neon behind the ame effect screen. The
two selector switches are in the ON position when the side with
the markings on (i.e. I, or II) are pushed in.
Push button switch 1 Controls the electricity supply to
the heater and ame effect.
If both selector switches 2 and 3 are in the OFF position, the
product works on ame effect only.
Selector switch 2 (I) Provides 750W heat output
Selector switch 3 (II) Provides 1500W output with switch
2 also pressed.
Thermostat (T) - see Fig. 3
In order to maintain a certain room temperature, set the controller
to ‘max.’. Operate the appliance at full power until the required
room temperature is reached. Set back the thermostatic controller
until the appliance switches off with an audible “click”. This
temperature will be kept almost constant by the thermostatic
control switching on and off automatically.Please note that the
appliance can only be switched on when the thermostat setting
is higher then the room temperature.
Remote control - see Fig. 4
The maximum range of use is ~ 5metres.
Warning: It takes time for the receiver to respond to the
transmitter.
Do not press the buttons more than once within two seconds
for correct operation.
Battery Information - see Fig. 4
1. To activate the remote control remove the battery isolation
strip, which is used to ensure your remote control reaches you
fully charged.
2. To replace the remote control battery, turn over the remote
control, and follow the diagram embossed on the remote control
3. Only use CR2025 or CR2032 size of batteries.
WARNING - KEEP BATTERIES OUT OF REACH
OF CHILDREN
1. Swallowing may lead to serious injury in as little as 2 hours
or death, due to the chemical burns and potential perforation of
the oesophagus.
2. If you suspect your child has swallowed or inserted a button
battery immediately call the 24-hour Poisons Inforation Centre
on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for
fast, expert advice.
3. Examine devices and make sure the battery compartment
is correctly secured, e.g. that the screw or other mechanical
fastener is tightened. Do not use if the compartment is not secure.
4. Dispose of used button batteries immediately and safely. at
batteries can still be dangerous.
Tipping Restraint - see Fig. 1
WARNING: FALLING OR TIPPING APPLIANCES CAN
CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE
ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON
THIS PRODUCT.
WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING
RESTRAINT, THIS RESTRAINT IS NOT A SUBSTITUTE FOR
PROPER ADULT SUPERVISION. THIS RESTRAINT MAY PROVIDE
PROTECTION AGAINST TIPPING FURNITURE. DO NOT ALLOW
CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH
THIS RESTRAINT BEFORE MOVING FURNITURE MAY RESULT IN
INJURY AND DAMAGE.
Thermal Safety Cut-out
The built-in overheat cut-out switches off the appliance
automatically in the event of a fault! Switch off the appliance or
disconnect the mains plug from the socket.
Remove any obstructions which may have caused the
overheating. After a short cooling down phase, the appliance
is ready for use again! If the fault should occur again, see your
local dealer!
WARNING: In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by
the utility.
Maintenance
WARNING: ALWAYS DISCONNECT FROM THE POWER
SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.
Light Emitting Diode
This re is tted with LED (Light Emitting Diode) lamps. These
LED lamps are maintenance-free and should not require
replacing during the life of the product.
Cleaning
WARNING – ALWAYS DISCONNECT FROM THE POWER
SUPPLY BEFORE CLEANING THE HEATER.
For general cleaning use a soft clean duster – never use abrasive
cleaners. The glass viewing screen should be cleaned carefully
with a soft cloth.
DO NOT use proprietary glass cleaners.
To remove any accumulation of dust or uff the soft brush
attachment of a vacuum cleaner should occasionally be used
to clean the outlet grille of the fan heater.
It is possible to clean the inner glass and logset by removing
the outer glass panel. To remove the outer glass, remove the
4 screws holding the grille in position, (see Fig.5), remove the
grille and lift clear the outer glass.
Ret the outer glass in reverse of above.
WARNING: do not operate the product without the grille and outer
glass in position as this may effect the operation of the heater.
Recycling
Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling
advice in your country.
This product is provided with a ‘Tipping Restraint Kit’ as
shown in Fig 1, to prevent the product accidentally tipping
over. Fitting Instructions are supplied with this kit please
follow these instructions carefully.
Glen Dimplex Australia Pty Ltd.
1340 Ferntree Gully Road,
Scoresby,
VIC 3179,
Australia
www.dimplex.com.au
sales@glendimplex.com.au
Ph: 1300 556 816
Fax: 1800 058 900
Glen Dimplex Australasia Ltd.
35 Harris Road,
East Tamaki,
Auckland
New Zealand
www.dimplex.co.nz
sales@glendimplex.co.nz
Ph: 09 274 8265
Fax: 09 274 8472
