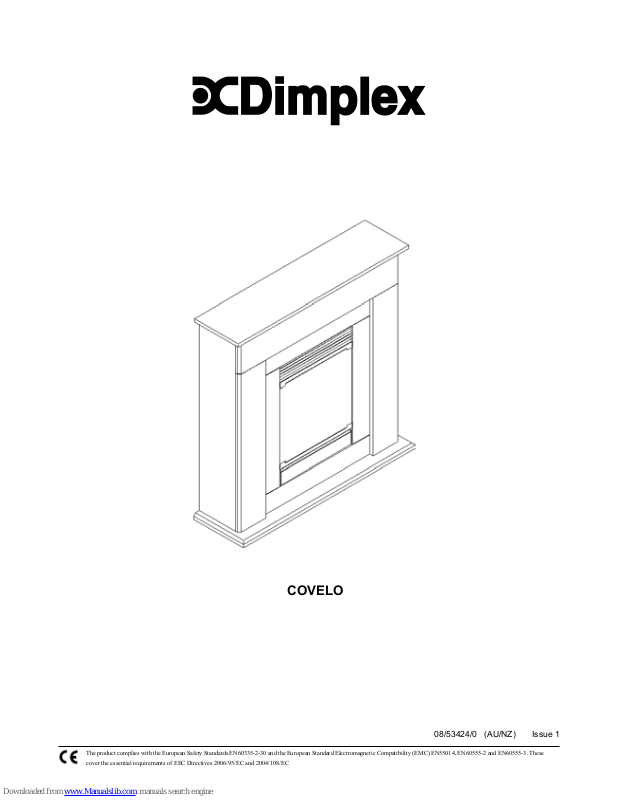

Dimplex COVELO User Manual

08/53424/0 (AU/NZ) Issue 1

The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3. These

cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC

COVELO

1

2

3

4

Important Safety Advice

When using electrical appliances, basic
precautions should be followed to reduce

the risk of re, electric shock, and injury to

persons, including the following:
If the appliance is damaged, check immediately

with the supplier before installation and
operation.

Do not use this appliance in the immediate
surroundings of a bath, shower or swimming
pool.

Do not use outdoors.
This appliance must not be located immediately

above or below a fixed socket outlet or
connection box.

WARNING : The appliance carries
the Warning Symbol indicating that it

must not be covered or has a Do not
cover label. Do not cover or obstruct
in any way the heat outlet grille located
underneath the appliance Overheating
will result if the appliance is accidentally
covered. Do not place material or garments
on the appliance, or obstruct the air circulation
around the appliance, for instance by curtains
or furniturn, as this could cause overheating

and a re risk.

In the event of a fault unplug the heater.
Unplug the appliance when not required for
long periods.The supply cord must be placed
on the right hand side of the heater away from
the heat outlet underneath the appliance.

This appliance can be used by children
aged form 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experinence and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. Cleaning and user maintaince shall
not be made by Children without supervision.

Children of less than 3 years should be
kept away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed in
its intended normal operating position and they
have been given supervision or instruction
concerning use of the appliance in a safe
way and understanding the hazards involved.
Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintaince.

The appliance must be positioned so that the
plug is accessible.

COVELO

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Although this appliance complies with safety
standards, we do not recommend its use on
deep pile carpets or on long hair type of rugs.

If the supply cord is damaged it must be
replaced by the manufacturer or service agent

or similarly qualied person in order to avoid

a hazard.
CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.

WARNING: This heater is not equipped with
a device to control the room temperature.
Do not use this heater in small rooms when
they are occupied by persons not capable of
leaving the room on their own, unless constant
supervision is provided.

CAUTION - Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.

General

Unpack the heater carefully and retain the packaging for possible

future use, in the event of moving or returning the re to your

supplier.

The re incorporates a ame effect, which can be used with or
without heating, so that the comforting effect may be enjoyed
at any time of the year. Using the ame effect on its own only

requires little electricity.
Before connecting the heater check that the supply voltage is

the same as that stated on the heater.

Please note: Used in an environment where background
noise is very low, it may be possible to hear a sound which

is related to the operation of the ame effect. This is normal
and should not be a cause for concern.

Electrical Connection

WARNING – THIS APPLIANCE MUST BE EARTHED

This heater must be used on an AC ~ supply only and the voltage
marked on the heater must correspond to the supply voltage.

Before switching on, please read the safety warnings and
operating instructions.

Controls - see Fig. 2

Three switches provide a choice of heat settings. The appliance
is in standby mode when the mains lead is plugged in. This is

indicated by the red neon behind the ame effect screen. The

two selector switches are in the ON position when the side with
the markings on (i.e. I, or II) are pushed in.

Push button switch 1 Controls the electricity supply to

the heater and ame effect.

If both selector switches 2 and 3 are in the OFF position, the

product works on ame effect only.

Selector switch 2 (I) Provides 750W heat output
Selector switch 3 (II) Provides 1500W output with switch

2 also pressed.

Remote control - see Fig. 3

The maximum range of use is ~ 15metres.
Warning: It takes time for the receiver to respond to the

transmitter.
Do not press the buttons more than once within two seconds

for correct operation.

1. To activate the remote control remove the battery isolation
strip, which is used to ensure your remote control reaches you
fully charged.

2. To replace the remote control battery, turn over the remote
control, and follow the diagram embossed on the remote control

3. Only use CR2025 or CR2032 size of batteries.

Discard Leaking Batteries

Dispose of batteries in the proper manner according to provincial
and local regulations.

Any battery may leak electrolyte

- if mixed with a different battery type,

- if inserted incorrectly,

- if all the batteries are not replaced at the same time,

- if disposed of in a re,

- if an attempt is made to charge a battery not intended to be

recharged.

Disposal of Used Batteries.

Batteries may contain hazardous substances which could be
endangering to the environment and human health.

The symbol marked on the battery and /or packaging indicates
that used batteries should not be treated as municipal waste.

Instead they should be left at the appropriate collection point
for recycling.

By ensuring used batteries are disposed of correctly, you will help
to prevent potential negative consequences on the environment
and human health. The recycling of materials will help to conserve
natural resources.

For more information please contact your local authority.

Thermal Safety Cut-out

The built-in overheat cut-out switches off the appliance
automatically in the event of a fault! Switch off the appliance or
disconnect the mains plug from the socket.

Remove any obstructions which may have caused the
overheating. After a short cooling down phase, the appliance
is ready for use again! If the fault should occur again, see your
local dealer!

WARNING: In order to avoid a hazard due to inadvertent

resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by
the utility.

Maintenance

WARNING: ALWAYS DISCONNECT FROM THE POWER

SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.

Light Emitting Diode

This re is tted with LED (Light Emitting Diode) lamps. These

LED lamps are maintenance-free and should not require
replacing during the life of the product.

Wall xing - see Fig. 1

The appliance should be securely xed to the wall using the wall

plugs and screws supplied for block walls.
Note – for studded walls special fasteners are required, see

diagram for recommended position of xing screws.
Remove wall xing before attempting any maintenance.

Cleaning

WARNING – ALWAYS DISCONNECT FROM THE POWER

SUPPLY BEFORE CLEANING THE HEATER.

For general cleaning use a soft clean duster – never use abrasive
cleaners. The glass viewing screen should be cleaned carefully
with a soft cloth.

DO NOT use proprietary glass cleaners.

To remove any accumulation of dust or uff the soft brush

attachment of a vacuum cleaner should occasionally be used
to clean the outlet grille of the fan heater.

It is possible to clean the inner glass and logset by removing
the outer glass panel. To remove the outer glass, remove the
4 screws holding the grille in position, (see Fig.4), remove the
grille and lift clear the outer glass.

Ret the outer glass in reverse of above.

WARNING: do not operate the product without the grille and outer
glass in position as this may effect the operation of the heater.

Recycling

Please recycle where facilities exist. Check
with your Local Authority or retailer for
recycling advice in your country.
