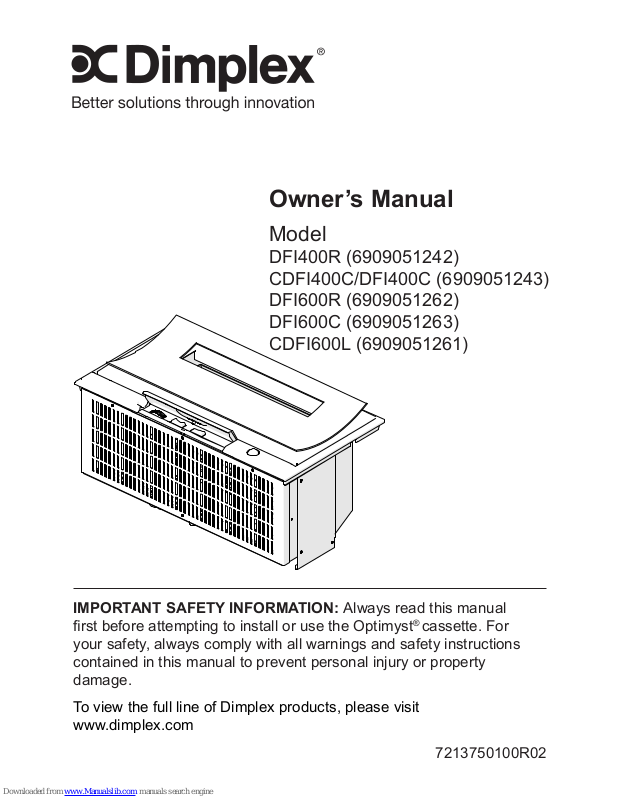

Dimplex DFI400R, DFI400C, CDFI400C, DFI600R, DFI600C Owner's Manual

Owner’s Manual

Model

DFI400R (6909051242)
CDFI400C/DFI400C (6909051243)
DFI600R (6909051262)
DFI600C (6909051263)
CDFI600L (6909051261)

7213750100R02

IMPORTANT SAFETY INFORMATION: Always read this manual

rst before attempting to install or use the Optimyst® cassette. For
your safety, always comply with all warnings and safety instructions
contained in this manual to prevent personal injury or property
damage.

To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician
or service agency to repair

this cassette.

!

NOTE: Procedures and

techniques that are considered

important enough to
emphasize.

CAUTION: Procedures and

techniques which, if not
carefully followed, will result in
damage to the equipment.

WARNING: Procedures

and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.

Welcome & Congratulations ....................3

IMPORTANT INSTRUCTIONS ..................4

Installation ..................................6

Assembly ...................................8

Operation ..................................10

Maintenance ...............................12

Warranty .................................14

Replacement Parts ..........................16

3

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an Optimyst®
cassette from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your cassette.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

Contact us at:  www.dimplex.com/customer_support

For Troubleshooting and Technical Support

OR  Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial
number ready. (See above)

Model Number

Serial Number

4 www.dimplex.com

IMPORTANT SAFETY INSTRUCTIONS

THE ELECTRICAL RATING
FOR THESE MODELS
(6909051242, 6909051243,
6909051262,6909051263,

6909051261) IS 120VAC, 60 HZ,

200W.

When using an electrical furnish­ing, basic precautions should
always be followed, including the
following:

Read all instructions before using
(this furnishing).

DANGER: To reduce the risk

of electric shock always unplug
this furnishing from the electri­cal outlet before cleaning.

WARNING: To reduce the risk

of burns, re, electric shock, or
injury to persons:

① Unplug from outlet before putting
on or taking off parts.

② Close supervision is necessary
when this furnishing is used by, or
near children, invalids, or disabled
persons.

③ Use this furnishing only for its
intended use as described in these

instructions. Do not use attach-

ments not recommended by the
manufacturer.

④ Never operate this furnishing if it

has a damaged cord or plug, if it is
not working properly, if it has been
dropped or damaged, or dropped
into water. Contact Dimplex Techni­cal Service at 1-888-346-7539 for
replacement parts.

⑤ Keep the cord away from heated
surfaces.

⑥ Never operate the furnishing with
the air openings blocked. Keep the
air openings free of lint, hair, and

the like.

⑦ Never drop or insert any object
into any opening.

⑧ Do not use outdoors.

⑨ Do not operate where aerosol

(spray) products are being used
or where oxygen is being adminis-

tered.

⑩ To disconnect, turn all controls to
the off position, then remove plug
from outlet.

WARNING: Risk of Electric

Shock – Connect this furnishing
to a properly grounded outlet
only. See Grounding Instruc-

tions.

⑪ This electrical appliance has hot

and arcing or sparking parts inside.
Do not use in areas where gaso­line, paint, or ammable liquids are

used or stored.

5

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

⑫ Do not modify the unit. Use it

only as described in this manual.
Any other use not recommended by
the manufacturer may cause re,
electric shock or injury to persons.

⑬ To reduce the risk of electric

shock, this appliance has a three
pronged plug. This plug will t in a
grounded outlet only one way. If the
plug does not t, contact a quali­ed electrician to install the proper
outlet. Do not change the plug in
any way. Always plug this appliance
directly into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).

⑭ Keep away from curtains, drap-

eries and similar materials.

⑮ Always use a certied electrician

should new circuits or outlets be

required.

⑯ Always use properly grounded,

fused and polarized outlets.

⑰ When transporting or storing the

unit and cord, keep in a dry place,
free from excessive vibration and
store so as to avoid damage.

⑱ This furnishing has not been

evaluated for ammability or ciga­rette ignition resistance.

⑲ Do not submerse.

⑳ Light bulb requirement: 45W,

12VAC halogen bulbs type MR 16.

Contact Dimplex Technical Service
at 1-888-346-7539 for replacement
bulbs.

㉑ The electric fireplace shall be

installed in an enclosure no smaller

than that indicated. (See Figure 2)

!

NOTE: Changes or modica­tions not expressly approved by the
party responsible for compliance
could void user's authority to oper­ate the equipment.

WARNING: Remote control con-

tains small batteries. Keep away
from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install bat­tery backwards, charge, put in re
or mix with used or other battery
types - may explode or leak caus­ing injury.
