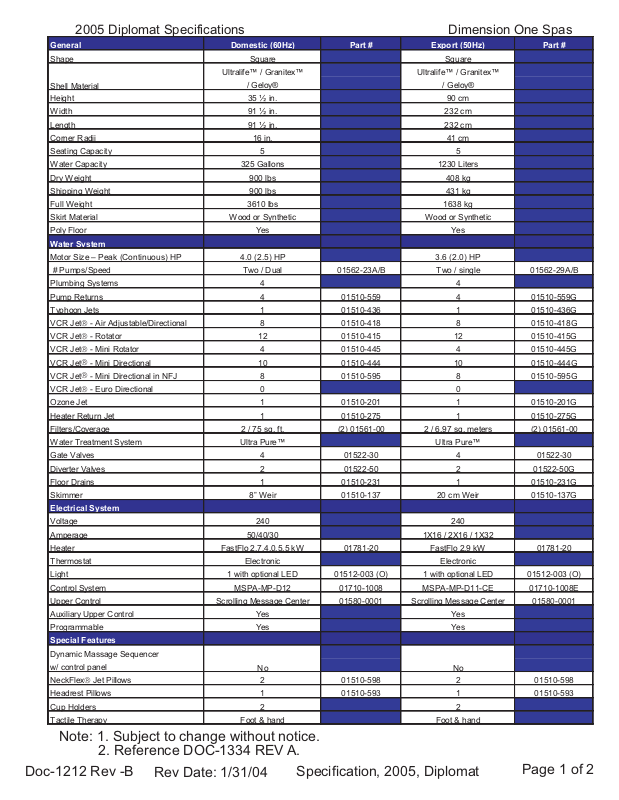

2005 Diplomat Specifications
General Domestic (60Hz) Part # Export (50Hz) Part #
Shape Square Square
Ultralife™ / Granitex™ Ultralife™ / Granitex™
Shell Material
Height 35 ½ in. 90 cm
Width 91 ½ in. 232 cm
Length 91 ½ in. 232 cm
Corner Radii 16 in. 41 cm
Seating Capacity 5 5
Water Capacity 325 Gallons 1230 Liters
Dry Weight 900 lbs 408 kg
Shipping Weight 900 lbs 431 kg
Full Weight 3610 lbs 1638 kg
Skirt Material W ood or Synthetic W ood or Synthetic
Poly Floor Yes Yes
Water System
Motor Size – Peak (Continuous) HP 4.0 (2.5) HP 3.6 (2.0) HP
# Pumps/Speed Two / Dual 01562-23A/B Two / single 01562-29A/B
Plumbing Systems 4 4
Pump Returns 4 01510-559 4 01510-559G
Typhoon Jets 1 01510-436 1 01510-436G
VCR Jet® - Air Adjustable/Directional 8 01510-418 8 01510-418G
VCR Jet® - Rotator 12 01510-415 12 01510-415G
VCR Jet® - Mini Rotator 4 01510-445 4 01510-445G
VCR Jet® - Mini Directional 10 01510-444 10 01510-444G
VCR Jet® - Mini Directional in NFJ 8 01510-595 8 01510-595G
VCR Jet® - Euro Directional 0 0
Ozone Jet 1 01510-201 1 01510-201G
Heater Return Jet 1 01510-275 1 01510-275G
Filters/Coverage 2 / 75 sq. ft. (2) 01561-00 2 / 6.97 sq. meters (2) 01561-00
Water Treatment System Ultra Pure™ Ultra Pure™
Gate Valves 4 01522-30 4 01522-30
Diverter Valves 2 01522-50 2 01522-50G
Floor Drains 1 01510-231 1 01510-231G
Skimmer 8” W eir 01510-137 20 cm W eir 01510-137G
Electrical System
Voltage 240 240
Amperage 50/40/30 1X16 / 2X16 / 1X32
Heater FastFlo 2.7,4.0,5.5 kW 01781-20 FastFlo 2.9 kW 01781-20
Thermos tat Electronic Elec tronic
Light 1 with optional LED 01512-003 (O) 1 with optional LED 01512-003 (O)
Control System MSPA-MP-D12 01710-1008 MSPA-MP-D11-CE 01710-1008E
Upper Control Scrolling Message Center 01580-0001 Scrolling Message Center 01580-0001
Auxiliary Upper Control Yes Yes
Programmable Yes Yes
Special Features
Dynamic Massage Sequencer
w/ control panel
NeckFlex® Jet Pillows 2 01510-598 2 01510-598
Headrest Pillows 1 01510-593 1 01510-593
Cup Holders 2 2
Tac tile Therapy Foot & hand Foot & hand
/ Geloy® / Geloy®
No No
Dimension One Spas
Note: 1. Subject to change without notice.
2. Reference DOC-1334 REV A.
Doc-1212 Rev -B
Rev Date: 1/31/04
Specification, 2005, Diplomat
Page 1 of 2
2005 Diplomat Specifications
Dimension One Spas
2005 Diplomat
Architectural Specification
19 in [48 cm]
SIS Compartment
18 1/2 in [47 cm]
12 in [31 cm]
16 in [41 cm]
Top View of Spa
16 in [41 cm]
THIS 3 FOOT SQUARE AREA,
ON BOTTOM OF SPA, TO BE
SUPPORTED CONSISTENT WITH
THE EDGES OF SPA BASE.
R16 in [R41 cm]Shell
R16 in [R40 cm]
91 1/2 in [232 cm]
Shell
See Caution
91 in [231 cm]
Skirt
89 in [225 cm]
Pedestal
Base
27 in [67 cm]
Recommended location
Electrical
Inlet
11 in [28 cm]
Hose Bib/
Water Drain
See Note 5
Vent
Control
Equipment Compartment
Vent Vent
34 1/2 in [88 cm]
56 1/2 in [143 cm]
67 1/2 in [171 cm]
91 1/2 in [232 cm]
Spa Lip
Front View of Spa
23 1/2 in [60 cm]
Hose Bib/
Water
Drain
3 1/2 in [9 cm]
Note: 1. Subject to change without notice.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
5. This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
Pedestal Base
75 in [191 cm]
89 in [225 cm]
91 in [231 cm]
Door Extends
Under Spa Lip
35 1/2 in [90 cm]
32 in [81 cm]
16 in [41 cm]
Doc-1212 Rev - B
Rev Date: 1/31/05
Specification, 2005, Diplomat
Page 2 of 2
