Wood Burning Inset Stove
Installation and Operating Instructions
R4
JINDLU04 Rev E 14/01/15
This appliance is not suitable for use in a shared flue
This appliance is suitable for intermittent burning
Smoke Control Areas
This appliance is only exempt for use in a smoke control area when fitted
with a smoke control area kit (JDLU0401)
Find out if you are in a Smoke Control Area by contacting your Local
Authority
Di Lusso, Emperor Way, Exeter Business Park, Exeter, United
Kingdom, EX1 3QS
DSEN13229 – Inset Wood Burning Stove
Appliance Mass 70kg
Efficiency 79%
Nominal Heat Output 4.9kW
Mean Co Emission (@13% O2) 0.09%
Mean OGC Emission (@13% O2) 99 mg/m
3
n
Mean NOx (as NO2) 35 mg/m
3
n
Mean Flue Gas Temperature 226°C
Flue Gas Mass Flow 5.5g/sec
Particulates (@13% O2) 13mg/m
3
n
NS3058/59
Average Particulate Emission 2.12g/kg
Maximum Particulate Emission 2.35g/kg
Combustion Air Requirement 17.5m³/hr
Minimum Clearance to Combustible Material
At the sides of the stove 250mm (from outside of frame)
In front of the stove (to furniture etc) 800mm
R4
11
JINDLU04 Rev E 14/01/15
Guarantee
The Body of the stove is covered under a 5
year guarantee (from date of purchase) to be
free from defects in materials and
workmanship. Internal components other
than consumable items such as glass and
firebricks are covered for a period of one year
from date of purchase.
General Guidance
It is important that your stove is correctly
installed as Di Lusso cannot accept
responsibility for any fault arising through
incorrect use or installation.
These instructions cover the basic principles
to ensure satisfactory installation of the stove,
although detail may need slight modification
to suit particular local site conditions.
The installation must comply with current
Building Regulations, national and European
standards, Local Authority byelaws and other
specifications or regulations as they affect the
installation of the stove.
The Building Regulations requirements may
also be met by adopting the relevant
recommendations in the current issues of
British Standards BS 8303 and BS EN 15287-1.
C
OMPETENT PERSO NS SCHEME
Di Lusso recommend that this stove is
installed by a member of an accredited
competent persons scheme e.g. HETAS.
If the installer is not a member of a
competent persons scheme, it is a legal
requirement in the UK to notify your local
building control body in advance of any work
starting.
H
EALTH A ND SAFET Y PRECAUTIONS
Special care must be taken when installing the
stove such that the requirements of the
Health and Safety at Work Act are met.
P
ACKAGING
All packaging supplied with this stove can be
re-used or recycled. Please contact your local
authority for information on recycling
schemes in your area.
H
ANDLING
Adequate facilities must be available for
loading, unloading and site handling.
F
IRE CEMENT
Some types of fire cement are caustic and
should not be allowed to come into contact
with the skin. In case of contact, wash
immediately with plenty of water.
A
SBESTOS
This stove contains no asbestos. If there is a
possibility of disturbing any asbestos in the
course of installation then please seek
specialist guidance and use appropriate
protective equipment.
M
ETAL PARTS
When installing or servicing this stove, care
should be taken to avoid the possibility of
personal injury.
A
IR SUPPLY
The room or space containing this appliance
should have purpose provided ventilation
(where necessary) in accordance with Building
Regulations.
Due consideration should be given to air
requirements for any other appliance in the
same room or space.
Any air opening must be kept clear from
blockage or obstruction.
M
ODIFICA TIO N
No unauthorized modification of this
appliance should be carried out.
JINDLU04 Rev E 14/01/15
S
AFETY
WARNING – This appliance will be hot when
in operation and due care should be taken.
The supplied operating tool or gloves may be
used to open the door and operate the air
controls.
AEROSOLS – Do not use an aerosol spray on
or near the stove when it is alight.
FIRES CAN BE DANGEROUS – Always use a
fireguard in the presence of children, the
elderly or the infirm. The fireguard should be
manufactured in accordance with BS8423 –
Fireguards for use with solid fuel appliances.
DO NOT OVER-FIRE – it is possible to fire the
stove beyond its design capacity. This could
damage the stove so watch for signs of overfiring. If any part of the stove starts to glow
red, the stove is in an over-fire situation and
the controls should be adjusted accordingly.
Never leave the stove unattended for long
periods without first adjusting the controls to
a safe setting. Careful air supply control
should be exercised at all times.
FUME EMISSION – properly installed and
operated, this appliance will not emit fumes.
Occasional fumes from de-ashing and
refueling may occur. Persistent fume emission
must not be tolerated.
This appliance should not be operated with
the doors open
If fume emission does persist then the
following action should be taken immediately
–
• Open Doors and windows to ventilate
room.
• Let the fire out, or eject and safely
dispose of fuel from the appliance.
• Check for flue/chimney blockage and
clean if required.
• Do not attempt to relight the fire until
the cause has been identified and
corrected.
• If necessary seek professional advice.
ADVERSE WEATHER – In a small number of
installations, occasional local weather
conditions (e.g. wind from a particular
direction) may cause downdraught in the flue
and the stove to emit fumes. In these
circumstances the stove should not be used. A
professional flue installer will be able to
advise on solutions to this problem (e.g. antidowndraught cowl).
EXTRACTOR FANS – DO NOT FIT AN
EXTRACTOR FAN IN THE SAME ROOM AS
THIS APPLIANCE.
IN THE EVENT OF A CHIMNEY FIRE -
• Raise the alarm
• Call the Fire Brigade
• Close appliance air controls
• Move furniture, ornaments etc away
• Place a fireguard in front of stove
• Check the chimney breast for signs of
excessive heat.
If the wall is becoming excessively hot, move
furniture away. Ensure the Fire Brigade can
gain access to your roof space in order to
check for fire spread.
JINDLU04 Rev E 14/01/15
Installation
(N.B. All dimensions are in Millimetres)
A
PPLIANC E DIMENSIO NS
F
LUE OUTLET POSITION
The flue outlet angle and position is
determined by the orientation of the flue
collar. The outlet can be either vertical or
leant backwards by 30°. To change the angle,
rotate the flue collar by 180°. The effective
centre dimensions in millimeters are shown
below.
A
PPLIANC E OPENING
This stove must be fitted on a hearth or base
with adequate load-bearing capacity.
The opening into which this stove is fitted
should be constructed wholly from noncombustible materials. The dimensions of the
opening should be at least those shown in the
diagram. Ensure there is a sufficient overlap
where the convection chamber flange meets
the face of the opening. If not, either the
opening should be made smaller, or a suitable
fire surround should be fitted to reduce the
opening dimensions.
This appliance will fit into a standard 16”
fireplace opening if the clay fireback is
removed.
Any non-combustible walls within 50mm of
this appliance should be at least 200mm
thick and should extend at least 300mm
above the top of the appliance and at least
1.2 metres above the hearth. Any walls more
than 50mm from the appliance may be
reduced to a thickness of 75mm. Ensure the
inter-connecting flue pipe also has adequate
clearances to combustible materials.
JINDLU04 Rev E 14/01/15
The wall above the stove will become hot and
should therefore be finished in a heat
resistant plaster. IMPORTANT Do not hang
pictures, electrical equipment or ornaments
above the stove, as these could be damaged
and could potentially create a fire hazard.
Please check the suitability of any
fireplace/surround for closed solid fuel
appliances before installation. Di Lusso
cannot be held responsible for any fault
arising through incorrect use or installation.
Fire surround back panels suitable for solid
fuel are usually in three sections and
slabbed. Many fire surrounds are suitable
only for use with gas and electric fires and
therefore not suitable for solid fuel.
D
IRECT AIR ADAPTOR
If fitting the direct air adaptor kit the opening
depth may need to be increased. Read the
instructions supplied with the kit before
proceeding.
H
EART H REQUIREMENTS
A constructional hearth with a minimum
thickness of 125mm should be provided. The
constructional hearth should be made of solid
non-combustible material and can include any
solid non-combustible floor. The boundary of
the hearth must be clearly marked. This can
be done by adding a super-imposed hearth on
top of the constructional hearth – e.g. a slate
slab on top of a solid concrete floor.
Appliances installed with the base plate lower
than 300mm above the hearth should have a
constructional hearth extending to at least
400mm in front of the stove and 150mm at
the sides.
Appliances installed on a surface more than
300mm above the hearth require a
constructional hearth with a depth of 225mm
in front of the stove. The base on which the
appliance is mounted should be an extension
of the constructional hearth – i.e. all material
between the stove base and the
constructional hearth must be solid-non
combustible material.
JINDLU04 Rev E 14/01/15
C
LEARANCES TO COMBUSTIBLE MATERIAL S
There should be no combustible materials for
a distance of 250mm either side of the stove
or 680mm above. No combustible furniture
should be placed any closer than 800mm from
the front of the stove.
Allow sufficient clearance between the stove
and pictures, electrical equipment or
ornaments etc, as these could be damaged
and could potentially create a fire hazard.
F
LUE REQUIREMENTS
The flue serving this appliance must be dry,
free from cracks and obstructions and be in
accordance with the designations shown in
Table 1.
The diameter of the flue should not be less
than 127mm and not more than 200mm.
If these requirements are not met the
chimney should be lined by a suitable
method.
If there is no existing chimney then either a
prefabricated block chimney in accordance
with Building Regulations Approved
Document J or a twin-walled insulated
stainless steel flue to BS EN 1856 can be used.
These chimneys must be fitted in accordance
with the manufacturer’s instructions and
Building Regulations.
Flue Type
Minimum Designation
Masonry or flue block
flue with liner
T400 N2 D3 G
(BS EN 1443:2003)
Clay Flue Blocks
FB1 N2
(BS EN 1806:2006)
Clay/Ceramic Liners
B1 N2
(BS EN 1457:2009)
Concr
ete Liners
B2
(BS EN 1857:2003)
Factory Made Metal
Chimney
T400 N2 D3 G
(BS EN 1856-1:2003)
The chimney/flue should have a vertical
height of at least 4.5 metres and should
terminate in accordance with Table 2.
If the chimney is believed to have previously
served an open fire installation, it is possible
that the higher flue gas temperature from the
stove may loosen deposits that were
previously firmly adhered, with the
consequent risk of flue blockage. It is
therefore recommended that the chimney is
swept a second time within a month of
regular use after installation.
Table 1
–
Minimum Flue Designations
JINDLU04 Rev E 14/01/15
If you have any doubts about the suitability
of your chimney, consult your local
dealer/stockist.
Both the chimney and flue pipe must be
accessible for cleaning and if ANY part of the
chimney cannot be reached through the
stove (with baffle removed), a soot door
must be fitted in a suitable position.
F
LUE DRAUG HT
If the draught exceeds the recommended
maximum, a draught stabiliser must be fitted
so that the rate of burning can be controlled
and to prevent over firing.
If the reading is less than the recommended
minimum then the performance of the
appliance will be compromised.
The flue draught should be checked under fire
at high output.
Minimum Draught – 1.2mm Water Gauge
Maximum Draught – 2.5mm Water Gauge
R
EMOVING INTER NAL COMPONENTS
All internal components must be removed
prior to fitting the stove. This will make
handling the stove easier; allow access to
fixings and the flue outlet; as well as protect
the internal components from damage
during the installation process.
1. To open the stove door, press on the
door lever to release it from the latch.
Swing the handle out to the right until
the mechanism engages and the door
catch is released.
N.B.
When closing the door keep the door handle
out to the right until the door is closed.
Terminal Position Clearances to Flue
Outlet
a
At or within
600mm of
the ridge
At least
600m above the ridge
b
Elsewhere
on a roof
(whether
pitched or
flat)
At least 2300mm horizontally
from the nearest point on the
weather surface and:
a) At least 1000mm above
the highest point of
intersection of the
chimney and the weather
surface or
b) At least as high as the ridge
c
Below (on a
pitched
roof) or
within
2300mm
horizontally
to an
openable
rooflight,
dormer
window or
other
opening.
At least 1000mm above the top
of the opening.
d
Within
2300mm of
an adjoining
or adjacent
building,
whether or
not beyond
the
boundary.
At least 600mm above any part
of the adjacent building within
2300mm
Table 2
-
Flue terminal positions
JINDLU04 Rev E 14/01/15

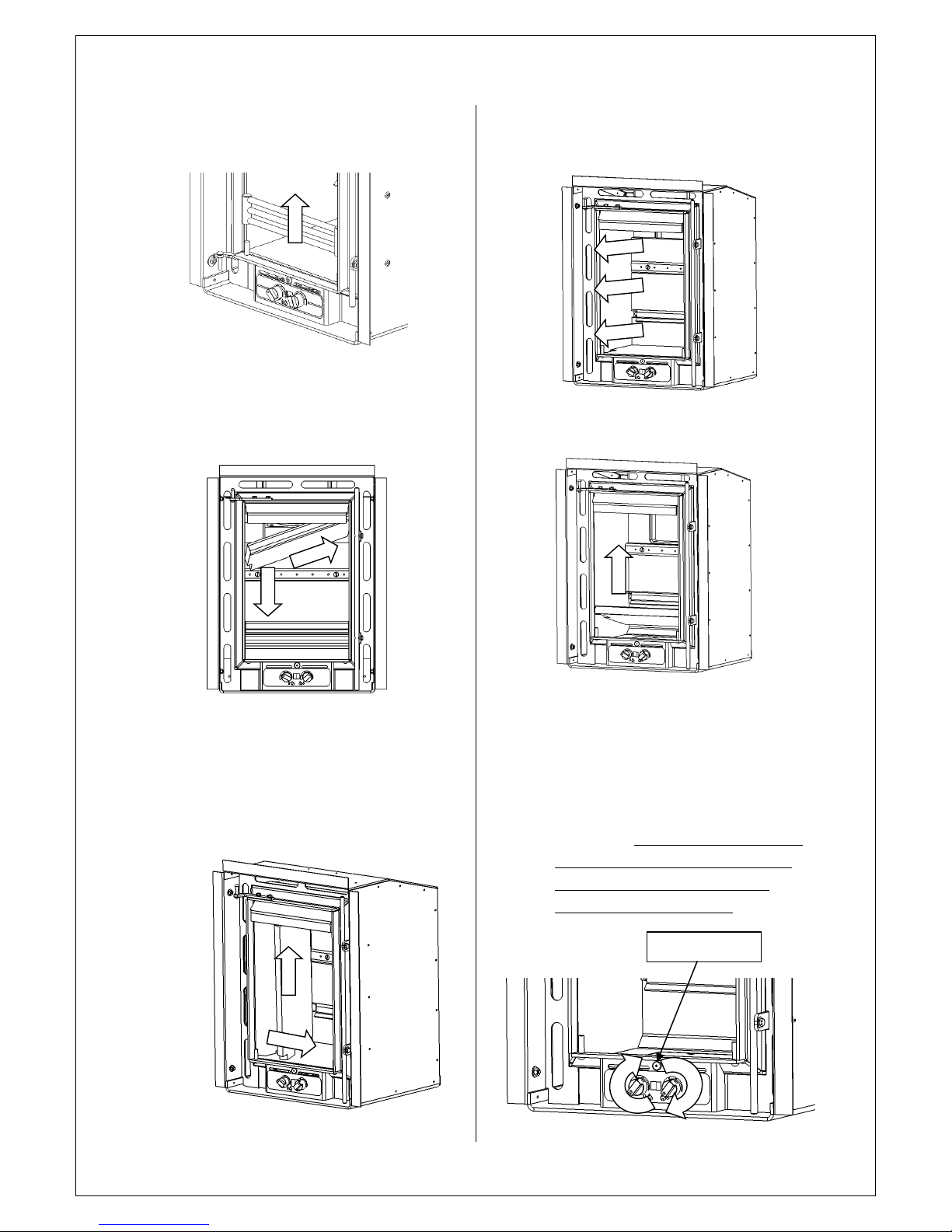

2. Remove the log retainer by lifting it
clear of the two support pins.
3. Remove the baffle brick by lifting it
up, sliding it to the right and then
lowering the left hand edge into the
firebox.
4. Remove the two side bricks by lifting
them up to release them from the
slots in the base brick. Swing the
bricks into the centre and remove
them from the stove.
5. Remove the three rear brick sections
noting their positions and orientation.
6. Lift up and remove the base brick.
7. Remove the Air Valve Cassette by
removing the socket screw holding it
in place, turning both air controls to
the fully open position (clockwise)
and then gently pulling on the fascia
to slide the cassette out from under
the firebox. N.B. DO NOT Remove the
Air Valve Cassette with the controls
in the closed position as this will
damage the valve gaskets.
Socket screw
JINDLU04 Rev E 14/01/15
8. Undo the four countersunk screws
and remove the base fixing access
plate and gasket.
F
ITTI NG THE STOVE
IMPORTANT – Read this section carefully and
ensure that any required access holes,
register plates or flue connections are in
place before carrying out the installation.
If the installation is to be back filled with
vermiculite concrete the convection chamber
flange should be sealed to the fireplace using
fire cement, heat proof silicone or similar. All
seams in the convection chamber should also
be sealed.
It is recommended that the convection
chamber flange is sealed to the fireplace in
all cases as this will reduce the chance of
airflow into any voids reducing the stoves
efficiency or the ingress of unpleasant smells
into the room.
If fitting the Direct Air Adaptor Kit the
instructions supplied with the kit should be
read in conjunction with these instructions.
1. Offer the stove into position in the
recess pushing it back far enough so
that the flanges on the edge of the
convection chamber are pushed up
tightly against the front of the
chimney breast/fireplace.
2. Drill a 6mm hole into the hearth in
the centre of the base plate fixing
hole. Use the screw supplied to fix
the stove in place.
Any voids around the stove must be In-filled
with vermiculite concrete with a
recommended mix of six parts vermiculite to
one part Ordinary Portland Cement. This may
be carried out once the flue has been fitted
provided a suitable access hole for backfilling
is made in the chimney breast (see section on
connecting to a masonry chimney). Sufficient
water should be added so that when a
handful of the mixture is squeezed no more
than one or two drops of water are released.
F
LUE CONNECTION
The flue collar can be connected to the stove
after the stove has been put into position.
Make sure the gasket is fitted over the flue
collar before making any connection to the
flue liner or flue pipe.
If connecting to a stainless steel liner, the flue
liner and single skin adaptor can be lowered
down the chimney and the spigot end of the
adaptor lowered into the firebox.
The flue collar can then be connected to the
adaptor.
The completed flue collar assembly can then
be pushed up to the top plate of the stove
and secured in position using the four M8
nuts and washers. Check the clearance of the
flue liner adaptor through the top of the stove
before deciding on this method.
JINDLU04 Rev E 14/01/15
If connecting to an existing masonry chimney
it is recommended that a flue forming pipe
(short length of flue pipe) is used and the void
between the flue forming pipe and the
chimney filled with vermiculite concrete.
A suitable access hole will need to be made in
the chimney breast to allow the back filling to
be carried out and then filled and sealed once
the installation is complete.
Alternatively a connection can be made using
a register plate although it will be necessary
to allow access for fitting the flue pipe to the
register plate and sealing all joints.
RE-A
SSEM BLING THE STOVE
1. Refit the base fixing access plate and
gasket, Air Valve Cassette (with the air
controls set to maximum), firebricks,
brick baffle and log retainer.
2. Wind the M6 Nuts to the ends of the
studs on the convection chamber
sides.
3. Slide the Frame in to position and
tighten the nuts with a 10mm
spanner.
JINDLU04 Rev E 14/01/15
4. Release the door catch and hold the
door ajar.
5. Offer the Door Fascia into position,
passing the 3x M6 studs through the
holes in the door and fix in position
using the nuts and washers provided.
6. Close the door and check the
alignment of the Door Fascia with the
frame. Adjust as necessary.
7. Attach the door handle to the door
lever using the M6 screws and
washers. Check the alignment of the
handle with the door fascia and adjust
as necessary. The door handle should
be flush with the fascia and have an
even gap around it when in the
closed position.
C
OMMISSIONI NG
Upon completion of the installation allow a
suitable period of time for any fire cement
and mortar to dry out. A small fire may then
be lit and the installation checked to ensure
the smoke and fumes are drawn up the flue
and emitted safely to atmosphere. The stove
should not be run at full output for at least 24
hours. Read the Operating Instructions
before lighting the stove for the first time.
Leave the instructions and operating tool(s)
with the customer and advise them on -
• Correct use of the appliance
• The recommended fuel
• Action to be taken should smoke or
fumes be emitted from the stove or
installation.
• The use of a fireguard when the stove
is used in the presence of children or
the infirm.
JINDLU04 Rev E 14/01/15
Operating Instructions
Read the ‘General Guidance’ Section at the
start of these instructions before operating
your stove for the first time.
IMPORTANT! - Do not hang pictures,
televisions or combustible ornaments above
the stove, as these could be damaged and
could potentially create a fire hazard (For
more information read the ‘Clearance
Distances to Combustibles’ section of the
installation instructions).
WARNING! – This appliance will be hot when
in operation and due care should be taken.
The supplied operating tool or gloves may be
used to open the door and operate the air
controls.
R
ECOMMENDED FUEL
This appliance is designed and approved to
burn wood logs with a moisture content not
exceeding 20%. The maximum recommended
log length is 250mm (10”) and the maximum
recommended log diameter is 100mm (4”).
Burn only dry, well seasoned wood, which
should have been cut, split and stacked for at
least 12 months, with free air movement
around the sides of the stack to enable it to
dry out. Burning wet or unseasoned wood will
create tar deposits in the stove and chimney,
increase harmful emissions and will not
produce a satisfactory heat output.
Do not burn waste, mineral fuel, or treated
or painted wood in this appliance.
A
IR CONTR OLS
Installed and used correctly this stove will
burn cleanly and efficiently. Therefore, to
avoid the disappointment of poor
performance or dirty glass, please familiarize
yourself with the controls and their
recommended settings before use.
To access the air controls press on the door
handle to release it from the latch and swing
it to the right.
If the door handle is swung past the point
where resistance is felt the door will be
unlatched and may swing open.
When the stove is hot the door handle can be
released by pressing the end of the operating
tool against the arm below the handle. This
will prevent damage to the paint.
Alternatively a glove can be used.
Ignition Air control – regulates air flow
directly into the firebed. This is used when
lighting from cold or when reviving a fire that
has nearly burnt out. Turn clockwise to open
and anti- clockwise to close. The Ignition Air
Control must be closed once the fire is
established.
Combustion Air Co
ntrol
Ignition Air Control
JINDLU04 Rev E 14/01/15
Combustion Air Control – regulates the flow
of air downwards into the combustion
chamber via the airwash (airflow over the
inside of the glass) and the tertiary air inlet
(air inlet holes in the back of the firebox). Turn
clockwise to open and anti-clockwise to close.
This control is used to regulate the burn rate
and therefore heat output of the stove.
O
PENING THE STOVE DOOR
To open the stove door press on the door
handle to release it from the latch. Swing the
handle out to the right until the mechanism
engages and the door catch is released.
N.B. When closing the door keep the door
handle out to the right until the door is
closed.
L
IGHTING
We recommend that you have two or three
small fires before you operate your stove to
its maximum heat output. This is to allow the
paint to cure in steadily and to give a long
service life to the paint finish. During this
curing in process you may notice an
unpleasant smell. It is non-toxic, but for your
comfort we would suggest that during this
period you leave all doors and windows
open.
Open both air controls fully and light one or
two firelighters placed centrally on the
bottom of the firebox, allowing the flames to
become established before placing several
pieces of small dry kindling in a criss-cross
fashion above the firelighters, taking care not
to smother the fire. Close the stove door.
Once the kindling is well alight open the door
and build the fire by gradually adding slightly
larger pieces of wood, closing the door
afterwards.
Once the fire is established close the Ignition
Air Control (anti-clockwise) and add more fuel
as necessary. The Combustion Air control can
now be used to regulate the burn rate of the
stove (see Recommended Settings).
Should the fire fail to light correctly open the
door and use a poker to spread the fuel across
the bottom of the firebox. Close the door and
allow the fuel and stove to cool before
attempting to relight the fire.
N.B. Leaving the air controls in the closed
position, adding too much fuel or using wood
that is wet or too large will prevent the fire
from establishing correctly and may result in
smoke emission from the stove.
When the stove is up to operating
temperature the operating tool or gloves
should be used to operate the air controls.
R
ECOMMENDED SETTINGS
Once the fire is established the Ignition Air
Control should be fully closed and the
Combustion Air Control turned to a setting of
approximately 50 -60% open. This setting
should allow the nominal output and
efficiency to be achieved.
Avoid running the stove on very low air
settings as this could result in a reduction in
efficiency and increase emissions into the
atmosphere.
REFUELLING
Avoid refueling on to a low firebed as this may
cause excessive smoke emission. Ensure there
are sufficient embers to ignite the new fuel
load rapidly. Alternatively add some more
kindling before adding larger pieces of
firewood.
JINDLU04 Rev E 14/01/15
Do not add firewood above the level of the
tertiary air inlet at the back of the stove.
Exceeding this amount can result in the
production of excessive smoke.
D
E-ASHING
From time to time it will be necessary to
remove excess ash from the firebox. This can
be done by lifting up the log retainer to
release it from its supports and removing the
ash with a small shovel.
Maintenance
Important! –In order to ensure continued
compliance with current Building
Regulations, Local Authority Byelaws and the
Clean Air Act (if applicable), this appliance
requires regular maintenance of the
following –
N.B. Refer to the ‘Removing Internal
Components’ section of the installation
instructions for details on how to remove
each component.
M
ONTH LY
Brick Baffle – this should be removed and
cleaned at least once a month to prevent any
build up of soot or ash that could lead to
blocked flueways. With the baffle removed
the chimney can be swept through the
appliance.
Firebricks- in normal use these can last for
many years. It is possible, however, to
damage them if care is not taken when
refueling the stove. Check periodically for
seriously cracked bricks, which can be
replaced with new, available from your
dealer.
Air Valve Cassette- this should be removed
and cleaned monthly to remove any ash that
may be in the controls. N.B. Make sure that
controls are in the maximum position (fully
clockwise) before removing the Air Valve
Cassette.
Glass Panel- clean the glass panel when cool
with a proprietary glass cleaner. Highly
abrasive substances should be avoided as
these can scratch the glass and make
subsequent cleaning more difficult.
Rope – if the rope around the door is
becoming detached use proprietary rope
adhesive to re-attach it. If the rope is in poor
condition a replacement rope kit may be
ordered from the Di Lusso spares range.
A
NNUALLY
Annual maintenance of the following should
be carried out by a competent person –
Chimney and flueways- it is important that the
chimney, flueways and any connecting pipe
are swept regularly. This means at least twice
a year for Woodburning appliances. Only
wire-centred sweeps’ brushes fitted with a
guide wheel should be used. If it is not
possible to sweep all parts of the chimney
through the appliance, ensure there is
adequate access to cleaning doors.
If the stove is fitted in place of an open fire
the chimney should be swept one month after
installation to clear any soot falls which may
have occurred due to the difference in
combustion between the stove and the open
fire.
JINDLU04 Rev E 14/01/15
P
ERIODS OF PROLONGED NON-USE
If the stove is to be left unused for a
prolonged period, then it should be given a
thorough clean to remove ash and unburned
fuel residues. To enable a good flow of air
through the appliance to reduce condensation
and subsequent damage, leave the air
controls fully open.
If the appliance has been unused for a long
period, such as during the spring and summer
months, a competent person should check the
chimney for potential obstructions before
lighting the stove i.e. get the chimney swept
before the start of the heating season.
AS N
ECESSARY
Stove body – the stove is finished with a heat
resistant paint and this can be cleaned with a
soft brush. Do not clean the stove whilst it is
hot; wait until it has cooled down. The finish
can be renovated with proprietary stove
paint.
Door Catch – Over time the rope seal in the
door will become compressed. It may
therefore be necessary to adjust the door
catch to maintain the door seal. To adjust the
catch slacken the two set screws on the catch
bar and adjust the position of the catch bar as
necessary.
Air Valves - Over time the sealing face of the
air valves may wear. This will reduce the
effectiveness of the controls. To replace a
worn valve remove the air valve cassette, lift
off the worn valve and replace with new.
Trouble Shooting
F
IRE WILL NOT BUR N
Check that –
• The air inlet or slots in the front of the
stove are not obstructed in any way.
• Chimneys and flueways are clear.
• A suitable fuel is being used.
• There is an adequate air supply into
the room.
• An extractor fan is not fitted in the
same room as the stove.
• Flue draught is above minimum level
(see installation instructions).
F
IRE BLAZING O UT OF CONTROL
Check that –
• The door is tightly closed.
• The air controls are in the closed
position.
• A suitable fuel is being used.
• The glass is not loose.
• The door rope seal is in good
condition.
• The air valve sealing faces are not
worn
• Flue draught is below maximum level
(see installation instructions).
Catch B
ar
JINDLU04 Rev E 14/01/15
Stove Spares
B
ODY SPARE S
JINDLU04 Rev E 14/01/15
Stove Spares
D
OOR SPARE S
JINDLU04 Rev E 14/01/15
Stove Spares

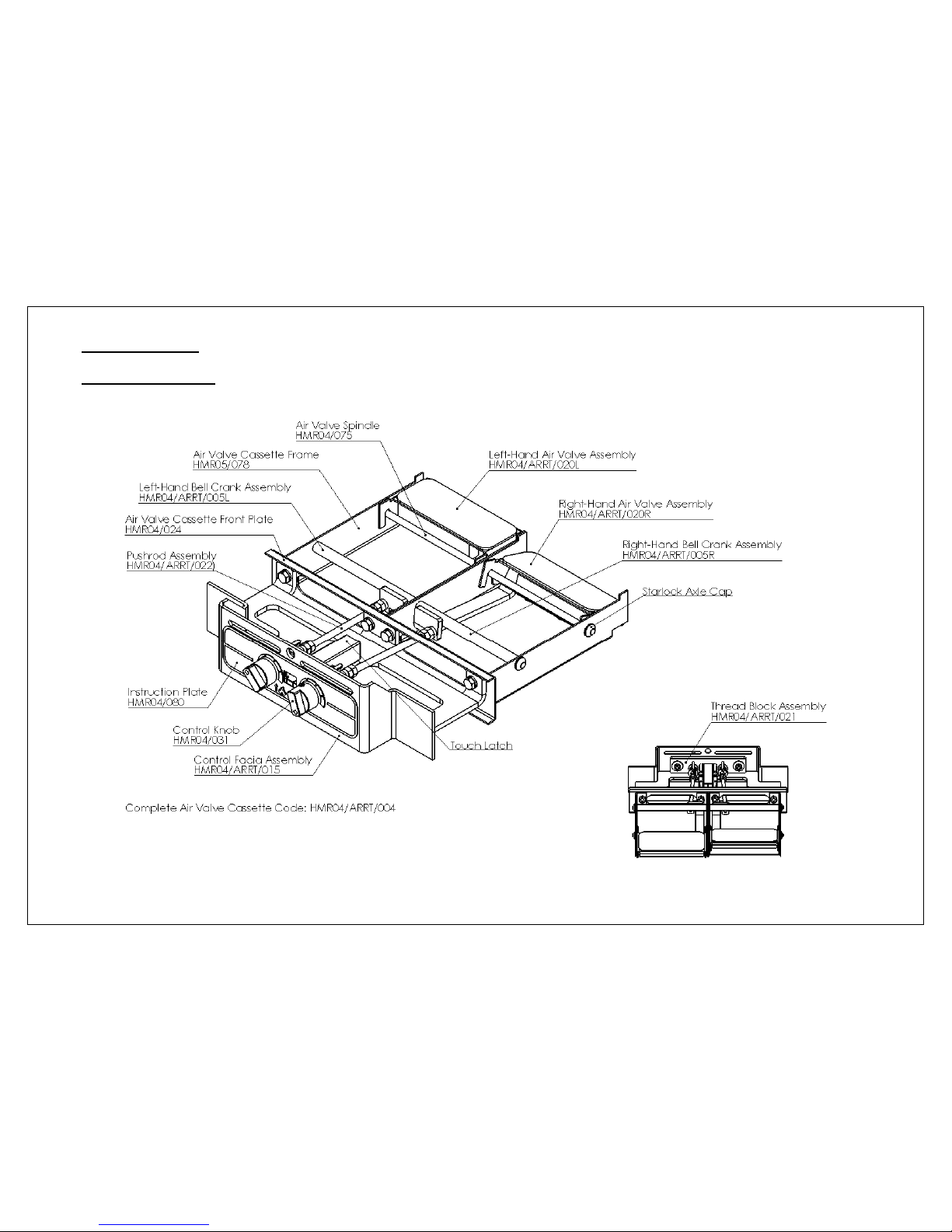

A
IR VALVE CASSE TTE SPARE S
Loading...
