HUNTER
User Manual
This manual describes how to safely complete nal assembly
and includes tips for use and maintenance
English
Dillenger Hunter BBS 2016 Dillenger Hunter Hub Drive Dillenger Hunter BBS 2015
This manual covers the assembly of:
Page 2
2
SAFETY
PLEASE NOTE
Mechanical Safety Check:
Routinely check the condition of your bike. Make sure no fasteners have come loose. Perform
a visual inspection of the whole bicycle before every ride. Make sure tyres are correctly inated
within the range given on the tyre sidewall. Check your brakes for proper operation.
Your First Ride:
Be sure to pick an area away from cars, other cyclists, obstacles or other hazards to become
familiar with the controls, features and performance of your new electric bike.
We highly recommend the purchase of the Dillenger electric bike repair
toolkit. It will make your setup and ongoing maintenance much easier.
This can be purchased online.
Thank you for purchasing your new Dillenger electric bike! We know you’ll love it, and with some
care it should last for a very long time. Please read through this manual carefully before
beginning nal assembly.
THANK YOU
Page 3
3
ITEM CHECK LIST
Each electric bike is assembled under the most strict quality control standards. Upon
completion, each electric bike is test ridden by a technician inside the assembly factory to
check that every function and adjustment on the bike is perfect.
Item Check list:
• Electric bike with front wheel and handlebars
• Charger box (this may container other important parts)
• Pedals (left and right) please note the left and right pedals are not identical
• Any loose boxes may container other parts, such as a light (if where a light is provided or
purchase) so please check all packaging thoroughly
• BBS shield and xings
Page 4
4
CONTENTS
THANK YOU 2
SAFETY 2
ITEM CHECK LIST 3
SUMMARY OF FINAL SETUP 5
UNBOXING 6
MAIN PARTS 7
ASSEMBLY 10
FRONT WHEEL 10
HANDLEBARS 14
PEDALS 17
SEAT 18
BBS SHIELD INSTALLATION 19
BATTERY OPERATION 24
LCD OPERATION 26
IMPORTANT POINTS 27
CHARGING 28
MAINTENANCE 29
TROUBLE SHOOTING 30
CONTACT US 33
Your Dillenger bike is fully assembled in our factory and tested to our high standards.
To t into an appropriately sized shipping carton to comply with the various courier
networks, some basic parts of the bike are temporarily removed. This is so that the bike
can t into the shipping carton safely, and so that we can adequately package each part of
the bike so that it is delivered in perfect condition.
These simple instruction will show you how to perform the nal setup. Your bike may
arrive in a more assembled state than what is shown here. These are the steps required
for most customers (packaging and nal assembly can vary by country).
In summary, these are the main steps.
Step 1, Unpacking/Unboxing
Step 2, Identify the pieces that require nal assembly
Step 3, Front wheel fastening
Step 4, Handlebar alignment
Step 5, Left and right side pedals
Step 6, Seat
Step 7, BBS Shield Installation
Tools required:
Allen keys (5 and 6mm)
These are provided and can be found in the charger box.
Other equipment not provided:
Bike pump (or service station car tyre pump)
3mm allen key, 11mm spanner (or shifter) for the BBS Shield
Page 5
5
Your Dillenger bike is fully assembled in our factory and tested to our high standards.
To t into an appropriately sized shipping carton to comply with the various courier
networks, some basic parts of the bike are temporarily removed. This is so that the bike
can t into the shipping carton safely, and so that we can adequately package each part of
the bike so that it is delivered in perfect condition.
These simple instruction will show you how to perform the nal setup. Your bike may
arrive in a more assembled state than what is shown here. These are the steps required
for most customers (packaging and nal assembly can vary by country).
In summary, these are the main steps.
Step 1, Unpacking/Unboxing
Step 2, Identify the pieces that require nal assembly
Step 3, Front wheel fastening
Step 4, Handlebar alignment
Step 5, Left and right side pedals
Step 6, Seat
Step 7, BBS Shield Installation
Tools required:
Allen keys (5 and 6mm)
These are provided and can be found in the charger box.
Other equipment not provided:
Bike pump (or service station car tyre pump)
3mm allen key, 11mm spanner (or shifter) for the BBS Shield
SUMMARY OF FINAL SETUP
Page 6
6
Unboxing your Dillenger will be very exciting, but it’s important to take care when
unboxing the bike as it’s possible to accidentally damage the bike or misplace crucial
parts. It’s also much easier to unbox the bike with someone to help you.
Remove the protective packaging from the bike carefully with a pair of scissors or a box
cutter. Make sure you don’t misplace any components in the lose packaging (there can be
quite a lot of protective packaging used).
A stand is shown in this photo for staging purposes only, it is not included with the bike.

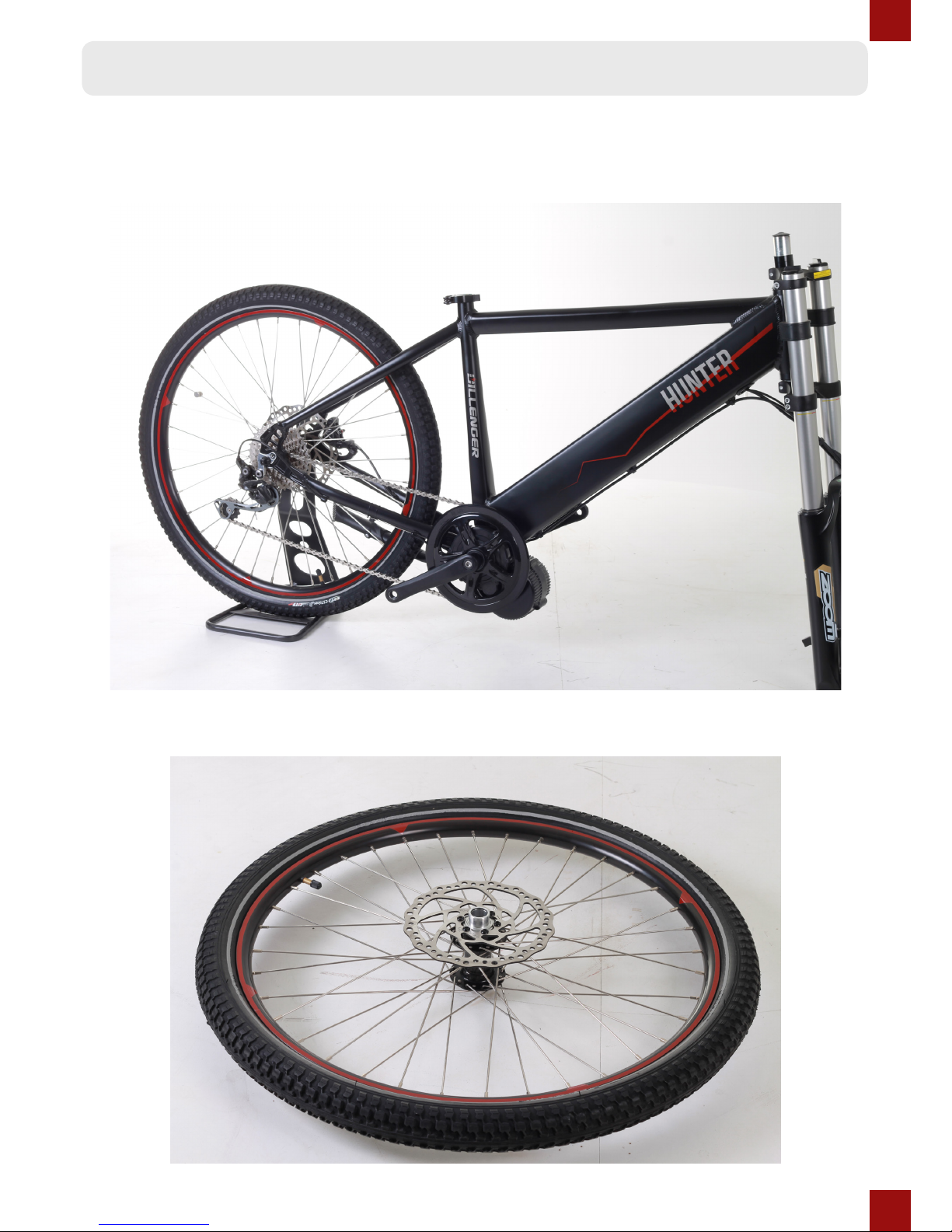

After you’ve taken your Dillenger out of it’s shipping carton, you should have these parts:
1. The complete bike
2. Front wheel
UNBOXING
Page 7
7
MAIN PARTS

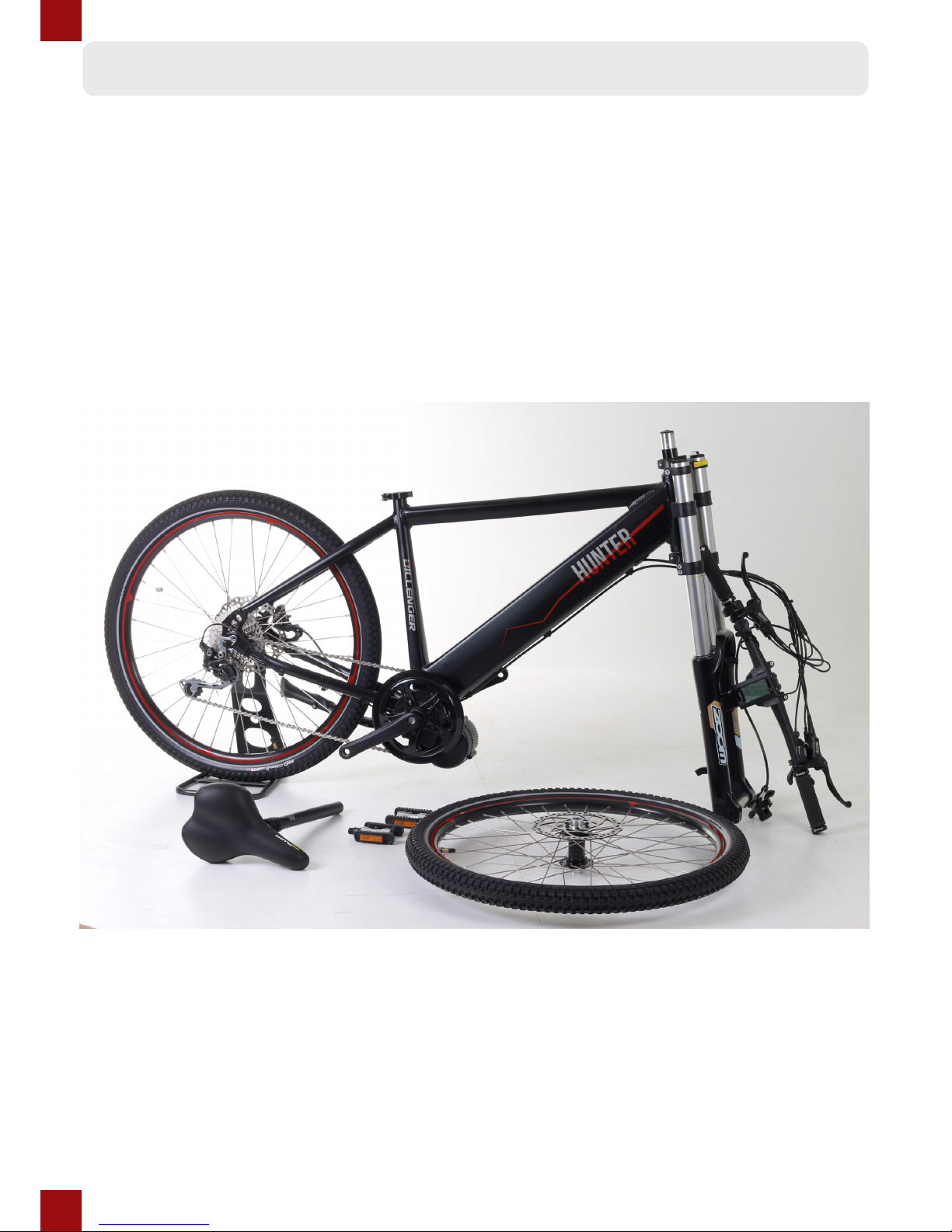

After you’ve taken your Dillenger out of it’s shipping carton, you should have these parts:
1. The complete bike
2. Front wheel
Page 8
8

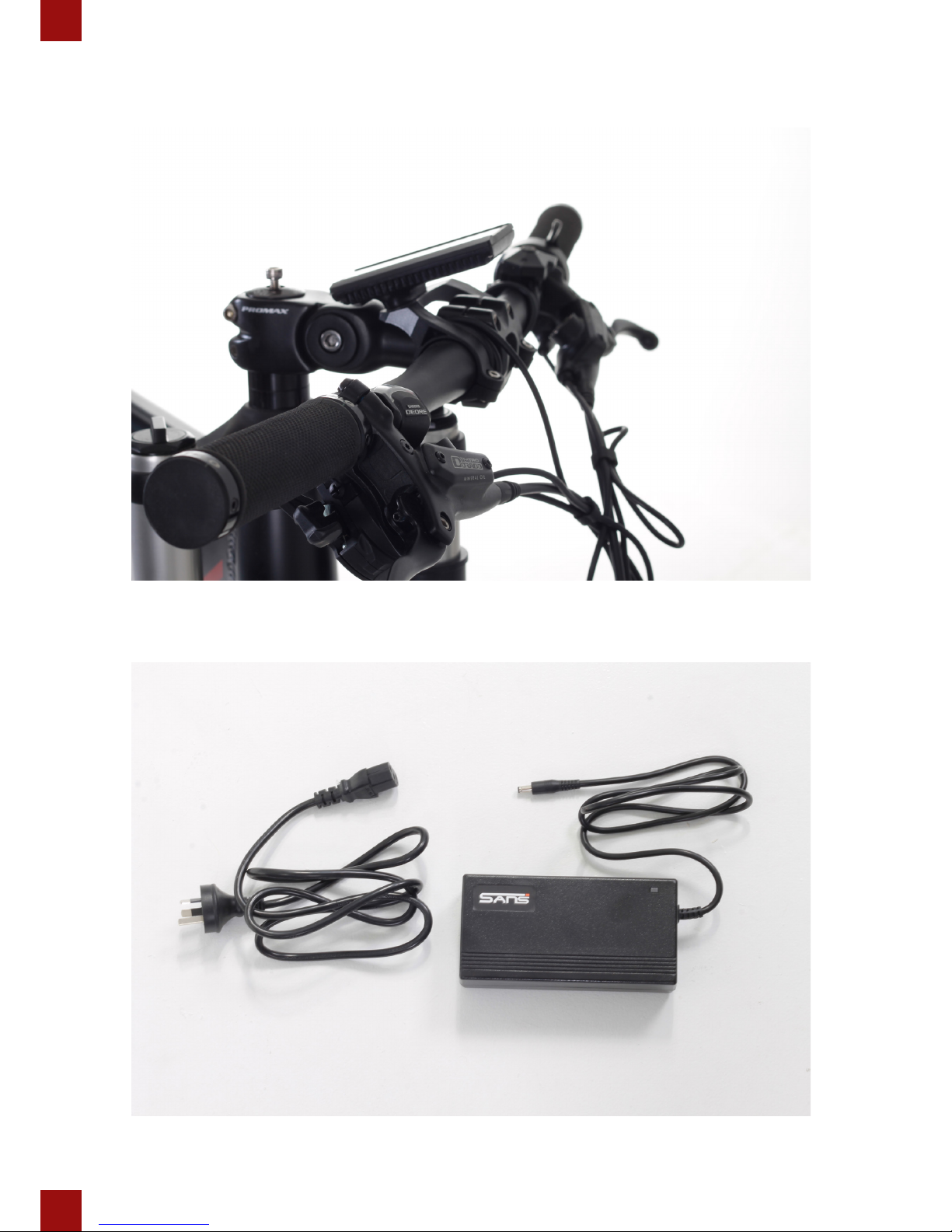

3. handlebars (attached by the wiring)
4. Charger
Page 9
9

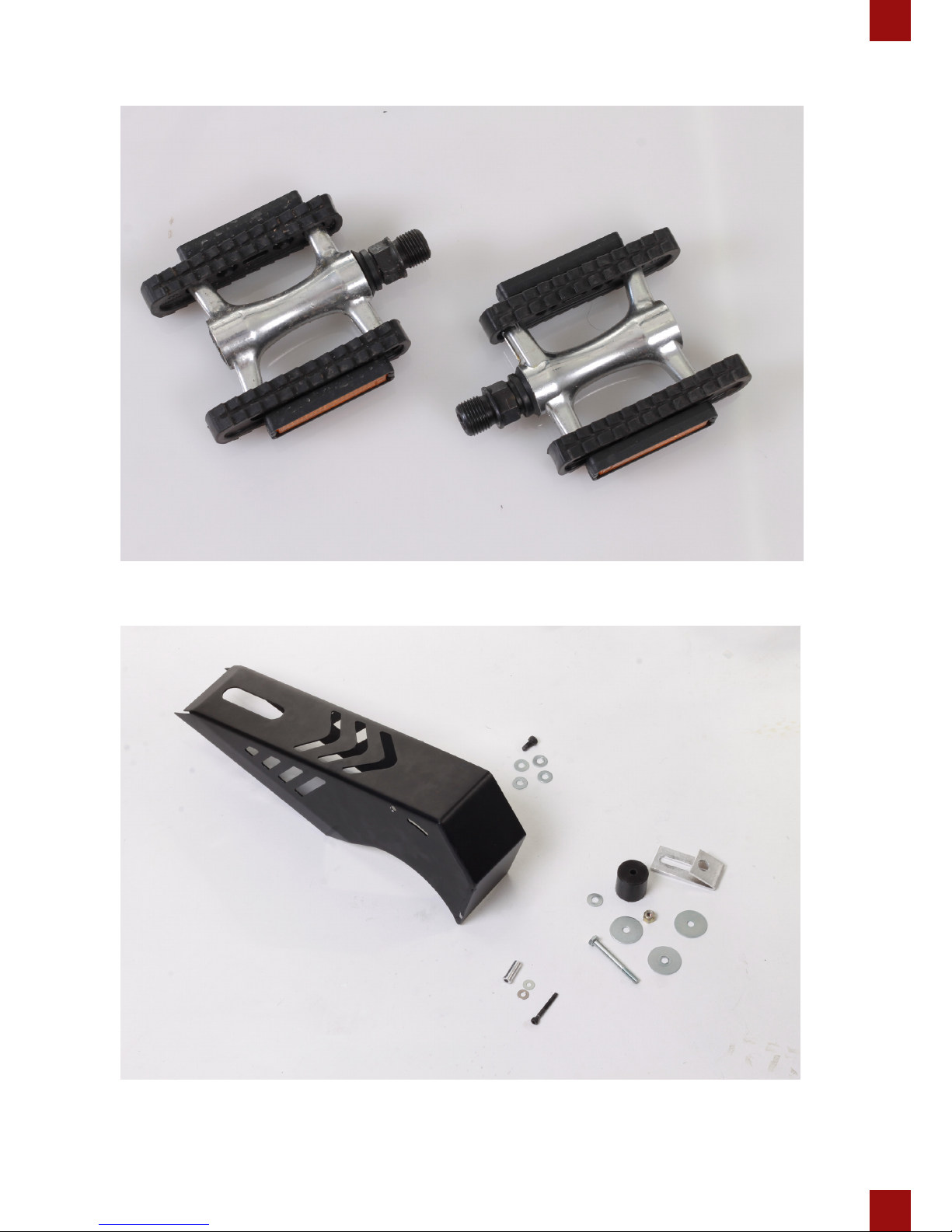

5. Pedals (these can be in the same box as the charger, or fastened to the bike separately)
6. BBS Shield and Fixings
Please note your keys will be securely fastened to the frame or handlebars of your bike.
Make sure you do not lose these as they are coded and a replacement set can only be
tted in a Dillenger factory.
Page 10
10
FRONT WHEEL

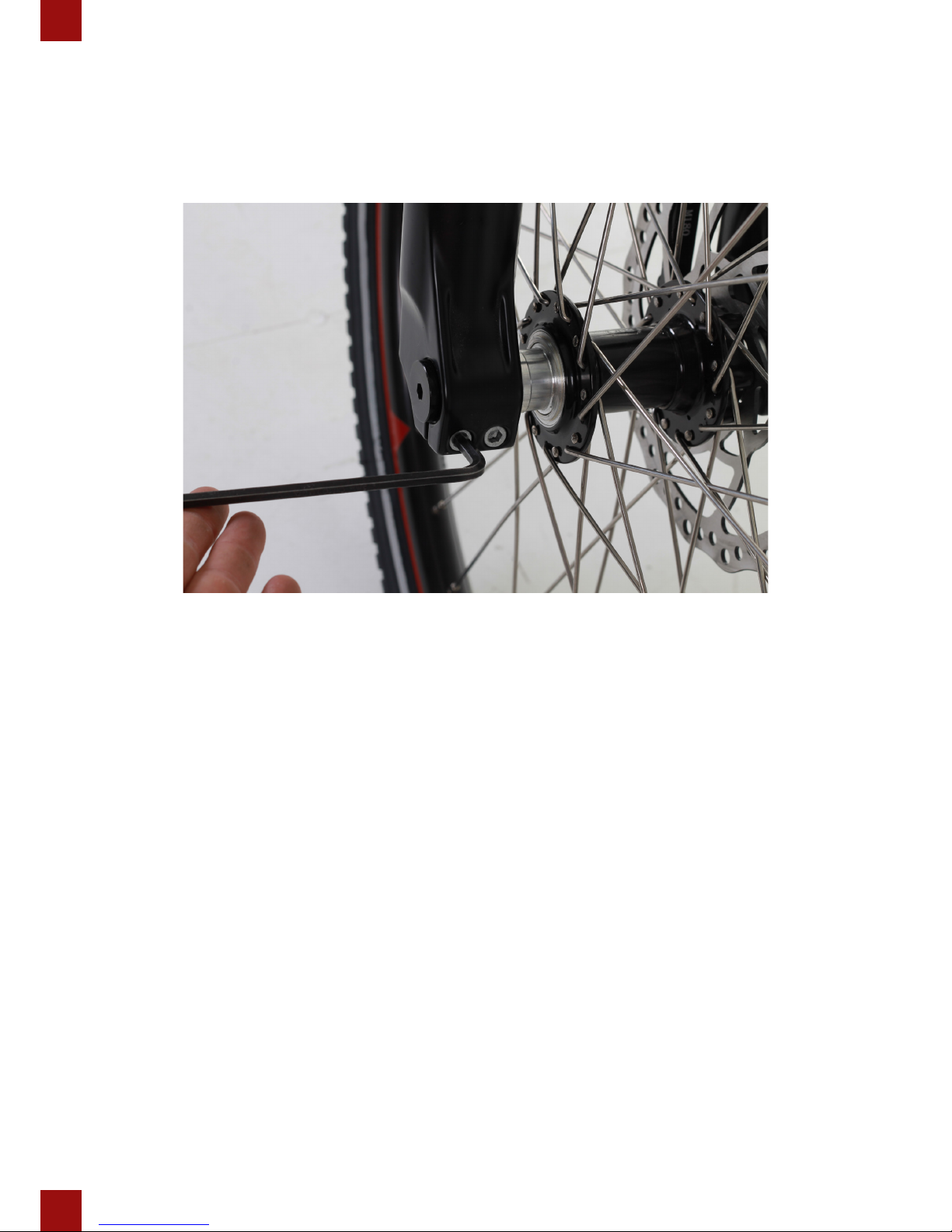

Start by loosening the 4 bolts at the bottom of the fork in order to remove the through
axle. You will have to remove this axle to mount the front wheel and then the axle can be
inserted and fastened.
Prior to assembling the front wheel, we suggest removing the front brake caliper. It’s not
essential but it does make it a lot easier. Once you’ve removed the caliper from the front
fork, you can insert the wheel into the forks as shown below. It can be quite a tight t, this
is intentional. You will have to maneuver wheel and forks where needed so you can line
up the through-axle with the center.
This stage shows the through axle almost in position:

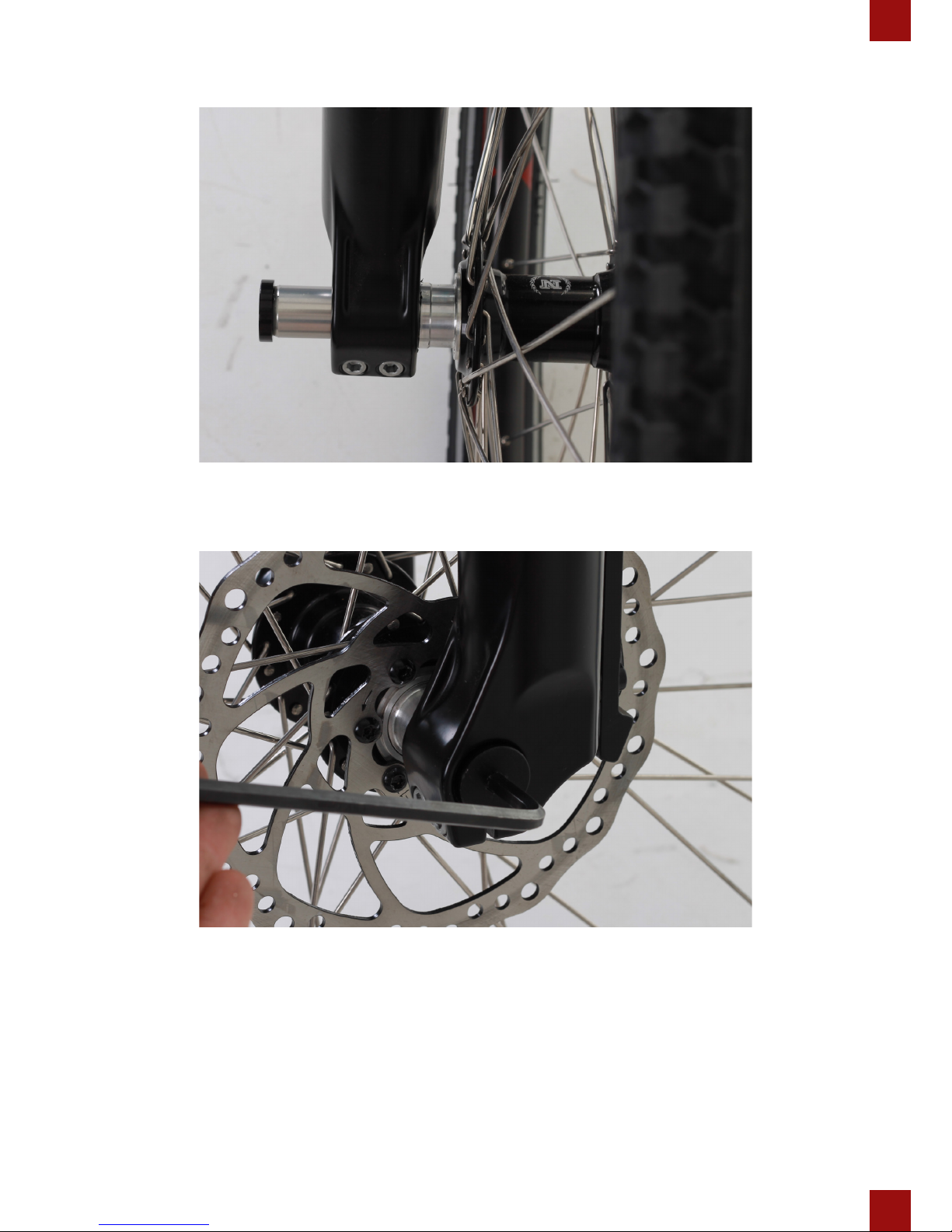

Once in place, tighten the through axle with the specialized nut provided:
ASSEMBLY
Page 11
11
This stage shows the through axle almost in position:
Once in place, tighten the through axle with the specialized nut provided:
Page 12
12
Secure the through axle in place by tightening the 4 bolts that were loosened to remove
the through axle:

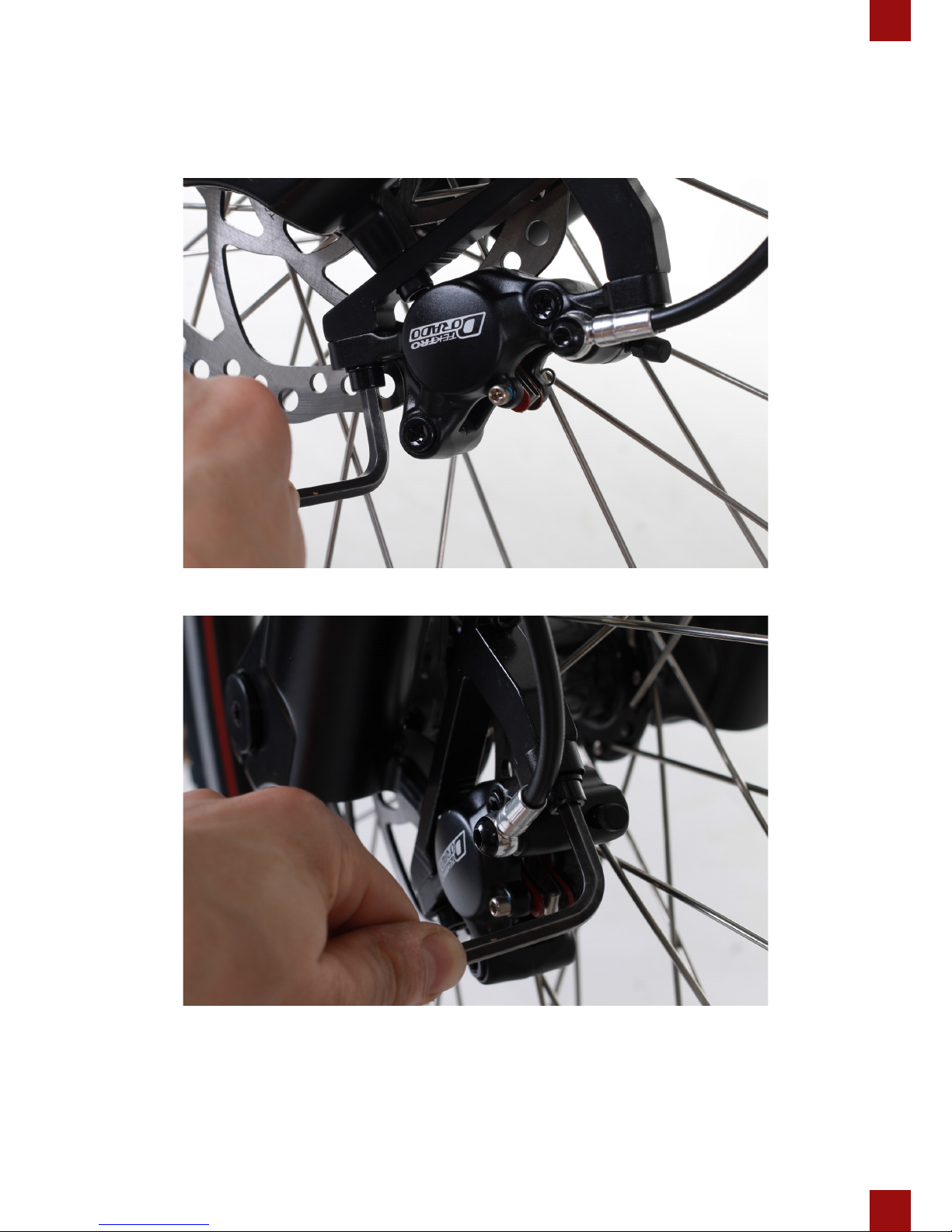

Remove the packing shim/spacer from the caliper and re-attached as shown. If you
tighten the caliper almost 100%, then engage the front brake lever, this will align the
caliper and then you can tighten completely.
Page 13
13
Remove the packing shim/spacer from the caliper and re-attached as shown. If you
tighten the caliper almost 100%, then engage the front brake lever, this will align the
caliper and then you can tighten completely.
Page 14
14
HANDLEBARS

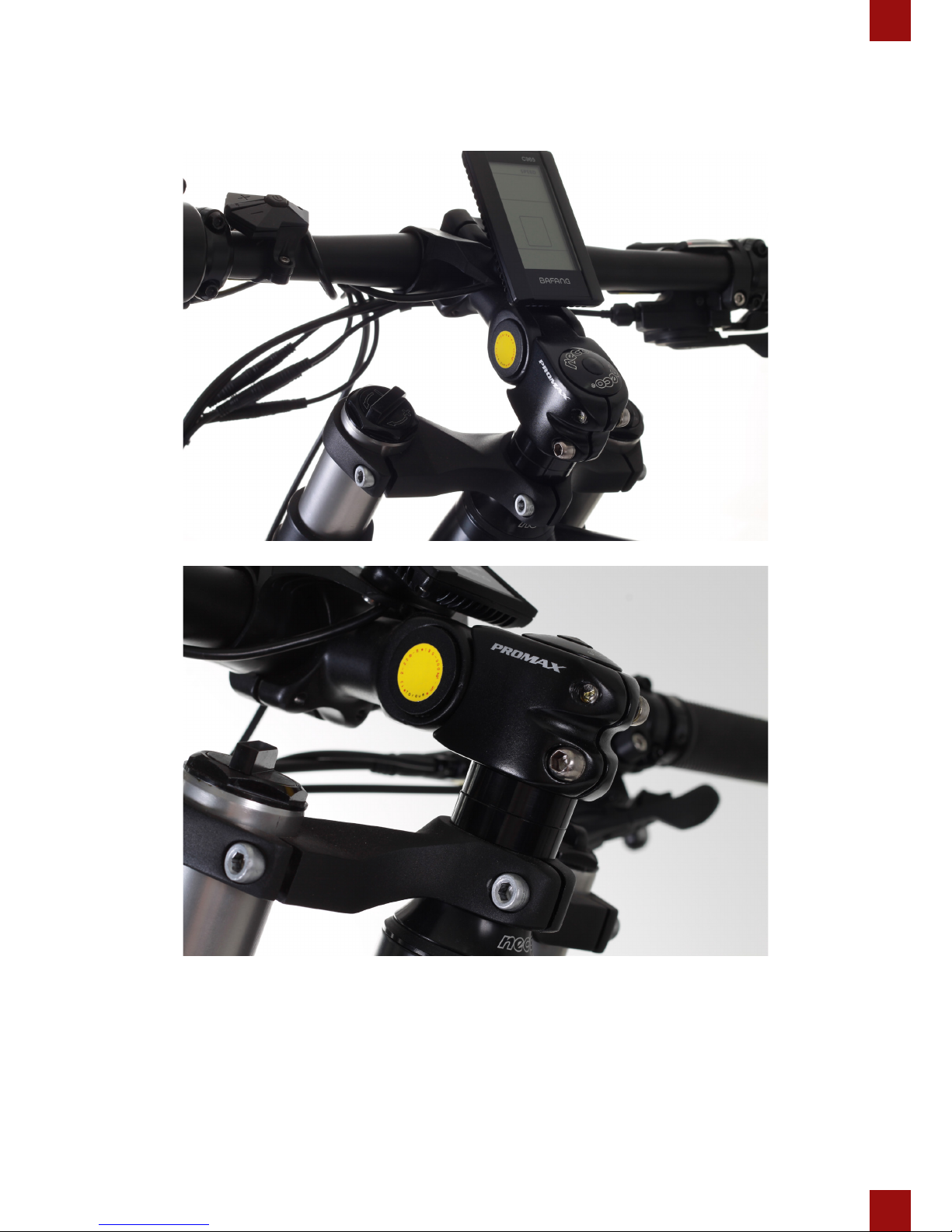

The handlebars will be connected by the cables and wires, all that’s required for nal
setup is to mount the handlebar stem onto the head tube as shown here:
You can remove a number of the black spacer rings on the head tube, leaving 2. These 2
can be placed in any arrangement. In these photos we have the handlebars in the highest
position, with 2 spacers under the stem. Make sure none of the cables are twisted or
too tight (you may have the handlebars twisted). Tighten as shown here, making sure
the handlebars are aligned to the front wheel. This step fastens the stem down onto the
headtube to remove any vertical play:
Stem and handlebars are now in position on the headtube.
Page 15
15
Stem and handlebars are now in position on the headtube.
Page 16
16

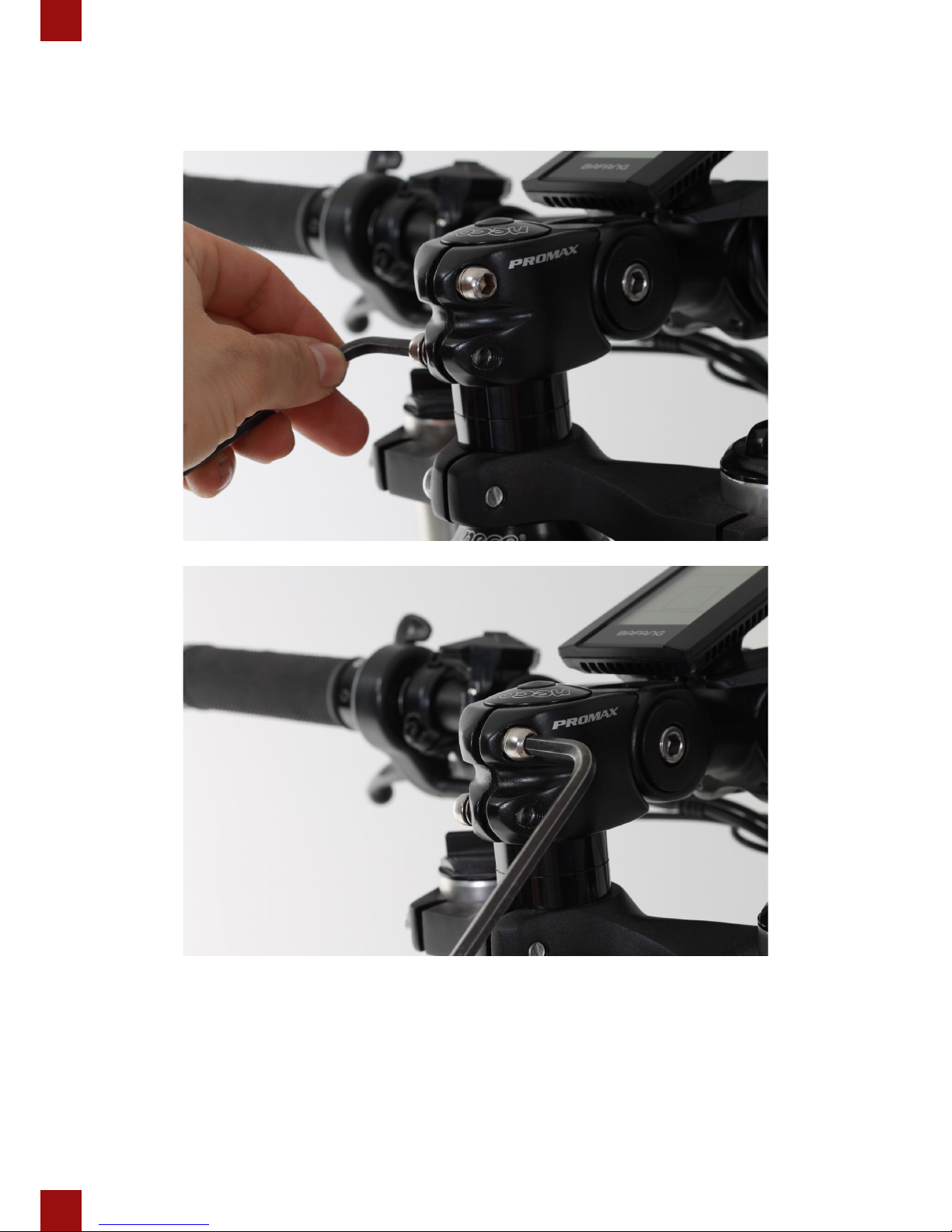

Fasten the stem onto the headtube. Tighten each side evenly. This is the nal step in
fastening the handlebars correctly.
All bicycles (electric bikes included) have left and right side pedals. Make sure you identify
each one. This image shows how to identify each pedal. You can see the ‘R’ written on this
pedal, denoting this is the right side pedal, to be used on the right side of the bike (if you
were sitting on the bike).
The right side pedal mounts to the right side crank (if you were sitting on the bike) and
left side pedal on the left crank. The right side pedal is a right hand thread, it will tighten
by turning clockwise (normal). The left side pedal is a left hand thread and will tighten
by turning anticlockwise (opposite normal). It is essential not to confuse which pedal is
used where and not to cross thread the pedal. If it feels too tight, you might have made a
mistake.
The pedals are designed this way so that the act of pedaling (while riding) does not loosen
the pedals over time.
Page 17
17
PEDALS
All bicycles (electric bikes included) have left and right side pedals. Make sure you identify
each one. This image shows how to identify each pedal. You can see the ‘R’ written on this
pedal, denoting this is the right side pedal, to be used on the right side of the bike (if you
were sitting on the bike).
The right side pedal mounts to the right side crank (if you were sitting on the bike) and
left side pedal on the left crank. The right side pedal is a right hand thread, it will tighten
by turning clockwise (normal). The left side pedal is a left hand thread and will tighten
by turning anticlockwise (opposite normal). It is essential not to confuse which pedal is
used where and not to cross thread the pedal. If it feels too tight, you might have made a
mistake.
The pedals are designed this way so that the act of pedaling (while riding) does not loosen
the pedals over time.
Page 18
New for 2016, we have designed a shield for the BBS motor to help protect the motor
from the elements. Follow these steps to properly assemble and install the shield. If you
have a Hunter with Hub Drive you can skip this step.
First you must remove the bolt from the BBS motor as shown in the photos below.
The next step is to place all the washers, spacers and the mounting plate on the main bolt
in the correct order. The order is two big washers rst, then the plastic spacer, another
big washer, the mounting plate, a small washer and nally the nut. This is shown in the
photos below. This order is not 100% necessary, but recommended as it worked well for
us.
18
SEAT
This is the easy part. Simply insert your seat to the desired height (about hip height) as
shown:
Page 19
BBS SHIELD INSTALLATION
New for 2016, we have designed a shield for the BBS motor to help protect the motor
from the elements. Follow these steps to properly assemble and install the shield. If you
have a Hunter with Hub Drive you can skip this step.
First you must remove the bolt from the BBS motor as shown in the photos below.
The next step is to place all the washers, spacers and the mounting plate on the main bolt
in the correct order. The order is two big washers rst, then the plastic spacer, another
big washer, the mounting plate, a small washer and nally the nut. This is shown in the
photos below. This order is not 100% necessary, but recommended as it worked well for
us.
19
Page 20
BBS SHIELD INSTALLATION CONTINUED...
Now you should insert the BBS shield in between the two big washers as shown the the
photos below.
After this you must position the assembly so that it will mount to your bike easily. Make
sure the nut is tightened at the end of the cutout of the mounting plate and that the
angled part of the mounting plate is facing up. The correct position of the mounting plate
is shown in the rst photo below.
You must also ensure that the mounting assembly is tightened at the bottom of the cutout
in the BBS shield. This is shown in the second photo below.
Next, you can put two washers on the smaller bolt shown in the rst photo below. Insert
this bolt into the angled part of the mounting plate as shown in the second photo below.
Two more washers should now be added to the bolt as shown in the third photo below.
Now you should insert the skinniest bolt (shown in photo 4).
Place the skinny bolt in the BBS shield and the put the washer followed b the long space
onto the bolt.
20
Page 21
BBS SHIELD INSTALLATION CONTINUED...
Next, you can put two washers on the smaller bolt shown in the rst photo below. Insert
this bolt into the angled part of the mounting plate as shown in the second photo below.
Two more washers should now be added to the bolt as shown in the third photo below.
Now you should insert the skinniest bolt (shown in photo 4).
Place the skinny bolt in the BBS shield and the put the washer followed b the long space
onto the bolt.
21
Page 22
BBS SHIELD INSTALLATION CONTINUED...
The spacer arrangement on the small bolt is shown here.
The BBS shield can now be put in place, shown in photo 1 below, make sure not to drop
any of the bolts or washers we just set in place. Before tightening this bolt, move any
cables out of the way so that the middle of the three bolt holes are clear. This is shown
below in the second photo. You should now tighten the bolt from the mounting plate into
the frame (photo 3) and tighten the skinny bolt to secure the shield to the motor. Ensure
that all of the spacers and washers stay in the correct order as shown on the previous
page.
That completes the BBS shield installation! Your Hunter is now ready to ride!
22
Page 23
That completes the BBS shield installation! Your Hunter is now ready to ride!
BBS SHIELD INSTALLATION CONTINUED...
23
Page 24
24
BATTERY OPERATION
The battery for your Dillenger is the most expensive single component and the most
crucial. The battery can be removed following these steps. Use the key provided to unlock
the battery:
You must remove the battery to charge. For transport by car, we recommend taking the
battery out of the bike and storing inside the car, in a safe place. When mounting the
battery back into the frame, insert it in the same fashion that it was removed. The base of
the battery should be inserted rst. It should be rmly against the bottom of the cavity.
Then rotate the top of the battery into the battery cavity. It is a tight t and this may take a
couple of attempts to become procient.
It is very important that the battery is locked into place before you use the bike again. Pull
gently on the battery handle to make sure it is denitely locked.
Page 25
25
You must remove the battery to charge. For transport by car, we recommend taking the
battery out of the bike and storing inside the car, in a safe place. When mounting the
battery back into the frame, insert it in the same fashion that it was removed. The base of
the battery should be inserted rst. It should be rmly against the bottom of the cavity.
Then rotate the top of the battery into the battery cavity. It is a tight t and this may take a
couple of attempts to become procient.
It is very important that the battery is locked into place before you use the bike again. Pull
gently on the battery handle to make sure it is denitely locked.
Page 26
26
LCD OPERATION
We have an LCD manual on the product page online, or follow this link:
Dillenger C955 manual (click here to download)
Please consider these important points for best use:
1. The keys for your bike are zip tied to your handlebars. You will have 2 keys so please
keep one as a spare separately.
2. The battery light indicator on the battery is not an indication of battery charge. The
only approximation of battery charge level is on the LCD display. The only accurate way
to know that the bike is 100% charged is by charging it until the charger light shows it is
fully charged (next page). Conversely, the only way to accurately know that the battery
is at is to use the bike until the LCD cuts out and does not turn back on. You do not risk
damaging the electric system by running the bike at. Just make sure you charge the bike
after every ride.
3. Make sure you routinely check the tightness of key fasteners (nuts and bolts) such as
the front wheel, rear wheel, seat, handlebars, forks, pedals, brakes, etc.
4. Make sure you keep the battery topped up as often as practical. Charge the bike after
every use, at least once a month if not being used and before each ride if you have not
charged it in a week. It is not necessary to run the battery down at all. Leaving the battery
at runs the risk of completely depleting the cells which could cause premature battery
failure.
5. Make sure your tyres are pumped up to the correct PSI, which is indicated on the tyre
side wall.
6. The battery has an on/o switch located near the handle. You must turn the switch on
before powering up the bike, and turn it o after use. The LCD display turns the system
on, once the battery is turned on.
Page 27
27
IMPORTANT POINTS
Please consider these important points for best use:
1. The keys for your bike are zip tied to your handlebars. You will have 2 keys so please
keep one as a spare separately.
2. The battery light indicator on the battery is not an indication of battery charge. The
only approximation of battery charge level is on the LCD display. The only accurate way
to know that the bike is 100% charged is by charging it until the charger light shows it is
fully charged (next page). Conversely, the only way to accurately know that the battery
is at is to use the bike until the LCD cuts out and does not turn back on. You do not risk
damaging the electric system by running the bike at. Just make sure you charge the bike
after every ride.
3. Make sure you routinely check the tightness of key fasteners (nuts and bolts) such as
the front wheel, rear wheel, seat, handlebars, forks, pedals, brakes, etc.
4. Make sure you keep the battery topped up as often as practical. Charge the bike after
every use, at least once a month if not being used and before each ride if you have not
charged it in a week. It is not necessary to run the battery down at all. Leaving the battery
at runs the risk of completely depleting the cells which could cause premature battery
failure.
5. Make sure your tyres are pumped up to the correct PSI, which is indicated on the tyre
side wall.
6. The battery has an on/o switch located near the handle. You must turn the switch on
before powering up the bike, and turn it o after use. The LCD display turns the system
on, once the battery is turned on.
Page 28
28
CHARGING
1. Plug the charger into the wall socket/
outlet, just like a laptop of mobile phone
charger.
2. Check that one of the charger indicator
lights glows green.
3. Plug the charger, (battery end) into
the battery carefully, making sure it is all
the way in. Do not force it if there is an
obstruction.
4. The charger indicator lights should glow
red whilst charging.
5. Once one of the charger indicator lights
changes from green to red, the battery is
fully charged.
There is no way to over-charge the battery.
When it is full, the charger will stop
charging the battery automatically.
Charging time can vary from 1 to 5 hours if
fully empty.
The battery should be charged once every
month as a minimum to maintain healthy
cells.
The best way to charge your battery is
to plug it in after every use, and leave it
on charge until the indicator light shows
the battery is fully charged. It is not good
practice to partially charge the battery.
Keep your bike clean! There’s nothing worse than having to work on a dirty bike...
Also keep in mind the usual bike maintenance like tyre pressures, brake pads, etc...
The motor is a sealed unit and requires no maintenance during the design life.
Lastly (just to reiterate) it’s important that you charge the battery at least once every month
to ensure the battery maintains a safe storage level.
A little extra maintenance is required over
and above a normal bicycle.
One of the main things you may come across
is that your spokes need to be tightened
more often than a non-electric wheel. Our
wheels use 12G and 13G spokes which
handle the load and torque of these motors
very well, but are more susceptible to
coming loose.
A spoke-tightening tool such as the one
including in the Dillenger hub motor
conversion toolkit, is ideal.
Check the tightness of each spoke ideally
after the rst 100km and then every 500km.
As well as caring for your spoke tension
it’s important to do a check on all of your
fasteners every few months. It never hurts to
go over your bike with tools, tightening and
checking everything that can be checked. This
will ensure you have a safe and well-serviced
bike.
Page 29
29
MAINTENANCE
PLEASE NOTE
Any modications to any Dillenger product that isn’t approved by
Dillenger will void your warranty.
Keep your bike clean! There’s nothing worse than having to work on a dirty bike...
Also keep in mind the usual bike maintenance like tyre pressures, brake pads, etc...
The motor is a sealed unit and requires no maintenance during the design life.
Lastly (just to reiterate) it’s important that you charge the battery at least once every month
to ensure the battery maintains a safe storage level.
A little extra maintenance is required over
and above a normal bicycle.
One of the main things you may come across
is that your spokes need to be tightened
more often than a non-electric wheel. Our
wheels use 12G and 13G spokes which
handle the load and torque of these motors
very well, but are more susceptible to
coming loose.
A spoke-tightening tool such as the one
including in the Dillenger hub motor
conversion toolkit, is ideal.
Check the tightness of each spoke ideally
after the rst 100km and then every 500km.
As well as caring for your spoke tension
it’s important to do a check on all of your
fasteners every few months. It never hurts to
go over your bike with tools, tightening and
checking everything that can be checked. This
will ensure you have a safe and well-serviced
bike.
Page 30
30
Trouble Shooting
Fault Solution
Display turns on, but
motor does not
Activate
Check the motor plug from the controller. This is a very sti
connection and will not work unless the plug is all the way in to
the indicator line. The twisting of the handlebars can sometimes
cause the plug to pull out slightly if there is not enough slack in
the motor cable.
A high pitched rattling
noise can be heard
when accelerating
The vibration of the motor is very small, but at this frequency it
can do some odd things to the other components on the bike
if they are loose. For example a loose spoke or even a bolt on
your rear rack. If something is just a little bit loose, sometimes
this can reverberate and make a harsh high pitch rattling sound.
Nothing is broken or wrong, you just have to identify the loose
part!
Rim has a buckle or
spokes coming loose
all the time
We would recommend a competent wheel builder to x any
major spoke tension issues, however there are some really good
youtube tutorials on how to adjust spoke tension.
Spokes has snapped
or missing
Dillenger stocks spare spokes for very reasonable prices, just
check out our spares section online and you can nd the right
type and length for your product.
Display won’t turn
on, unless the battery
charger is plugged in
Check all the connections, make sure the battery is charged. If
the display turns on only when the battery charger is plugged in,
you will have to submit a service ticked with this information.
Dillenger’s troubleshooting advice will take you through a logical way to diagnose
any issues that may arise during installation and use.
Before commencing troubleshooting, disconnect all components. Do not short
cut this process. There are countless times a loose plug has caused grief. By
disconnecting all the plugs and then reconnecting just the crucial components, this
will solve any loose plug issue.
Go through one by one plugging in the other components (such as the e-brake
plugs or the motor cable) to see if any of these are the cause of the problem. In this
basic state you may discover the culprit quickly.
Page 31
31
Fault Solution
Error message on the
display
Please refer to display manual for error code denition and if
needed, report the error code to Dillenger in a service ticket.
My kit looses power
over bumps
Check all connections to make sure all the plugs are all the way
connected. Check that the battery is locked to the cradle and not
loose. A momentary discontinuity in power will turn the kit o.
My battery cuts out
intermittently
If the battery is low on power, or you are going up a very steep
hill with a load on the motor, you will likely experience a voltage
cut-o if you have overloaded the controller, or dropped the
voltage below the low voltage cut-o, which is more prevalent at
low power. This isn’t a fault with the kit, it’s just physics.
I would like my
battery capacity
tested
Please contact Dillenger by submitting a support ticket to
arrange the return of your battery for testing. If the battery tests
above 85% capacity within the rst year (from purchase date)
you will be liable for return freight. If it is tested and is
under capacity within the warranty period, your battery will be
replaced.
Error 21 on BBS model
Your speed sensor magnet (on the rear wheel spoke) has been
bumped out of alignment and needs to be moved and fastened
back into position so the sensor (rear chain stay) can pick up the
signal.
Trouble Shooting Continued...
Page 32
32
Range extension
If you’re not getting the approximate quoted range out of your e-bike system, take the
following steps:
1. Battery indicator lights – full charge. The LED and LCD battery level displays are a basic
indication of battery charge, but they are based on voltage which is variable and not a
true indication of battery capacity. The only accurate indication of a full charge, is having
charged the battery and the battery charger lights glowing green to indicate that the
battery is fully charged.
2. LED/LCD indicator light – running low
Some customers nd that the LED/LCD charge indicator can lead them astray in terms
of how far the bike will go on low power. You don’t risk damaging the system by riding
all the way to the controller low voltage cuto. Keep riding on pedal assist even after the
last battery indicator bar starts blinking.
3. Hills/riding style/other factors
a. The ranges quoted are from real world testing, with some hills and some at areas. If
your commute involves a lot of hills, that’s going to impact on the range. High powered
e-bikes are especially susceptible to being drained a lot more on hills. If you need to
purchase a second charger to charge the battery at half way, or this can be a cost eect
way of doubling your range.
4. General tips
• Make sure the wheels are running free (rubbing brakes can halve your range quite
easily)
• Keep the battery topped up between uses (this is very important)
• Make sure the tyre pressures are at optimum (ideal pressures are written on the tyre
side wall)
• Select the right gear for assisting up hills (the steeper the rise, the lower the gear
needed)
If you would like to submit a Dillenger service ticket, please go to this URL:
Dillenger support site (link)
Trouble Shooting Continued...
Page 33
33
CONTACT US
Dillenger Head Oce
3/13 Olympic Circuit
Southport
QLD 4215
AUSTRALIA
Tel.: +617 5532 9235
dillenger.zendesk.com
www.dillengerelectricbikes.com
© Dillenger 2016
Loading...
