Digitus Professional DN-651107 operation manual

Industrial 5-Port Gigabit Switch

User Manual - DN-651107

Introduction

This hardened industrial 5 port Gigabit Ethernet Switch is equipped with
wide range VAC and VDC power input. It is suitable for heavy usage
environments such as hazardous environments or central control areas
where a reliable device is critical. It is an ideal solution for Industrial
Automation, IP surveillance, traffic monitoring and a wide range of
applications. It has been rigorously tested for your security, transportation
and telco applications.

Features

 Hardened design Aluminum enclosure

103.5 x 32 x 81.5 mm (L x W x D)

 Supports 18-36VAC/12-60VDC
 Surge protection diodes on power input.
 ESD protection diodes on RJ-45 port
 Provides increased Noise Immunity
 Extended environment specification -40°C to 75°C

Installation package

This unit can be din-rail mounted or wall-mounted. Din-rail brackets and
wall-mounted brackets are included.

4 pin Terminal Block x 1

Wall mount

bracket x 2

Philips Head Screw x 4

Package Content:

1x Main unit
1x User Manual
2x Wall Mount Bracket
1x DIN Rail Bracket
1x 4 pin Terminal Block
4x Screws

Din Rail Bracket x 1

Power connection

–

–

–

This unit provides a 4 pin terminal block. It can be operated using 12­56VDC/18-36VAC power source. Always make sure your input voltage is
within this supported voltage range.

To con ne ct p ow er : This unit supports two power inputs. Follow the printed
polarity for +V1-, +V2- and ground. Connect positive wires to V+, connect
negative wires to V-, and connect a neutral wire to the ground screw.

+V1- is for power input one connection.
+V2- is for power input two connection.

Power connecting procedure:

+V1- +V2-

 STEP 1

 STEP 2

 STEP 3

WARNING:
Always SHUT OFF power source to connect power wire.

WARNING:

Any exceeded input voltage will not make this unit function and may
damage this unit.

Take out 4 pin terminal block located in the included

mounting kit package.

Connect power wires to +V1- or +V2- with

corresponding polarity. Connect the grounding wire
to the ground screw.

Plug into terminal block socket shown above.

Polarity needs to match V+ and V-.

LED indicator

PW1 (Green)

ON -- when P1+, P1- is connected
OFF – P1+, P1- is NOT connected

PW2 (Green)

ON -- when P2+, P2- is connected
OFF – P2+, P2- is NOT connected

Link (Green)

ON — Link port is detected
OFF — Link port is not detected
Flashing – Link port is active

SPD (Amber)

ON – TX port 1000M
speed is detected

OFF – TX port 100M
speed is detected

Specifications

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

IEEE Standard

Switch Architecture

Data Processing Store and Forward

Flow Control

Jumbo Frame 9KB

MAC address Table Size 8K

Packet Buffer Size 1M

Network Connector

Network Cable

IEEE 802.3ab 1000Base-T Gigabit
Ethernet
IEEE802.3x Flow Control and Back
Pressure

Back-plane (Switching Fabric):
10Gbps

IEEE 802.3x Flow Control and Back
Pressure

5xRJ-45 10/100/1000BaseT(X) auto
negotiation, Auto MDI/MDI-X function,
Full/Half duplex

UTP/STP above Cat.5e Cable

EIA/TIA-568 10-ohm (100m)

Protocol CSMA/CD

PW1 (Green):
ON − Power is detected
PW2 (Green):
ON − Power is detected

TX/RJ-45 port:

LED

LNK (Green):
TX port is detected
Flashing − TX data is
transmitting/receiving
SPD (Amber):
ON − 1000M speed

OFF − 10/100M speed

Reserve polarity protection Present

Overload current protection Present

Power Supply

Power Consumption 2.76W@48 VDC full load

Removable Terminal Block

Operating Temperature

Operating Humidity 5% to 95% (Non-condensing)

Storage Temperature -40°C to 85°C

MTBF (mean time between
failure)

Housing Rugged Aluminum, IP30 protection

Redundant Dual Power Input
12VDC-56VDC or 18VAC-36VAC

Provide 2 Redundant power, 4 Pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque: 5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm

-40°C to 75°C

>500,000 hrs (MIL-HDBK-217F) at 25°C

Case Dimension (L x W x D) 103.5 x 32 x 81.5 mm (L x W x D)

Installation mounting

DIN Rail and Wall Mount options
included

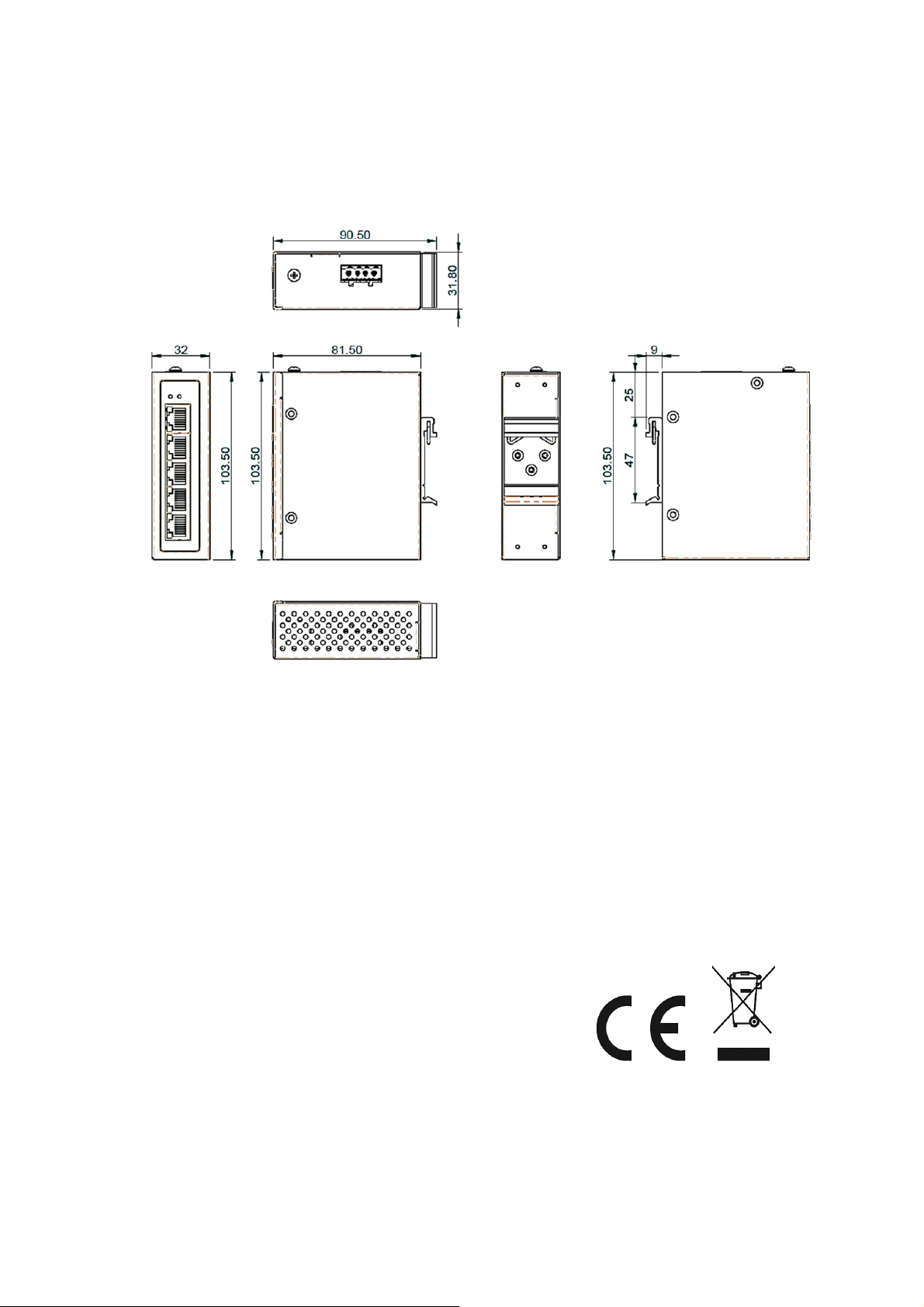

Housing Dimension (mm)

This is a Class A product. In home environment, this product may cause radio
interference. In this case, the user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of
the shipping content. If the Declaration of Conformity is missing, you can request it by
post under the below mentioned manufacturer address.
