Chapter I Product Introduction
1-1 Package Contents
Thank you for purchasing this Wireless Presentation Server! Before you start
to use this product, please check every item in the package. If any of them is
missing, please ask your dealer of purchase for a new package.
Packaging List
Item
No.
Name Quantity
1 Wireless Presentation Server 1
2 Antenna 2
2 A/C Power Adapter 1
3 Ethernet Cable 1
4 Remote Controller 1
5 CR-2302 Lithium Battery
(Installed in Remote Controller)
1
6 Rubber Foot Pad 4
7 CD(Manual) 1
5
1-2 Safety Instructions
Please follow the following safety instructions when you’re using this Wireless
Presentation Server, or you may damage this Presentation Server and / or
yourself!
1. THIS PRESENTATION SERVER IS NOT A TOY! Keep out of reach of
children!
2. Do not place this Wireless Presentation Server in humid and / or hot
environment, like bathroom or kitchen. Please refer to the specification of this
Wireless Presentation Server to understand the environmental requirements of
this Wireless Presentation Server.
3. This Wireless Presentation Server is designed to be used indoor . Do not use
this Wireless Presentation Server at places like garden or any other outdoor
environment.
4. Do not put any part or any component, accessories of this Presentation
Server into your body.
5. If any part or any component is dropped into water, return it to your dealer of
purchase and ask for an examination; never use it again before it has been
properly processed by certified technician.
6. If the Presentation Server is dropped into water when it’s powered on, DO
NOT A TTEMPT TO GET IT BACK BY YOURSELF! Switch the electrical power
switch off, and call a qualified electrical technician or us immediately for help.
7. If you want to hang this Wireless Presentation Server at high places, please
make sure that the Wireless Presentation Server is properly secured. Falling
down from high places will damage this Wireless Presentation Server, and
may cause serious injury to people!
8. Do not drag any connected cord with force; the terminal and cord will be
damaged.
9. Only use dry cloth with water to clean this Wireless Presentation Server; do
6
not use alcohol or other chemical solution to clean this Wireless Presentation
Server.
10. There’s no user-serviceable part inside this Wireless Presentation Server;
if the Wireless Presentation Server is not working properly, please contact the
dealer of purchase to ask for help.
11. Do not put the Wireless Presentation Server and / or A/C adapter on p aper,
cloth, or other flammable materials. After hours of use, this Presentation
Server will become hot, and may cause flammable materials placed under it to
burn.
12. Do not cover the Wireless Presentation Server with cloth or any material;
the Presentation Server will become overheat and cause malfunction, even
cause fire.
13. When the Presentation Server is powered on, do not connect or disconnect
any connection cable.
14. Do not display the same video content on projector, CRT / LCD display,
and plasma TV for too long time. The image may remain PERMENTALY. Use
screen saver to prevent to display the same video content for too long time.
15. If you smell something strange or even see smoke coming out from the
Wireless Presentation Server or A/C adapter, disconnect the power cord
immediately, and call your dealer of purchase for help.
1-3 System Requirements
Video Display:
A projector, CRT display, LCD display, or plasma TV that support VGA or
HDMI video input.
The display should support at least one resolution listed below:
800 x 600
1024 x 768
1152 x 864
1280 x 720
1280 x 768
1280 x 960
1280 x 1024
1400 x 1050
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1200
1920 x 1440
Audio amplifier or speaker that accepts 3.5 audio connector.
Computers support wired or wireless Ethernet connectivity.
Windows 2000 / XP / Vista32/64 operating system with Internet Explorer
V6.0 above browser.
At least 100MB of available hard disk space.
N
OTE: Please check the user manual or specification of the display
y
ou’re going to use with this Presentation Server for supported
resolution. Using an unsupported resolution may damage your
p
rojector, CRT / LCD display, or plasma TV.
7
8
1-4 Highlights of this Wireless Presentation Server
Thanks again for choosing this Wireless Presentation Server. This
Presentation Server eases the procedure of sharing a single projector among
many presenters; they don’t have to switch VGA video cables, just use wired or
wireless network connection to connect the Presentation Server, and the video
on their computer display will be projected on big-screen.
Other functions of this Wireless Presentation Server include:
Supports both wired (10/100Mbps Ethernet connection) and wireless
(802.11b / g / n 11Mbps / 54Mbps / 150Mbps connection).
Wireless interface supports encryption - protects the content of
presentation from theft.
Presenter needs to input a random 4-digit Presentation Server access
code as 2nd level security check.
WPS (Wi-Fi Protected Setup) function provides fast, easy, and secure
wireless encryption setup.
No pre-installed software required – new users can download application
from Presentation Server directly, and get it installed within 30 seconds.
Works with any projector, LCD / CRT display, plasma display with VGA or
HDMI video input.
Supports 4/3, 16/10, and 16/9 display aspect ratio.
Supports all major LCD display / projector resolutions - from 800 x 600
SVGA to 1920 x 1440 Full-HD resolution.
Also supports audio output!
Presenter can use supplied IR remote controller to do presentation.
USB port - You can connect USB wired or wireless mouse to assist your
presentation
1-5 Familiar with Wireless Presentation Server / Remote Controller
Front / Top
9
Black.
Out
User
Switch
Remote
USB
Ready
WPS
WLAN
LAN
Power
WPS
Power
10
Name Description
Remote IR signal receiver (for remote controller), DO NOT block
the receiver, or remote controller will not function.
USB Front USB slot.
Blackout LED Indicated that Wireless Presentation Server is in
‘Blackout’ mode (no display output). When this LED
lights, nothing will be displayed on external display.
Ready When this LED lights, indicates Wireless Presentation
Server is ready to serve incoming requests.
WPS When this LED lights, indicates WPS mode is active.
WLAN When this LED flashes, indicates wireless LAN activity.
LAN When this LED lights, indicates wired LAN is connected.
Power When this LED lights, indicates this Wireless
Presentation Server is correctly powered.
WPS WPS (Wi-Fi Protected Setup) button: press this button to
start WPS pairing.
Power Press this button to switch this Presentation Server on /
off.
User Switch Press this button to switch to next presenter
Heat Sink Heat generated by this Presentation Server will be
removed through these holes (DO NOT BLOCK THESE
HOLES
WHEN THIS PRESENTATION SERVER IS POWERED
ON!)
Back
11
Name Description
5V Connect to 5V A/C power adapter (Use supplied A/C
power adapter only!).
Reset When this Presentation Server is not working properly,
you can use a pen or pin to press and hold this button for
5 seconds to reset the Presentation Server.
Antenna
(Left and Right)
Transmits wireless signal. Please keep both antennas
perpendicular to the ground for best signal reception.
HDMI HDMI audio / video output (Connects to any
HDMI-compatible display).
VGA VGA D-sub 15 pin video output (Connects to any
VGA-compatible display).
Audio Output Stereo audio output (Connects to external speaker or
audio amplifier).
USB Back USB slot for wired or wireless mouse.
LAN 10/100Mbps fast Ethernet port (Connects to your local
area network)
Power Jack Reset
HDMI
VGA AV USB LAN
12
Bottom
Name Description
Wall Mounting
Hole
If you want to hang this Presentation Server on the wall,
use these wall mounting holes to mount the Presentation
Server.
Foot Pad Sticks the 4 foot pads (supplied in product package) here
so the project server can be steadily placed on the desk
or other horizontal places. You don’t have to stick foot
pads here if you plan to mount the Presentation Server
on the wall.
MAC Address
Label
Indicates the MAC address of this Presentation Server.
Product Label Indicates the model name and serial number of this
Presentation Server. This information is very useful when
you need to request for assistance from the dealer of
purchase.

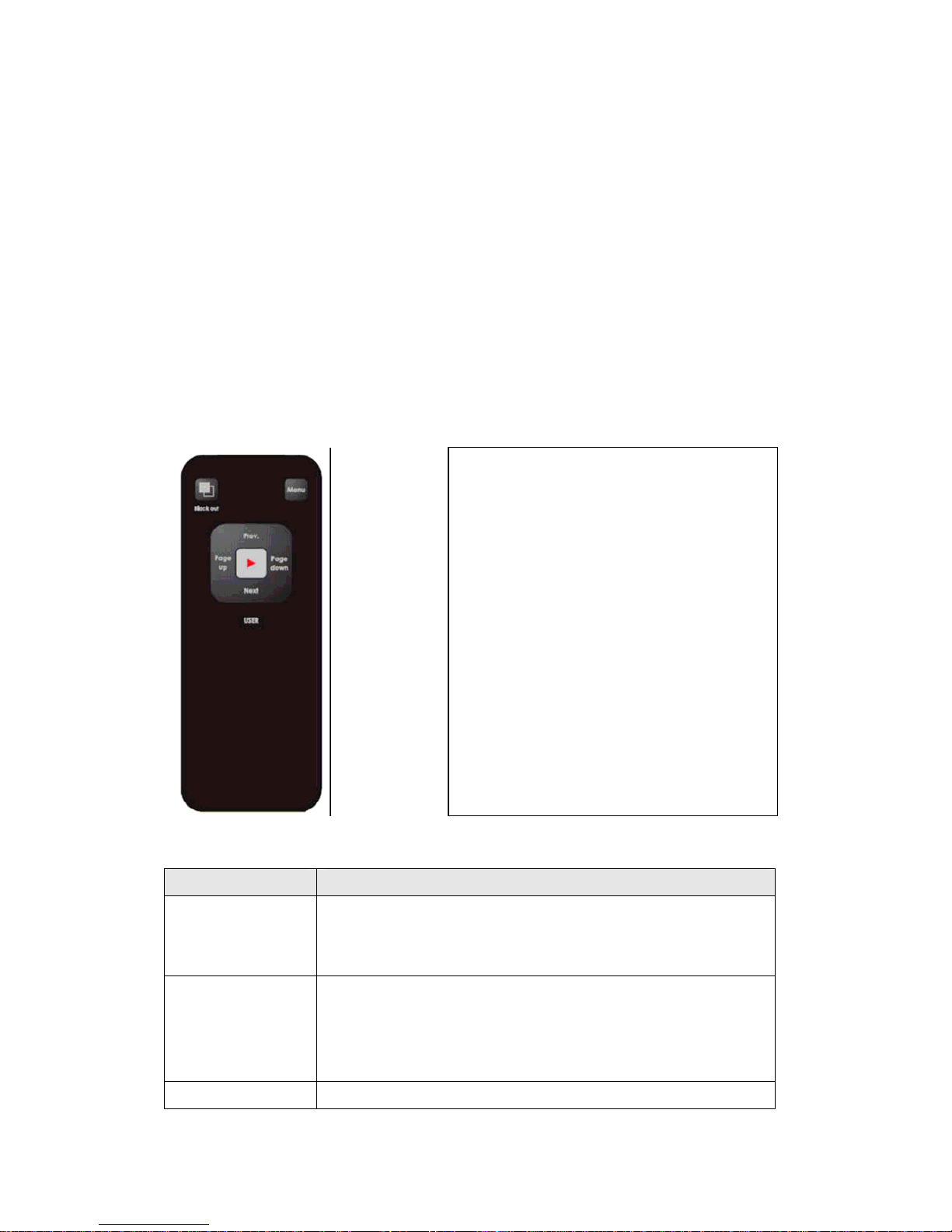

Remote Controller - Front
Name Description
‘Black out’ Button Press this button to activate ‘Black Out’ function, which
will remove any display contents displayed on external
display; Press this button again to resume.
‘Menu’ Button Press this button to switch the display output of
Presentation Server between presenter’s computer
display content and Presentation Server’s configuration
menu.
‘Page down’
button
Equivalent to ‘Left’ key on your computer’s keyboard.
‘Page up’ button Equivalent to ‘Right’ key on your computer’s keyboard.
‘Prev.’ button Select previous user (presenter) in Presentation Server’s
configuration menu; Equivalent to ‘Up’ key on your
computer’s keyboard when presentation is in progress.
‘Next’ button Select next user (presenter) in Presentation Server’s
configuration menu; Equivalent to ‘Down’ key on your
13
computer’s keyboard when presentation is in progress.
14
button . Select user in Presentation Server’s configuration menu
Remote Controller - Top
Name Description
IR Transmitter al transmitter. When using the remote
r
Infrared sign
controller, point the IR transmitter to the front of the
Presentation Server. DO NOT use your finger or othe
object to block the IR transmitter, or your command will
IR Transmitter
15
not be received by Presentation Server.
Remote Controller - Back
Battery Lid
Name Description
Battery Lid Press battery lid and push it out to open battery
compartment (to install or remove CR-2032 lithium
battery).
16
17
1-6 Install Wireless Presentation Server
Please follow the following instructions to get the Presentation Server installed:
1. Unpack the Wireless Presentation Server’s package, and make sure no item
in the package is missing.
2. Stick the foot p ads on the 4 locations indicated on the picture shown below if
you plan to put the Presentation Server on the desk or other horizontal places.
You can skip this step if you plan to hang the Presentation Server on the wall,
and use the 2 wall-mounting holes located at the bottom of the Presentation
Server to do this.
3. Connect the Ethernet cable to the LAN port (this port is labeled as ‘LAN’ and
located at the back of this Presentation Server)
4. Insert the audio cable which connects with external amplifier / speaker to
‘Audio Out’ port located at the back of this Presentation Server.
You can skip this step if you don’t have external audio amplifier / speaker.
5. Insert HDMI / VGA cable which connects with external video display to
HDMI / VGA port located at the back of this Presentation Server.
You can only connect to HDMI or VGA port at the same time.
6. Adjust the antennas located at the back of the Presentation Server, so
they’re perpendicular to the ground.
18
7. Connect the A/C power adapter to the electrical outlet on the wall
8. Insert the power connector of A/C power adapter to the power slot labeled
as ‘5V’ at the back of Presentation Server.
9. Press ‘Power’ button located at the front of Presentation Server.
10. Please check the status of the ‘Power’ LED located at the front of the
Presentation Server. If it does not light, please check all connections and the
status of electrical power outlet, or refer to chapter 4-1 ‘Troubleshooting’ for
possible solutions.
19
Chapter II Using Presentation Server
2-1 Switch the Presentation Server On and Check IP address
When the connection between Presentation Server and external display is
established, you can switch the display’s power on, then press the ‘Power’
button of Presentation Server, which is located at the front of Presentation
Server.
You should be able to see the following image displayed on external display; if
not, please make sure the external display you used with Presentation Server
accepts input video resolution ‘1024 x 768’, and horizontal refresh rate ‘60Hz’.
If you see above image shown on display for more than two minutes, please
press ‘Power’ button to switch the Presentation Server off, and then switch the
Presentation Server on again. If this still happens, refer to chapter 4-2
‘Troubleshooting’ for possible solutions.
20
When the Presentation Server is powered on and connected to a LAN with
DHCP server, it will get an IP address from DHCP server automatically; when
there’s no DHCP server available, it will use default IP address ‘169.254.0.200’.
Please refer to chapter 2-3 ‘How to set IP address for your computer’ to set the
IP address for computers wish to connect to Presentation Server when there’s
no DHCP server available.

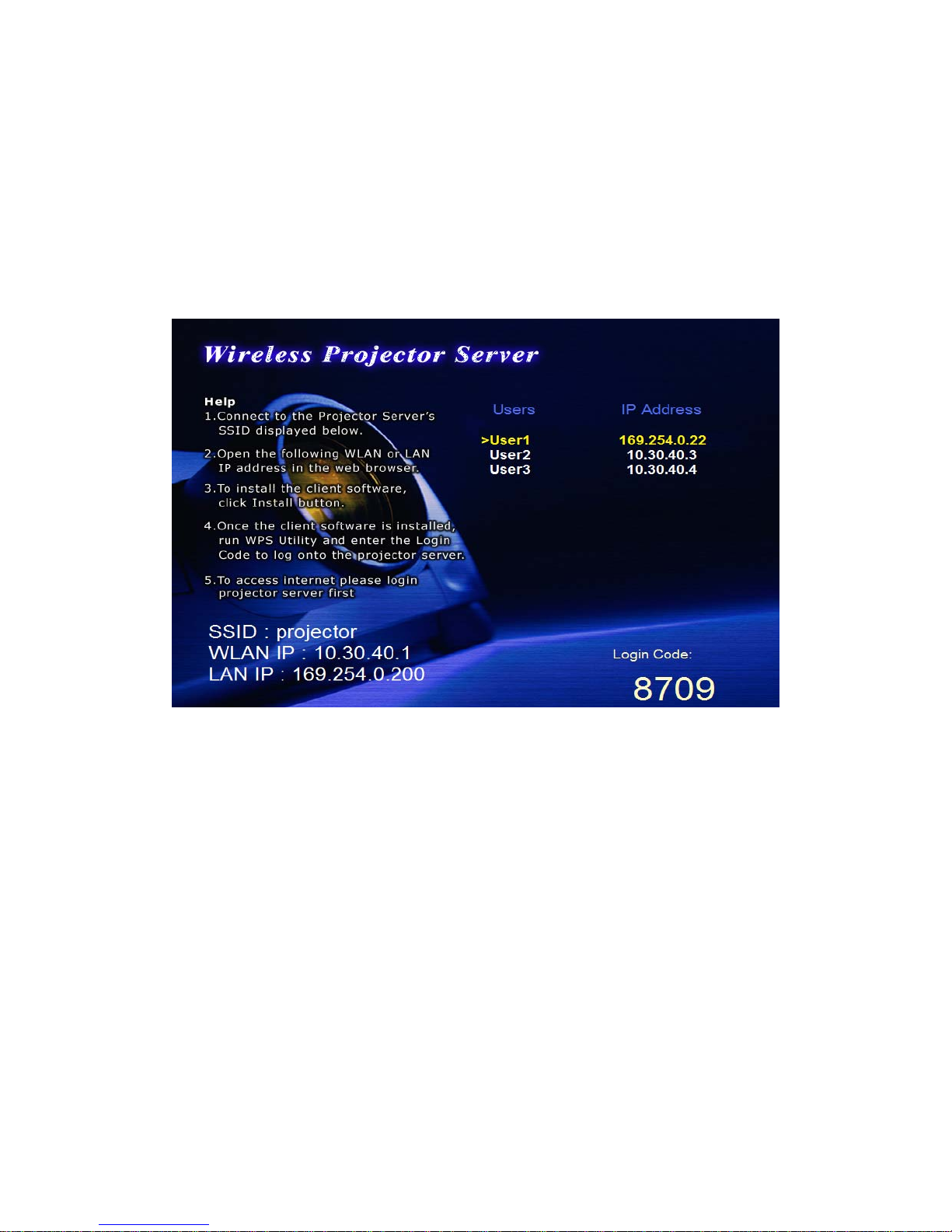

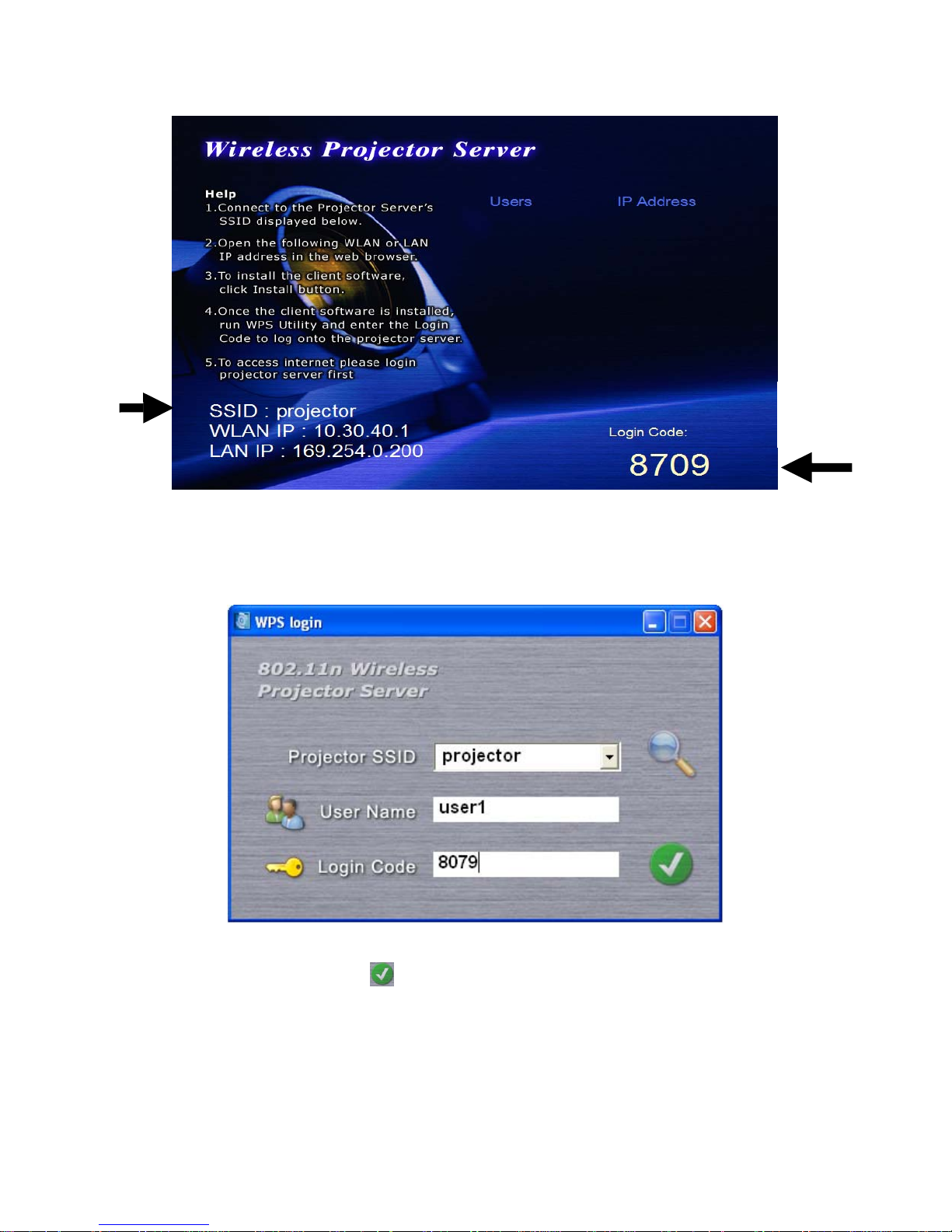

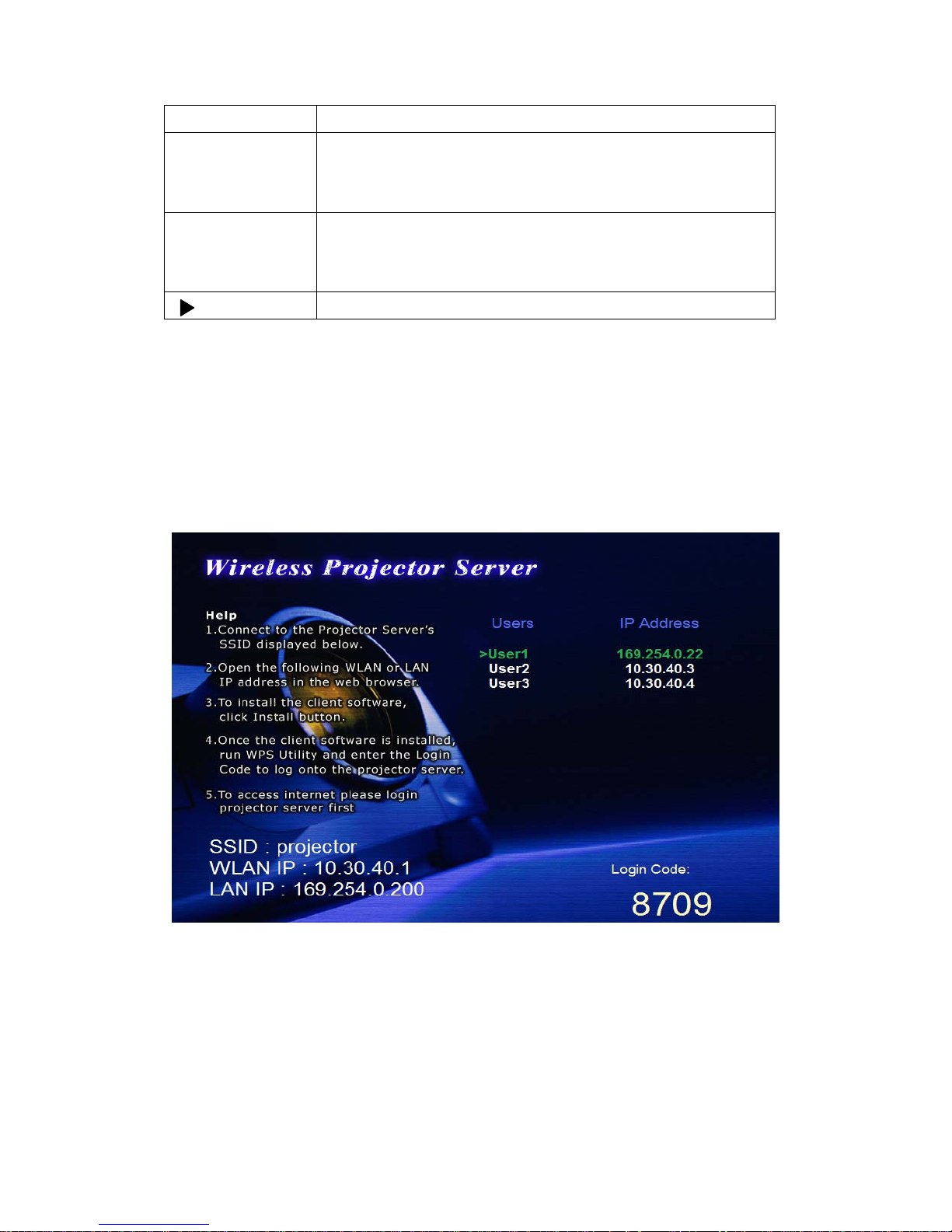

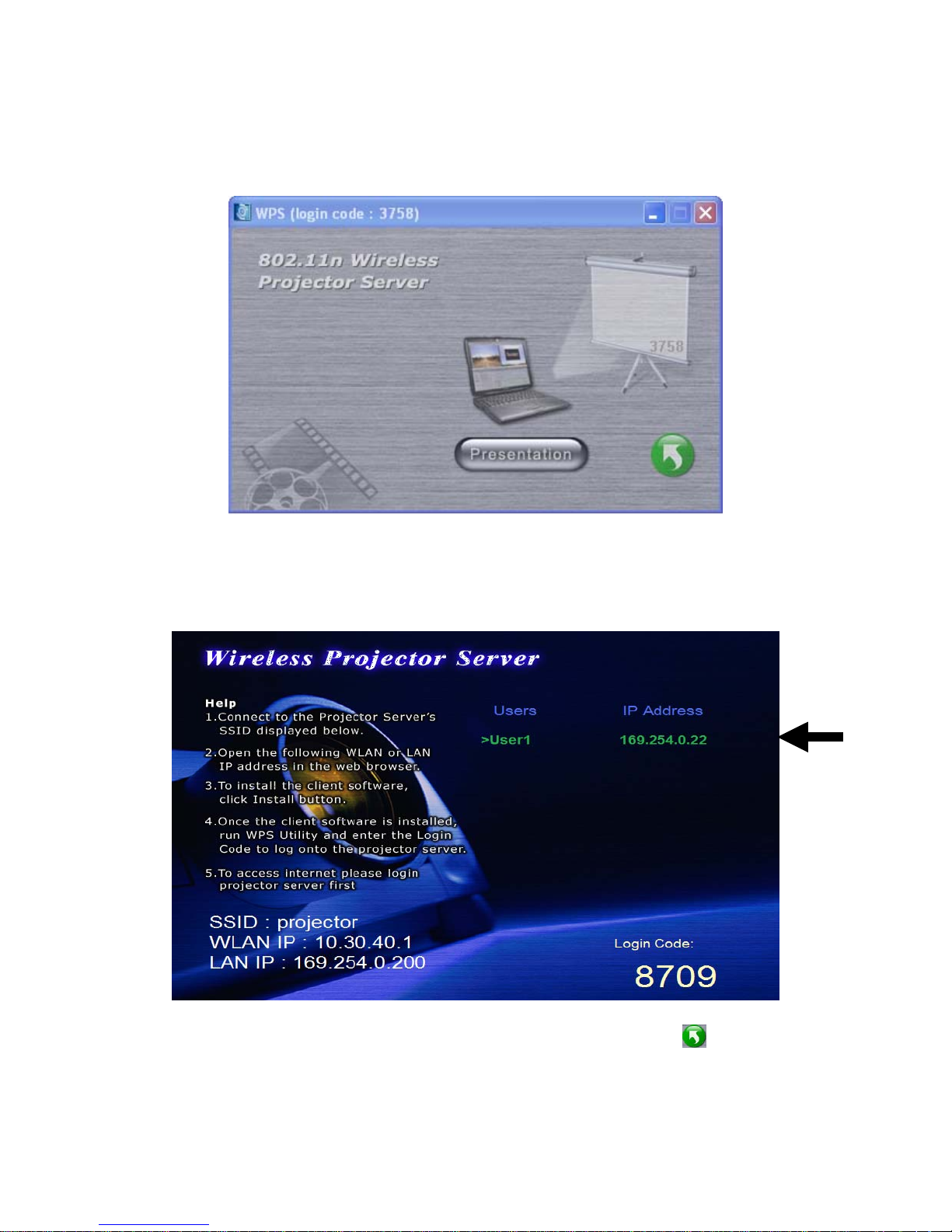

The IP address of Presentation Server can be found on the connected external
display, like following picture:
of Presentation Server can be found here.
The IP Address (Wireless / Wired Ethernet)
The IP address of the WLAN (wireless Ethernet) and LAN (wired Ethernet)
interface of Presentation Server can be found at the lower-left corner of video
display. You can use one of these IP addresses to connect to the Presentation
Server.
21
2-2 Connect to Presentation Server by Wireless Ethernet
2-3 Set the IP address of the Computer
If there’s no DHCP server available on your LAN, please follow the following
instructions to set the IP address of the computer, so the computers wish to
use the Presentation Server can connect to project server.
If the operating system of your computer is….
Windows 2000 - please go to section 2-3-1
Windows XP - please go to section 2-3-2
Windows Vista - please go to section 2-3-3
2-3-1 Windows 2000 IP address setup:
1. Click ‘St art’ button (it should be located at lower-lef t corner of your computer),
then click control panel. Double-click Network and Dial-up Connections icon,
double click Local Area Connection, and Local Area Connection
Properties window will appear. Select ‘Internet Protocol (TCP/IP)’, then click
‘Properties’
22
2. Select ‘Use the following IP address’, then input the following settings in
respective field:
IP address: 169.254.0.x (where x is an integer greater or less than 200, if
there’s more than one computer need to use this Presentation Server on the
same network, every computer should use an unique number)
Subnet Mask: 255.255.255.0
click ‘OK’ when finish.
2-3-2 Windows XP IP address setup:
1. Click ‘St art’ button (it should be located at lower-lef t corner of your computer),
then click control panel. Double-click Network and Internet Connections icon,
click Network Connections, and then double-click Local Area Connection,
Local Area Connection Status window will appear, and then click ‘Properties’
23
2. Select ‘Use the following IP address’, then input the following settings in
respective field:
IP address: 169.254.0.x (where x is an integer greater or less than 200, if
there’s more than one computer need to use this Presentation Server on the
same network, every computer should use an unique number)
Subnet Mask: 255.255.255.0
click ‘OK’ when finish.
24
2-3-3 Windows Vista IP address setup:
1. Click ‘St art’ button (it should be located at lower-lef t corner of your computer),
then click control panel. Click View Network Status and Tasks, then click
Manage Network Connections..Right-click Local Area Netwrok, then
select ‘Properties’. Local Area Connection Properties window will appear,
select ‘Internet Protocol Version 4 (TCP / IPv4), and then click ‘Properties’
25
2. Select ‘Use the following IP address’, then input the following settings in
respective field:
IP address: 169.254.0.x (where x is an integer greater or less than 200, if
there’s more than one computer need to use this Presentation Server on the
same network, every computer should use an unique number)
Subnet Mask: 255.255.255.0
click ‘OK’ when finish.
26
27 27
Loading...
