4K HDMI HDBaseT Extender Set,
100m
Manual
DS-55504
Page 2
Please read below safety instructions carefully before installation and operation:
1. Please pay attention to all the warnings and hints on this device.
2. Do not expose this unit to rain, moisture and liquid.
3. Do not put any stuff into the device.
4. Do not repair or open this device without professional instructions
5. Shut off power and make sure environment is safe before installation.
6. Do not plug-in/out the connected cables when it is in using.
7. Use DC12V/2A. Make sure the specification matched if using 3rd party DC adapters.
Introduction
This HDBaseT single network cable extender transmits HDMI signal up to 100 meters over Cat 6 network cable fluently and clearly. It is lossless in signal and supports 3D, 24bits Deep Color, CEC, HDCP and 4K2K/60Hz resolution. This product supports to power over network cable, just connect the power adapter with the receiver unit, can keep this device working well. It's a perfect solution for audio and video transmission in applications of HD conference system, HD multimedia education system, HD digital advertising and signage etc.
Features
1. Support bi-directional IR pass back.
2. Uncompressed HDMI video signal.
3. Supported resolution is up to ultra HD 4Kx2K@60Hz.
4. Support bi-directional RS232 passback.
5. Support HDBaseT, HDCP2.2, CEC, 24 Deep Color.
6. Support LPCM, DTS-HD and Dolby True HD audio.
7. Transmit 4K2K/60Hz signal over Cat 6 up to 100 meters.
8. Can be powered by network cable. It only needs to connect the 12V power on the receiver unit; both transmitter and receiver start work.
Page 3
Package Contents
TX Sender x1pcs RX Receiver x1pcs DC12V/2A x1pcs User manual
IR blaster extension
cap ×2pcs
IR receiver extension
cable x1pcs
x1pcs
RS232 serial port
cable x1pcs
Installation Requirements
1. HDMI source devices: with HDMI OUTPUT interface
2. Display devices: With HDMI INPUT port
3. Network cables: Cat 6/Cat 6A/Cat 7 network cables
Page 4
Panel Description

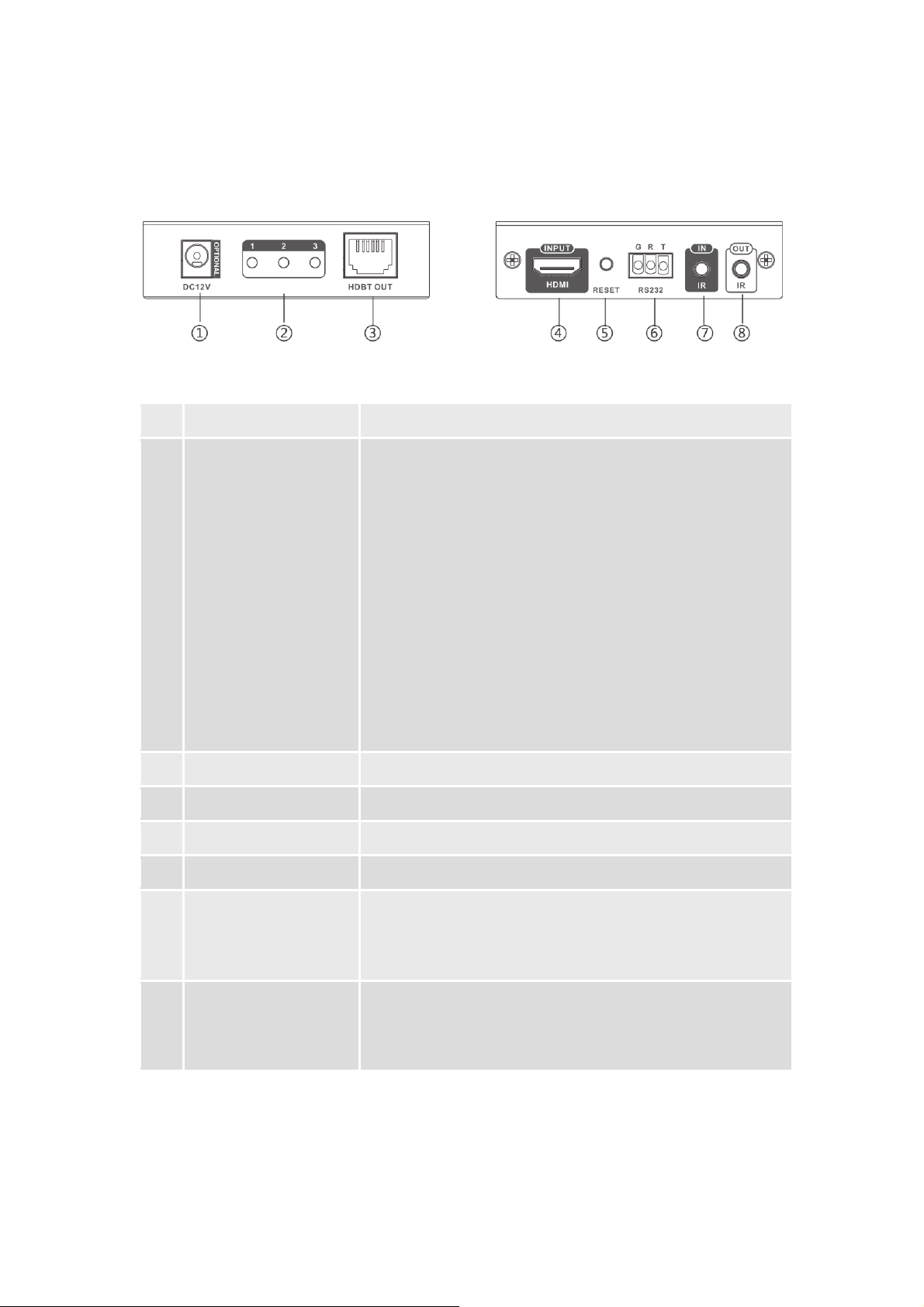

1. TX Sender
Power input Connect with DC12V/2A power adapter (optional)
1. LED 1: It turns on when power on.
2. LED 2:
It turns on when the transmitter unit and the receiver
unit connect well with each other, and it flashes when
Transmission signal
indicator
HDBT Output To connect with receiver by network cable
HDMI input Connect with HDMI source device
Reset button Press for restarting the unit
RS232 RS232 control
IR receiver extension
cable interface
IR blaster extension
cable interface
there is no transmission between the transmitter unit
and the receiver unit.
3. LED 3:
It flashes when the receiver unit connected well with
the HDMI display device, and it turns off when no
transmission between the receiver unit and the display
device.
Connect with IR receiver extension cable. Please make
sure the remote control is within the required range of
IR receiver
Connect with IR blaster extension cable. Please put the
IR blaster close to source device to best transmit the IR
signal from receiver
Page 5

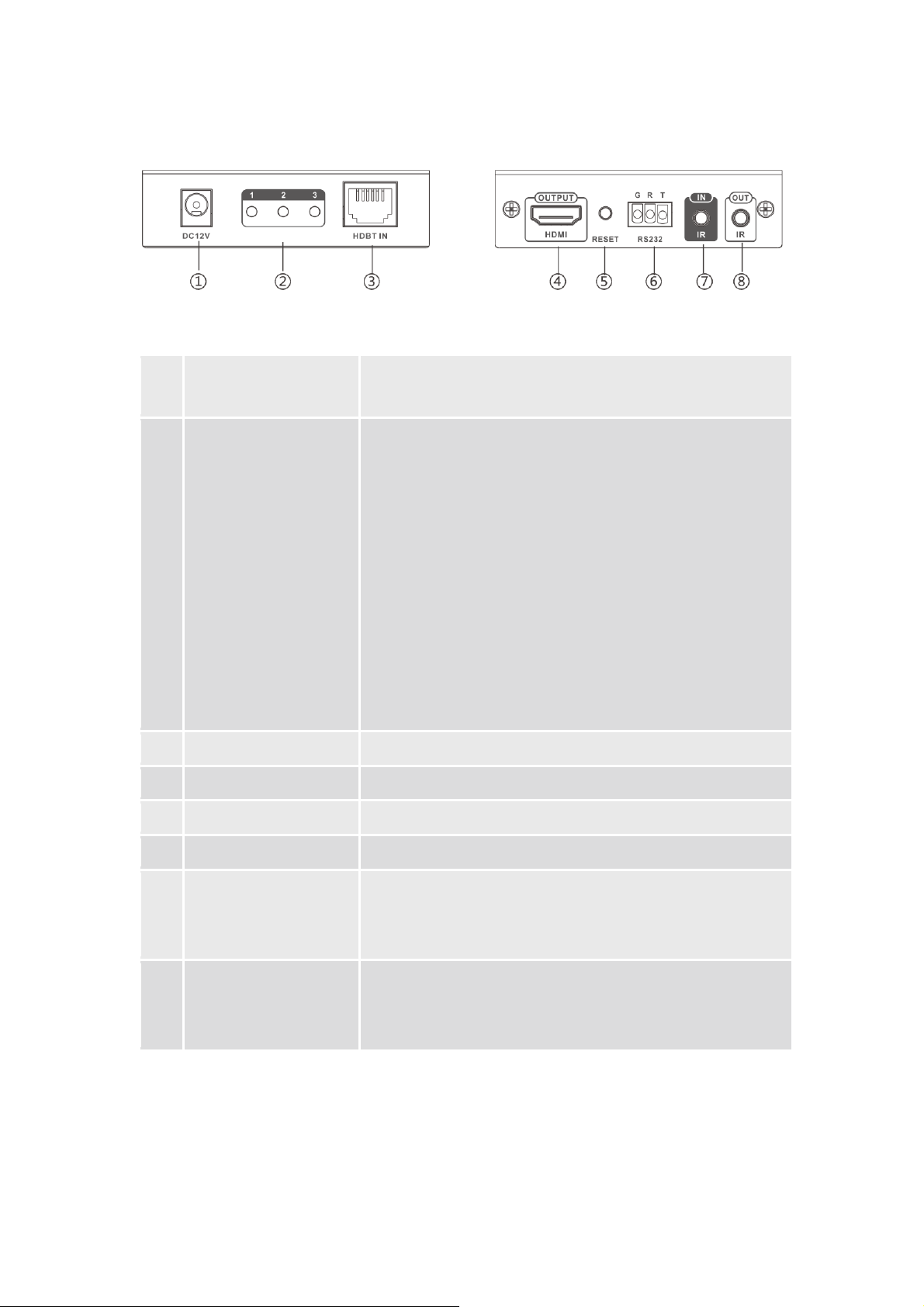

2. RX Receiver
Power input
Transmission signal
indicator
HDBT input To connect to trasmitter by network cable
HDMI output Connect with HDMI display device
Reset button Press for restarting the unit
Connect with included DC12V2A power adapter (It is
recommended to power from the receiver unit)
1. LED 1: It turns on when power on.
2. LED 2:
It turns on when the transmitter unit and the receiver
unit connect well with each other, and it flashes when
there is no transmission between the transmitter unit
and the receiver unit.
3. LED 3:
It flashes when the receiver unit connected well with
the HDMI display device, and it turns off when no
transmission between the receiver unit and the display
device.
RS232 RS232 control
IR receiver extension
cable interface
IR blaster extension
cable interface
Connect with IR receiver extension cable. Please make
sure the remote control is within the required range of
IR receiver
Connect with IR blaster extension cable. Please put the
IR blaster close to source device to best transmit the IR
signal from receiver
Page 6
Installation

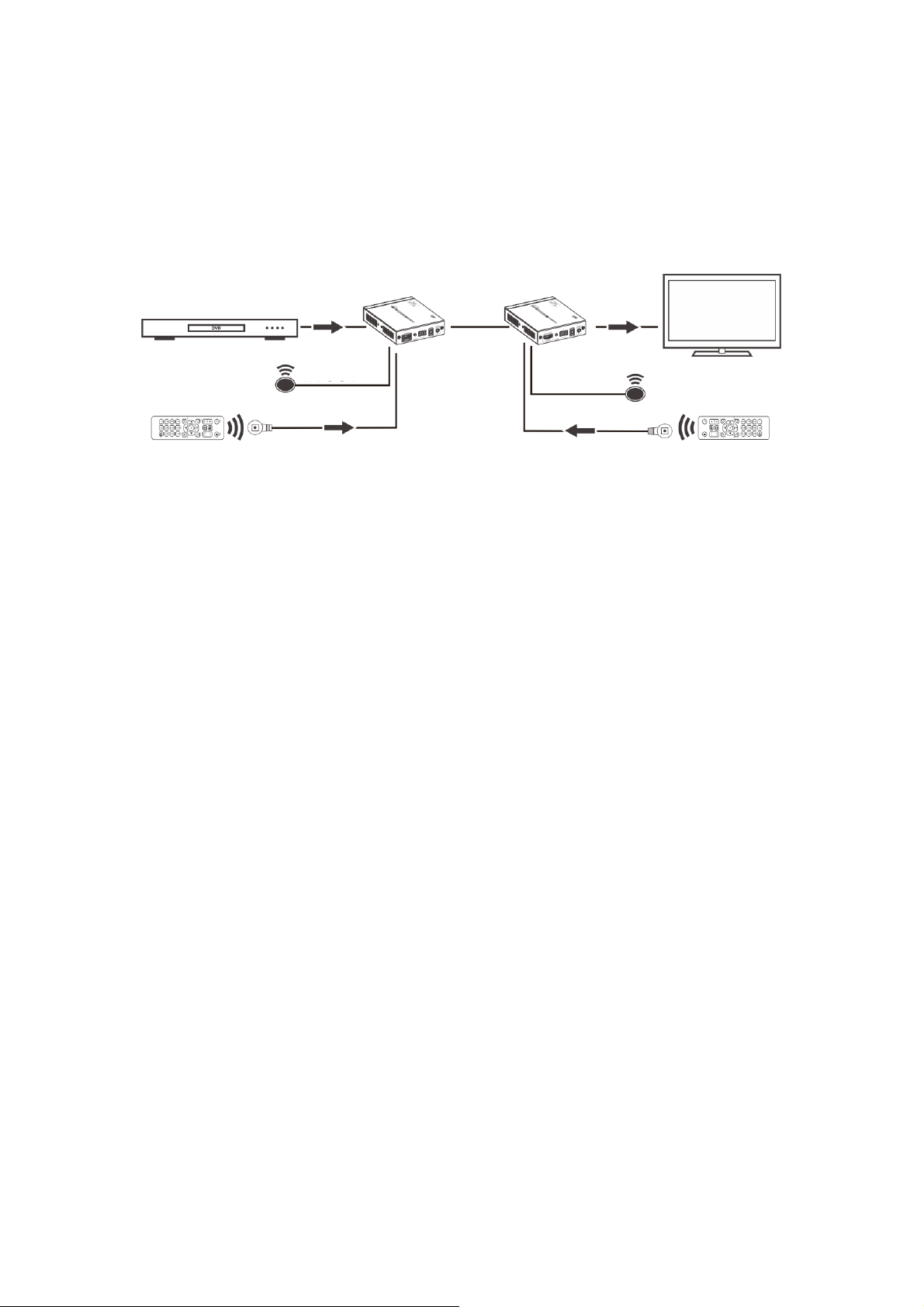

1. Connections
DVD
Sender Receiver
IR OUT
IR IN
IR OUT
IR IN
TV
[NOTE]: It is recommended to power from the receiver unit
2. Bi-directional IR pass back
1) It supports bi-directional IR pass back. User can control DVD at RX
end and control TV at TX end.
2) If control at RX end, please connect IR blaster extension cable
with IR OUT of TX and connect IR receiver extension cable with IR IN of RX. If control at TX end, please connect IR receiver extension cable with IR IN of TX and connect IR blaster extension cable with IR OUT of RX.
3. RS232 serial bi-direction passback function
1) Baud rate
Different encoding mechanism cannot mix-connect, the baud rate of RS232 serial of these transmitter unit and receiver unit, support 4800, 9600, 19200, 28800, 38400, 57600, and 115200
2) Line order

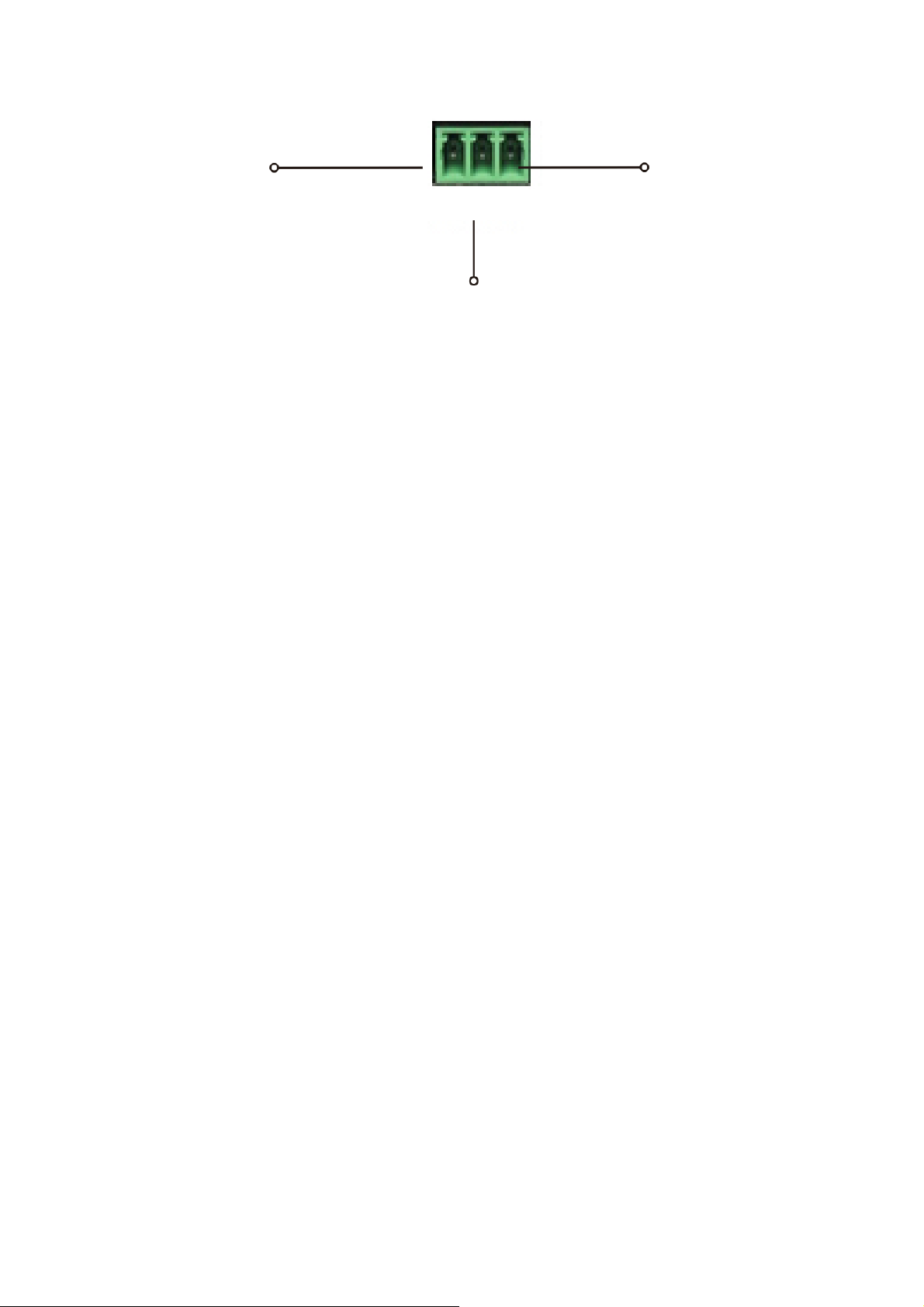

Check and make sure the RS23S serial line connect firmly and well, and make sure serial data line is connected correctly as below: If the RS232 serial does not work by following above connection, please try to change the order of TXD line and RXD line.
Page 7
GND line
RXD line
GRT
TXD line
3) Check baud rate
If need to check the baud rate at last time, firstly, set the baud rate to 115200 on your serial port test tool before power on. Then power on, when the RS232 serial of product connects to serial port test tool, the software will read out the baud rate at once. e.g.: software show information "Baud rate: 9600", means 9600 is the current baud rate.
4) Set baud rate
For example: the current baud rate is 9600, but the baud rate of control equipment is 19200, so the baud rate should be set as 9600. At this time, in serial port tool, choose baud rate "9600", then input command "set: 19200" in character format and send it out.
FAQ
Q: No output on screen?
A: 1) Firstly, please check and make sure the power supply is
connected well. Then, check and make sure all cables are
connected correctly.
2) Please check and make sure the right HDMI input port of the
TV/screen has been chosen.
3) Please check and make sure there is HDMI signal to be fed into
transmitter unit, and check and make sure the receiver unit has
been connected well with the display device.
Page 8
Q: Indicator LED 2 keeps off and no output?
A: Check and make sure the HDMI display device has been switched
to the right HDMI input channel.
Q: Indicator LED 3 keeps off?
A: Check whether the TX’s HDMI IN has signal input and make sure
RX’s OUT is well connected with HDMI display.
Q: Output image with snow point?
A: Change the HDMI cable between the transmitter unit and the
source device; it will be better to use a shorter HDMI cable for
re-testing.
Specification
Items Specifications
HDMI signal
Resolution Supported 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K
Audio LPCM, DTS Digital, Dolby Digital
Network cable CAT6, CAT6A, CAT7
Transmission length
IR control
Working temperature 0~55°C
Storage temperature -10~70°C
Humidity 0~90% (no condensation)
Power supply DC 12V/2A x1pcs
Power consumption TX: <6W; RX: <8W
Support HDMI2.0 HDCP2.2, support CEC and 24bits deep
color
CAT6 70m
1080p@60Hz 48bpp,
CAT6A 70m
1080p@60Hz 3D, 4Kx2K@60Hz
CAT7 70m
Support 20~60kHz wide frequency devices and
Bi-directional IR transmission
Product dimension 109.49(L)x87.0(W)x23.4(H)mm
Material Iron alloy material
Weight TX: 240g RX: 250g
Color Black
Page 9
