RS232 CAT5
EXTENDER
Manual
DS-52101
The CAT5 RS-232 Extender is a low cost, hardware-based solution providing remote access and control of any RS-232 protocol device. With regular RS-232 devices you are limited to an immediate area of control. The CAT5 RS-232 Extender extends control to over 2000M. This provides you with a tremendous amount of flexibility in your topology. Now you can place RS-232 devices in any location you want and control them remotely. The RS-232 Extender also provides full duplex transmission and is compatible with all RS-232 protocols.
Features:
Extends any RS232 compliant devices up to 2000 meters at 115200bps  One CAT5/5E cable  Easy plug and play installation  Full-duplex data communication  Speed up to 115,200 bps  Complete transmission of all pin RS-232C signals  Transmission Signal: DCD, RX, TX, DTR, DSR, RTS, CTS, RI  External power supply included
Installation View:
LED Indication Status:
ON Green ON Power on ON Green Flash unlink or link failed Tx RED FLASH RS232 Tx signal sending Rx BLUE FLASH RS232 Rx signal receiving
Cable:
Data Link cable using high quality CAT5E UTP/STP/FTP or CAT6 UTP cable.
Transmission Range:
Use CAT5e cable transmission up to 2 km (max) based on 115200bps. Based on different rates or CAT5e cable quality, the transmission distance will be slightly different.
RJ-45 Define:
2
Caution:
The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage.

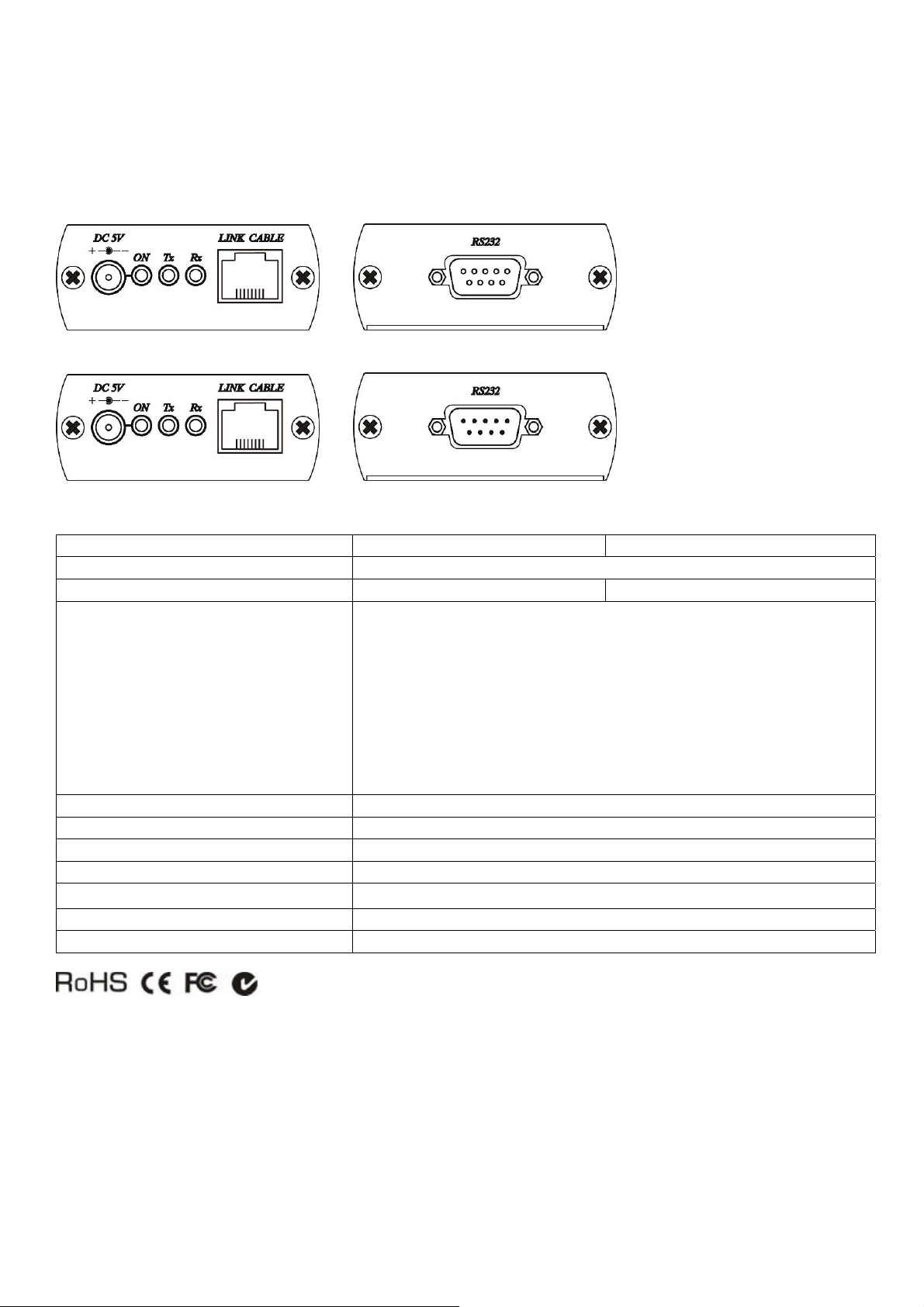

Panel View:
DS-52101 Transmitter
DS-52101 Receiver
Specification:
ITEM NO. DS-52101 Transmitter DS-52101 Receiver Data Baud Rate 300 bps ~ 115200 bps Input/Output Interface (RS232) DB9 x 1 (Female) DB9 x 1 (Male)
Pin 1 – Carrier Detect Pin 2 - Received Data Pin 3 - Transmit Data Pin 4 - Data Terminal Ready
DB9 Pin Out
Link interface RJ45 x 1 Transmission Range (Max.) 2 KM Power Consumption 200mA ~ 250mA
Power Supply DC 5V 1A Temperature Dimensions W x H x D mm 67 x 74.5 x 27 Weight g 130
Pin 5 - Signal Ground Pin 6 - Data Set Ready Pin 7 - Request To Send Pin 8 - Clear To Send Pin 9 – Ring Indicator
Operation: 0 ~ 55, Storage: -20 ~ 85, Humidity: up to 95%
Rev. B.
