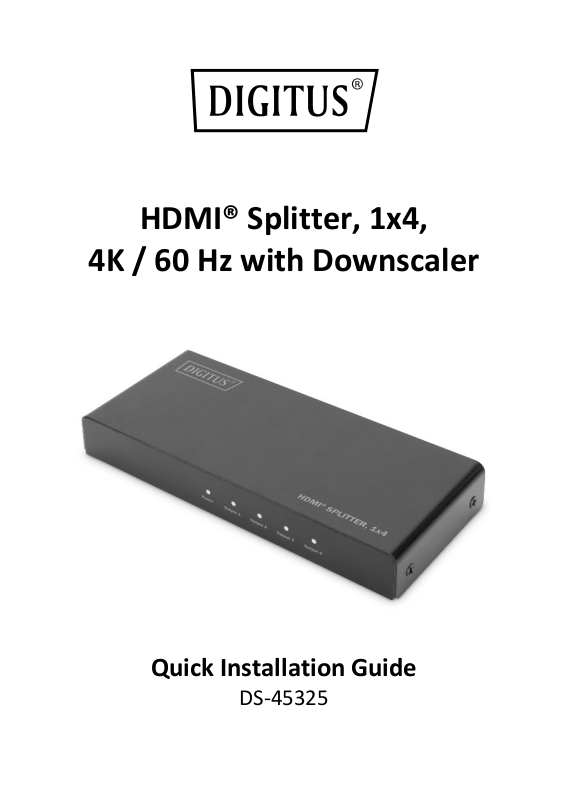

Digitus DS-45325 User guide
HDMI® Splitter, 1x4,
4K / 60 Hz with Downscaler
Quick Installation Guide
DS-45325
2
What’s included
Main unit
Power adapter
Ports and Interfaces
1
ON/OFF: Power on/off Button
4
OUTPUT 1-4: HDMI Output 14 port
2
DC/5V: DC 5V Input
5
Power: Power LED
3
INPUT: HDMI Input port
6
Output 1-4: HDMI Output 1-4
LED Indicator
3
Connection Diagram
(1) HDMI® Source
(2) Power Adapter
(3) HDMI® Display 4K/60Hz
Introduction
The DIGITUS® high-performing splitter splits your HDMI device’s
audio and video signals on up to four screens, TVs or projectors with
a resolution of UHD 4K / 60 Hz. Additionally, HDR, HDCP 2.2 and 3D
are supported - also a total width of 18 Gbps for fluent playback in
excellent quality. The integrated Downscaler supports the output of
4K contents on Full HD displays. Additionally, a 4K as well as a Full HD
display can be operated simultaneously. Thanks to its Auto-EDID
function, the splitter automatically recognizes the connected displays
- no manual settings required.
