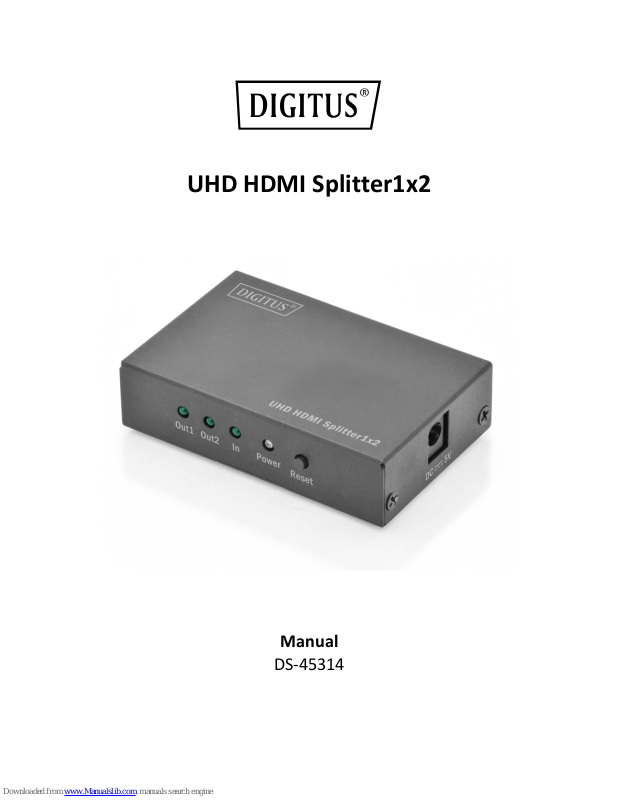

Digitus DS-45314 User Manual

UHD HDMI Splitter1x2

Manual

DS-45314

The Digitus 4K HDMI splitter 1x2 distributes the signal you’re your HDMI device to up to
two screens, televisions or projector in 4K Ultra HD (60 Hz) resolution. The hassle of
changing cables belongs to the past. In addition, full HD and Full 3D are supported. It
offers the ideal solution for commercial applications, such as, for example, for
video-wall presentations or product presentations (office/business premises, exhibition
stands, display windows, waiting rooms, gastronomy etc.), as well as in private areas
(home cinema). No matter whether it is photos, presentations as well as films/videos or
games, you can experience your content in ultra-sharp 4K UHD (60 Hz) resolution with
the 4K HDMI splitter 1x2.

1.0 INTRODUCTION

This is a high-performance and small-sized HDMI 2.0 UHD Splitter with hot plug and iron
shell. It distributes the input of the HDMI signal into two identical outputs at the same
time. It provides high performance audio and video output through HDMI cables up to
4kx2k@60HZ resolution and is capable of receiving and transmitting up to
6Gbps/600MHz bandwidth.

2.0 FEATURES

This HDMI2.0 UHD Splitter has many features that enable it to perform in a superior
manner. Among those features you will find:

 Easy to Use: Install in seconds, no need of setting
 One HDMI Input, two HDMI outputs
 Support HDMI resolution max up to 4KX2K (4096x2160)
 Support HDMI wide frequency max up to 600MHz
 Support Full 3D
 Support compressed audio such as DTS Digital, Dolby Digital
 Support HDCP 2.2

1

3.0 SPECIFICATIONS

Input/Output Connector

Input HDMI X1
Output HDMI X2
Operating Frequency
Vertical Frequency Range 24/30/50/60Hz
Video Amplifier Bandwidth 6Gbps/600MHz
Resolutions (HDTV)
Interlaced (50&60Hz) 480i, 576i, 1080i
Progressive (50&60Hz) Max up to 4kx2k@60Hz
Physical
Size (L-W-H) 80 x 51 x 20 mm
Weight (Net) 108g
Environmental
Operating Temperature 0°C to +45°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10°C to 70°C
Storage Humidity 5% to 90% RH (no condensation)
Power Requirement
External Power Supply 5V/1A
Power Consumption (Max) 2.55W

Note: Specifications are subject to change without notice.

4.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:

 Main units: UHD HDMI Splitter 1x2
 User Manual
 5V/1A DC power supply

5.0 CONNECTION

1) Connect the HDMI video source to the HDMI input of the Splitter with one HDMI
cable (HDMI cables are optional)
* Please refer to connection diagram section

2) Connect the two outputs of the Splitter to two displays

3) Turn on the power

2

6.0 CONNECTION DIAGRAM

Application

PC/Notebook

Monitor/TV Monitor/TV

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of
Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS
compliance. The complete declaration of conformity can be requested by post under the below
mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living environment.
In this case, the user can be requested to undertake appropriate measures to prevent interference.

www.assmann.com

Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany

3
