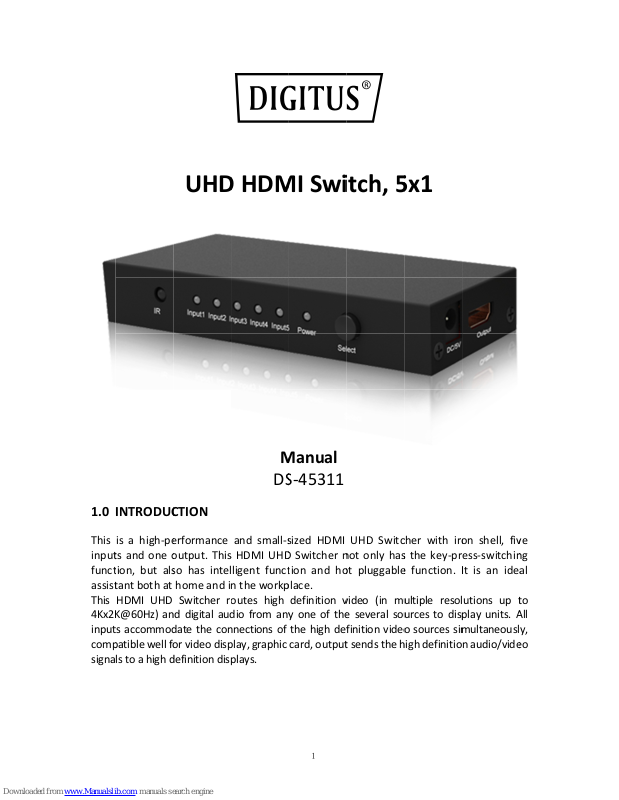

Page 1
t
t
t
K
t
p
C
e
o
s
n
d
o
d
D
s
d
n
p
p
M
MDS
s
D
t
p
y
n
o
v
e
f
t
5
s
e
u
u
o
h
o
I
l
p
m
v
n
a
t
A
e
1.0
INTRODU
This
is a high-p
inpu
s and one
func
ion, but al
assis
ant both at
This
HDMI UHD
4Kx2
inpu
s accommo
com
atible well f
signa
ls to a high
@60Hz) a
UH
TION
rformance
utput. Thi
o has intel
home and i
Switcher r
d digital au
ate the co
r video dis
efinition dis
HD
and small-
HDMI UH
ligent func
n the work
utes high
io from an
nections of
lay, graphic
lays.
I Swi
anual
-45311
ized HDMI
Switcher
ion and h
lace.
definition
one of th
the high de
card, outpu
tch,
UHD Switc
ot only ha
t pluggabl
ideo (in m
several so
inition vide
sends the
x1
her with ir
the key-pr
function.
ultiple reso
urces to dis
sources si
igh definitio
n shell, fi
ess-switchi
t is an ide
utions up
play units.
ultaneousl
n audio/vid
e
g
l
o
ll
y,
o
１
Page 2
2.0 FEATURES
This HDMI UHD Switcher has many features that enable it to perform in a superior manner.
Among of those features, you will find:
Enable both mechanical and intelligent switching
Own excellent compatibility
Support highest video resolution up to 4Kx2K@60Hz
Support Full 3D
HDCP pass through
Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD
and Dolby True HD)
EDID bypass
Compatible well with other device
3.0 SPECIFICATIONS
Signal Inputs/Output
Input Video HDMI
Maximum Single Link Range Full 3D and 4Kx2K@60Hz
Output Video HDMI
Operating Frequency
Vertical Frequency Range 24/30/50/60Hz
Video Amplifier Bandwidth 6Gbps/600MHz
Resolutions (HDTV)
Interlaced (50&60Hz) 480i, 576i, 1080i
Progressive (50&60Hz) 480p, 576p, 720p, 1080p, 4Kx2K@30Hz,
4Kx2K@60Hz
Mechanical
Size (L-W-H) 123x51x20mm
Weight (Net) 154g
Environmental
Operating Temperature 0°C to +40°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90% RH (no condensation)
Power Requirement
External Power Supply 5V/2A
Power consumption (Max) 2W
Accessories Adapter
IR remote 38KHz NEC Standard
Note: Specifications are subject to change without notice.
２
Page 3
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main units
User Manual
Remote control
Power Adapter
5.0 CONNECTION AND OPERATION
Connection
A. Connect the HDMI input source into the HDMI switcher. (HDMI cables are optional)
* Please refer to connection diagram section.
B. Press the button to select the inputs.
C. Turn on the power
Attention: Insert/Extract cable gently.
Operation Notes
1. Once the source device is turned on or plugged in (should stay power-on mode),
the switcher will automatically select this source.
2. Once the source device is turned off or plugged out, the switcher will select the
next power-on source depending on the sequence automatically.
3. When the source devices are on the stand-by mode, its power supply should be
turned off.
4. When plugged in or out, this switcher is completely intelligent.
３
Page 4
6.0 CONNECTION DIAGRAM
HDMI UHD switch 5x1
HDMI CABLE
HD Display
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements
of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS
compliance. The complete declaration of conformity can be requested by post under the below
mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to prevent
interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
