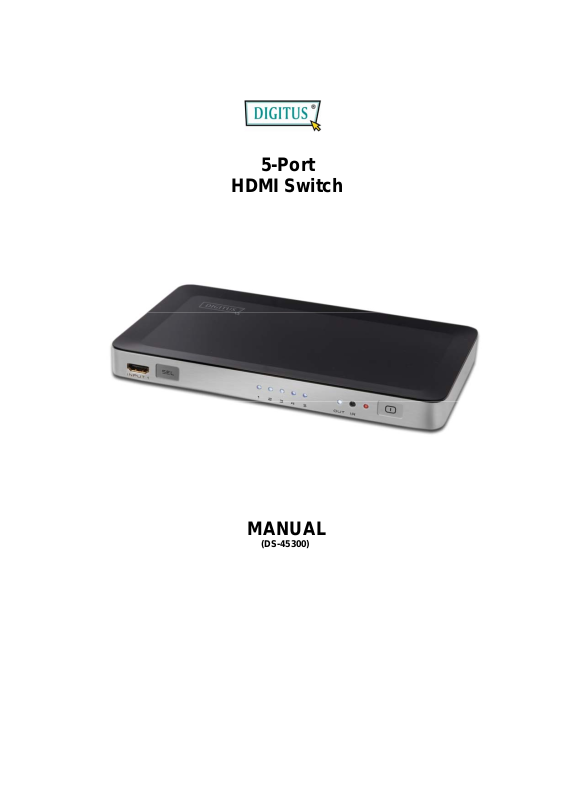

Digitus DS-45300 User guide

5-Port

HDMI Switch

MANUAL

(DS-45300)

HDMI Amplifier Switch 5×1

Table of Contents

1.0 Introduction……………………………………………………..2

2.0 Specification..………………………………………………..…3

3.0 Package Contents..….........................................................4

4.0 Panel Description.…………………………………………..…4

5.0 Connection and Operation..…...........................................4

１

HDMI Amplifier Switch 5×1

DIGITUS® HDMI Amplifier Switch

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.

1.0 INTRODUCTION

This is a kind of high performance HDMI Amplifier Switch. This kind of HDMI
Amplifier Switch not only has the key-press-switching function, but also has the IR
remote control and intelligent function. As soon as the power supply of the source
equipment is switched, this Switch will respond automatically. In addition, it is
equipped with standard IR extender receiver: safe and convenient. HDMI
Amplifier Switch routes high definition video (in multiple resolutions up to 1080p)
and digital audio from any one of the several sources to one display unit. All inputs
accommodate the connections of the high definition video sources simultaneously,
compatible well for HD-DVD,SKY-STB, PS3™, Xbox360™ etc. The output sends
the high definition audio/video signals to a high definition display.

1.1 INTELLIGENT FUNCTION

1) When supplied with power, this Switch will select the power-on source device
depending on the sequence automatically
(input1>inout2>input3>input4>input5)

2) Once the source device is turned on or plugged in (should stay power-on
mode), the Switch will automatically select this source.

3) Once the source device is turned off or plugged out, the Switch will
automatically select the next power-on source depending on the sequence
automatically (input1>inout2>input3>input4>input5)

4) Once the touch button been touched, the Switch will automatically select the
next power-on source depending on the sequence
(input1>input2>input3>input4> input5)

Note:

1) When the source devices are on the stand-by mode, its power supply should
be turned off, otherwise the HDMI Switch cannot meet intelligent function.

2) When plugged in or out, the HDMI Switch is completely intelligent.

２

HDMI Amplifier Switch 5×1

1.2 FEATURES

This HDMI Amplifier Switch has many features that enable it to perform in a
superior manner. Among those features you will find:

 Multifunctional on switching : intelligent, IR remote or by touch button
 IR extender receiver (included)
 IR remote(included)
 Support HDMI High Speed (1.3b)
 Support highest video resolution 1080p.
 Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
 Support 12bit per channel (36bit all channel) deep color.
 HDCP pass-through.
 Support uncompressed audio such as LPCM.
 Support compressed audio such as DTS Digital, Dolby Digital（including

DTS-HD and Dolby True HD）.

2.0 SPECIFICATIONS

Signal Inputs/Output

Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 1920X1080p
Output Video HDMI High Speed (1.3b)
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Mechanical
Size(L-W-H) 220x128x25mm
Weight(Net) 350g
Warranty
Limited Warranty 2 Years - Parts and Labor
Environmental
Operating Temperature 0°C to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply 5V@2A
Power consumption (Max) 5W
Accessories Adapter

IR extender receiver

IR remote
User Manual English Version

Note: Specifications are subject to change without notice.

３

HDMI Amplifier Switch 5×1

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:

 Main unit.
 Remote control
 IR extender receiver
 User's Manual
 Power Adapter

4.0 PANEL DESCRIPTION

Back side:

Outpu

Front side:

DC/5V

t

Input

5

Input

4

Input

3

Input

2

Input

1

Selec

t

1

2345

Out

Power

IR

5.0 CONNECTION AND OPERATION

1) Connect the HDMI input source into the HDMI switch. (Input cables are
optional)
*Please refer to connection diagram section.

2) Insert the DC side of 5v power supply into the HDMI switch and then connect
the AC side of the power supply into the wall outlet.

3) Turn on the power.

Attention: Insert / Extract cable gently.

5.1 CONNECTION DIAGRAM

４

For batteries: Please recycle only completely discharged batteries.
