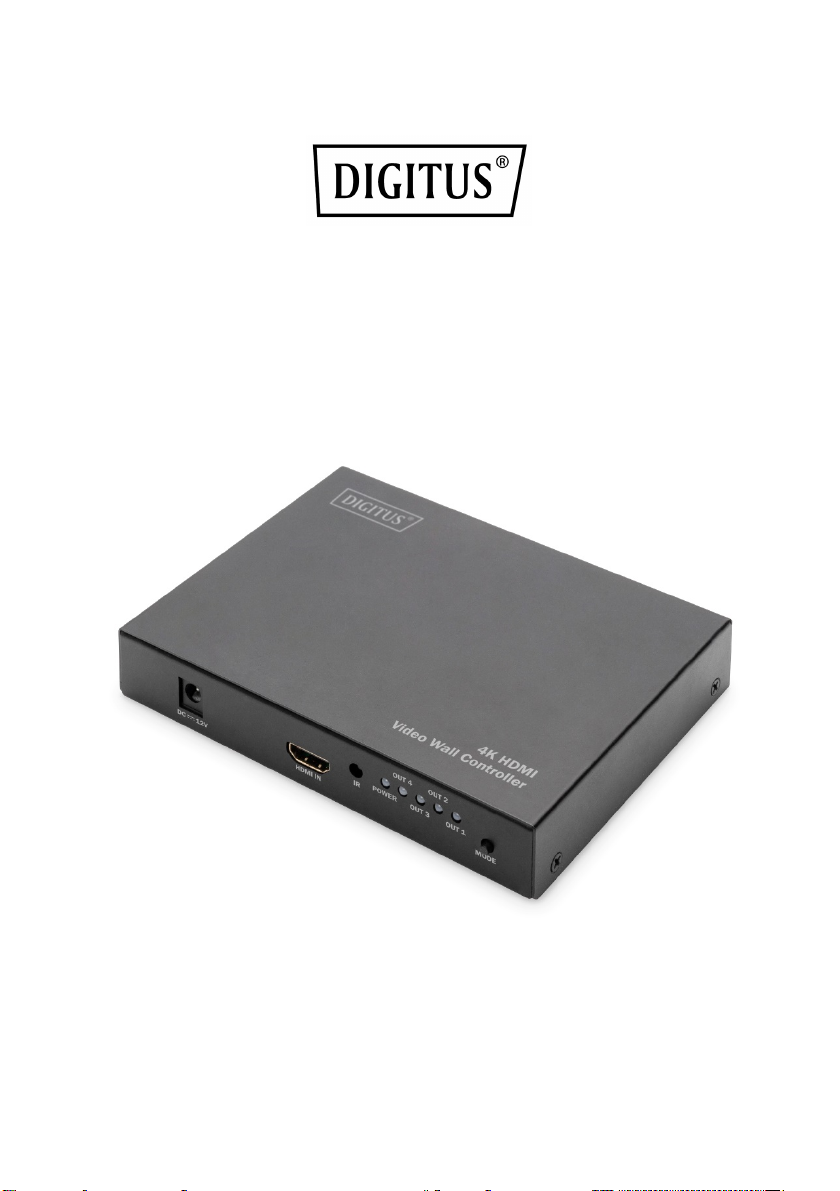

Page 1
4K HDMI VIDEO
WALL CONTROLLER, 2 x 2
User Manual
DS-43309
Page 2
Contents
Introduction ............................................................................................................. 2
Features ................................................................................................................... 3
Package Content....................................................................................................... 3
Ports And Interfaces ................................................................................................. 4
Remote Control .................................................................................................... 4
Main unit .............................................................................................................. 4
Mode Description ..................................................................................................... 5
Connection Diagram ................................................................................................. 6
Specification ............................................................................................................. 6
Troubleshooting ....................................................................................................... 7
Power Adapter Information ..................................................................................... 7
Introduction
With the DIGITUS® Video Wall Controller 2x2, you can transform a total of 4
TV sets or monitors with HDMI® into a large-format video wall. The controller
enables you to distribute a high-resolution 4K signal across 4 Full HD displays
to create a large image. You can be as creative as you like: set up a classic 2x2
monitor wall or arrange 2 to 4 monitors horizontally or vertically, combining
them to make a video wall. By pressing a button on the device or the remote
control included in delivery, you can switch between the different modes.
The device also contains a splitter function that allows you to display the
same image on all the monitors. With this professional tool, you are ideally
equipped to display visualizations of all kinds for trade fairs, advertising or
shop windows with a high degree of flexibility.
2
Page 3
Features
• Support one HDMI input resolution up to 4K@60Hz YUV 4:4:4
• Support four HDMI outputs resolution fixed to 1080p@60Hz
• Support various display modes selectable via front button and
remote control to combine up to 4 flat panel LCD TVs into one larger display
• Support on screen display (OSD) function for mode and port information
• Support power-off memory function to keep the last setup status when power on

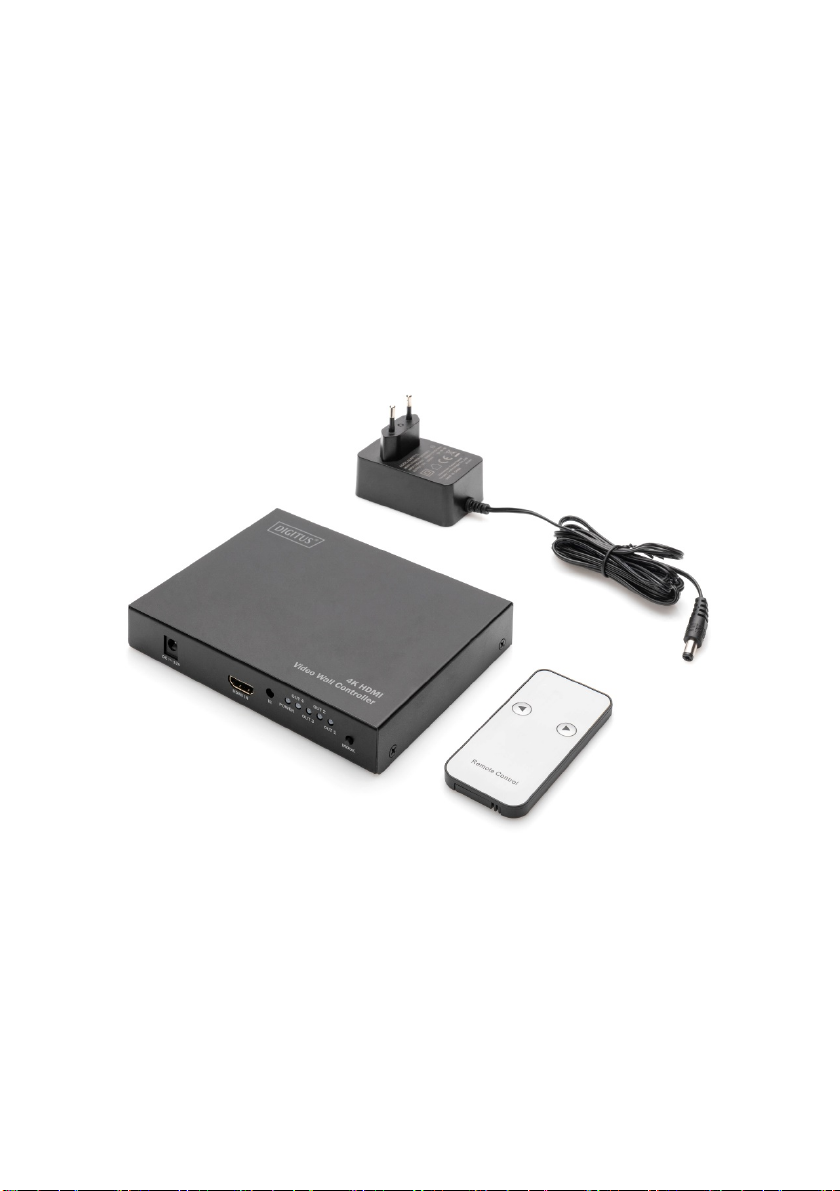

Package Content
• 1 x 4K HDMI® Video Wall Controller, 2 x 2
• 1 x Power adapter
• 1 x Remote control
• 1 x User manual
3
Page 4

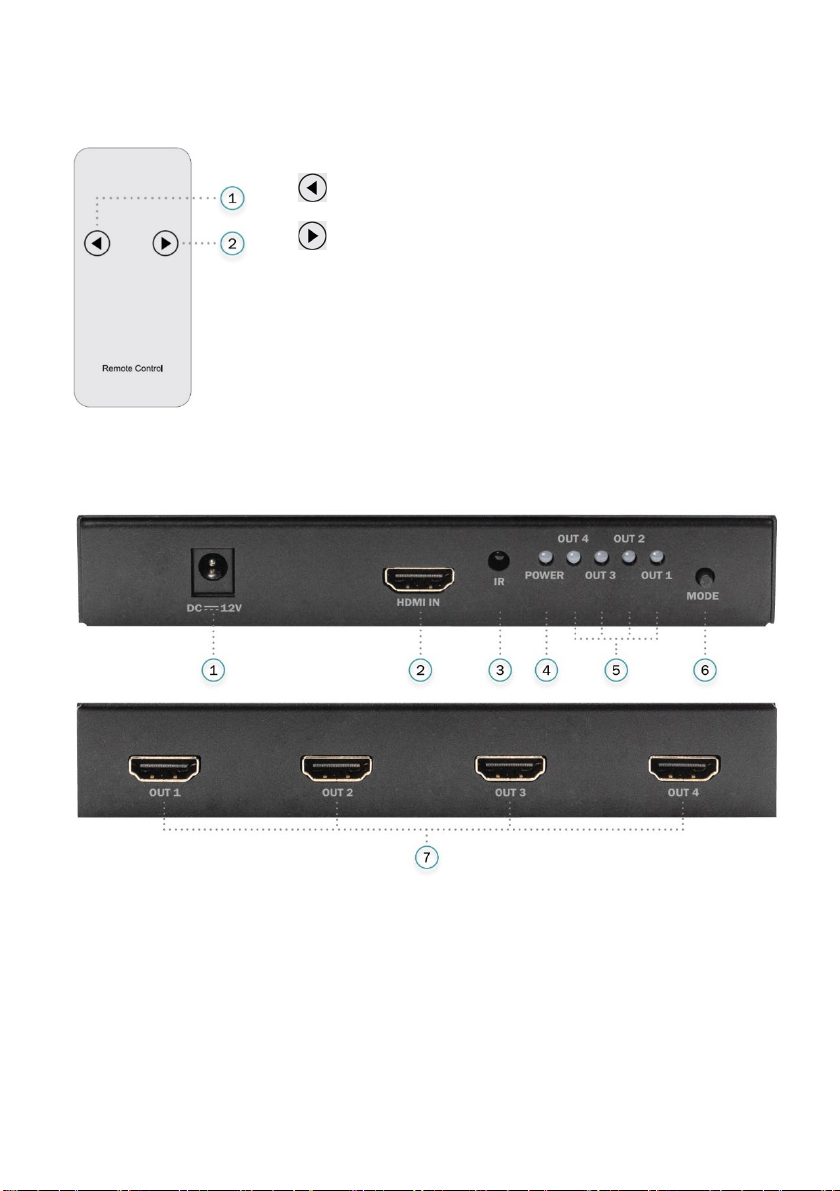

Ports And Interfaces
1.)
DC/12V: DC 12V Input
5.)
OUT 1-4: HDMI Output 1-4
LED Indicators
2.)
HDMI IN: HDMI Input port
3.)
IR: IR Receiver Port
6.)
MODE: Video Wall Mode Selector
4.)
POWER: Power LED
7.)
OUT 1-4: HDMI Output 1-4 Port
Remote Control
1.) : Press the button to select the previous mode
2.) : Press the button to select the next mode
Main unit
4
Page 5

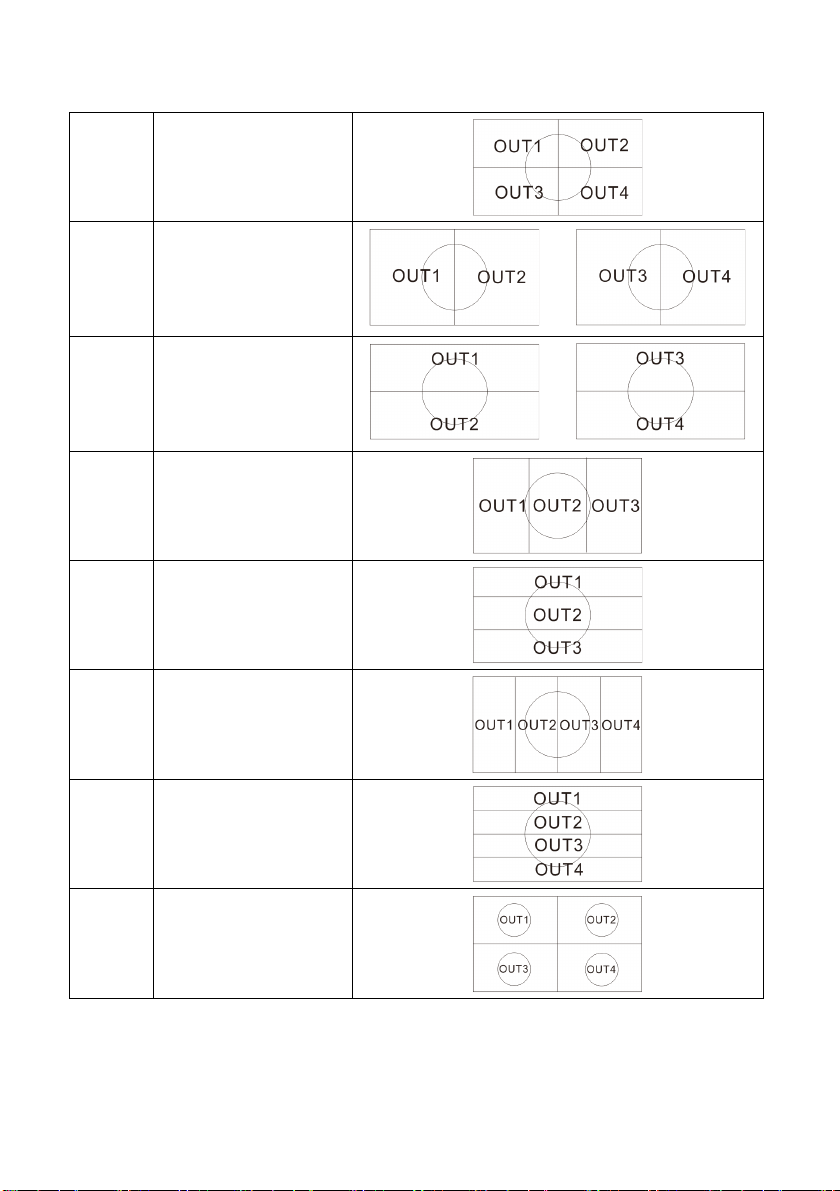

Mode Description
Mode 1
2x2 video wall mode
Mode 2
1x2 video wall mode
and
Mode 3
2x1 video wall mode
and
Mode 4
1x3 video wall mode
Mode 5
3x1 video wall mode
Mode 6
1x4 video wall mode
Mode 7
4x1 video wall mode
Mode 8
1x4 Splitter mode
5
Page 6

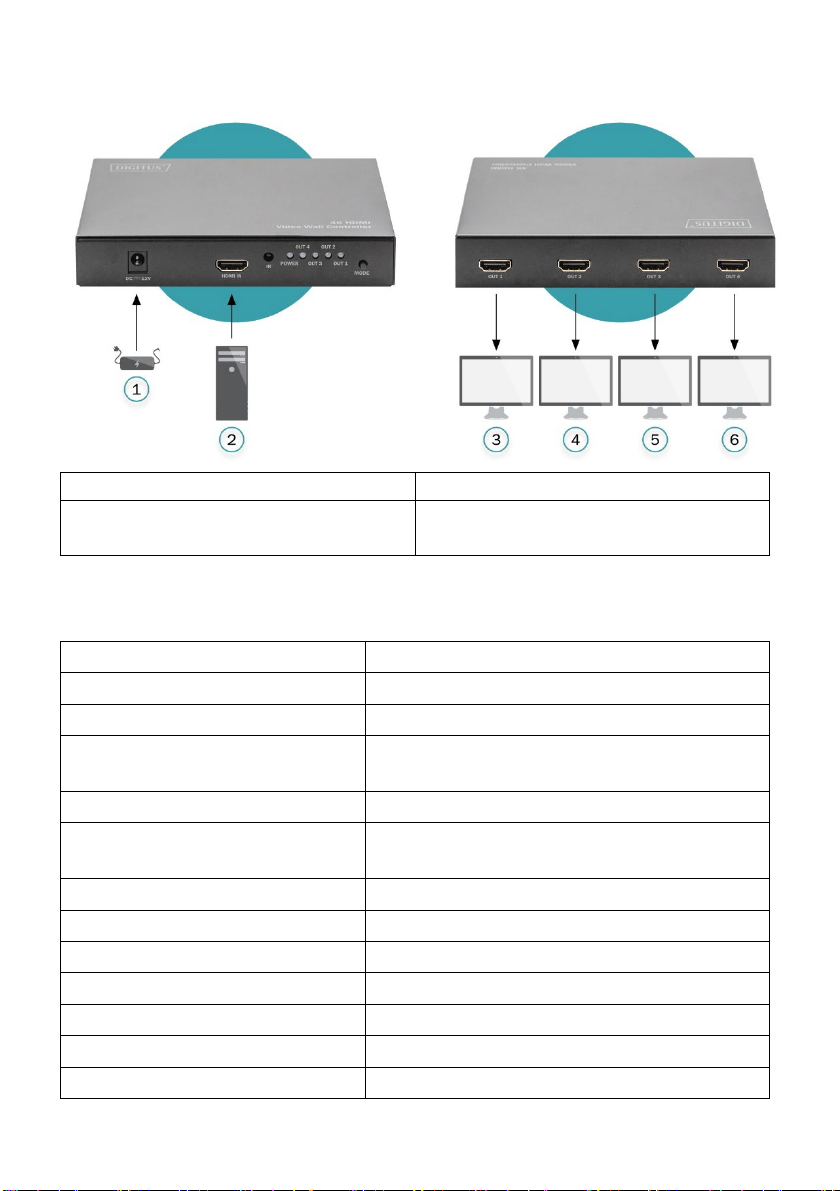

Connection Diagram
Front view
Back view
1
Power Supply
3-6
HDMI Display (OUT 1-4)
2
HDMI Source (PC)
Input Ports
HDMI x 1
Output Ports
HDMI x 4
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
6.0Gbps/600MHz per channel (18Gbps all
Interlaced (50&60Hz)
480i,576i,1080i
Progressive (50&60Hz)
480p, 576p, 720p, 1080p, 4K@24/25/30Hz,
Operating Temperature
0°C to 70°C
Storage Humidity
5% to 90% RH non-condensation
Power Supply
12V DC 2A
Power Consumption (Max)
12W
Dimension (LxWxH)
151 x 111 x 26.5 mm
Net Weight
395g
Material
Metal
Specification
channels)
4k@50/60Hz
6
Page 7
Troubleshooting
Problems
Causes
Solutions
Power light is off
Is the power adapter properly
Please check if the power
The product
Maybe the customers setup
Please change the resolution
No picture and
Maybe the products can`t
Please check the connection
Information published
Value & precision
Unit
Notes
Manufacturer’s name
or trade mark,
commercial registration
number and address
SHENZHEN Keyu
-
-
Model identifier
KA2401A-
-
-
Input voltage
AC, 100-240V
V
Specified by the manufacturer.
Shall be a value or
Input AC frequency
50-60
Hz
Specified by the manufacturer.
Shall be a value or a range.
and product is not
working
doesn’t show the
right image of the
Apple TV 4K or
other players
sounds after replug the HDMI
cables or power
cable
connected and the power
on/off button is on
the wrong output signal
formats that the processor
can`t support, such as HDR10
(4K@60Hz 4:2:0) and Dolby
Vision (4K@60Hz 4:2:2), etc.
recognize correctly signal of the
input and outputs after the
actions, or the connection of
the HDMI cables are not very
well
Power Adapter Information
Power Supply
Technology Co., Ltd
adapter is connected
properly and switch on the
power on/off button
to the SDR resolution like
4K@60Hz RGB or 4:4:4
down compatible with the
lower SDR resolutions
of the HDMI cables and
power cable, and re-connect
the HDMI cables and have a
try, or change a high quality
HDMI cables
，and
1202000EU
a range.
7
Page 8
Output voltage
DC, 12V
V
Nameplate output voltage. Shall
indicate whether is AC or DC.
In cases where more than one
physical output or more than one
output voltage at load condition 1
are measured, the sets of
available Output voltage
Output current
shall be published.
Output current
2
A
Nameplate output current.
In cases where more than one
physical output or more than one
output vol
are measured, the sets of
available Output voltage
Output current
shall be published.
Output power
24
W
Nameplate output power.
In cases where more than one
physical output or more than one
output voltage at load
are measured, the sets of
available Output voltage
Output current
shall be published.
Average active
efficiency
86.2
%
Declared by the manufacturer
based on the value calculated as
arithmetical mean of efficiency at
load
In cases where multiple average
active efficiencies are declared for
multiple output voltages available
at load condition 1, the value
published shall be the average
active efficiency declared for the
lowest output voltage.
—
– Output power
tage at load condition 1
—
– Output power
condition 1
—
– Output power
conditions 1-4.
8
Page 9
Efficiency at low load
(10 %)
76
%
Declared by the manufacturer
based on the value calculated at
load condition 5.
External power supplies with a
nameplate output power of 10 W
or less shall be exempted from
this requirement.
In cases where multiple averag
active efficiencies are declared for
multiple output voltages available
at load condition 1, the value
published shall be the value
declared for the lowest output
voltage.
No-load power
consumption
0.1
W
Declared by the manufacturer
based on the value
load condition 6.
e
Disclaimer
Dolby is a trademark of Dolby Laboratories.
The terms HDMI™ and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
Other trademarks or trade names mentioned herein refer to the organizations or
their products that own the trademarks or names. We do not own the related rights
of trademarks and product names of other organizations.
Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is
part of the shipping content. If the Declaration of Conformity is missing, you can
request it by post under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
measured for
