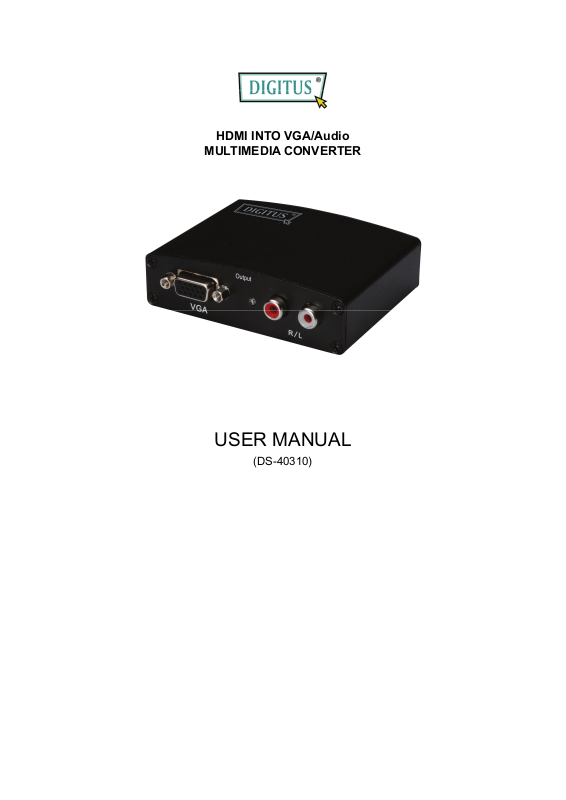

HDMI INTO VGA/Audio
MULTIMEDIA CONVERTER
USER MANUAL
(DS-40310)
HDMI into VGA+R/L Audio Multimedia Converter
Table of Contents
1.0 Introduction……………………………………………….....2
2.0 Specifications…………………………………………..……2
3.0 Package Contents…………………………………………...3
4.0 Panel Descriptions…………………………………….........3
5.0 Connection and Operation …………………….…....…….4
2
HDMI into VGA+R/L Audio Multimedia Converter
HDMI into VGA +R/L Audio Multimedia Converter
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This kind of HDMI into VGA+R/L Audio Converter converts digital HDMI signal
into analog VGA video and R/L audio signal. It allows users to enjoy their high
definition image and sound when watching movies or playing games on the
traditional VGA monitors or projectors.
It offers solutions for digital entertainment center, HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise space and security concerns,
data center control, information distribution, conference room presentation,
school and corporate training environments.
1.1 FEATURES
This HDMI converter has many features that enable it to perform in a superior
manner. Among those features you will find:
Easy to Use: Install in seconds, no need of setting.
Conversion: It could convert complete HDMI into VGA video and R/L audio
output.
Supports HDCP 1.2
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)
bandwidth for HDMI Input.
Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Input connection HDMI A female(19pin)
Output connection VGA, R/L
HDMI video input format 480i/576i/480p/576p/720p/1080i/1080p
VGA video output format 480i/576i/480p/576p/720p/1080i/1080p
Audio output format 2 channel LPCM
Operating Frequency
Vertical Frequency Range 50/60Hz
Input Video Amplifier Bandwidth 1.65Gpbs/165MHz
3
HDMI into VGA+R/L Audio Multimedia Converter
Mechanical
Size(W-H-D) 88mmW x 25.5mmH x 68mmD
Weight(Net) 0.68kgs
Warranty
Limited Warranty 2 Year Parts and Labor
Environmental
Operating Temperature 0° to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature
-10° to +80℃
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A
Power consumption (Max) 5W
Regulatory Approvals
Converter Unit FCC,CE,
Power Supply CE,FCC
Accessories Adapter
AC Power Adapter US standard, UK standard and so on
User Manual English Version
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the shipping carton:
Main unit.
5V DC Power Supply
User's Manual
4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(s), output(s) and power requirements.
4
HDMI into VGA+R/L Audio Multimedia Converter
Back Panel:
Upper Panel:
Front Panel:
DC/5V
HDMI
Input
output
VGA
R/L
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have
been turned off.
1) Connect the HDMI input from source device to this Converter. (Input
cables are optional)
3) Connect the VGA and R/L audio output of this product to the display
device.
4) Insert the DC side of 5v power supply into this product and then connect
the AC side of the power supply into the wall outlet.
5) Power on all connected devices, choose the input of the display device to
its VGA channel.
6) The image does not need to be adjusted. This Converter will
position it automatically.
5
HDMI into VGA+R/L Audio Multimedia Converter
Note：HDMI into VGA conversion may existing the following compatibility problems
1. If the VGA port of Display doesn’t support Refresh Rate at 50HZ, the connected
Display will have no image when the HDMI Source setting at 50 Hz.
2. If the VGA port of Display doesn’t support resolution at 720p, 1080i and 1080p,
the connected Display will have no image when the HDMI Source setting at 720p,
1080i and 1080p.
3. If the connected VGA Display doesn’t support interlaced resolution, it will have
no image when the HDMI Source setting at 1080i, 480i or 567i.
Our converter fully supports the above formats. These common problems are
mainly coursed by Displays not supporting these formats.
5.1 CONNECTION DIAGRAM
