Page 1
ACTIVE CONVERSION BOX
VGA TO DVI
User Manual
DS-40201
Page 2
2
Table of Contents
1.0 Introduction .................................................................................... 2
2.0 Specifications ................................................................................. 3
3.0 Package Contents .......................................................................... 3
4.0 Panel Descriptions ......................................................................... 4
5.0 Connection and Operation ............................................................ 4
VGA to DVI Converter
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
1.0 INTRODUCTION
This kind of the Converter is a VGA video converter. It converts VGA input into DVI and
allows PC users to enjoy their larger image on TV.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB,
DVD and Projector factory, noise space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
Page 3
3
1.1 FEATURES
This DVI converter has many features that enable it to perform in a superior manner.
Among those features you will find:
Easy to Use: Install in seconds, no need of setting.
Conversion: It could convert PC’s VGA video into complete DVI.
Supports highest video resolution 1280x1024.
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5-1.0 volts p-p
Input Video VGA （female）
Output Video DVI （female 24+1）
VGA Resolution 640x480 60Hz 75Hz
800x600 60Hz 75Hz
1024x768 60Hz 75Hz
1280x720 60Hz 75Hz
1280x768 60Hz 75Hz
1280x960 60Hz 75Hz
1280x1024 60Hz 75Hz
Operating Frequenc
y
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 1.65Gpbs/165MHz
Mechanical
Size(W-H-D) 88mmW x 25.5mmH x 68mmD
Weight(Net) 0.68kgs
Warranty
Limited Warranty 2 Year Parts and Labo
r
Environmental
Operating Temperature 0 °C to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Suppl
y
5V DC@2
A
Power consumption (Max) 5W
Regulatory Approvals
Converter Unit FCC,CE,
Power Supply CE,FCC
Accessories Adapter
A
C Power Adapter 5V 2A
User Manual 1
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following
items are contained in the shipping carton:
Main unit.
5V DC Power Supply
User's Manual
Page 4
4

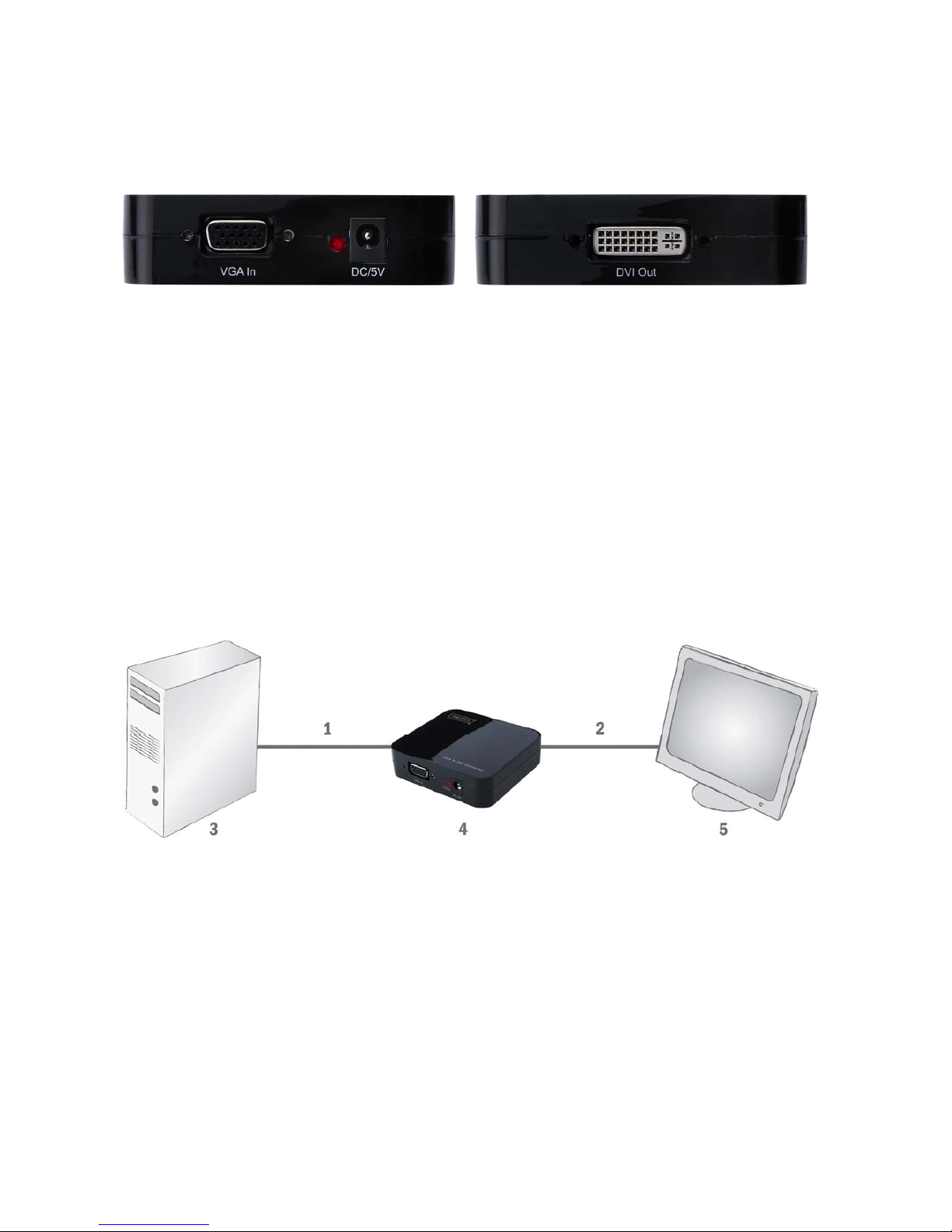

4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s),
output(s) and power requirements.
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1) Connect the VGA video from computer to this product. (Input cables are optional)
2) Connect the DVI output from this product to the TV which has DVI input.
3) Insert the DC side of 5v power supply into this product and then connect the AC side of
the power supply into the wall outlet.
5) Power on the computer and TV, choose the input of TV to its DVI channel.
6) The image does not need to be adjusted. This Converter will position it automatically.
Attention: Insert / Extract cable gently.
5.1 CONNECTION DIAGRAM
1 VGA cable
2 DVI cable
3 PC
4 VGA to DVI Converter DS-40201
5 Monitor
