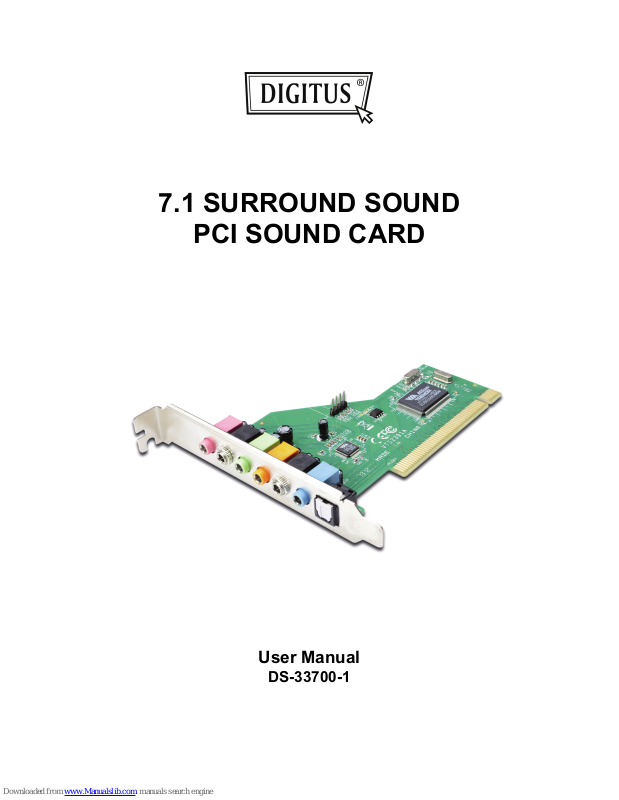

Digitus DS-33700-1 User Manual

7.1 SURROUND SOUND
PCI SOUND CARD

User Manual

DS-33700-1

1.0 Introduction

Thank you for buying our 7.1 Surround Sound PCI Sound Card! Your professional solution

for audio performance with your computer and digital Audio workstation software. This

manual will help you install it properly.

2.0 Specification

 PCI2.2 interface with bus mastering and burst modes

 Chipset :VT1723 and VT1618

 2/4/6/8 channel speaker mode.

 24-bit resolution audio format support

 Sampling rates up to 192kHZ

 Integrated S/PDIF input/output, support 44.1khz / 48KHZ / 96KHZ sampling

frequency, 16/2bits resolution

 Support the newest Dolby digital EX and DTS, ES 8-channel 7.1 audio of 6.1 / DVD

soundtrack broadcast

 DirectSound

TM

3D hardware acceleration, high fidelity audio reproduction

 24.576 and 22.5792 MHZ crystal operation

 S/PDIF digital audio using light soldering interface output

 Add independent CD input audio interface

 Stereo Mixer

 Supports direct music

 Stereo analogue mixing from CD-Audio and Line-in Stereo

 The TREMOR integrates an independent MPU-401 MIDI UART.

 Accord with energy conservation ACPI power management

 Supports Win2000/XP/2003-64/Vista-32/Vista-64/Win7/Win7-64

3.0 System Requirements

 Pentium-class computer with one available PCI slot

 Windows

®

2000, XP/2003/Vista/7 (32/64 bit)

 DirectX 8.1 above is required
