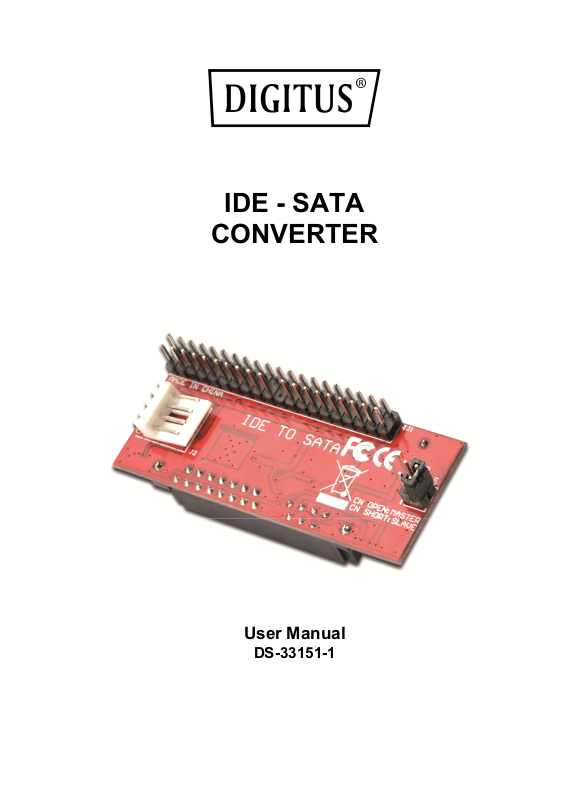

IDE - SATA
CONVERTER
User Manual
DS-33151-1
Introduction
This Bridge Board is a converter solution for the Serial ATA Device. It
has a standard 22 pin SATA port which can interface to a Serial ATA
device (hard disk, CDROM, DVD, CD-RW, etc). It accepts Parallel
ATA (IDE) commands through the 40 pin IDE connector form the host,
decodes the commands and converts them to Serial ATA commands to
the device. Responses from the device through the SATA bus are
deciphered, processed and converted to parallel ATA protocol and sent
to the host.
The SATA 150 to PATA Converter supports the Serial ATA Generation
1 transfer rate of 1.5GB/s (150MB/s) on the Serial ATA side and is
compatible with Ultra ATA-133 on the parallel ATA side.
Features
Compatible with Ultra ATA 133 / 100 / 66 / 33 specifications
Supports all types of SATA storage devices
(DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk, …)
100% hardware bridge converter to support PC, MAC and Linux
environment
Serial ATA Features
Compliant with Serial ATA 1.0 specifications
Supports Serial ATA Generation 1 transfer rate 1.5Gb/s
Package Contents
1 x IDE to SATA adapter
1 x User Manual
Note: Contents may vary depending on country/market.
Hardware Installation
SATA device (Hard drive or Optical drive)
To PC Power Supply
To motherboard’s IDE Port
Note: Please make sure that your PC is shut down during your
hardware installation. This IDE to SATA adapter with your SATA
device is not hot swap device and please shut down your computer
before you want to connect this device.
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of
Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of
conformity can be requested by post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living environment. In
this case, the user can be requested to undertake appropriate measures to prevent interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
