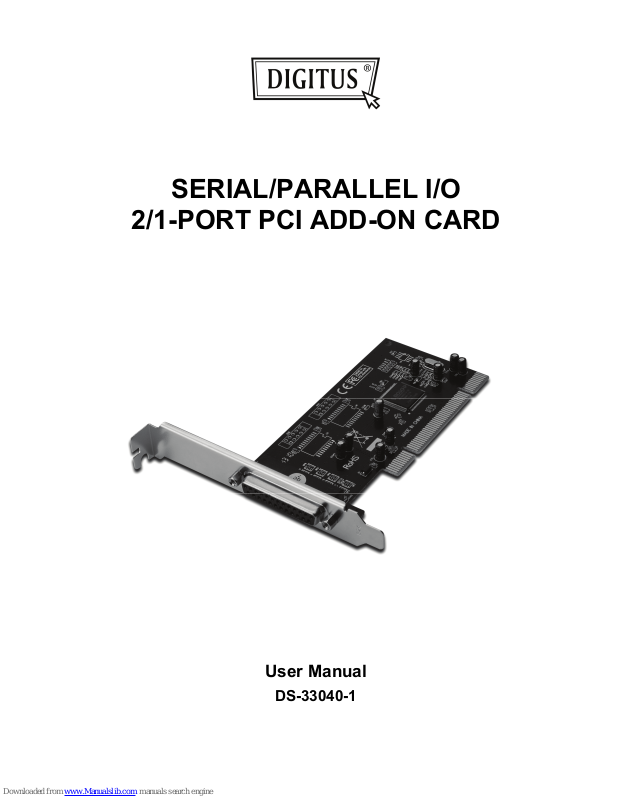

SERIAL/PARALLEL I/O

2/1-PORT PCI ADD-ON CARD

User Manual

DS-33040-1

Features and Benefits

 Compliant with PCI Local Bus Specification, Revision 2.3
 Supports 2 x UART serial ports
 Add one IEEE 1284 Parallel Port on system
 Easy Plug and Play
 Automatically selects IRQ & I/O address
 Built-in 16C450/550 compatible UART
 On chip 256 byte FIFOs in transmit and receive path

of each serial port

 Serial data transfer rate up to 115200bps
 Supports Standard Parallel Port (SPP), Enhanced
 Parallel (EPP) & Enhanced Capability Port (ECP)
 Parallel data transfer rate up to 1.5Mbytes/sec
 Bus PCI 32-bit
 Connectors 2 x DB9 male serial connectors

1 x DB25 female parallel connector

System Requirements

 Windows® 2000, XP / 2003 / Vista / Win 7
 Available PCI slot

Package Contents

 1 x 2S1P PCI Card
 1 x Driver CD
 1 x User’s Manual

Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCI slot.

4. To install the card, carefully align the card’s bus connector
with the selected PCI slot on the motherboard. Push the
board down firmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.
