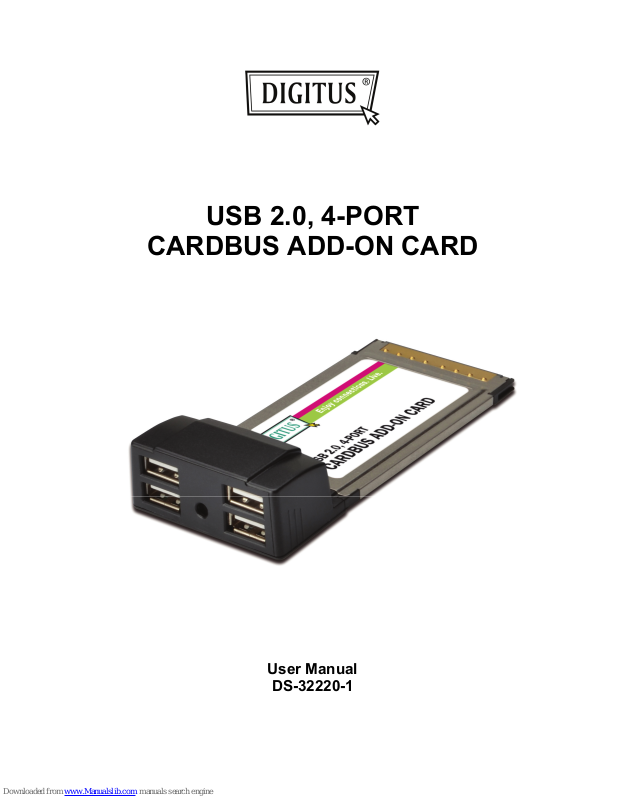

Page 1
USB 2.0, 4-PORT
CARDBUS ADD-ON CARD
User Manual
DS-32220-1
Page 2
Features and Benefits
Fully supports EHCI and OHCI Compliant standards
Compliant with Universal Serial Bus specification revision 2.0
Provides four external Type A
USB 2.0 (480Mbps) ports into your system
Supports simultaneous operation of multiple
USB 2.0 and USB 1.1 devices
Supports data transfer rates of high-speed
(480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps)
Works with a various type of USB devices including hubs,
removable drives, digital cameras, scanner, CD-RWs, PC video
cameras, printers, and more…
Package Contents
1 x USB2.0 4-port Cardbus Adapter
1 x User Manual
System Requirements
Windows® 2000/ XP / Vista / Windows 7
Available Cardbus type 2 Slot
CAUTION:
Use only switching power adapter with following specifications:
Switching power adapter (Optional) DC 5V, 2A
Polarity: Outside negative voltage(-) & Inside positive voltage(+)
3.5mm power jack
Page 3
Hardware Installation
General instructions for installing the card are provided below. Since
the design of system may vary, refer to your system’s reference
manual for further information, if needed.
1. Power off your notebook computer.
2. Insert the USB 2.0 CardBus Adapter into the Type II PC Card slot
of your notebook computer. Make sure it is inserted all the way in
for a solid connection.
3. Power on your notebook computer.
Driver Installation
For Windows® 2000 / XP / Vista / Windows 7
Windows® 2000 / XP / Vista / Windows 7 has built-in driver support for
this controller. Just install the board and Windows will automatically
detect and install the correct drivers for it. No additional driver is
necessary.
To Verify Windows® Installation
1. Right click My Computer, then click Manage. Click Device Manager.
2. Double click Universal Serial Bus controllers option.
- USB Root Hub ( USB 2.0 Root Hub in Windows® 2000)
- USB Root Hub
- USB Root Hub
- VIA Rev 5 or later USB Universal Host Controller
(VIA USB Universal Host Controller in Windows® 2000)
- VIA Rev 5 or later USB Universal Host Controller
(VIA USB Universal Host Controller in Windows® 2000)
- VIA USB Enhanced Host Controller.
